A Metal Deck Roll Forming Machine is a specialized production line designed for manufacturing galvanized steel floor deck panels used in composite floor systems, steel structure buildings, commercial construction, and industrial projects.

The machine continuously processes galvanized steel coils or Galvalume steel coils through multiple forming stations to produce high-strength metal deck profiles with accurate dimensions, stable quality, and excellent structural performance.

With advanced roll forming technology, the equipment provides smooth material feeding, precise profile forming, and reliable operation for long-term production. Depending on the profile design, material thickness, and machine configuration, the production speed can generally reach 10–20 m/min.

The key factors affecting the performance of a metal deck roll forming machine include forming roller design, machine rigidity, transmission system, cutting accuracy, and control system stability. A properly designed production line can effectively process galvanized steel coils while reducing surface damage and maintaining consistent profile quality.

​

Understanding Galvanized Steel Coils for Metal Deck Production

What Are Galvanized Steel Coils?

Galvanized steel coils are produced by coating carbon steel with a zinc layer, which provides excellent corrosion resistance and extends the service life of steel products.

Due to their durability and cost efficiency, galvanized steel coils are widely used for producing composite floor decks in:

High-rise buildings

Industrial workshops

Commercial buildings

Parking structures

Steel frame construction projects

For metal deck production, commonly used materials include galvanized steel (GI) and Galvalume steel (GL). The typical material thickness is usually between 0.8 mm and 1.2 mm, depending on the structural requirements of the project and the designed deck profile.

How Roll Forming Protects the Steel Coating

Unlike stamping processes, cold roll forming gradually shapes the steel sheet through a series of forming rollers. The progressive forming method reduces sudden stress concentration and helps maintain the integrity of the galvanized coating.

During production, the quality of the forming rollers, roller alignment, and forming process design directly influence the surface quality of the finished deck panels.

A well-designed metal deck roll forming machine adopts precision-machined rollers with proper surface treatment to reduce friction, minimize zinc adhesion, and ensure stable production performance.

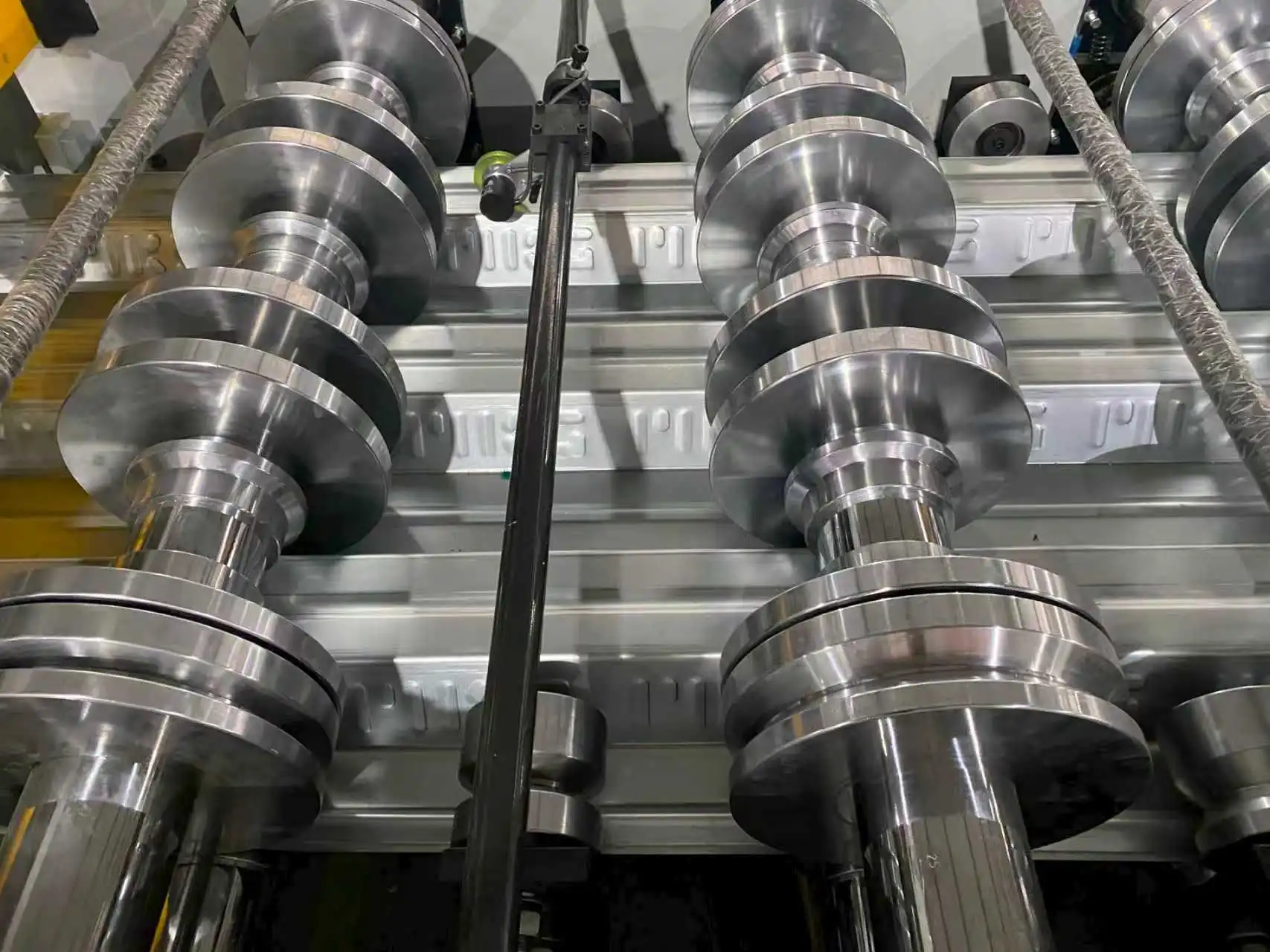

Precision Forming Rollers with Surface Treatment

Forming rollers are one of the most important components affecting the quality of metal deck production.

High-quality rollers are usually manufactured from 45# steel and processed through precision machining. After surface treatment and hard chrome plating, the roller surface hardness can reach approximately HRC58–62, providing:

Excellent wear resistance

Smooth material feeding

Reduced friction between roller and steel sheet

Stable profile dimensions during continuous production

The proper roller design helps reduce coating damage and improves the service life of the forming system.

Cr12MoV Cutting System

The cutting system is responsible for accurately cutting finished deck panels according to the preset length.

The cutting blades are manufactured from Cr12MoV tool steel with heat treatment, providing high hardness and wear resistance.

The hydraulic cutting system offers:

Stable cutting force

Clean cutting edges

Reduced deformation of finished products

Reliable operation during continuous production

The cutting length and production quantity can be controlled through the PLC system according to customer requirements.

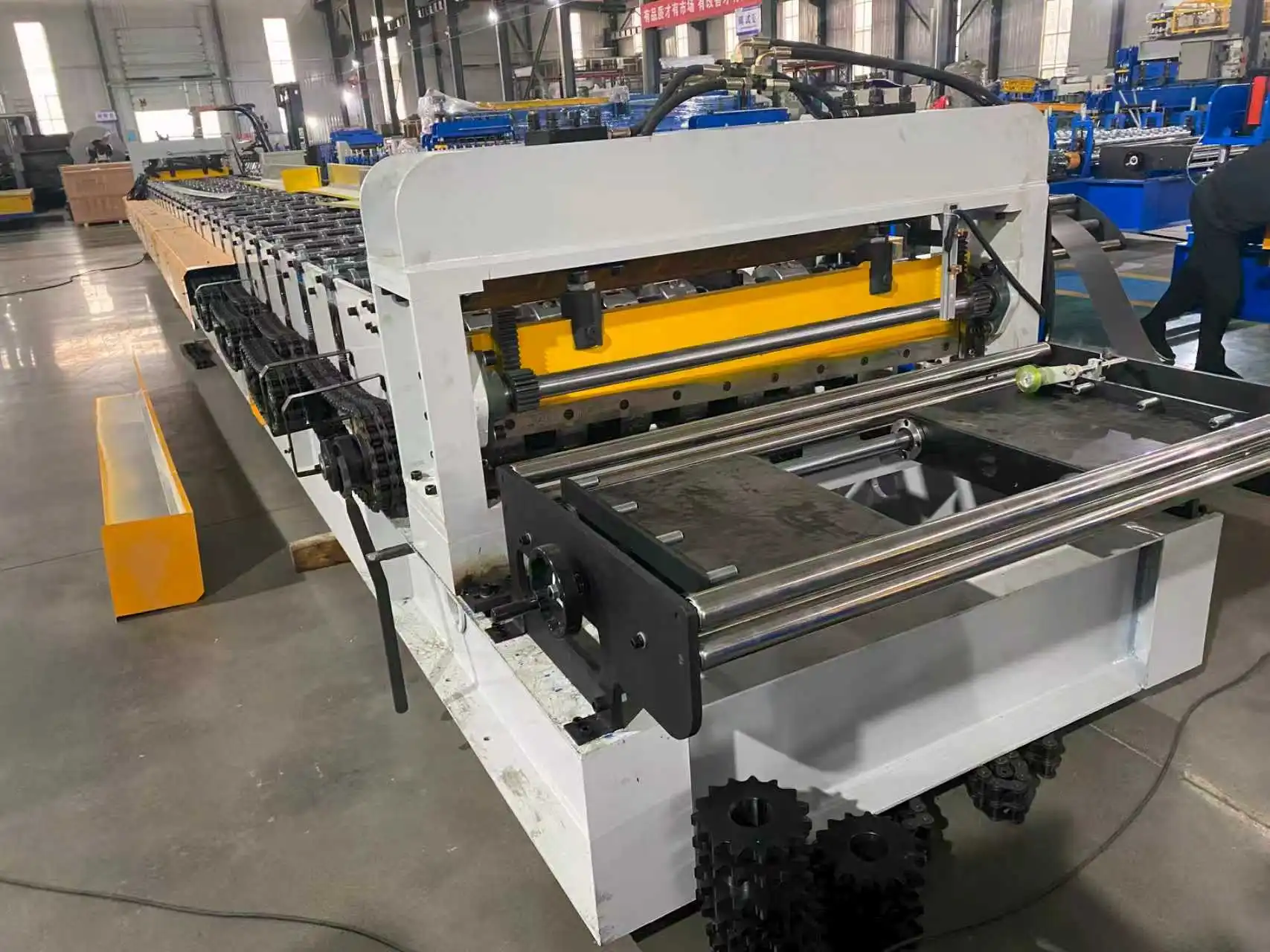

Stable Transmission System

The transmission system directly affects forming stability and product accuracy.

According to different deck profiles and production requirements, the machine can adopt suitable drive solutions, including chain transmission or gearbox transmission.

A properly designed transmission system provides:

Sufficient forming torque

Smooth power transmission

Reduced vibration

Long service life

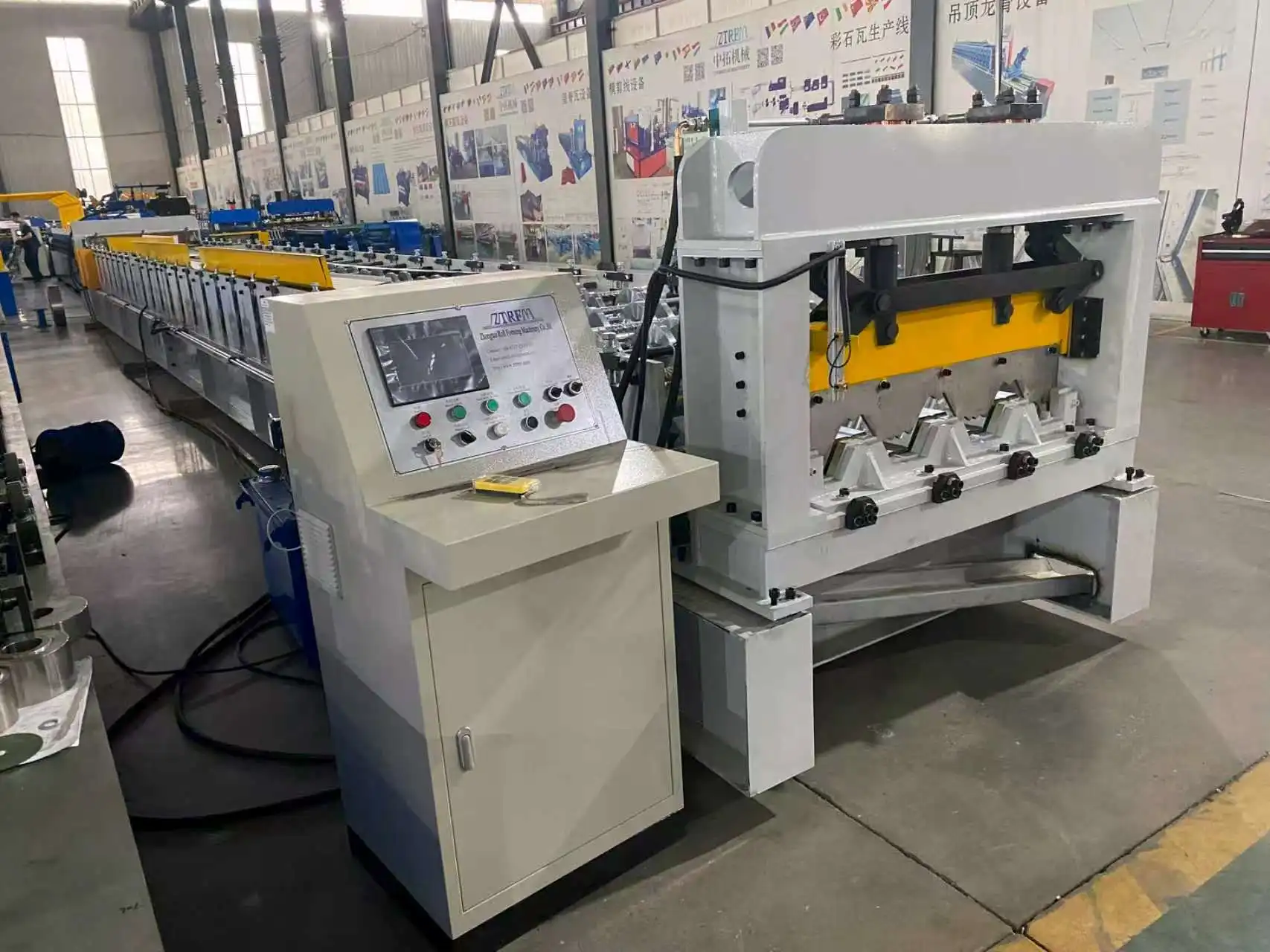

PLC Control System

The metal deck roll forming machine is equipped with a PLC control system and touch screen interface, allowing operators to easily set and monitor production parameters.

The control system can manage:

Production speed adjustment

Product length setting

Quantity counting

Automatic stopping after production completion

Machine operation monitoring

The intelligent control system improves production efficiency and reduces operation difficulty.

​

Additional Systems of Metal Deck Roll Forming Machine
其他金属板成型机的系统配置

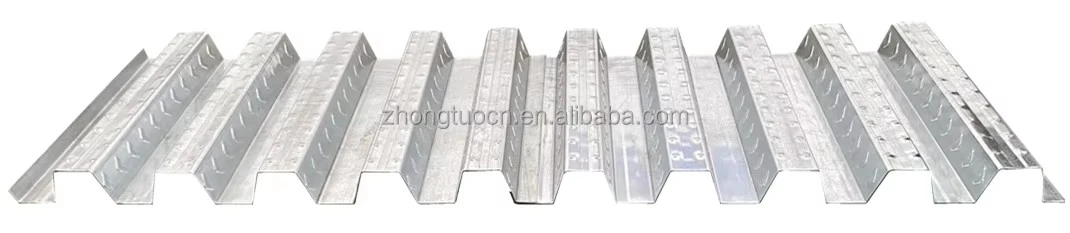

Embossing System for Composite Floor Deck

For composite floor deck applications, embossing is an important process that improves the mechanical connection between the steel deck panel and concrete.

The embossing rollers are designed according to the specific deck profile requirements. During production, the embossing system creates suitable patterns on the steel sheet surface, increasing the bonding performance between the metal deck and concrete slab.

A properly designed embossing unit ensures:

Stable embossing depth

Accurate profile structure

Good concrete bonding performance

Reliable long-term operation

The embossing structure, roller design, and pressure adjustment should be optimized according to the material thickness and deck profile.

Hydraulic Cutting System  液压切割系统

The hydraulic cutting system is an important part of the metal deck production line. It performs online cutting according to the preset product length without stopping the forming process.

The system provides:

Accurate cutting length control

Stable hydraulic pressure

Smooth cutting operation

Improved production efficiency

The cutting parameters, including length and quantity, can be adjusted through the PLC control system according to production requirements.

​

How to Choose the Right Metal Deck Roll Forming Machine
如何选择合适的金属板卷成型机

Check the Forming Capability

When selecting a metal deck roll forming machine, customers should first confirm whether the equipment is suitable for their required profile design, material thickness, and production capacity.

Important factors include:

Deck profile shape and height

Material type (GI or GL steel)

Material thickness

Required production speed

Finished product dimensions

A properly matched machine configuration ensures stable production and reduces unnecessary maintenance costs.

Check the Roller and Shaft Quality

The forming rollers and shafts directly affect the service life and forming accuracy of the machine.

Customers should pay attention to:

Roller material

Heat treatment process

Surface finishing

Shaft diameter

Processing accuracy

High-quality rollers help maintain stable profile dimensions and reduce deformation during long-term production.

Check the Cutting and Control System

A reliable cutting system and intelligent control system are essential for efficient production.

The equipment should provide:

Accurate length measurement

Stable cutting performance

Easy parameter adjustment

Automatic production management

A PLC-based control system allows operators to monitor production status and quickly adjust machine parameters.

​

Applications of Metal Deck Roll Forming Machine
金属板成型机的应用

Composite Floor Systems

Metal deck panels are widely used in composite floor structures. The deck sheet works as a permanent formwork during concrete pouring and provides additional structural support after construction.

Applications include:

Multi-story buildings

Office buildings

Shopping centers

Industrial facilities

The combination of steel deck and concrete improves construction efficiency and reduces installation time.

Steel Structure Buildings

In steel structure projects, metal deck panels provide an efficient flooring solution with advantages such as:

Fast installation

High strength-to-weight ratio

Reduced construction labor

Better project efficiency

The roll forming machine enables continuous production of customized deck profiles according to project requirements.

Industrial and Commercial Construction

Metal deck systems are commonly used in warehouses, factories, and commercial buildings due to their durability and easy installation.

A reliable roll forming production line helps manufacturers provide consistent-quality deck panels for different construction projects.

​

Why Choose ZTRFM Metal Deck Roll Forming Machine

Since 2014, ZTRFM has specialized in the design and manufacturing of cold roll forming equipment for global customers.

Our metal deck roll forming machines are manufactured with strict quality control standards and are exported to customers in more than 150 countries.

ZTRFM provides:

Customized machine design

Professional technical support

Complete production solutions

Remote troubleshooting service

Installation guidance

With experienced engineering teams and continuous improvement in manufacturing technology, ZTRFM helps customers build efficient and reliable metal deck production lines.

Conclusion

A high-quality Metal Deck Roll Forming Machine is essential for producing accurate and reliable composite floor deck panels.

The machine performance depends on the combination of:

Strong machine structure

Precision forming rollers

Reliable cutting system

Stable transmission

Intelligent PLC control

By selecting the correct equipment configuration and experienced manufacturer, customers can achieve efficient production, consistent product quality, and long-term operating reliability.

ZTRFM is committed to providing customized metal deck roll forming solutions for customers worldwide.

FAQ

1. Does processing galvanized coil require any special machine adaptation?

It's not a complete redesign, but it is necessary to know the exact specifications of each part. The main changes are chrome-treated forming rollers, CR12 hardened cutters, and a motor drive that is spread out. A normal sheet line without these extras will work with galvanized coil at first, but after a few production shifts, zinc will build up on the rollers and burrs will form at the cut edges.

2. How does the zinc coating affect roller wear rate?

Zinc is not as hard as steel, but it sticks together a little when it is pressed together. Zinc moves to the roller face of unwashed rollers and builds up over time, changing the roll gap that works. Hard-chrome roller surfaces don't let zinc stick to them, so the roll gap shape stays the same. A roller inspection every 500 hours of use is a good maintenance schedule for galvanized deck lines.

3. Does galvanized coil processing affect production speed?

Not very much when the line is set up correctly. A well-tuned PLC and converter system can keep zinc material moving at 10–20 m/min without damaging the covering. When using thicker Z450–Z600 coats, operators sometimes slow down the embossing station a little, but this is only a small change and not a structural problem.

4. What yield strength should galvanized coils have for deck production?

The standard for structural deck profiles is a yield strength of 235 MPa. Higher yield materials (280–350 MPa) are used for longer spans, but the machine power capacity needs to be checked before production runs can begin.
