High-Performance Store Shelves Making Machine | Automated Supermarket Rack Roll Forming Solution with 16-Station Precision System

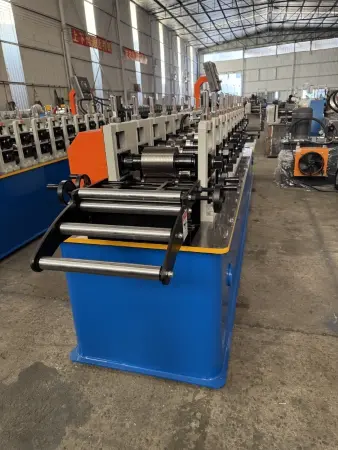

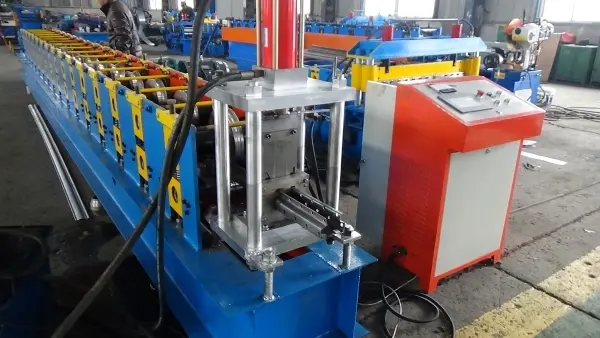

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers industrial-grade automation for warehouse and retail storage fabrication. Our store shelves making machine integrates 16 precision forming stations with Cr12 hardened steel rollers, engineered for continuous production of supermarket shelving, warehouse racks, and industrial storage profiles. This automated roll forming line processes PPGI, GI, or aluminum coil from 1.5 to 2.0 mm thickness at forming speeds reaching 15 m/min. Built on a 350H heavy-duty steel frame with Φ80 mm solid 45# steel shaft, the system ensures structural stability during high-volume production. Each unit undergoes full factory testing before shipment and fits standard 20GP/40HQ containers for global logistics efficiency.

Why Storage System Manufacturers Choose Our Roll Forming Solution?

Modern retail and logistics facilities demand rapid deployment of customized shelving profiles. Our equipment eliminates the inconsistency of manual fabrication through PLC-controlled automation. You gain batch production capability with preset length, quantity, and cutting parameters—critical when fulfilling large warehouse projects with tight deadlines.

The machine handles diverse material specifications without tooling changes. Whether you're producing light-duty supermarket displays or heavy-gauge industrial racking, the adjustable feeding width accommodates your profile design requirements.

Quality certifications including ISO9001, CE, CAS, UL, and SGS validate our manufacturing standards. These credentials matter when your clients require compliance documentation for international construction projects or retail chain installations.

Technical Specifications for Precision Shelf Profile Production

Core Engineering Advantages for Long-Term Production Reliability

Heavy-Duty Frame Architecture

The 350H steel frame resists deformation under continuous high-load operation. This structural integrity maintains roller alignment precision even after years of production, preventing the profile distortion common in lighter equipment.

German-Standard Transmission System

Hardened gear transmission delivers superior torque transfer compared to standard chain systems. Surface-hardened components extend service intervals and reduce maintenance downtime in 24/7 production environments.

Pre-Shipment Quality Validation

Every store shelves making machine completes full production cycle testing at our facility. You receive equipment proven to meet speed, cutting accuracy, and dimensional tolerances before installation begins.

Intelligent Remote Diagnostics

Cloud-based monitoring tracks real-time operating parameters. When anomalies occur, our technical team accesses system data remotely to diagnose issues—often resolving problems before production stops.

Customized Profile Design for Diverse Storage Applications

Your shelving specifications may differ significantly from standard profiles. Our engineering team collaborates with you during the design phase to configure roller patterns matching your exact cross-sectional requirements.

We adjust feeding width, add or modify forming stations, and program cutting sequences for complex multi-bend profiles. This flexibility supports manufacturers serving both retail display markets and heavy-duty warehouse storage sectors from a single production line.

Material compatibility extends beyond standard galvanized steel. The system processes aluminum coil for corrosion-resistant environments and pre-painted materials when finished appearance matters in customer-facing applications.

Installation Support and Continuous Technical Assistance

Equipment arrives with detailed assembly documentation and electrical schematics. Our installation guidance covers foundation requirements, hydraulic connections, and PLC parameter setup to ensure correct commissioning.

Operator training addresses machine operation, routine maintenance procedures, and troubleshooting common production issues. Your team gains competency to handle daily operations independently while knowing expert support remains accessible.

The 24/7 technical support network provides multilingual assistance across time zones. Whether you're running first-shift production in North America or third-shift operations in Southeast Asia, response times align with your schedule.

Remote system access allows our engineers to adjust PLC parameters, update control logic, or verify sensor calibration without on-site visits. This capability proves particularly valuable when you're scaling production or introducing new profile designs.

Partnership with Yanshan University Cold Forming Research Center

Our collaboration with China's National Cold Rolled Strip Equipment and Process Engineering Research Center accelerates innovation in roll forming technology. Graduate researchers conduct finite element analysis on complex profile designs, optimizing roller geometry before physical tooling production begins.

This academic partnership gives you access to advanced simulation capabilities. When you propose unconventional shelf profiles, we validate forming feasibility through virtual modeling—reducing costly trial-and-error iterations during tooling development.

AI-assisted optimization tools analyze production data to recommend process improvements. These insights help you maximize throughput while maintaining tight dimensional tolerances across long production runs.

FAQ

Q1: Can the machine switch between different shelf profile designs quickly?

A: Yes. While roller cassette replacement requires tooling changes (typically 2-4 hours), PLC programming stores multiple profile recipes. For depth or length variations within the same basic cross-section, you simply select the corresponding program.

Q2: What causes wavy edges on finished profiles, and how is this prevented?

A: Edge waviness results from uneven material tension or misaligned rollers. Our system uses precision leveling rollers before forming stations and adjustable edge guides. Regular calibration maintains flatness within ±0.5 mm over 6-meter lengths.

Q3: How do you ensure consistent hole punching positions for assembly brackets?

A: The integrated servo-driven punching unit synchronizes with forming speed via encoder feedback. Position accuracy remains within ±1 mm regardless of production speed variations, critical for modular shelving systems requiring precise hole alignment.

Q4: What's the typical roller lifespan before refurbishment?

A: With proper maintenance and Cr12 chrome-plated construction, rollers process 8-12 million linear meters before requiring surface re-grinding. Actual lifespan varies with material hardness and profile complexity.

Q5: Can the equipment handle pre-painted or coated materials without surface damage?

A: Absolutely. Roller surfaces receive fine polishing to Ra 0.4 μm finish, and pressure settings adjust to prevent coating fracture. The Cr12MoV cutting blade uses shearing action rather than crushing to maintain edge quality on finished pieces.

Contact Us

Ready to Upgrade Your Shelving Production Capacity with a store shelves making machine? Reach us at zhongtuorollforming@gmail.com for detailed technical consultation and quotation.
