​​​​​​​Cable Tray Roll Forming Machine

Efficient & Precise Manufacturing of Cable Management Systems

The Cable Tray Roll Forming Machine is a fully automatic production line designed for manufacturing U channel, C channel, perforated and ladder-type cable trays. It integrates decoiling, punching, roll forming, cutting, and automatic stacking into one continuous process, ensuring high efficiency, precision, and consistent product quality.

With our machine, you can produce smooth, straight, and scratch-free cable trays with excellent load-bearing performance, suitable for electrical wiring and cable management in industrial, commercial, and infrastructure projects.

🔹 Key Features

• Flexible Tray Designs – Supports production of solid, perforated, and ladder-type cable trays

• High Precision Roll Forming – Finished products are dimensionally accurate, uniform, and free from paint scratches

• Custom Configurations – Available in standard-speed models, high-speed models, and fully automatic flexible lines

• Integrated Punching System – Servo or hydraulic punching for slots, holes, and patterns in one pass

• Heavy-Duty Construction – Strong machine frame and hardened rollers ensure durability under continuous operation

• PLC Control System – Easy-to-operate touch screen for length setting, punching patterns, and production tracking

🔄 Machine Workflow

1. decoiler – Hydraulic or manual type, 3–5 tons capacity

2. Leveling & Feeding Unit – Ensures sheet flatness before punching

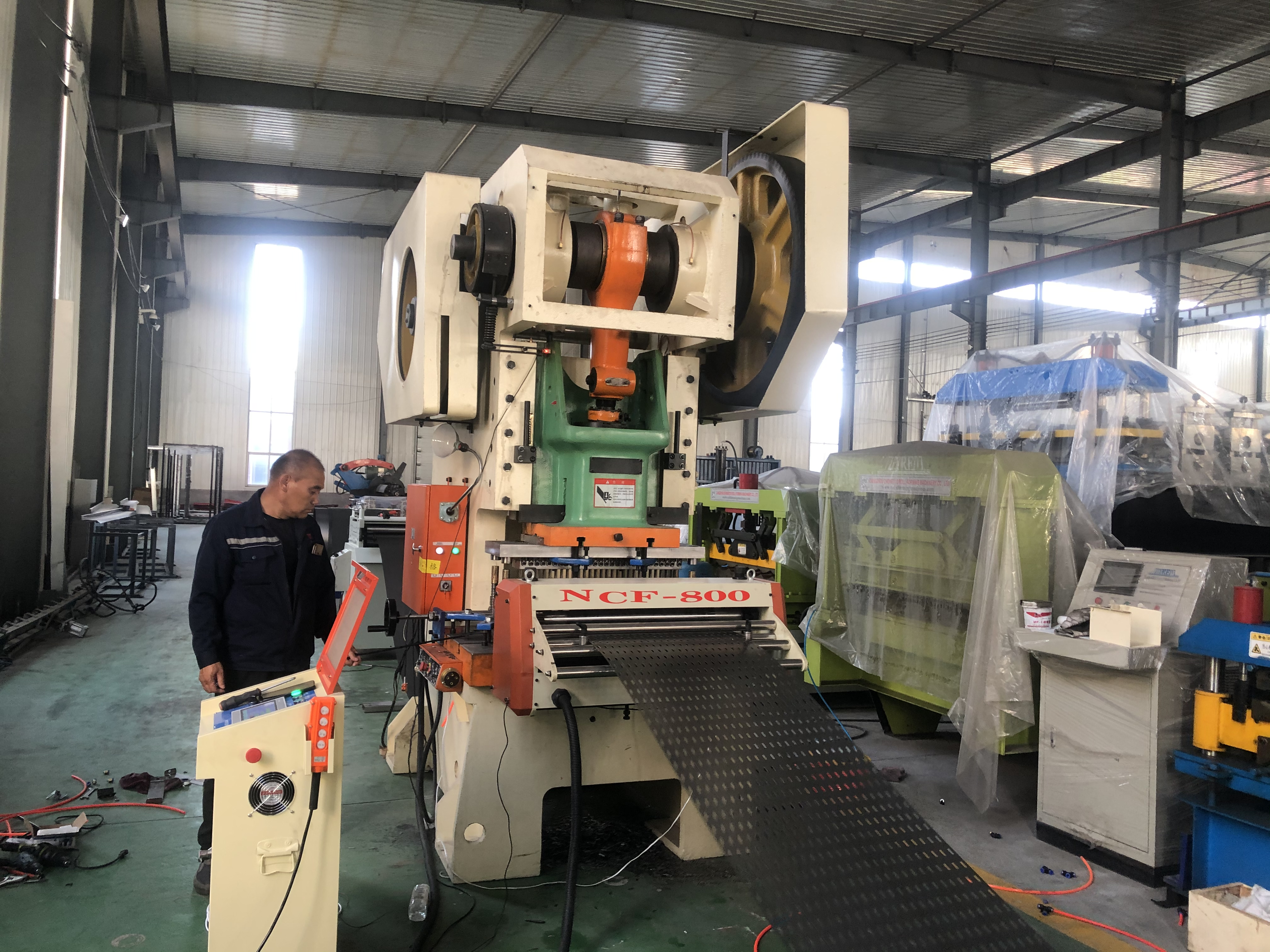

3. Servo Punching Press – Pre-punches slots and holes according to design

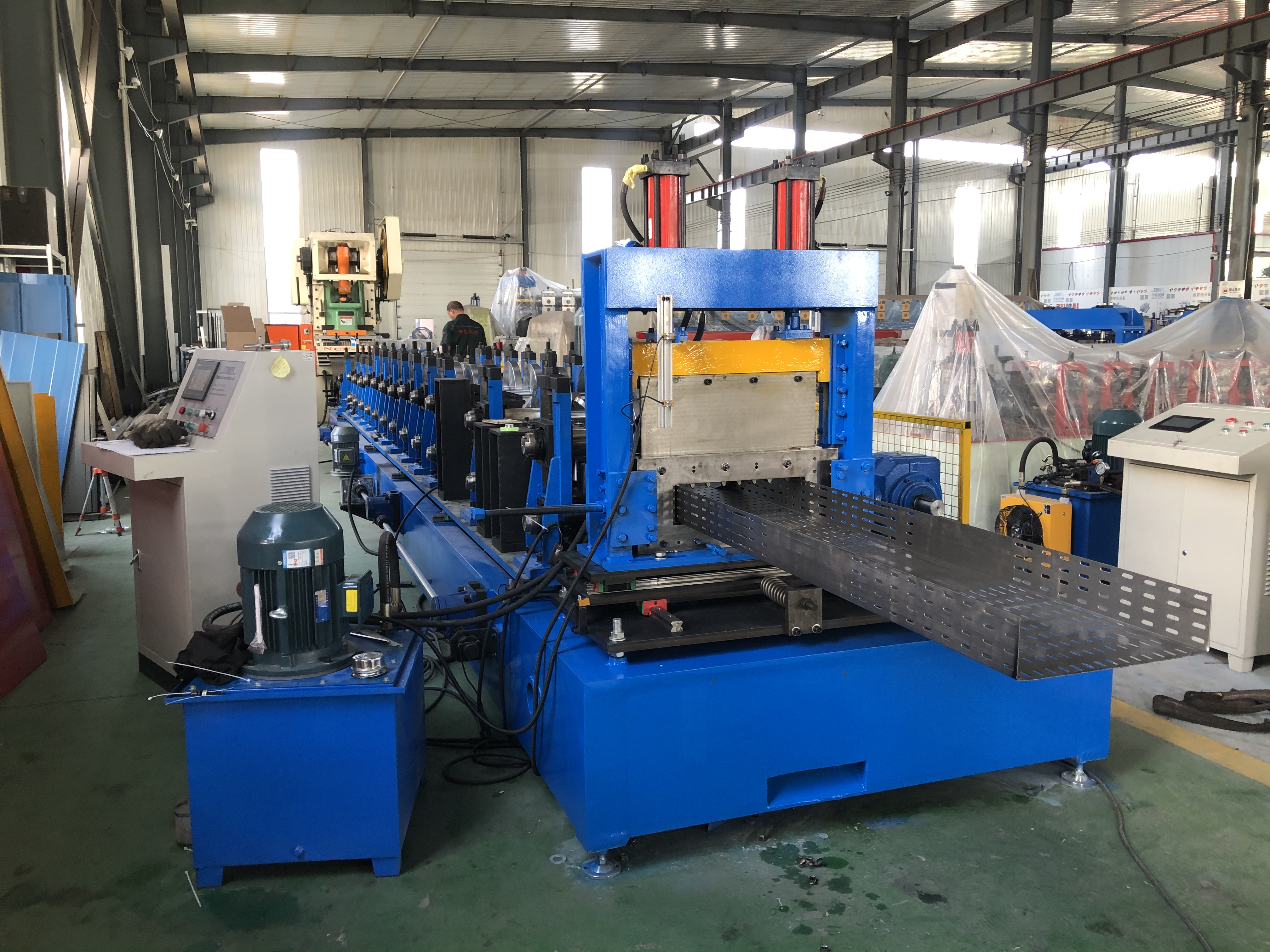

4. Roll Forming Section – Precision rollers shape steel into tray profile

5. Cutting Unit – Hydraulic or flying shear for clean, burr-free cutting

6. Run-Out Table / Auto Stacker – Collects finished cable trays neatly

📐 Technical Specifications

🛠 Build Quality & Advantages

• Rollers made of GCr15 bearing steel, heat-treated & hard-chrome plated

• Strong welded steel frame for stability and low vibration

• Quick-change punching molds for flexible designs

• Easy maintenance with automatic lubrication system

• CE/ISO certified machine with long service life

🌍 Applications & Market

The cable trays produced are widely used in:

• Power Plants & Substations

• Industrial Factories & Warehouses

• Commercial Buildings & Office Complexes

• Infrastructure Projects – Airports, railways, metro stations

• Oil, Gas & Telecom Industry

Global demand for cable management systems is growing rapidly, especially in Middle East, Southeast Asia, Africa, South America, and Eastern Europe, where infrastructure and industrial development drive strong market potential.

🚀 Optional Configurations

• Duplex roll forming system for multiple tray sizes

• Automatic punching pattern changeover

• Pre-galvanized / hot-dip galvanized surface treatment line

• Automatic stacking & packing system
