Roll Forming Machine for Shelf Column | Heavy-Duty Industrial Warehouse Upright Production System with Intelligent Manufacturing

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. brings over a decade of cold forming expertise into every roll forming machine for shelf column we manufacture. As a national-level high-tech enterprise established in 2014, we specialize in automated production lines for warehouse rack uprights with precision engineering. Our systems process 1.5-2mm GI or low carbon steel at speeds up to 15 meters per minute, featuring 19 roller stations with Cr12 material and 70mm diameter shafts. With certifications including ISO9001, CE, CAS, UL, and SGS, our machines have been exported to over 150 countries. The heavy-duty reinforced frame delivers exceptional rigidity, while German standard gear transmission ensures 99.8% accuracy in hole patterns critical for rack system safety.

Why Choose Our Warehouse Shelf Column Manufacturing Solution?

Modern logistics demands precision-engineered storage systems. Your production line needs equipment that handles high-tensile G550MPa steel while maintaining dimensional consistency across thousands of uprights.

Our machines solve three critical pain points. First, they eliminate the cumulative errors from manual fabrication. Second, they automate the multi-pass bending process for complex profiles. Third, they integrate punching and forming into one synchronized operation.

The result? You get uprights with perfect hole alignment for beam connections. Every column meets structural load requirements. Your assembly teams save hours on installation adjustments.

We've partnered with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. This collaboration brings AI-assisted simulation and finite element analysis directly into your production process.

Technical Specifications

Eight Core Advantages That Maximize Your Production Value

Premium Material Construction

We use GCr15 bearing steel for core components. High-strength structural steel forms the framework. These materials deliver continuous operation stability across 24/7 production schedules.

Industrial-Grade Frame Engineering

The heavy-duty frame resists deformation under high-load conditions. Your roll forming machine for shelf column maintains micron-level precision even after years of intensive use.

German Standard Transmission System

Hardened surface treatment extends gear life by 40%. The transmission efficiency exceeds 95%, reducing energy consumption while improving output consistency.

Factory Testing Protocol

Every machine undergoes full production testing before shipment. You receive equipment ready for immediate deployment. Installation time drops to just 2-3 days.

Intelligent Remote Diagnostics

Our cloud-based monitoring system tracks equipment status in real time. When issues arise, our engineers diagnose problems remotely. This cuts maintenance response time by 70%.

Comprehensive Certification Portfolio

With over 30 international certifications, we meet stringent European, North American, and Middle Eastern standards. Your equipment complies with local safety regulations from day one.

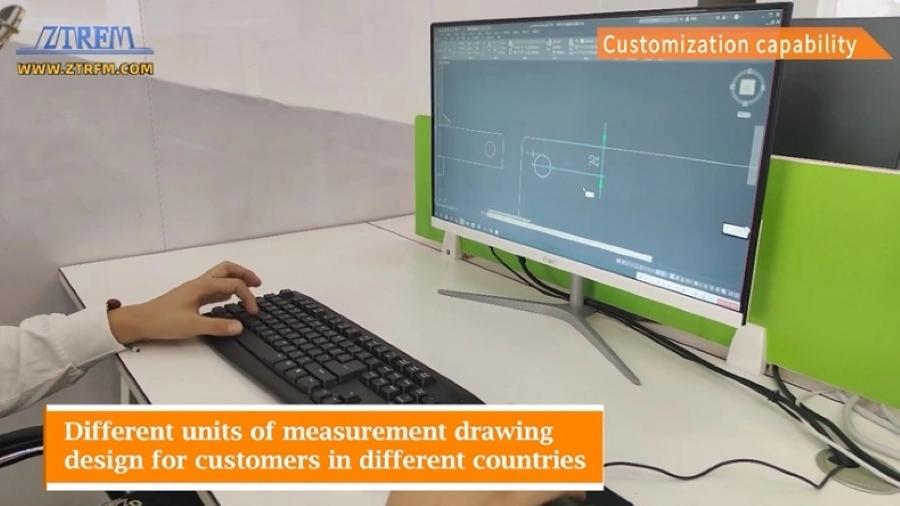

Tailored Engineering Solutions

Our technical team designs profiles matching your specific warehouse rack requirements. Whether you need light-duty 38x38mm columns or heavy-duty custom dimensions, we adapt the roller configuration accordingly.

24/7 Technical Support Network

Round-the-clock online assistance ensures zero production interruptions. Our engineers provide remote debugging, software upgrades, and process optimization guidance whenever you need it.

Complete Production Line Configuration

The integrated system starts with a 5-ton hydraulic decoiler that feeds material smoothly. The 7-roller leveler removes coil set, ensuring flat input for precise forming.

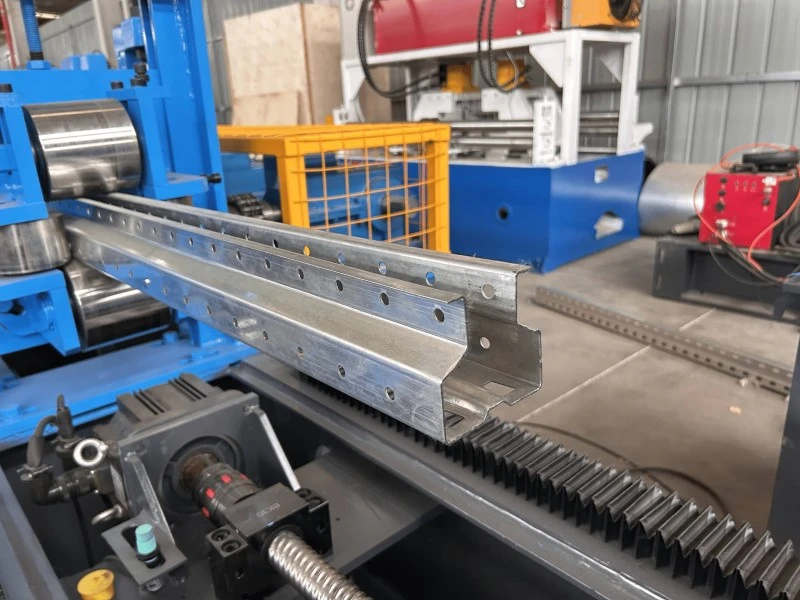

Next comes the Yangli brand pneumatic punching system. At 80 tons capacity with servo feeding, it creates hole patterns with ±0.5mm positioning accuracy. This precision matters when rack beams must align perfectly during assembly.

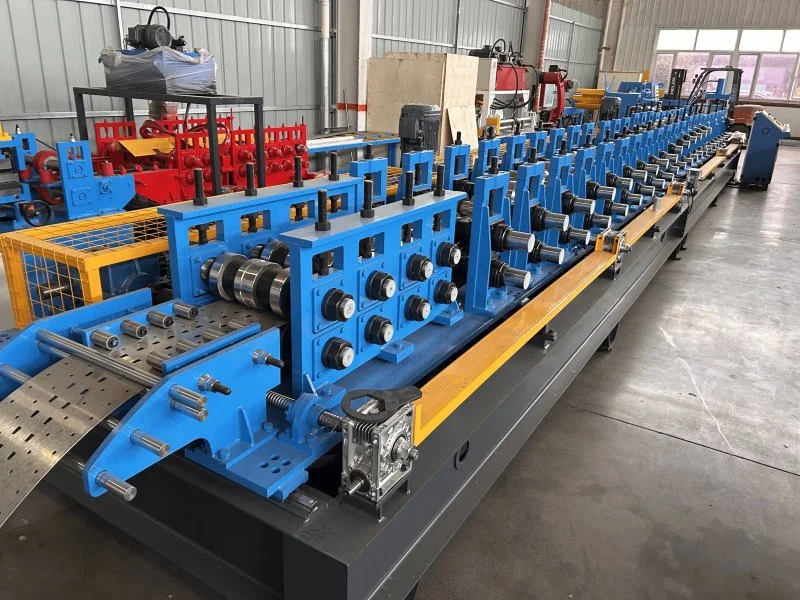

The 19-station roll forming section gradually shapes your profile. Cr12 rollers with quenched treatment resist wear from abrasive steel surfaces. The 70mm shaft diameter prevents deflection under forming pressure.

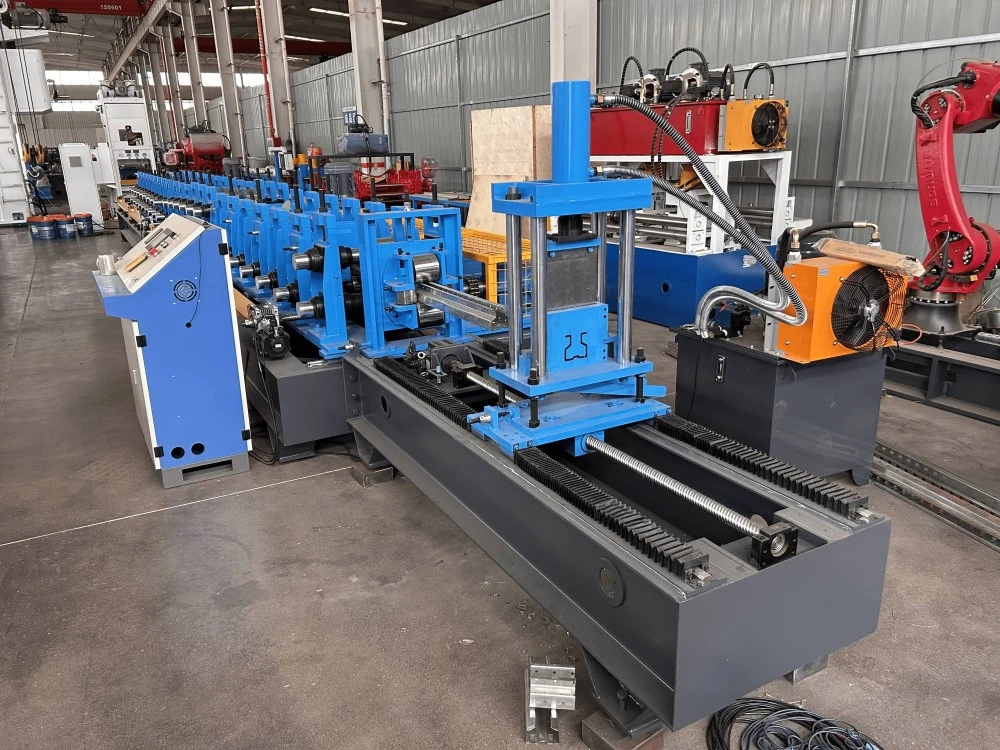

Hydraulic cutting delivers clean cuts with zero material waste. The 6-meter run-out table provides space for cooling and straightening before stacking.

A Delta or Siemens PLC system coordinates all components. You input length parameters on the touchscreen. The machine handles the rest automatically.

Applications Across Storage Industry Sectors

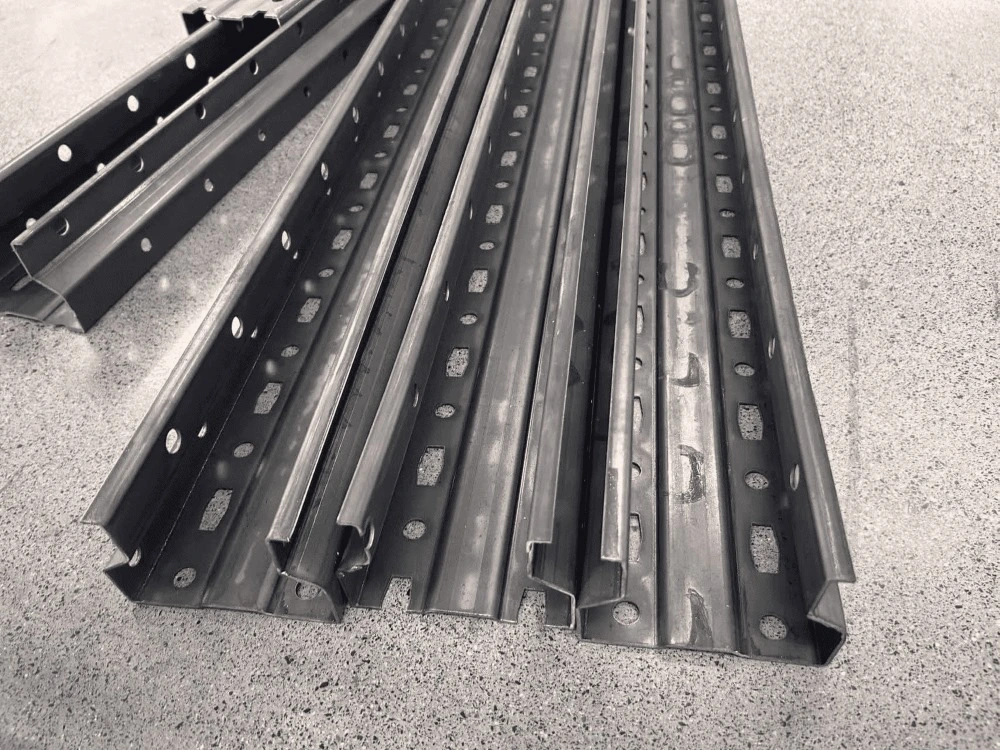

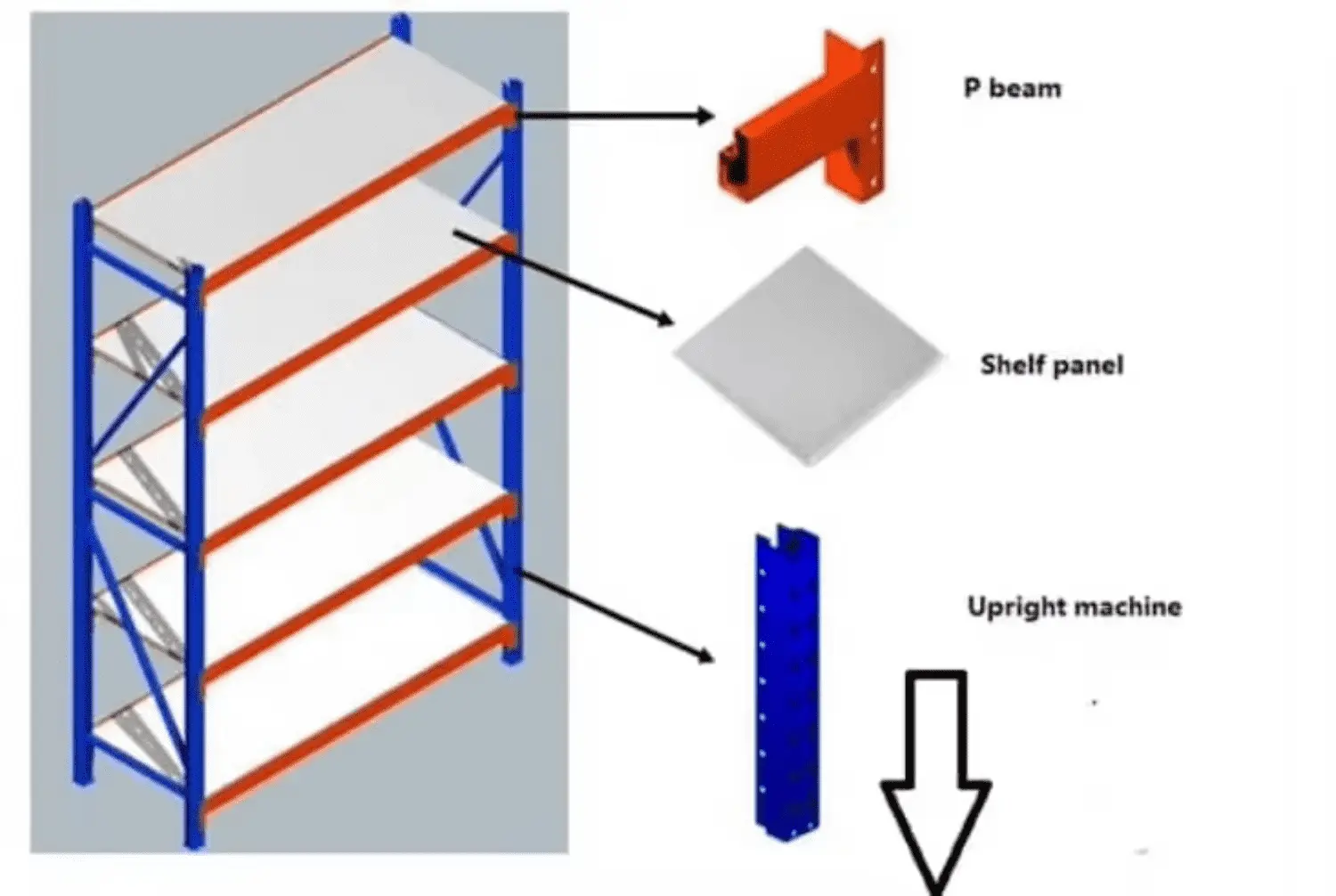

Your product serves multiple warehouse configurations. Light-duty retail shelving uses 38x38mm uprights rated for 100-150kg per level. Medium-duty systems employ 80x40mm columns supporting 200-250kg loads. Heavy-duty industrial storage requires custom profiles designed for your specific load requirements.

The equipment adapts to selective pallet racking, drive-in systems, and cantilever configurations. Cold storage facilities benefit from the corrosion-resistant coating compatibility. E-commerce fulfillment centers rely on the high-speed output for rapid facility expansion.

Manufacturing plants use these uprights for raw material storage. Automotive parts distributors depend on the structural integrity for heavy component storage. The versatility extends from pharmaceutical clean rooms to agricultural bulk storage.

FAQ

Q: What profile sizes can this machine produce?

A: We customize the feeding width and roller configuration to match your upright specifications. Light, medium, and heavy-duty profiles are all achievable with appropriate tooling adjustments.

Q: How long does installation and commissioning take?

A: Typical installation completes within 2-3 days. Our engineers provide on-site training or remote guidance. Since machines are factory-tested, you can start production immediately after setup.

Q: What maintenance schedule do you recommend?

A: Lubricate drive chains every 500 hours. Inspect hydraulic fluid monthly. Check roller alignment quarterly. Our remote monitoring system alerts you before issues become critical.

Q: Can the machine handle different steel grades?

A: Yes, the system processes galvanized, cold-rolled, and pre-painted steel. Material yield strength up to G550MPa is compatible with standard configuration.

Q: What makes your transmission system superior?

A: German standard gears with hardened surfaces reduce wear by 40% compared to standard transmissions. This extends service intervals and maintains accuracy longer.

Q: Do you provide spare parts inventory?

A: We maintain comprehensive spare parts stock. Critical components ship within 48 hours globally. Common wear items like blades and bearings are available for immediate delivery.
