Barrel corrugated roof sheet machine

Advanced Cold Roll Forming Solution with the Barrel corrugated roof sheet machine for Precision Roofing Production

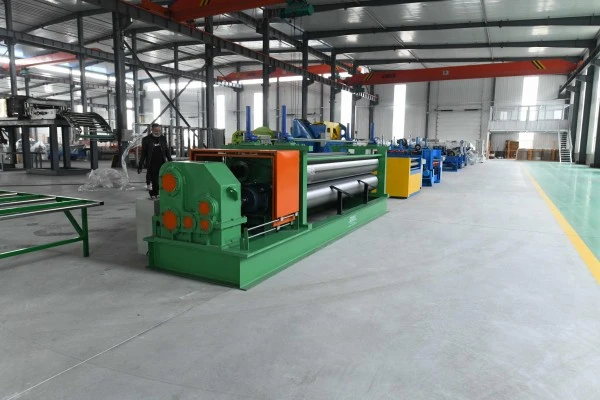

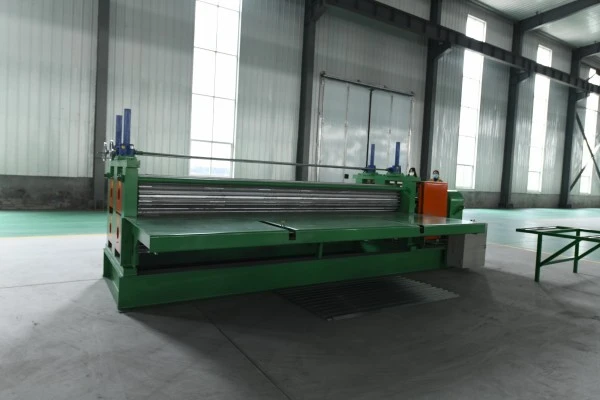

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd., established in 2014 as a national-level high-tech enterprise, presents its industrial-grade Barrel corrugated roof sheet machine engineered for high-volume roofing production. This precision cold roll forming system delivers consistent forming  speeds of 15 pieces per minute, processing materials from 0.12mm to 0.48mm thickness across PPGI, galvanized steel, and aluminum substrates. Featuring 2 sets of heavy-duty roller stations with 300mm diameter rollers constructed from heat-treated 45# steel, the equipment accommodates maximum feeding lengths up to 3000mm. Our machine incorporates advanced PLC control systems ensuring dimensional accuracy within ±1.0mm tolerance, making it ideal for large-scale manufacturing operations requiring reliable output and minimal downtime.

Core Manufacturing Advantages

The product utilizes multi-station progressive forming technology that gradually shapes metal sheets, reducing internal stress and preventing coating damage. This approach is particularly effective when processing high-yield strength materials ranging from G300 to G550 MPa.

Our roller shafts feature solid steel construction with 70-90mm diameter, minimizing deflection under continuous operation. Each roller undergoes precision heat treatment followed by 0.05mm hard chrome plating, achieving Rockwell hardness of HRC 55-60. This surface treatment extends equipment lifespan to 5-8 years of daily production while protecting pre-painted surfaces from scratching.

The sinusoidal wave profile produced by this system offers superior structural integrity compared to standard trapezoidal profiles. The rounded barrel curves provide optimal water shedding capabilities and enhanced aerodynamic performance, critical for high-wind coastal installations.

Technical Specifications of Barrel corrugated roof sheet machine

Industrial Application Scenarios

Your roofing production requirements determine the versatility you need from forming equipment. Our Barrel corrugated roof sheet machine serves multiple sectors effectively.

Coastal and Industrial Facilities: The machine produces sheets capable of withstanding high wind uplift pressures common in warehouse applications. The gentle forming process maintains coating integrity on thick zinc layers, essential for salt-spray environments where corrosion resistance determines structure longevity.

Agricultural Infrastructure: When manufacturing silo sidewalls or barn roofing, the smooth sinusoidal wave prevents debris accumulation. Our equipment allows curvature adjustments to accommodate specialized agricultural building requirements where sanitation and drainage are paramount.

Residential and Retrofitting Projects: Heritage restoration projects benefit from the classic corrugated aesthetic combined with modern substrate materials. The soft-touch transmission system eliminates tooling marks on gloss-finish materials, maintaining the visual quality your customers expect.

Quality Control and Performance Standards

We implement rigorous verification protocols to ensure your equipment delivers consistent results. Profile geometric verification uses precision gauges to confirm wave height and pitch distance against engineering specifications.

Material stress testing runs sheets at both maximum (0.8mm) and minimum (0.18mm) thickness parameters. This validates roller gap adjustments and confirms the absence of twisting or bowing in finished products.

Hydraulic cutting systems undergo inspection for burr-free operation. Clean cuts without end profile deformation are non-negotiable quality indicators. Shaft alignment checks and chrome plating thickness measurements guarantee operational stability throughout the equipment lifecycle.

Research-Driven Innovation

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings advanced technology into production reality. Graduate researchers work directly in our facility, applying finite element analysis and AI-assisted simulation to optimize forming processes.

This collaboration has produced two patented technologies, including innovative roller designs that reduce trial costs while ensuring high precision. Virtual commissioning capabilities and cloud-based monitoring systems enable remote diagnostics and predictive maintenance, particularly valuable for international customers.

Installation and Operational Support

Standard equipment mounts on rigid steel bases suitable for most production environments. High-speed operations benefit from leveled concrete foundations with anchor bolts to absorb vibration and maintain long-term alignment.

Your team receives comprehensive technical documentation covering roller gap adjustment procedures, PLC programming parameters, and hydraulic system maintenance schedules. Our remote monitoring capabilities support troubleshooting across time zones, minimizing production interruptions.

The encoder-based measuring system requires periodic cleaning to maintain length accuracy. We provide detailed maintenance intervals for all wear components, including hydraulic oil change schedules and cutter blade service recommendations.

Packaging and Delivery

Equipment ships in protective packaging designed for international transport. Critical components receive anti-corrosion treatment and shock-resistant crating. Installation drawings and component lists accompany each shipment for efficient setup.

FAQ

Q：Can the machine process both aluminum and galvanized steel?

A：Yes, the product handles multiple materials with roller gap adjustments. Aluminum's different springback characteristics compared to G550 steel require spacer mechanism modifications, which our adjustable system accommodates without compromising profile accuracy.

Q：How do you prevent wavy edge defects during production?

A：Edge waviness typically indicates uneven pressure distribution. Our multi-station design allows forming pressure adjustment at initial breakdown stations. Ensuring coil width matches machine specifications eliminates most edge quality issues.

Q：What maintenance does the hydraulic cutting system require?

A：Hydraulic oil changes every six months prevent valve clogging. Cutter blades manufactured from Cr12Mov material require sharpening or replacement every 1-2 years depending on production volume and material yield strength.

Q：Why might length accuracy decrease over time?

A：Encoder wheel slippage or PLC signal interference causes measurement drift. Regular encoder wheel cleaning and maintaining proper coil tension during feeding resolve accuracy issues effectively.

Q：Does high-speed operation require special foundations?

A：Standard installations use steel bases. Production lines exceeding 40 meters per minute benefit from concrete foundations with anchor bolts to absorb vibration and maintain equipment alignment over extended operation periods.
