Q Tile Making Machine - Professional Cold Roll Forming Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. presents its industrial-grade Q tile making machine, engineered to manufacture high-wave metal roofing profiles with precision and consistency. This specialized system processes 0.3-0.5mm GI and PPGI coils through 14 roller stations, achieving production speeds up to 6 m/min with a robust 5.5 KW motor system. Manufactured on hot rolled H-beam frames and featuring gear box transmission with internal bevel gears, the equipment utilizes high-grade 45# steel rollers mounted on 80mm diameter shafts, ensuring dimensional accuracy and extended operational lifespan for demanding architectural roofing applications.

The machine delivers enterprise-level reliability for manufacturers requiring consistent Q-profile tile production across multiple shifts.

What Makes Q Tile Manufacturing Unique

The product represents a sophisticated cold forming solution that combines traditional roll forming with hydraulic pressing technology. This dual-process approach creates the distinctive semi-circular wave pattern that distinguishes Q tiles from standard corrugated profiles.

Unlike conventional roll formers, this equipment addresses critical manufacturing challenges. Traditional bending methods create material waste and inconsistent profiles. Manual processes cannot achieve the deep-draw geometry required for authentic Q-tile aesthetics without damaging protective coatings.

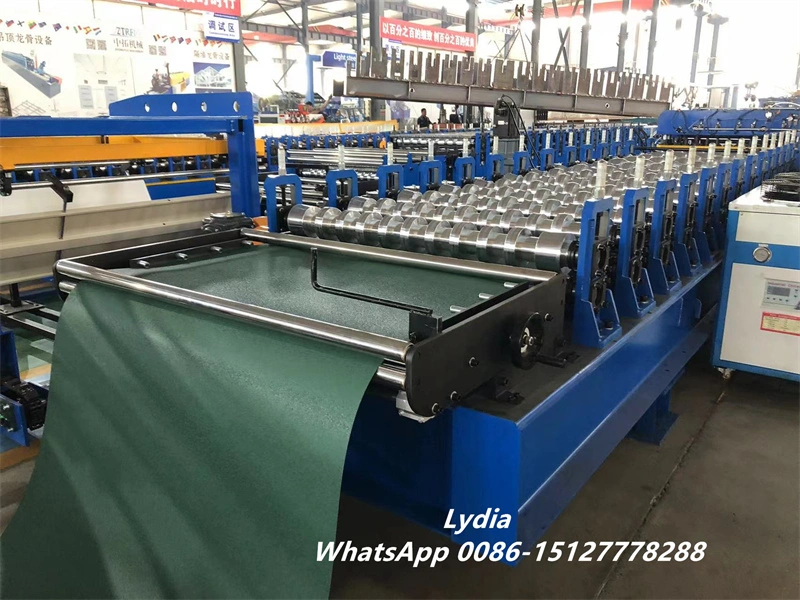

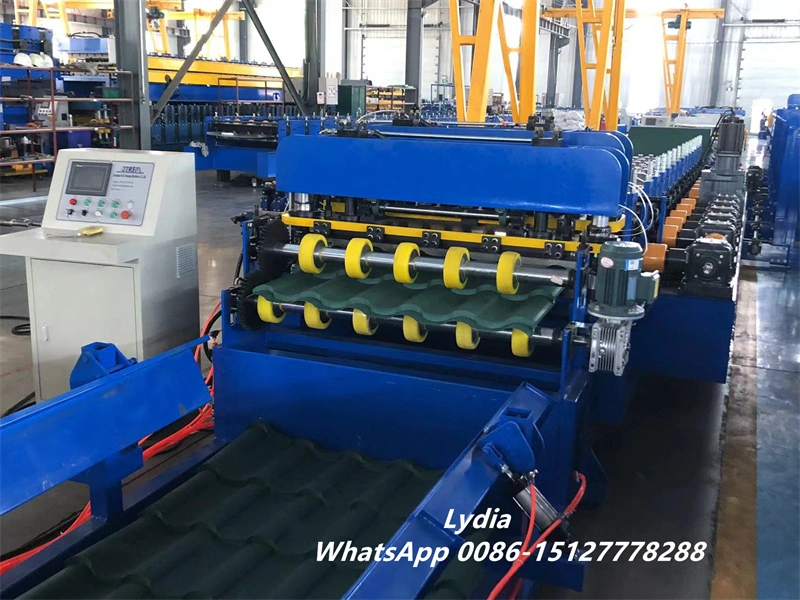

The integrated hydraulic pressing module stamps precise step patterns after the rolling sequence completes. This controlled deformation produces the tile-like appearance that replicates traditional clay or glazed roofing while maintaining steel's structural advantages.

Your production benefits from automated consistency that manual methods cannot match. Each tile maintains identical dimensions, ensuring seamless installation across large roofing projects.

Technical Specifications of Q tile making machine

Quality Control Standards

Professional procurement requires attention to critical inspection parameters that determine long-term equipment effectiveness.

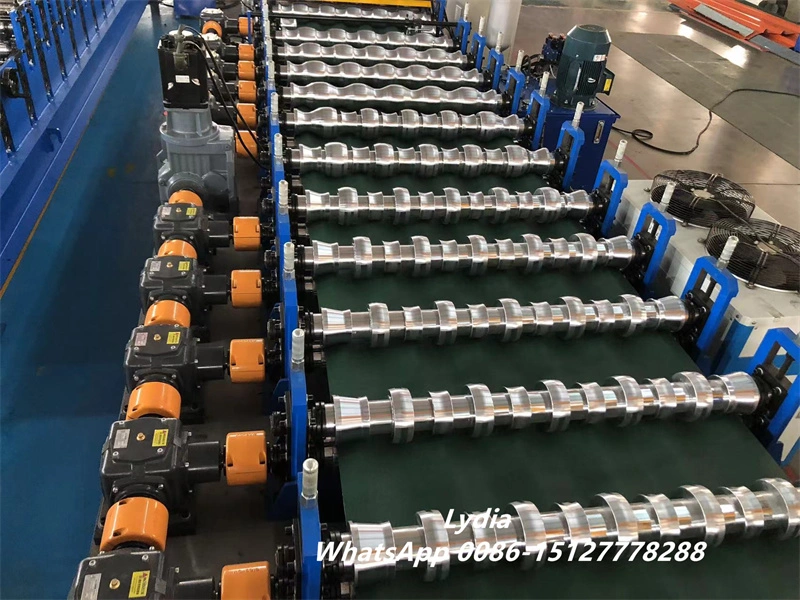

Roller Precision Testing: Concentricity verification ensures proper material tracking. Run-out exceeding 0.05mm causes coil drift that compromises profile accuracy. Our rollers undergo strict tolerance checks before assembly.

Profile Geometry Verification: Each produced tile is measured against engineering drawings. Pitch distance and cover width consistency prevent installation failures at construction sites. Your projects demand this reliability.

Hydraulic System Validation: The pressing unit undergoes 4-8 hour stress testing at peak pressure. This identifies potential overheating or pressure drops before equipment reaches your facility. Die integrity remains stable across continuous production shifts.

Surface Finish Inspection: Hard chrome plating thickness testing ensures rollers withstand thousands of meters of production. Adequate plating prevents coating damage to your raw material coils during processing.

Diverse Application Scenarios

The Q tile making machine serves multiple construction sectors requiring both aesthetic appeal and structural performance.

Premium Residential Construction: High-end villas utilize Q-profile roofing that mimics traditional glazed tiles while offering steel's lightweight and earthquake-resistant properties. The profile geometry provides superior water runoff in tropical climates experiencing heavy rainfall.

Heritage Restoration Projects: When architectural compliance with local design standards is mandatory, this equipment produces metal alternatives that reduce structural loads. Visual fidelity to traditional materials satisfies aesthetic requirements while improving durability.

Coastal Development Infrastructure: Processing aluminum or premium PPGI materials creates tiles for seaside resorts and residential complexes. The interlocking geometry offers enhanced wind uplift resistance compared to standard corrugated sheets. This proves crucial in typhoon-prone coastal regions.

Industrial and Commercial Buildings: Warehouses and factory roofing benefit from the structural efficiency of Q-profile tiles. The wave pattern provides strength while maintaining material economy.

Operational Advantages

Your manufacturing efficiency improves through several design features built into this system.

The PLC control system with touch screen interface allows precise adjustment of step distances and production parameters. Servo motors or encoders ensure exact material feeding before hydraulic pressing activates.

Gear box transmission with internal bevel gears provides reliable power transfer with minimal maintenance requirements. This design reduces downtime compared to chain-driven alternatives.

The hot rolled H-beam frame construction withstands continuous operation without deflection. Frame rigidity directly impacts profile consistency across extended production runs.

Variable speed control from 0-6 m/min allows you to optimize production for different material thicknesses and coating types. Slower speeds accommodate delicate pre-painted materials without surface damage.

Maintenance and Longevity

Proper maintenance protocols extend equipment lifespan and maintain production quality standards.

Hydraulic cutting systems require inspection every 500 operating hours. Die sharpness directly affects cut quality and edge finish. Annual hydraulic oil replacement prevents sludge accumulation that causes sluggish pressing cycles.

Hard chrome plated rollers typically provide 8-10 years of service under single-shift operation. Using clean, debris-free coils maximizes this lifespan. Contaminated materials accelerate roller wear and reduce plating effectiveness.

The straightening device at exit addresses material stress issues that cause camber. Proper leveling roller pressure adjustment eliminates curved profiles. Feeding guide alignment prevents tracking problems during operation.

FAQ

Q：Can the machine process both galvanized and pre-painted steel?

A：Yes, provided thickness remains within the 0.3-0.5mm range. Switching between materials with significantly different yield strengths requires roller gap adjustment to prevent coating damage or profile spring-back.

Q：What causes curved or cambered tiles after production?

A：This typically indicates leveling issues. Feeding guide alignment must be verified and final leveling roller pressure adjusted. The exit straightening device counters internal material stresses when properly configured.

Q：How is the step distance controlled on Q tiles?

A：Step distance control operates through the PLC touch screen interface. Servo motors feed precise material lengths past the press die before hydraulic stamping activates. Accuracy depends on rotary encoder resolution.

Q：What maintenance interval applies to the hydraulic pressing system?

A：The hydraulic cutter and pressing die require sharpness inspection every 500 operating hours. Annual hydraulic oil replacement prevents sludge buildup affecting pressing cycle performance.

Q：Will switching materials require machine adjustment?

A：Material changes within specification typically require minimal adjustment. However, processing significantly harder or softer materials may need roller gap modification to maintain profile quality and prevent coating damage.
