Pillar Making Machine T-Beam Forming Machine: High-Precision Automated Production Solution for Industrial Storage Systems

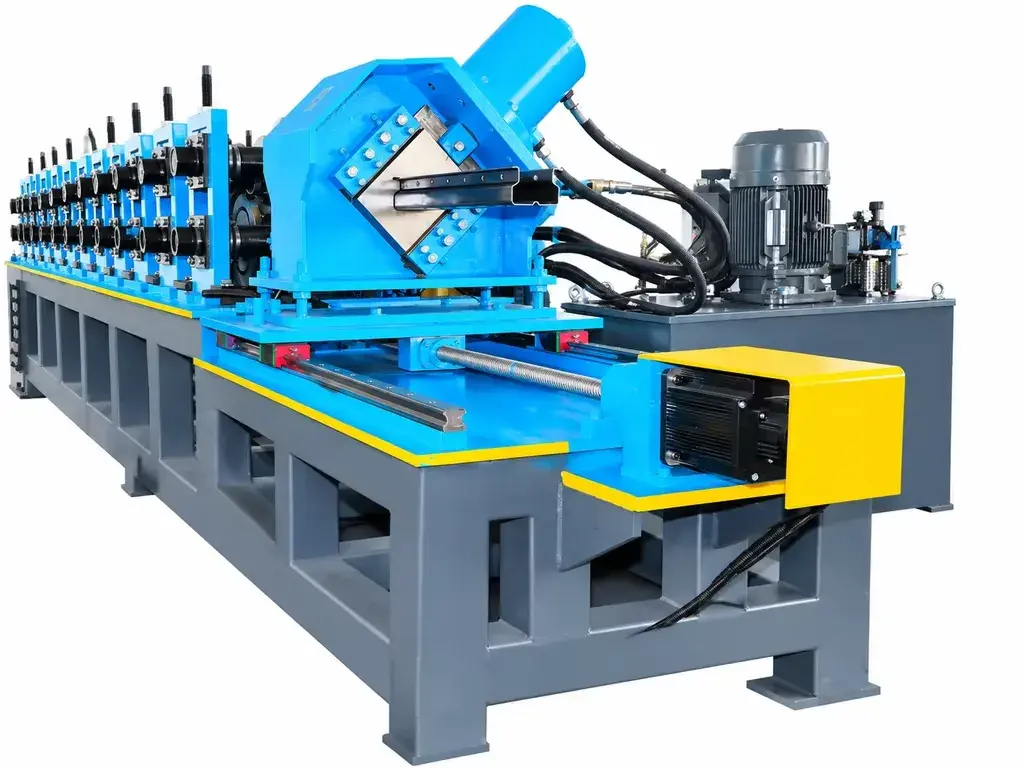

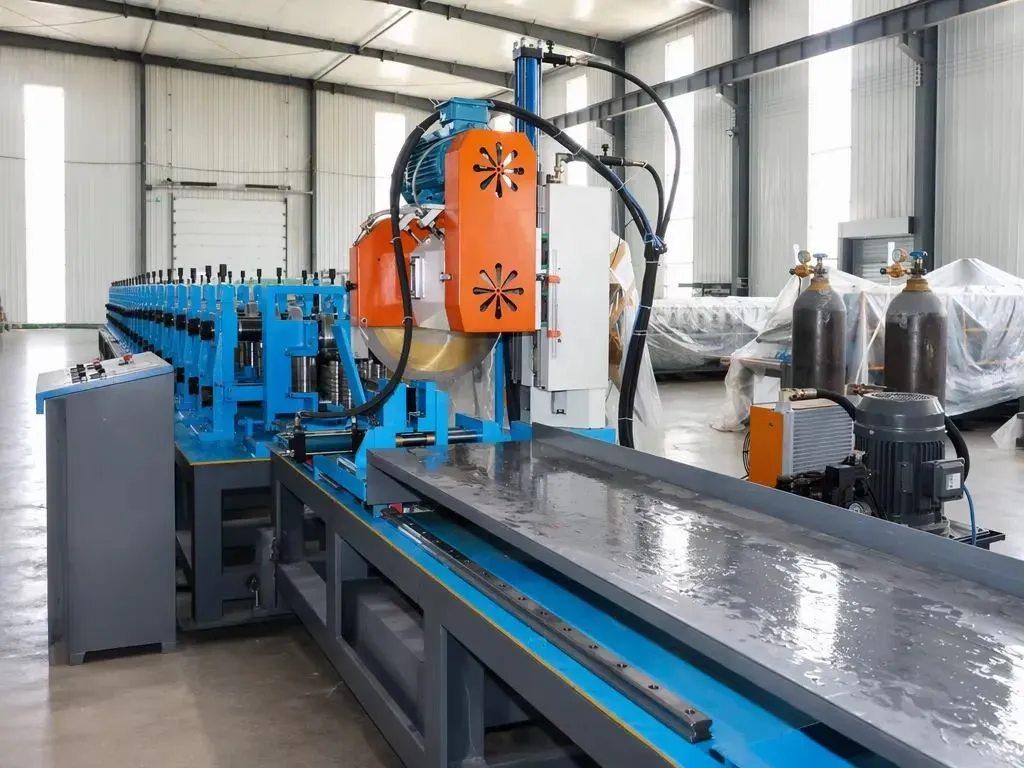

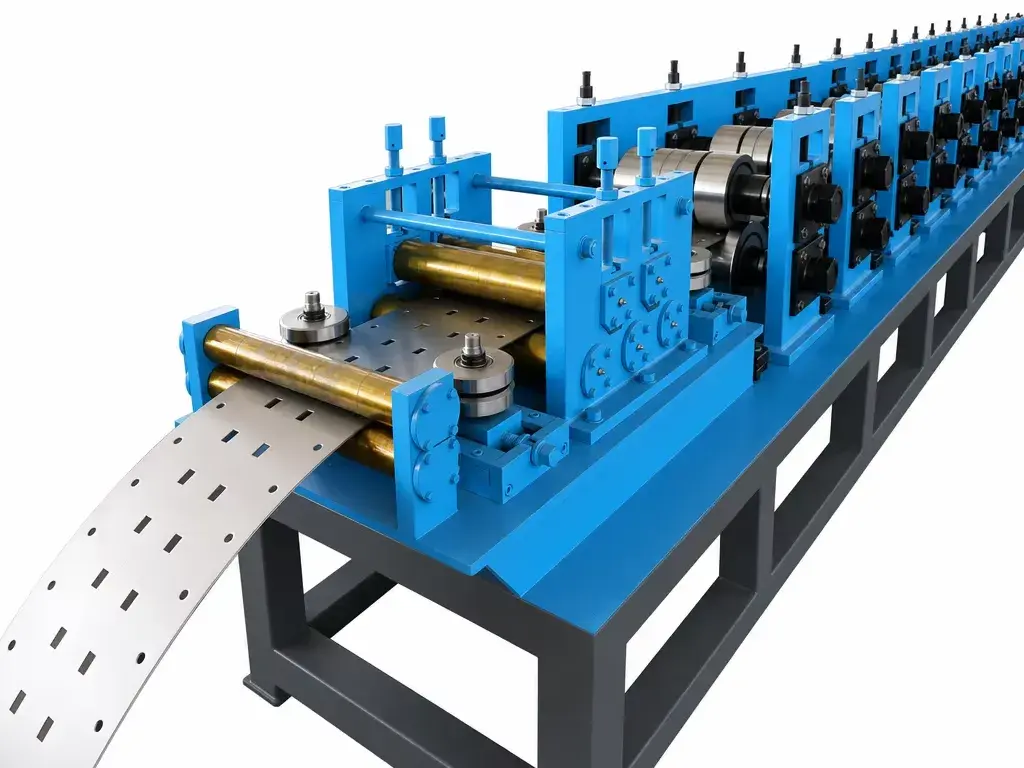

The pillar making machine t-beam forming machine represents Cangzhou Zhongtuo's advanced engineering in automated rack component manufacturing. Since 2014, our facility has specialized in designing heavy-duty cold roll forming equipment that transforms 0.8–2mm steel coils into precision-engineered structural profiles. This fully integrated system combines A3 steel frame construction with intelligent PLC controls, achieving 15–20 m/min production speeds while maintaining ±0.1mm dimensional accuracy. With 16 kW power consumption and Cr12 chrome-plated rollers, your production line gains 7000 kg of industrial-grade stability backed by ISO 9001 and CE certifications. Our machines serve over 150 countries, delivering proven reliability for pallet rack beams and industrial shelving applications.

Why This Machine Transforms Your Production Capacity?

Traditional beam manufacturing involves multiple standalone processes—cutting, punching, forming—that create quality inconsistencies. Our product eliminates these inefficiencies through integrated automation.

The heavy-duty frame design uses high-strength structural steel, preventing vibration during high-speed operation. German-standard gear transmission with hardened surface treatment ensures power reaches every forming station without energy loss.

You'll appreciate the automatic size adjustment system. No manual recalibration between production runs. The intelligent control panel lets operators switch between different T-beam specifications in minutes, not hours. This flexibility matters when client orders demand varied beam depths or punching patterns.

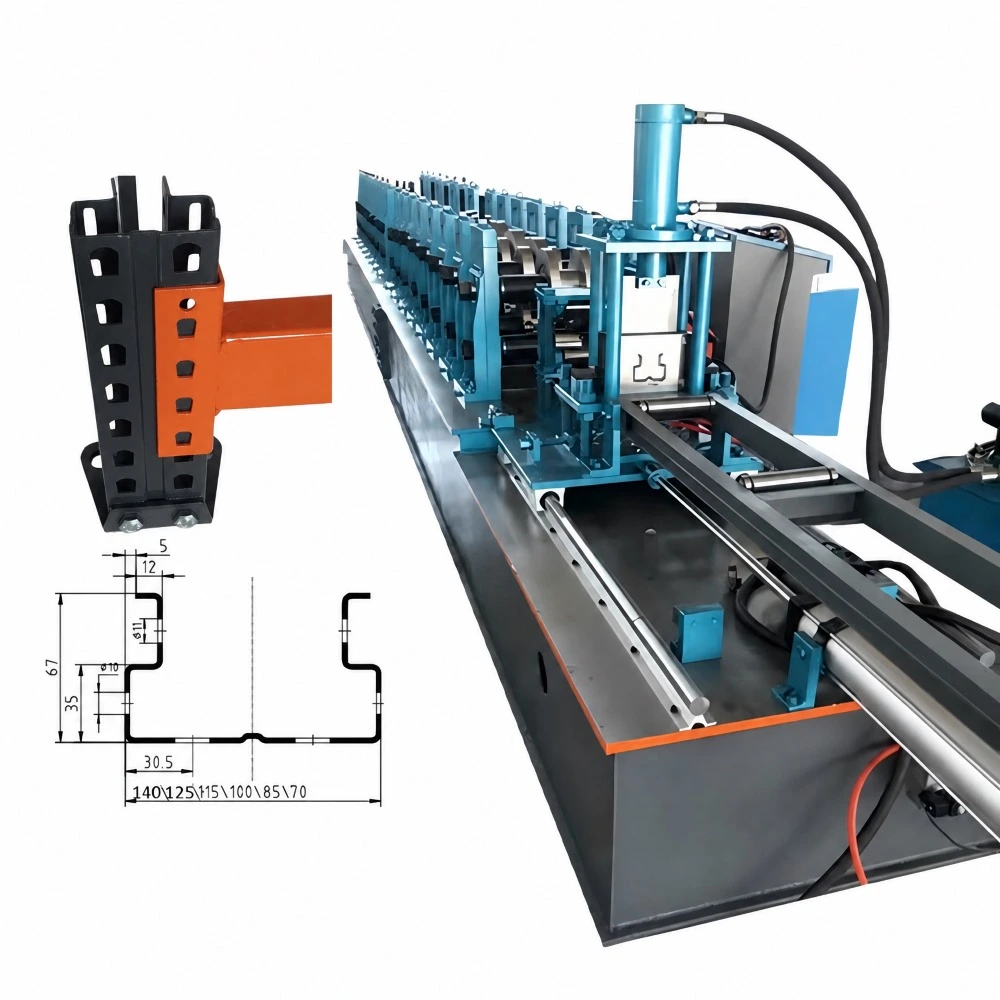

Hydraulic punching stations create precise hole arrays—butterfly, teardrop, or diamond patterns—without secondary operations. These holes integrate seamlessly with upright columns in final rack assemblies, ensuring load distribution meets warehouse safety standards.

Technical Specifications You Can Rely On

These specifications result from collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. Finite element analysis optimizes every roller profile, reducing material spring-back in high-tensile steels up to 550 MPa yield strength.

How Intelligent Systems Reduce Your Operational Costs

Remote monitoring capabilities distinguish this equipment from conventional forming machines. Cloud-based diagnostics track roller wear, hydraulic pressure, and motor temperature in real time.

When sensors detect deviations, the system alerts your maintenance team before failures occur. This predictive approach cuts unplanned downtime by 40% compared to reactive maintenance models.

Virtual debugging technology allows our engineers to troubleshoot your production line from Hebei, China. No expensive on-site visits for minor calibrations. Video diagnostics and remote PLC adjustments resolve most issues within hours, not days.

The control interface supports multiple languages and displays production metrics—meters formed, pieces cut, cycle times. You gain transparent oversight of manufacturing efficiency, helping justify ROI to stakeholders.

Application Versatility Across Storage Industries

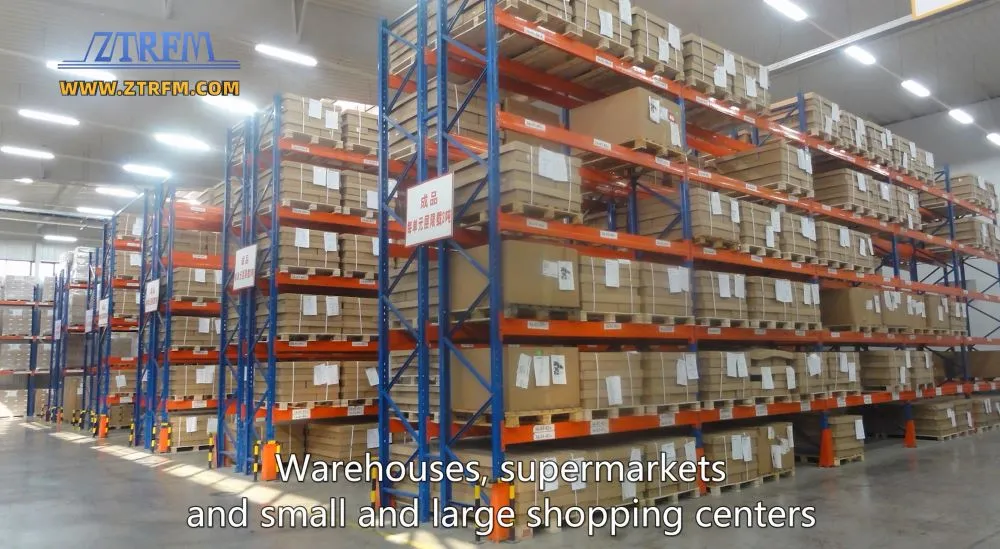

Pallet racking manufacturers benefit from consistent beam quality that supports vertical loads exceeding 10 tons per frame. The Omega-profile capability ensures compatibility with standard selective racking systems used in food distribution and third-party logistics.

Automated storage and retrieval systems (AS/RS) demand ultra-straight profiles. High-bay warehouses with 20+ meter racks cannot tolerate beam twist. Our pillar making machine t-beam forming machine maintains straightness within 0.5mm per 6-meter length, preventing shuttle malfunctions in automated environments.

Cantilever racking for timber yards or pipe storage requires heavier gauge profiles. The machine accommodates 2mm steel with specialized punching patterns that accept cantilever arms instead of standard box beams. This adaptability lets you serve niche markets without purchasing separate equipment.

Quality Assurance From Raw Material to Shipment

Every machine undergoes full-load production testing before container shipping. We run continuous forming cycles with your specified steel grades, verifying punching accuracy and cutting precision.

Core components use GCr15 bearing steel, offering superior wear resistance during extended production runs. Rollers receive chrome plating that extends service life by 30% compared to untreated tooling.

Factory inspections follow ISO 9001 protocols. Dimensional checks, surface finish assessments, and electrical safety tests ensure compliance with CE standards. Documentation accompanies each shipment, simplifying customs clearance in your region.

Our partnership with Siemens provides access to cutting-edge automation components. PLC modules, servo motors, and HMI panels come from verified suppliers, reducing compatibility issues during installation.

Customized Engineering for Your Specifications

Standard configurations suit most rack manufacturers, but your production needs may require modifications. Our technical team designs roller profiles matching your exact beam geometry—step beams, reinforced sections, or proprietary shapes.

Punching patterns adapt to your upright column systems. Hole spacing, diameter, and shape are programmable parameters. If clients request unique locking mechanisms, we engineer compatible tooling.

Production capacity scaling is straightforward. Adding forming stations increases output without compromising quality. Auxiliary systems like automatic stackers or powder coating feeders integrate with existing lines.

Material handling can be tailored. Coil car capacities, decoiler tension systems, and scrap removal conveyors adjust to your facility layout. We provide CAD drawings showing spatial requirements before manufacturing begins.

FAQ

Q: What's the minimum order for customized beam profiles?

A: Tooling development requires initial investment, but no minimum machine order exists. We recommend trial runs with standard profiles first, then customization after validating base performance.

Q: How long does installation and commissioning take?

A: Typical installations complete within 5–7 working days. Our engineers guide your team through mechanical setup, electrical connections, and test production. Remote support continues for 90 days post-commissioning.

Q: Can this machine handle galvanized or pre-painted steel?

A: Yes. Roller materials and forming pressures adjust for coated substrates. Galvanized steel up to Z275 coating and color-coated PPGI within 0.8–2mm thickness process without surface damage.

Q: What spare parts should we stock?

A: Hydraulic seals, cutting blades, and punching dies experience normal wear. We provide recommended spare part lists based on your production volume. Most components ship within 72 hours via express courier.

Q: Is operator training included?

A: Comprehensive training covers safety protocols, daily operation, troubleshooting, and basic maintenance. We provide video tutorials and printed manuals in English. Advanced training for technical staff is available on-site or at our Hebei facility.

Contact Us

Do you have more questions about pillar making machine t-beam forming machine? Contact our team at zhongtuorollforming@gmail.com with your beam specifications and production targets.
