Box Beam Roll Forming Machine: Engineering Precision & Load Efficiency

A box beam roll forming machine is a fully automatic production line built to manufacture the hollow rectangular steel beams that carry pallet loads in warehouse racking systems. By integrating C-profile forming, automatic conveying, and mechanical beam locking into a single line, this equipment takes raw steel coil and delivers finished, dimensionally accurate box beams at speeds of 15–20 m/min — with one operator managing the entire process. For racking manufacturers, supermarket-fixture producers, and steel-profile service centres, this level of automation directly reduces labour costs and tightens output tolerances.

Understanding Box Beam Roll Forming Machines: Technology and Process How the Machine Works

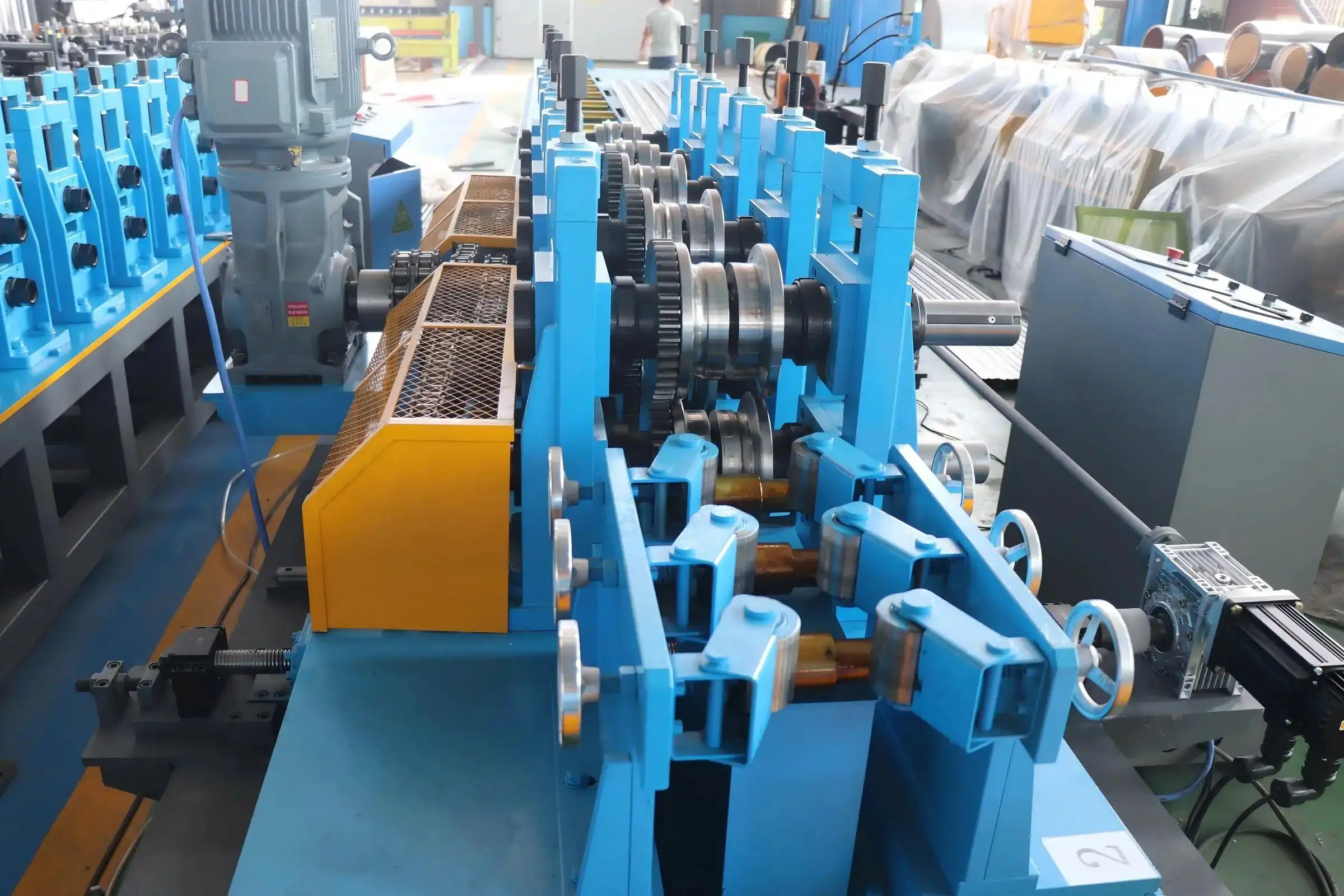

The steel coil goes through 20 roller stations in a row. Each station bends the strip a little more, making two mirror images of the C-profiles. These profiles are sent directly to the locking station on a conveyor belt. There, a mechanical interlock crimps them into a closed rectangular shape. There are no consumables or heat distortion during the welding process. During the whole process, the Delta PLC keeps an eye on length, speed, and cut timing.

Critical Components

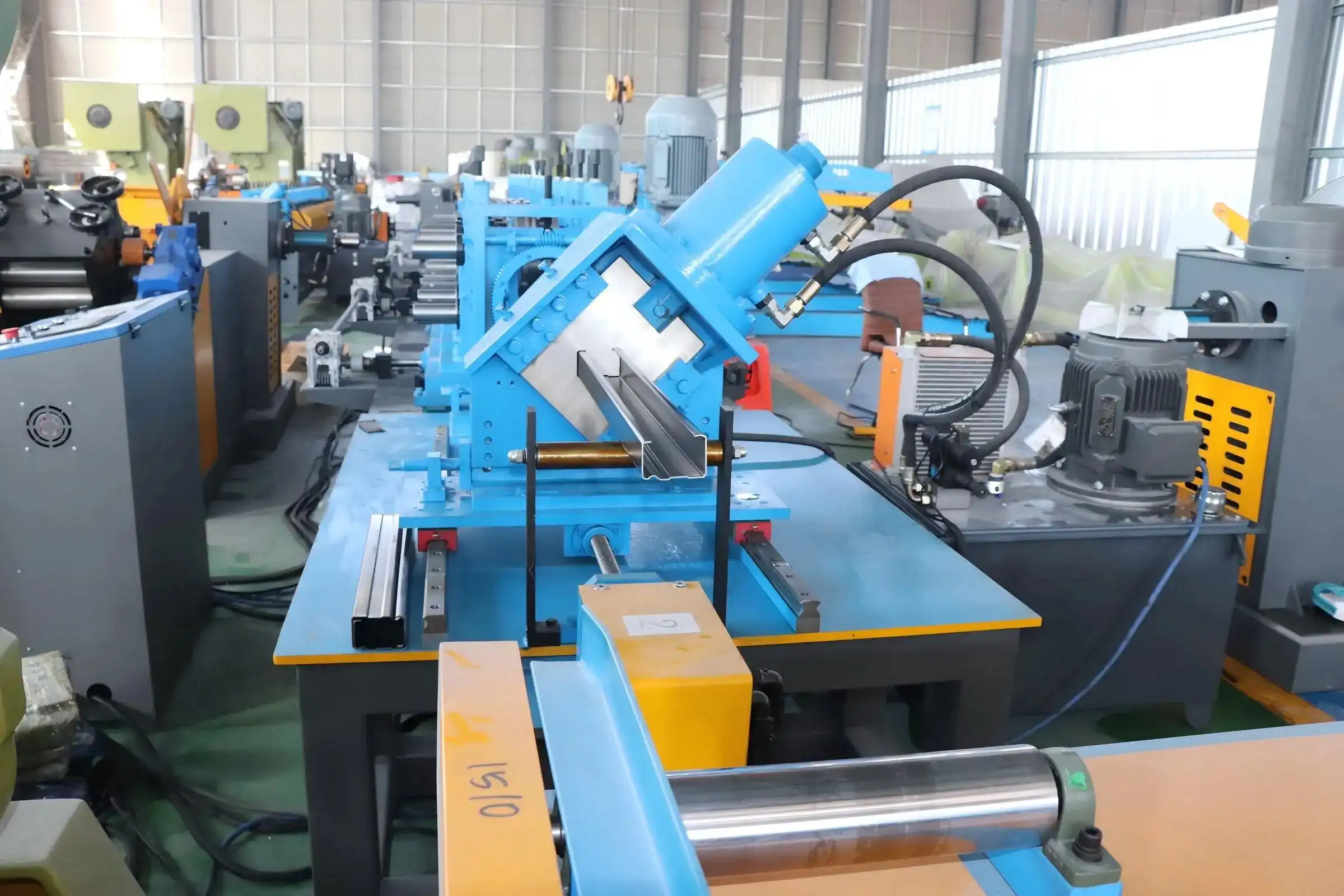

The GCr12MoV rollers and 80 mm solid shaft hold most of the weight in the forming section. When GCr12MoV tool steel is heated to about HRC 58–62, it can handle 2.0–3.0 mm galvanized or aluminum strip running at full production speed for a long time. The 500H heavy-duty welded steel frame reduces vibrations, and the Cr12MoV flying shear makes cuts without burrs that don't need to be finished again.

Industrial Applications

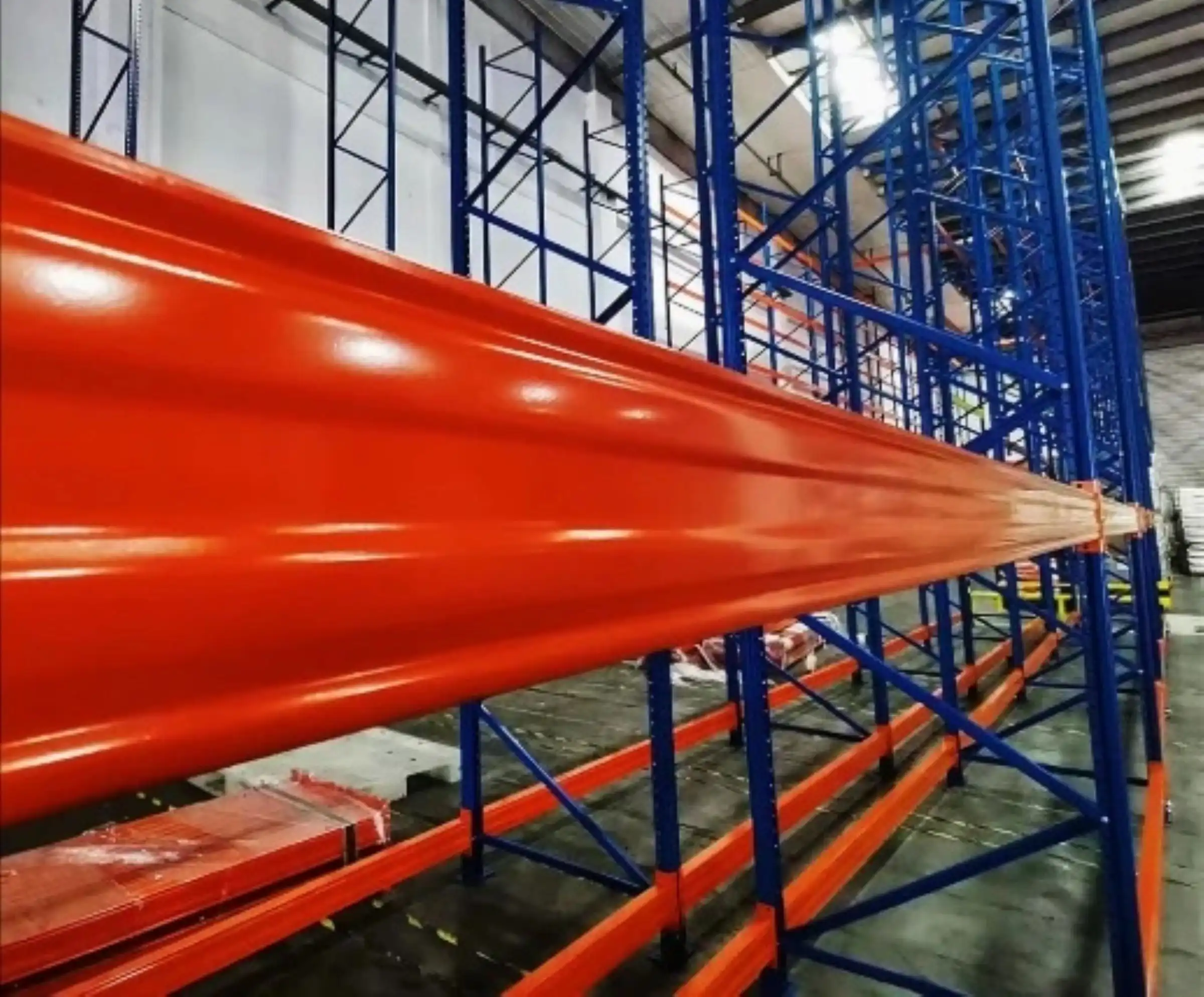

When the profiles produced by the box beam roll forming machine are finished, they are put right into pallet rack beams, shelf support bars, mezzanine joists, supermarket shelves, and workbench frames. In areas prone to earthquakes, the closed box cross-section avoids twisting and bending forces better than open-step beams when dynamic pallet loads are applied. This is why AS/RS high-bay systems around the world use box profiles as the standard horizontal member.

Comparing Box Beam Roll Forming Machines: Making the Right Choice

Roll Forming vs. Press Braking

Each stroke of a press brake makes one bend. With only four turns per box beam, output rarely goes above three to four beams per minute. About four to five times that amount is made by a dedicated roll forming line that moves at 15 meters per minute. The dimensions are much more repeatable, usually within ISO 2768-m tolerances of ±0.5 mm to ±1 mm over a 4,000-mm span.

Manual vs. Automatic Lines

Each station on a manual machine needs a skilled operator, and the results can be different for each person. Automatic lines with PLC-controlled size adjustment move forming molds along the shaft to change beam heights within the planned range without having to switch out tools. This saves the time and effort of one to two hours needed for a human spacer adjustment. Automation is a quick way to save money for any business that runs more than two beam SKUs per shift.

Speed Tiers and Total Cost of Ownership

Low-speed lines go 10 to 12 m/min, while fast lines like this one go 15 to 20 m/min. The higher line speed, along with the 7.5 kW main motor and 7.5 kW hydraulic system, keeps the energy use low compared to the output. The total cost of ownership is better for automatic high-speed equipment when the number of beams per shift is more than 500. This is because there is less waste, less need for labor, and the tools last a long time.

Maintaining Optimal Performance: Tips and Best Practices

Lubrication and Inspection Schedule

Every 200 to 300 hours of use, chain drive systems need to be oiled. Every 500 hours, roller bearings need new grease and a clearance check. Checking the alignment of the rollers once a month stops the profile from slowly moving, which would only show up during a dimensional inspection. If the alignment is wrong early, the whole production run doesn't have to be thrown away.

Wear Parts and Replacement Intervals

On the box beam roll forming machine, the Cr12MoV flying shear blades usually need to be sharpened every 100,000 cuts. Keeping the hydraulic oil clean and checking the blade gap once a month greatly increases the time between repairs. If you keep your GCr12MoV rollers in good shape, they can last for years instead of months when the material is normal (2.0–3.0 mm).

Troubleshooting Common Issues

Most of the time, different roller pressure or coil angle is to blame for bow and twist in long beams. Putting a finished 4,000-mm beam on a reference surface for a quick check of flatness should show no more than 1 mm of difference per meter. If the variation is more than that, the over-bending units are adjusted to fix the springback before too much material waste builds up.

Procuring Your Box Beam Roll Forming Machine: A B2B Buyer's Guide

Evaluating Supplier Credentials

Not just paperwork, but also a high level of signal engineering skill. Companies that have ISO 9001, CE, UL, SGS, or CAS certifications have been checked by a third party to make sure they follow good quality management, electrical safety, and mechanical design standards. In the U.S. market, UL and ETL electrical compliance testing and video acceptance testing before shipment are expected and not things that aren't needed.

New, Used, or Custom OEM Tooling

Brand-new tools come with complete sets of instructions, spare parts, and a guarantee. Roller wear records on used machines are often unknown, and they often don't have current approval. OEM/ODM tooling with NDA protection is the best option for buyers who need beam heights that aren't standard or who have their own connector-punch patterns. This is because the tooling is profiled to order and the pattern stays secret.

Logistics and Payment Terms

Standard export packaging puts the main machine on a steel frame, covers the rollers with anti-rust oil, and secures the electrical cabinet with moisture barriers. The whole thing is then wrapped in protective film and is ready to be shipped in a standard 20-foot or 40-foot container. Before signing, buyers should make sure they understand the lead times, Incoterms, and whether the supplier offers remote commissioning support or on-site installation support.

Why Choose ZTRFM's Rack Beam Forming Equipment? Trusted Engineering & Support

Proven Manufacturing Background

Cangzhou Zhongtuo (ZTRFM), which was created in 2014 in Botou, Cangzhou, which is known as the center of roll-forming machinery in China, has its box beam roll forming machine and other tools working in more than 150 countries. Some clients that have been used as examples are Tata Group (India), DS Group (Korea), and HADDAD SET (Jordan). The company has ISO 9001, CE, and CAS certifications, and works together strategically with Siemens on cloud IoT and AI remote maintenance. They also do process research with Yanshan University and the National Cold Roll Forming Institute.

Engineering Differentiators

ZTRFM's box-beam closing technology uses a mechanical interlock that stops heat distortion and gives sections the same torsional stiffness as welded sections. With recipe-based quick switching in the PLC, workers can change beam profiles by calling up a saved set of parameters instead of moving the rollers around. For situations where a seam-locked joint by itself doesn't meet the design requirements, you can add optional inline welding.

After-Sales Support

Every machine comes with a spare-parts pack, an English-language multi-language interface, and full electrical and mechanical documentation. Siemens cloud IoT connection lets ZTRFM workers check on machines from afar and send diagnostic instructions, which cuts down on downtime because they don't have to wait for a field technician. For buyers in the U.S., video acceptance testing is normal before shipping.

Conclusion

For torsional resistance, throughput, and dimensional consistency, the box beam roll forming machine produces a structural profile that is superior to open-step methods. Warehouse-grade beams are put on the stacker at 15–20 m/min by 20 forming stations, GCr12MoV tooling, Delta PLC control, and mechanical beam locking. One operator is in charge of the stacker. If you want to make more racks, sell channels for supermarket fixtures, or run a service center for steel profiles, this kind of fully automatic line changes the unit economics of beam manufacturing in a way that can be measured.

FAQ

Q1: Can the machine handle high-tensile steel?

Yes. The 80 mm solid shaft and 20-station progressive forming sequence accommodate steel up to approximately 550 MPa. Higher-tensile grades benefit from the over-bending stations that compensate for springback, keeping corner angles at 90 degrees.

Q2: How does beam joining work without welding?

Two formed C-profiles pass through the interlocking station, where the flanges are mechanically crimped together. The resulting double-C interlock produces strong torsional stiffness without welding consumables or heat-affected zones.

Q3: What does size changeover involve?

The Delta PLC stores beam recipes. Operators recall a saved profile, and the system moves forming molds automatically along the shaft to the new position — no manual spacer work required for sizes within the designed range.

Q4: Are connector punch holes included?

Yes. A pre-punching hydraulic station integrated before the forming section punches connector holes to ±0.5 mm positional accuracy, controlled by the PLC, so beam clips seat correctly into uprights.

Get Your Custom Quote from ZTRFM — Box Beam Roll Forming Machine Manufacturer

ZTRFM builds automatic rack beam forming lines for racking manufacturers, supermarket-fixture producers, and service centres worldwide. Our machines ship to 150+ countries, carry CE, UL, ISO 9001, and CAS certifications, and come with Siemens IoT remote support. Tell us your beam profile, material gauge, and punch pattern — we will send a detailed technical proposal and pricing for our box beam roll forming machine for sale.

contact us today: Email: zhongtuorollforming@gmail.com

References

1. Halmos, George T. Roll Forming Handbook. CRC Press, 2006.

2. American Iron and Steel Institute. Steel Products Manual: Cold-Formed Steel. AISI, 2018.

3. International Organization for Standardization. ISO 2768-1: General Tolerances — Part 1: Tolerances for Linear and Angular Dimensions. ISO, 1989.

4. Bhattacharyya, Debes (ed.). Composite Sheet Forming. Elsevier Science, 1997.

5. FEM (Fédération Européenne de la Manutention). FEM 10.2.02: The Design of Steel Pallet Racking — Performance Testing. FEM, 2001.

6. Rack Manufacturers Institute. Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks. RMI / ANSI MH16.1, 2012.
