Storage Shelf Machine Manufacturing Solutions – High-Precision Roll Forming Equipment for Industrial Racking Systems

Cangzhou Zhongtuo Roll Forming Machinery delivers advanced storage shelf machine systems engineered for supermarket shelving, warehouse racking, and industrial storage applications. Since 2014, our national-level high-tech enterprise has exported roll forming equipment to over 150 countries. Our storage shelf production lines feature 16 forming stations with GCr12 hardened steel rollers, Φ80mm solid shafts, and speeds up to 15 m/min. Each system handles 1.5–2.0mm PPGI, GI, or aluminum coils with ±0.5mm cutting tolerance. Backed by ISO9001, CE, CAS, and 30+ certifications, we provide 24/7 remote diagnosis, factory testing, and customized feeding widths tailored to your profile designs.

What Is a Storage Shelf Machine and Why Your Production Needs It?

A storage shelf machine transforms metal coils into precision structural components through automated cold roll forming. Unlike traditional brake press methods, this technology eliminates dimensional inconsistencies that compromise rack safety.

The system integrates hydraulic decoiling, servo-driven punching, continuous forming, and PLC-controlled shearing. It processes high-tensile steel up to G550MPa while maintaining profile geometry critical for upright-beam interlocking.

Your production benefits from synchronized operations that prevent cumulative errors. Manual fabrication cannot match the flatness and structural integrity required for high-bay warehouse installations. This equipment solves low-efficacy challenges in racking manufacturing.

Technical Specifications That Define Performance Standards

Core Advantages That Maximize Your ROI

Durability Through Material Excellence

GCr15 bearing steel and high-strength structural components ensure continuous operation under high-intensity production schedules. Your equipment maintains precision after years of service.

Heavy-Duty Frame Engineering

Our H-beam welded base design resists deformation during high-load operations. Vibration dampening technology keeps profile tolerances within ±1mm over 10-meter lengths.

German-Standard Transmission Systems

Hardened gear surfaces improve wear resistance and transmission efficiency. Chain drive alternatives suit different production environments. Both systems synchronize with servo motors for consistent results.

Factory-Verified Quality Assurance

Every machine completes full production testing before shipment. You achieve rapid deployment after installation. Pre-shipment inspections eliminate on-site surprises.

Intelligent Remote Diagnostics

Real-time monitoring systems track operating parameters continuously. Our technical team diagnoses issues remotely and provides immediate solutions. This reduces downtime and maintenance costs significantly.

Certified Manufacturing Standards

Over 30 international certifications including ISO9001, CE, CAS, UL, and SGS validate our quality systems. These credentials demonstrate compliance with North American and European regulatory requirements.

Customization Capabilities for Diverse Production Needs

Your specific requirements drive our engineering approach. We design feeding widths matching your profile specifications. Different sheet types and automated configurations accommodate varied production capacities.

Light-duty uprights typically use 38×38mm profiles with 100–150kg per-layer capacity. Medium-duty systems employ 80×40mm columns supporting 200–250kg loads. Heavy-duty storage shelves require custom engineering based on load calculations.

Our technical team collaborates with you throughout the design phase. Profile drawings, punching patterns, and line layouts align with your facility space and workflow. Cassette-type roller stations enable rapid changeovers between products.

Research-Backed Innovation Through University Partnerships

Our collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings academic rigor to practical applications. PhD researchers optimize forming mechanisms using finite element analysis and AI-assisted simulation.

This partnership yields two patented technologies now integrated into production lines. Virtual debugging and cloud-based commissioning reduce trial costs while ensuring dimensional accuracy. Remote monitoring supports international customers across time zones.

Graduate researchers stationed at our factory accelerate digital transformation initiatives. Their work strengthens standardization protocols and enhances equipment stability through continuous feedback loops.

Complete Production Line Configuration

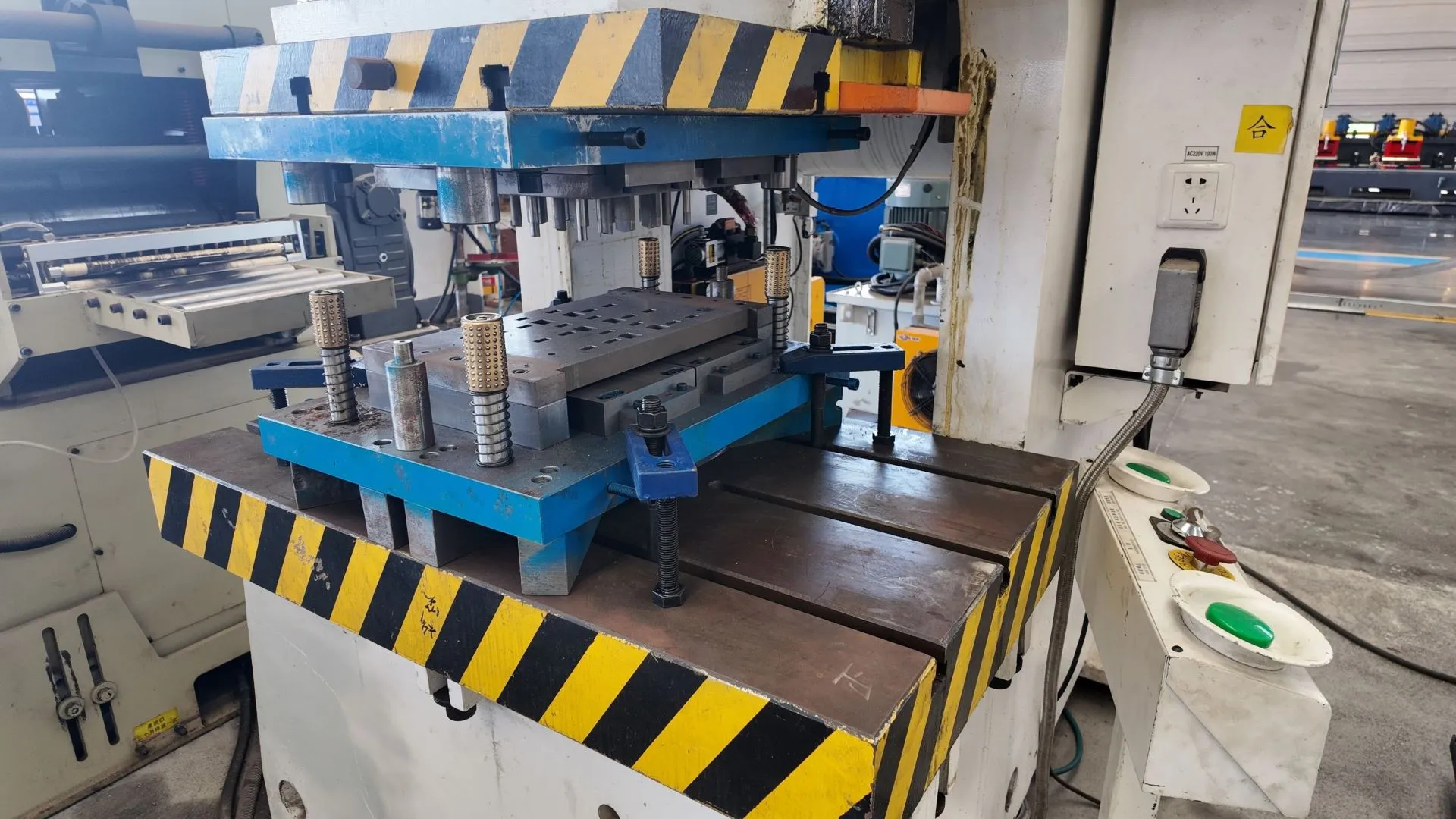

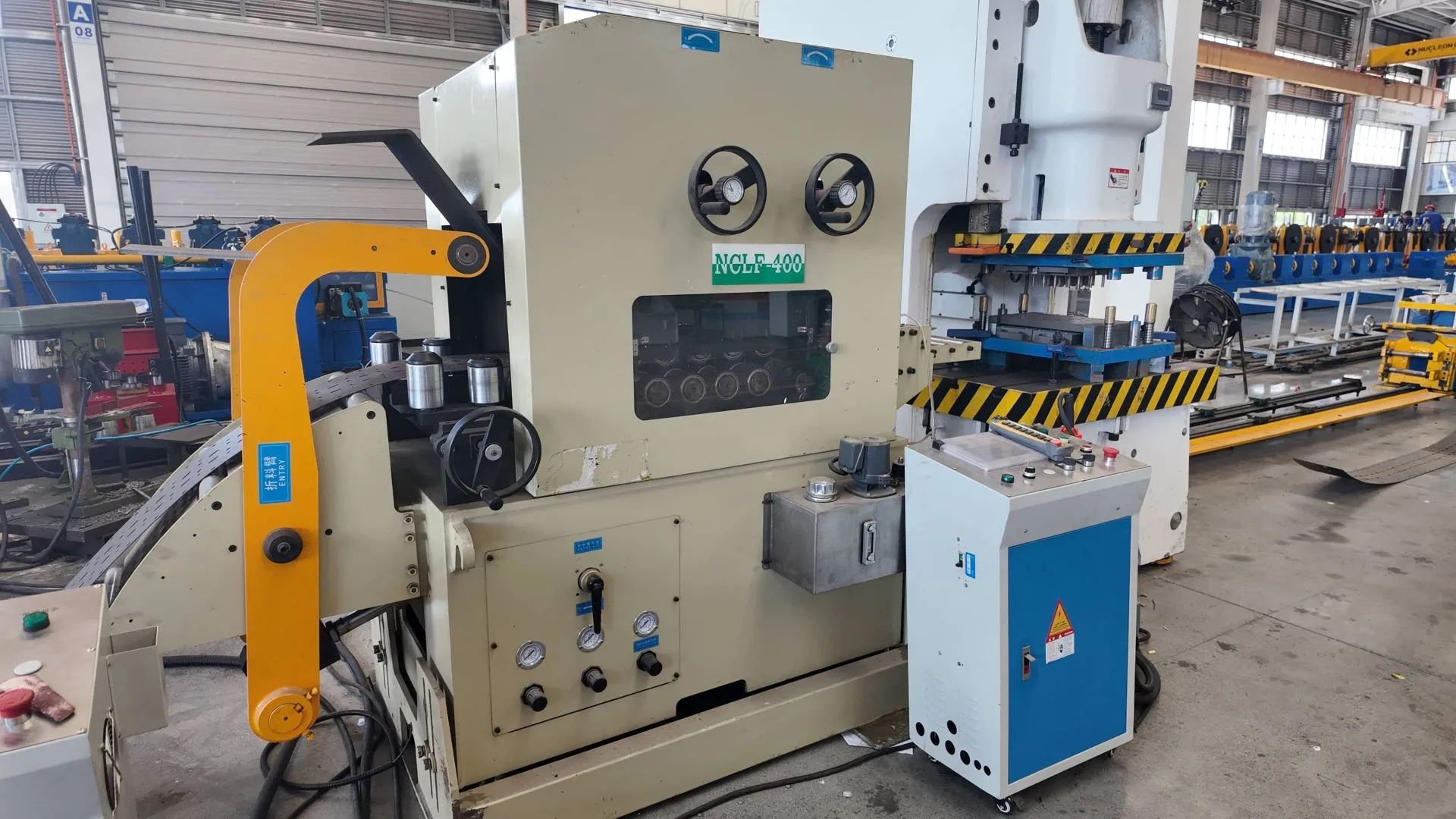

The integrated system includes hydraulic automatic decoilers handling coils up to 5 tons. Seven-roller levelers with 3-up/4-down configuration prepare material for forming. Yangli pneumatic punching machines deliver 80 tons of force with servo feeding precision.

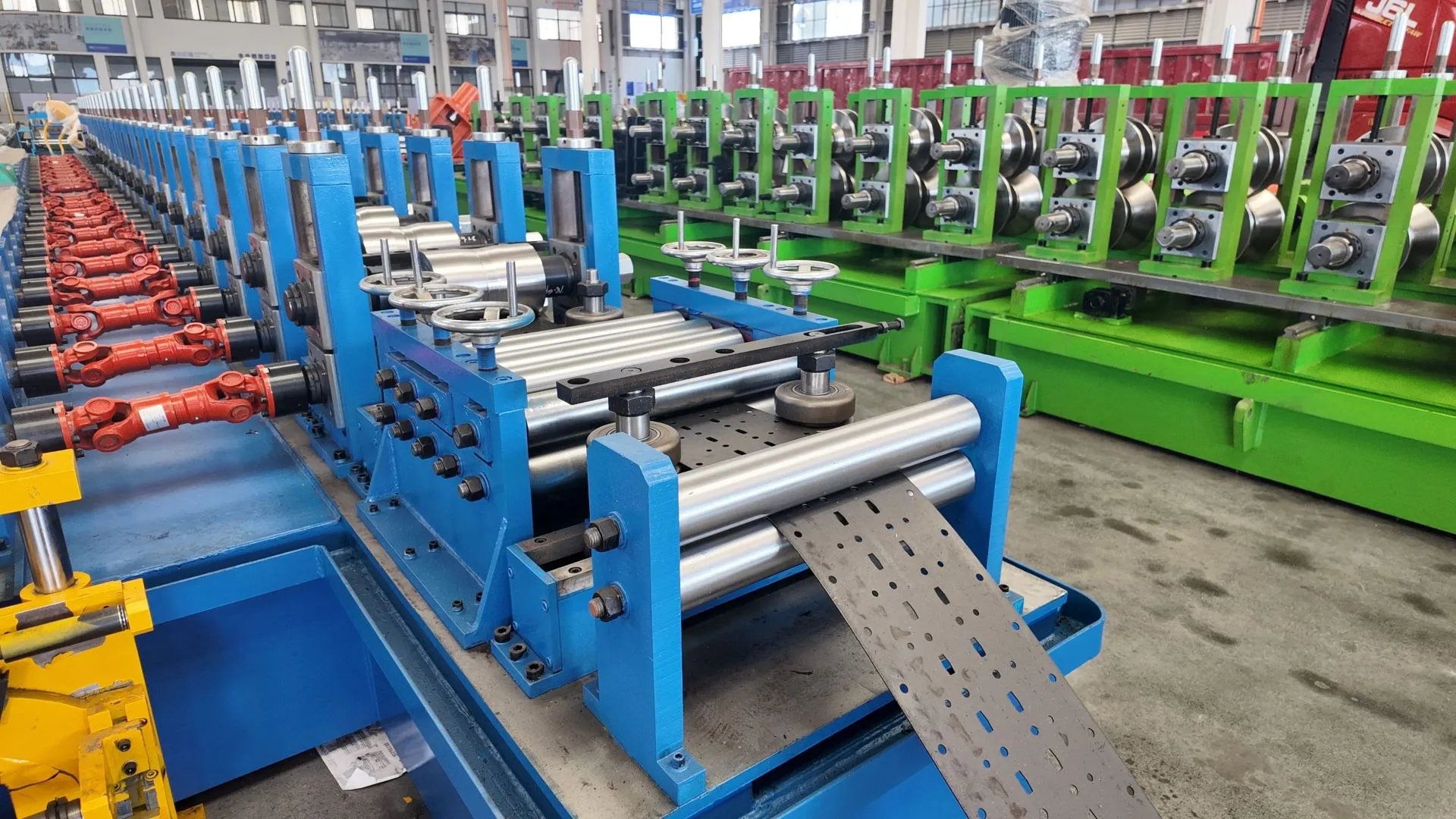

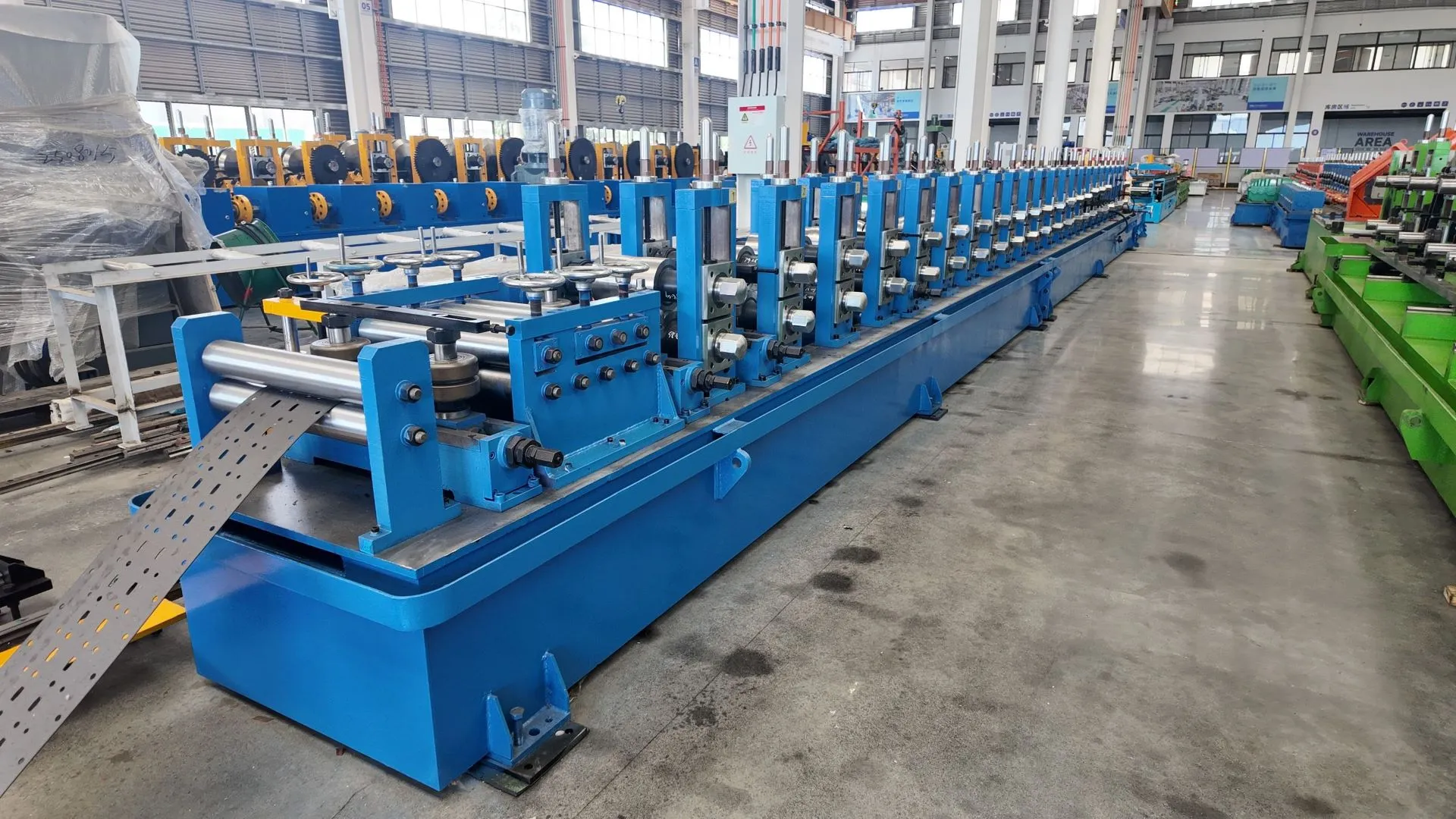

Sixteen roller stations transform flat coils into complex profiles through progressive bending. Hydraulic cutting systems eliminate waste material while maintaining length tolerances. Six-meter run-out tables provide adequate space for finished product handling.

DELTA or Siemens PLC systems control the entire sequence. Operators set batch quantities, lengths, and production schedules through multilingual interfaces. Variable frequency drives adjust forming speeds based on material thickness and profile complexity.

Export-Standard Packaging and Global Logistics Support

We understand international shipping requirements. Steel frame packaging with anti-rust oil protection preserves equipment during ocean transport. Wooden cases meet fumigation standards for all destination countries.

Container optimization ensures efficient use of 20GP or 40HQ space. Full inspections verify all components before crating. Documentation packages include operation manuals, electrical schematics, and spare parts lists.

Your product arrives ready for installation. Our remote commissioning service guides your team through setup procedures. Video calls and screen-sharing tools enable real-time troubleshooting during initial runs.

FAQ

Q: What materials can the product process?

A: The system handles PPGI, galvanized steel, and aluminum coils from 1.5–2.0mm thickness. Custom roller designs accommodate specialty materials upon request.

Q: How quickly can production begin after installation?

A: Factory testing ensures immediate operation capability. Most customers achieve full-speed production within 48 hours of installation. Remote technical support accelerates commissioning.

Q: What maintenance schedule does the equipment require?

A: Lubricate drive chains every 500 operating hours. Inspect roller surfaces monthly for wear. Annual hydraulic system checks maintain optimal performance. Our remote monitoring alerts you to potential issues before failures occur.

Q: Can existing profiles be replicated on your machines?

A: Yes. Send us sample pieces or CAD drawings. Our engineering team designs roller configurations matching your specifications. Profile changes require only cassette swaps on advanced models.

Q: What training do operators need?

A: Basic metal fabrication knowledge suffices. We provide video tutorials, on-site training options, and 24/7 phone support. PLC interfaces use intuitive touchscreens requiring minimal technical expertise.

Q: How does remote diagnosis work across time zones?

A: Cloud-based platforms connect your equipment to our support center. Technicians access real-time data and camera feeds. Scheduled maintenance windows accommodate regional business hours.

Contact Us

Ready to upgrade your racking production capabilities with storage shelf machine? Email zhongtuorollforming@gmail.com today for technical consultations, quotations, and virtual factory tours.
