High-Performance Steel Shelf Making Machine for Warehouse and Supermarket Racking Systems | Automated Production Solution

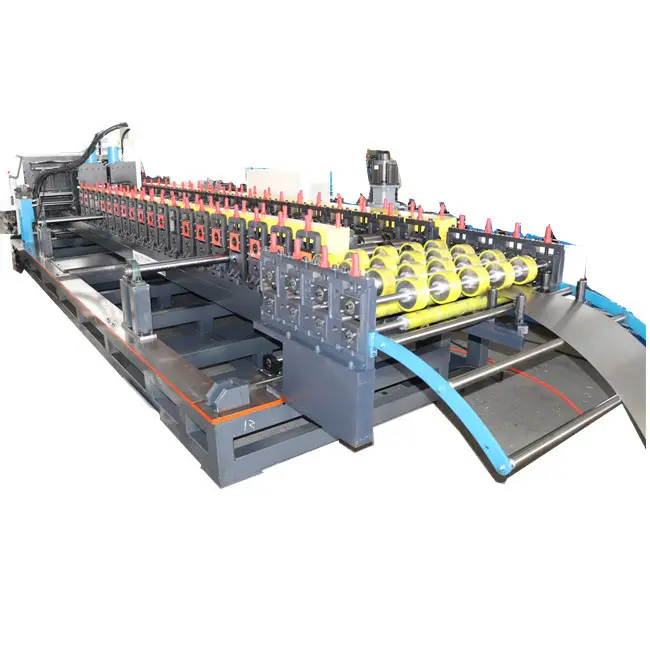

Cangzhou Zhongtuo Roll Forming Machinery delivers industrial-grade steel shelf making machine solutions engineered for precision racking production. Our automated forming line features 16 forming stations equipped with 20 Cr12/GCr12 hardened steel rollers, processing PPGI, GI, and aluminum coils from 1.5–2.0mm thickness at speeds up to 15m/min. Since 2014, our equipment has served over 150 countries with ISO9001, CE, CAS, UL, and SGS certifications. Heavy-duty 350 H-steel frame construction ensures stability during continuous operation, while intelligent PLC systems enable batch production with customizable length and quantity settings for supermarket shelves, warehouse uprights, and industrial storage systems.

Engineered for Supermarket and Warehouse Racking Production

Quality and production are essential for any storage racking business. Our product makes precision L-shape light-duty brackets, C-channel medium-capacity uprights, and heavy-duty columns from coiled metal.

Hydraulic decoiling, roll forming, punching, and cutting are integrated in the automated manufacturing process. Make teardrop-hole uprights, slotted beams, and base plates automatically. Labor expenditures are eliminated while thousands of items are held to strict standards.

Each machine is full-load tested before shipping. We execute entire production cycles to validate roller alignment, punching accuracy, and cutting precision for instant productivity following installation.

Technical Specifications

Why Choose Our Racking System Forming Equipment?

Your investment requires equipment that operates reliably for years without frequent maintenance. We build machines using GCr15 bearing steel for core components and high-strength structural steel for frames. This combination withstands continuous high-load production while maintaining dimensional accuracy.

The German-standard gear transmission system receives hardened surface treatment. This increases wear resistance and power transfer efficiency compared to chain-only systems. You'll notice smoother operation and reduced vibration even at maximum speed.

Heavy-duty frame construction prevents deformation during intensive production runs. The rigid structure keeps roller alignment precise, which directly affects your finished product quality. Even after processing millions of linear meters, your profiles maintain consistent dimensions.

Remote operation and maintenance systems monitor equipment status in real-time. When diagnostic data indicates potential issues, our technical team can troubleshoot remotely. This minimizes downtime and eliminates the cost of emergency on-site visits.

Customization for Your Product Portfolio

Different markets require different shelf profiles. Your retail clients may need light-duty L-brackets, while industrial customers demand heavy-duty special C-columns rated for 23,300 lbs capacity.

Our engineering team designs roller sets based on your specific profile drawings. We support various hole patterns including teardrop designs for beam mounting and slots for height adjustment. Feeding width adjusts to accommodate your widest profiles.

The modular design allows configuration changes without replacing the entire machine. You can switch between profile types by changing roller sets and punching dies, expanding your product catalog without additional major capital investment.

Complete Production Line Integration

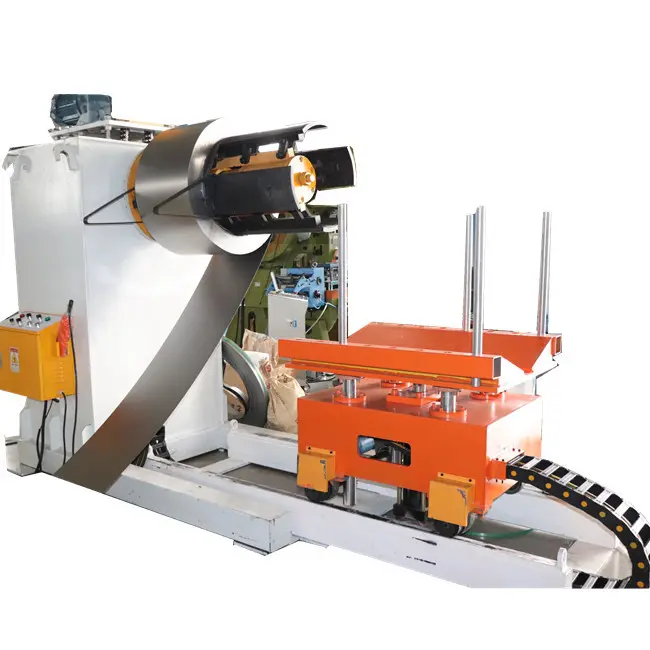

The steel shelf making machine coordinates with auxiliary equipment for end-to-end automation. Hydraulic decoilers handle coils up to specified weights, feeding material at consistent tension. This prevents material waviness that affects forming quality.

Integrated punching units create mounting holes during the forming process. Hole spacing, diameter, and pattern follow your specifications precisely. The PLC system synchronizes punching with material advancement, ensuring hole placement accuracy within ±0.5mm.

Automatic cutting systems use Cr12MoV blades that maintain sharpness through extended production runs. Clean cuts require no secondary deburring operations. You achieve finished parts ready for powder coating or galvanizing.

Quality Assurance Through Rigorous Testing

Every machine completes factory acceptance testing before shipment. We load actual material matching your specifications and run complete production cycles. This verifies roller surface finish, punching alignment, cut quality, and dimensional accuracy.

Profile accuracy testing measures effective width and rib height against technical drawings. Industry-standard tolerances of ±1mm for width and ±0.5mm for height ensure compatibility with standard racking components. Your finished uprights will mate perfectly with beams and accessories.

Material run-out tests verify the machine processes full coils without side wave or twisting defects. These problems indicate misaligned forming stations. We adjust roller positioning until material tracks straight through all 16 stations.

Hardness verification confirms roller surface hardness reaches HRC 58-60. This hardness level prevents roller deformation when forming high-yield strength steel. Your tooling maintains precision through hundreds of thousands of meters of production.

Global Support Infrastructure

We've exported equipment to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. This experience taught us how different markets require different technical approaches.

Our 24/7 online technical support provides assistance regardless of your time zone. When you encounter production questions, our team offers immediate guidance through video calls, showing you adjustments or settings in real-time.

Installation and training services ensure your operators understand machine capabilities fully. We provide comprehensive documentation in English and other languages, covering operation procedures, maintenance schedules, and troubleshooting guides.

Strategic partnerships with Siemens and collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center bring advanced automation and process optimization to your production floor. Cloud-based monitoring platforms enable predictive maintenance, alerting you to component wear before failures occur.

FAQ

Q: Can the machine process both light-duty and heavy-duty shelf profiles?

A: Yes. By changing roller sets and adjusting forming stations, you can produce L-shape brackets from 1.5mm material and special C-columns from 2.0mm high-strength steel. The 80mm solid shaft and heavy-duty frame handle the increased forming forces required for thicker materials.

Q: What causes dimensional variation in finished uprights?

A: Common causes include inconsistent material thickness, worn roller surfaces, or misaligned forming stations. Our machines use chrome-plated Cr12 rollers that resist wear, and the rigid frame maintains alignment. Regular inspection of roller surfaces and proper material tension prevent most dimensional issues.

Q: How quickly can we switch between different profile designs?

A: Roller changeover typically requires 4-6 hours depending on profile complexity. We provide quick-change tooling systems that reduce this time. The PLC stores multiple programs, so you simply load the appropriate profile parameters after mechanical changeover.

Q: Does the machine require special power supply configurations?

A: Standard configuration operates on 220V 60Hz 3-phase power, but we customize voltage and frequency to match your facility. The system includes voltage stability protection to prevent damage from power fluctuations common in some regions.

Q: What maintenance schedule should we follow?

A: Daily lubrication of chain drives and weekly inspection of roller surfaces maintain optimal performance. Monthly checks of hydraulic fluid levels and electrical connections prevent unexpected downtime. We provide detailed maintenance checklists and can supply all wear parts.

Q: Can you design custom punching patterns for proprietary racking systems?

A: Absolutely. Provide your technical drawings showing hole positions, diameters, and spacing. Our engineering team designs punching dies and programs the PLC to replicate your pattern precisely. This protects your product differentiation in competitive markets.

Contact Us

Ready to enhance your racking production capabilities with steel shelf making machine? Email us at zhongtuorollforming@gmail.com with your profile drawings and production goals.
