Why exposed grid ceilings demand a precise t grid roll forming machine?

A clean, deliberate aspect is achieved with an exposed grid ceiling, but that sophisticated look rests largely on how straight, uniform, and dimensionally exact every T-grid profile is. A properly calibrated t grid roll forming machine passes PPGI or GI steel coil stock through a series of roller stations to produce Main Tees and Cross Tees with the same geometry every metre of output. Small changes in flange width or web height result in lopsided tiles, misaligned joints, and unprofessional-looking ceiling bays. Precision is non-negotiable in the creation of a successful suspended ceiling installation; it’s the foundation.

Understanding the Role of T Grid Roll Forming Machines in Exposed Grid Ceilings

It's helpful to know exactly what these tools do and why their design has a direct effect on the finished ceiling before you choose them.

What the Machine Actually Does

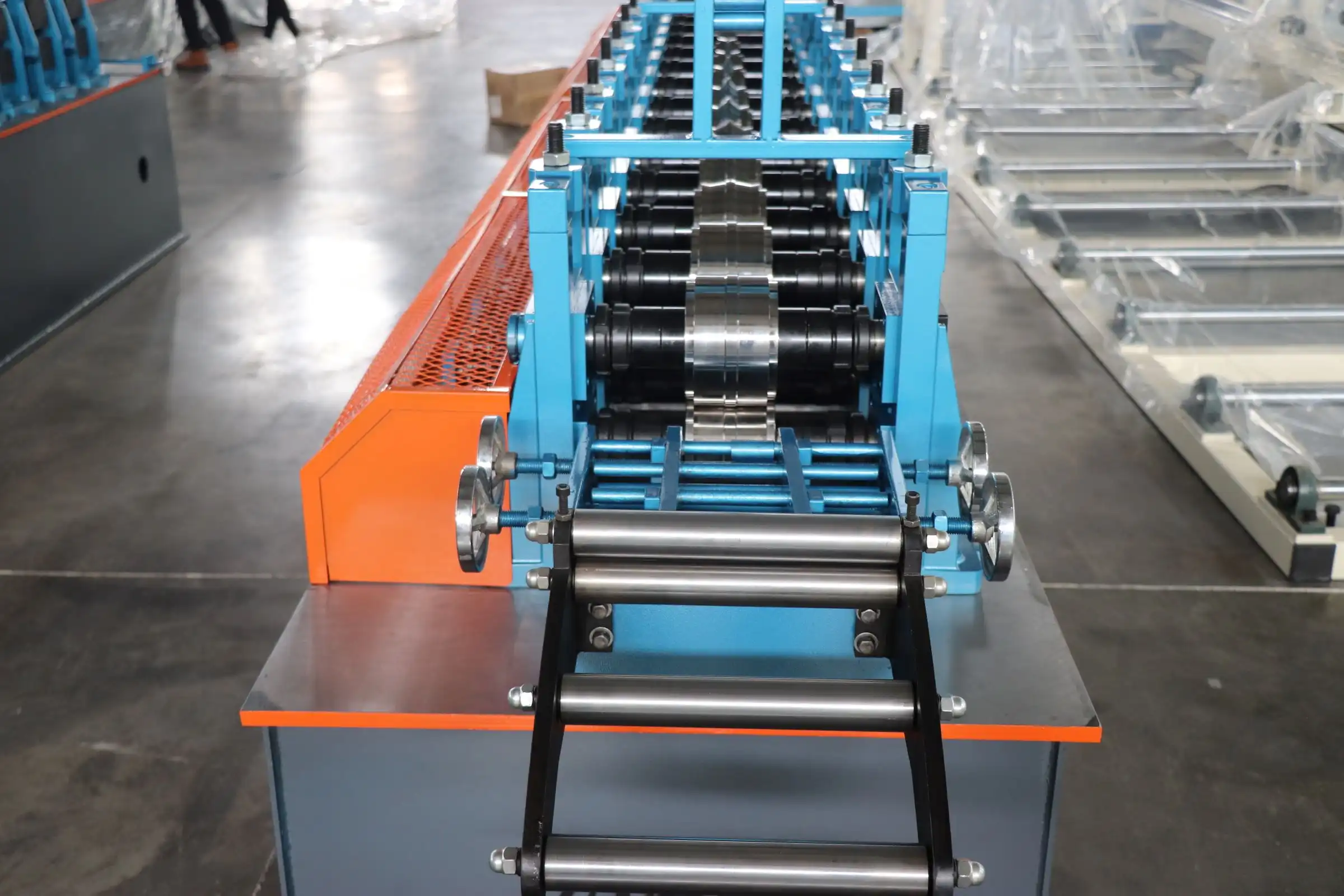

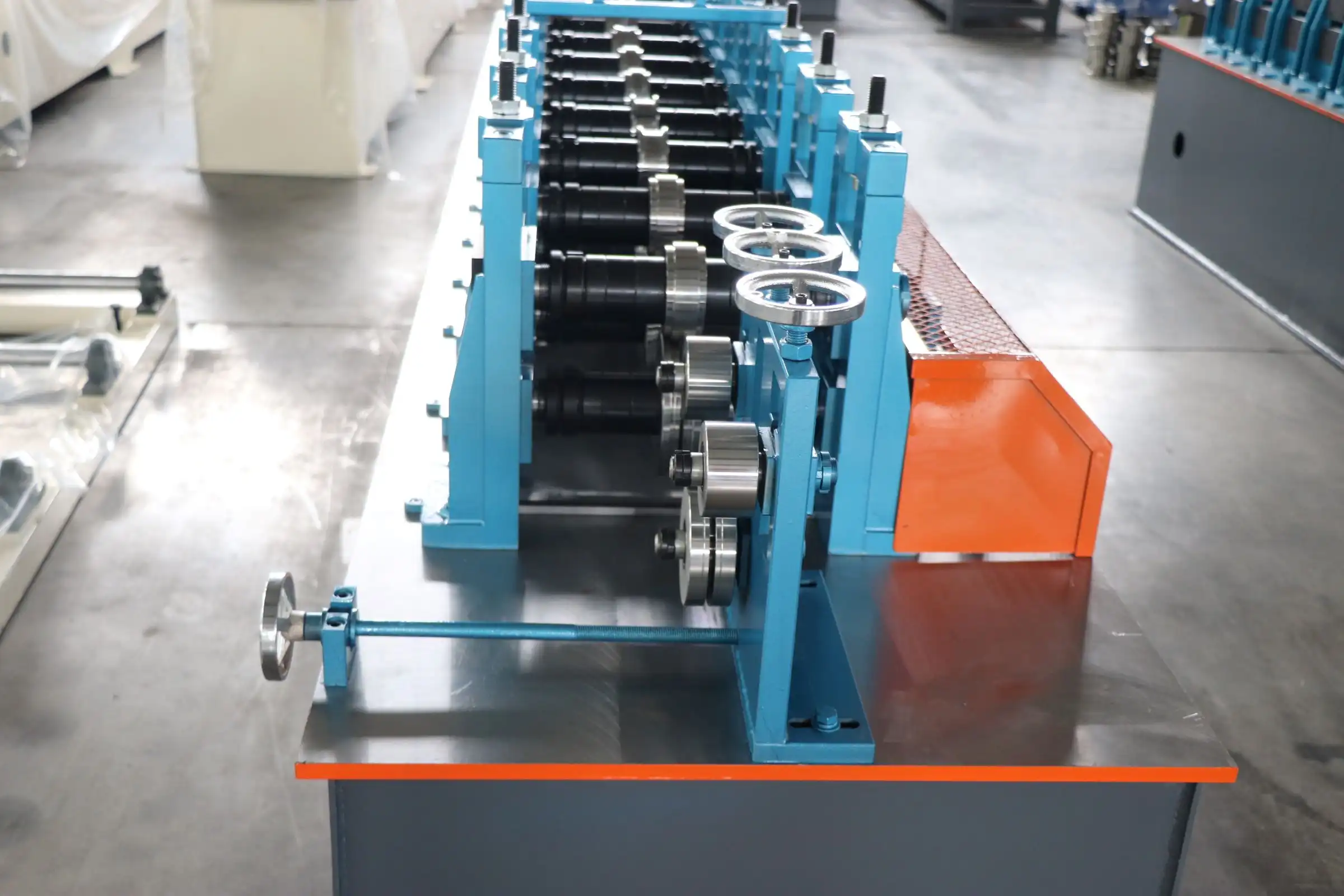

A flat piece of metal is fed through a series of roller stations by a ceiling grid roll forming line. The strip is bent a little more at each station until the final T-shaped shape is formed. Since the process is continuous, the accuracy of the dimensions relies on the shape of the rollers, the rigidity of the shafts, and how well the speeds are synchronized, not on the hands of the operator.

How the Forming Process Affects Profile Quality

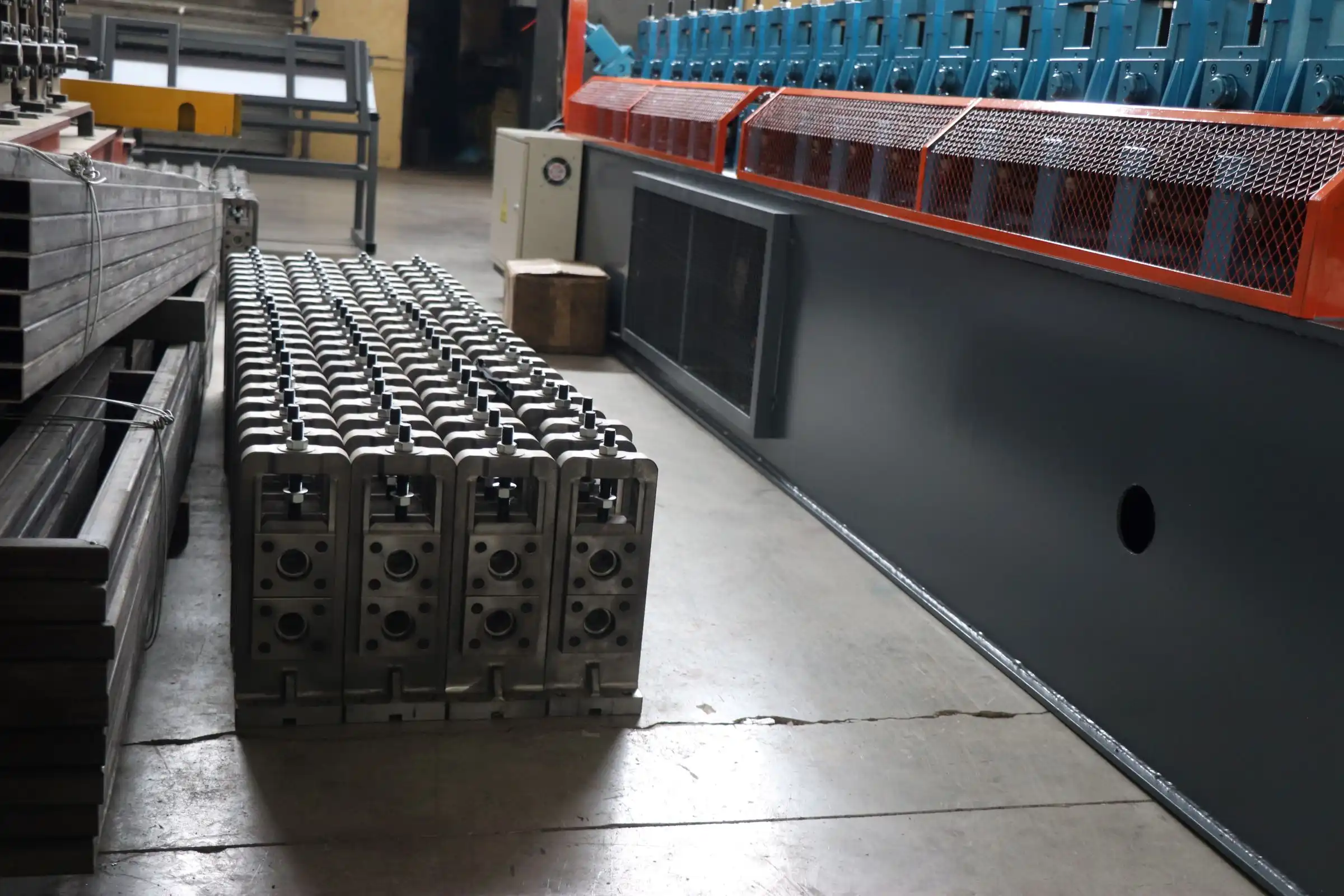

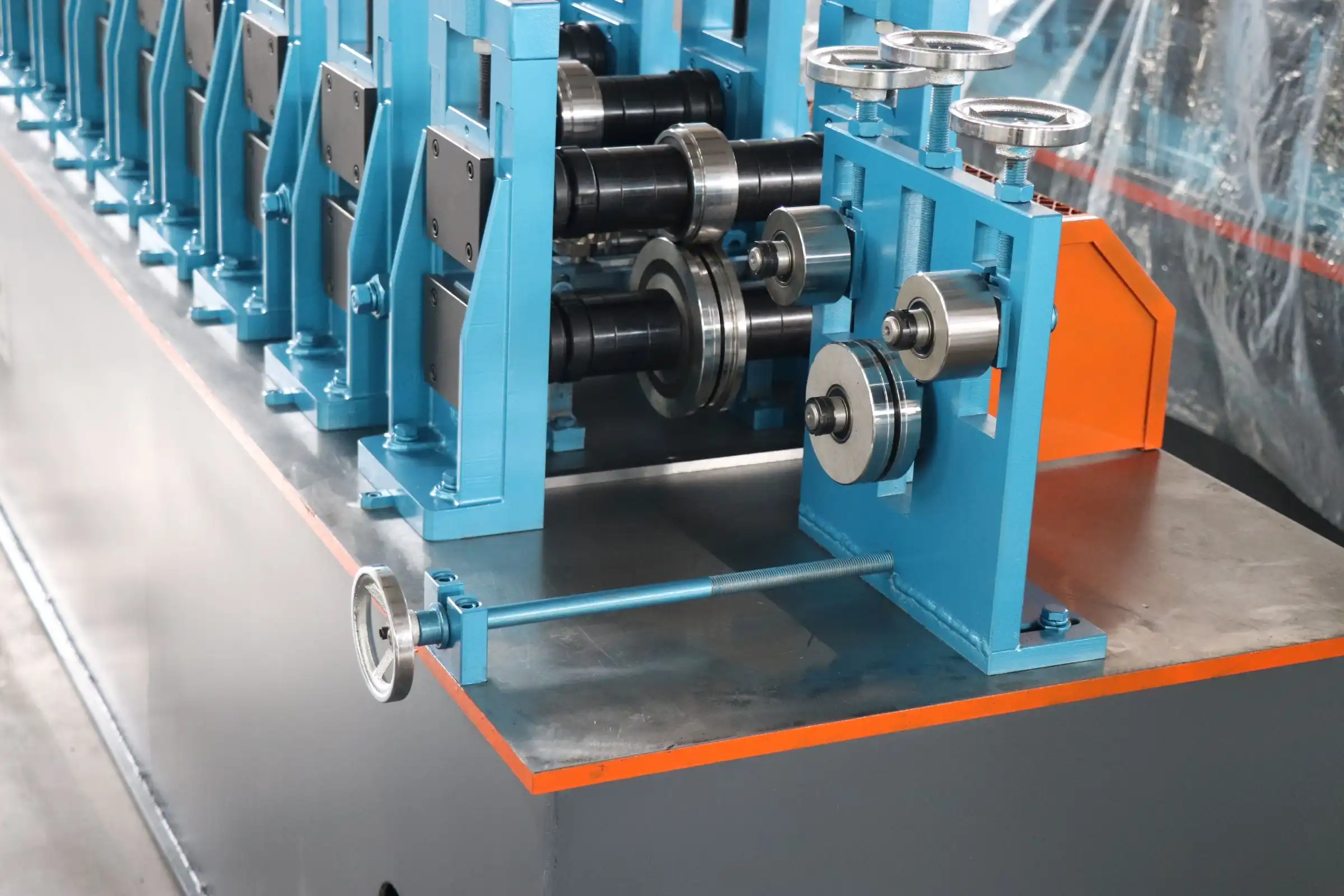

ZTRFM's line has 18 roller stations for the Main Tee and 16 stations for the Cross Tee. GB-Cr12 tool steel is used to make rollers because it doesn't wear down easily and keeps tight standards over long production runs. The decoiler can handle coil loads of up to 1.5 tons and an inner diameter range of 450–550 mm. It can handle normal coil sizes without having to be adjusted by hand between runs.

Where These Profiles Are Used

The Main Tees and Cross Tees produced by the T grid roll forming machine run along the whole length of the ceiling bay, which is usually 3,600 mm. The Cross Tees, on the other hand, lock in place every 1,200 mm or 600 mm to form the tile grid. This frame can be found in shopping malls, hospitals, cleanrooms, offices, and light-gauge steel buildings that are already put together. In every case, what is needed are profiles that are square, straight, and repeatable.

Why Precision Matters: The Unique Demands of Exposed Grid Ceilings

Exposed grids stay visible after installation. There is no secondary finish to hide forming errors, which raises the standard significantly compared to concealed-grid systems.

Dimensional Tolerance and Tile Fit

Standard suspended ceiling modules use 600 × 600 mm tiles. If the slot spacing along the Main Tee drifts even 1–2 mm, Cross Tees no longer click securely, and tiles either rock or leave visible gaps. ASTM C635 specifies load capacity and dimensional requirements for exposed suspension systems. Meeting those numbers starts with a machine that holds ±0.1 mm profile tolerances and ±0.5 mm cut-length accuracy across a 3,600 mm span.

Surface Integrity on Pre-Painted Material

The top material—0.12–0.3 mm PPGI—arrives with a factory finish that roller marks or scratches will ruin permanently. Cr12 rollers with hard chrome plating and precision speed synchronization between stations prevent relative sliding contact. A surface defect on a pre-painted T bar is not a cosmetic issue alone; it accelerates corrosion at the damaged point, reducing the profile's service life in humid commercial environments.

Structural Straightness Over Full Length

A laser check on a flat table should show less than 1 mm deviation per 3,600 mm Main Tee length. Twisting or camber makes a level ceiling physically impossible to achieve. The machine's anti-twist correction heads counteract internal stress introduced when thin-gauge strip—as light as 0.12 mm—is cold-formed continuously at speed.

Types and Technologies of T Grid Roll Forming Machines Suitable for Exposed Ceilings

Not every roll making line makes the same type of product. Knowing the differences in technology helps buyers match the capabilities of a machine to the needs of the production.

Manual vs. Automatic Production Lines

On the t grid roll forming machine, manual lines require workers to stop the equipment to punch and cut, which slows production and causes variation between runs. Automatic lines use flying cut systems, which are hydraulic cutting systems that trim profiles while the strip keeps moving. This prevents cut end deformation and greatly increases the number of meters per minute that can be produced. The lines at ZTRFM move at 0–20 m/min and punch and cut at the same time. This keeps production going without lowering the quality of the finished product.

Drive System Choices: Electric vs. Hydraulic

Electric servo-driven systems let you precisely control the speed and use less energy when they're only partially loaded. Punching thick-gauge material is easy with hydraulic systems because they have a high clamping force. A lot of high-tech lines have both servo feed for precise shaping and hydraulic stations for cutting end clips and web holes. When the line has to work with both 0.12 mm PPGI top material and 0.2–0.4 mm GI bottom material on the same platform, this combination works really well.

Industry 4.0 Integration: IoT and AI Maintenance

Siemens and ZTRFM work together to make it possible for ZTRFM to add cloud IoT monitoring and AI-assisted remote diagnostics to its products. Real-time information on motor power, hydraulic oil temperature, and roller pressure helps production teams spot problems before they lead to scrap. The PLC system also has stroke counts that let workers know when the punching dies are getting close to the point where they need to be serviced, which is usually every 100,000 strokes. This keeps burrs from forming on the edges of the slots, which would cause clip-fit failures on-site.

These technology options all help with the biggest problems in making ceiling grids, which are high rates of scrap, unplanned downtime, and uneven profile geometry. When buyers match the right technology level to their real output rate, they save money on costs per meter made.

Selecting the Right T Grid Roll Forming Machine for B2B Procurement

At this level, buying decisions are based on more than just price. Whether or not a line works as planned after installation depends on a number of things.

Evaluating Certifications and Technical Standards

Check to see if the company has ISO 9001 quality management certification, CE marking for mechanical and electrical safety, and CAS certification. These show that the company has processes that have been checked, not just that one sample passed inspection. ZTRFM owns all three, and its machines have been used in more than 150 countries, such as at Tata Group in India, DS Group in Korea, and HADDAD SET in Jordan.

Assessing After-Sales Service and Spare Parts Supply

The help behind a roll making line is what makes it work. Check to see if the seller has GB-Cr12 rollers, punching dies, and 45# steel rolling rods in stock as regular spare parts. Ask how long it takes for technical problems to be fixed, if you can do remote diagnostics, and if there are commissioning engineers who can help with the setup. ZTRFM offers a complete package that includes a decoiler, a roll former, a stacker, and spare parts. This way, customers only have to deal with one person for the whole line.

OEM and Custom Tooling Flexibility

The t grid roll forming machine meets the needs of private-label manufacturers and distributors of branded ceiling grid programs that require tooling capable of making custom profiles, OEM printing on profiles, and NDA-protected drawings. Ensure your supplier can provide T-grid heads with two profiles and the ability to switch between sizes without having to buy a separate line for each profile. This gives manufacturers serving multiple market segments more options, directly lowering their capital costs.

Maintenance Tips to Maximize the Performance and Lifespan of T Grid Roll Forming Machines

Structured upkeep, not reactive repairs, is what makes sure that the quality of the result is always the same.

Daily and Weekly Cleaning and Lubrication

During high-speed production, metal fines build up in the gaps between the rollers. Roller surfaces don't wear down as quickly when you clear away waste every day. Every week, you should grease the rolling shaft bearings, which are made of 45# steel and have a diameter of 50 mm. Regularly clean the hydraulic filters and keep an eye on the oil temperature during long production runs to keep the viscosity from changing, which can affect the regularity of the hitting force.

Monitoring Punching Die Wear

Punching dies for end clips and slot spacing have to go through many high-stress rounds. ZTRFM says that high-quality lubricating oil should be used at every station and die punches should be sharpened every 100,000 strokes. The built-in PLC stroke counter takes the guesswork out of things; workers are warned before the die state gets bad enough to make burrs that make it hard for the cross-tee clip to connect.

Upgrading Older Lines for Current Standards

Modern control systems can often be added to lines that were put in place before servo-feed and IoT tracking became commonplace, rather than having to be completely replaced. By upgrading the PLC, adding flying cut capability, or putting in remote tracking sensors, you can make the mechanical parts last longer and bring the line's output quality up to date with ASTM C635 and modular tolerance standards. As requirements for ceiling grids get stricter, this method helps manufacturers stay competitive without spending a lot of money.

Conclusion

Because the grid ceilings produced by the t grid roll forming machine are open, every shape can be seen. This makes it very important that the dimensions and surface quality are perfect during the manufacturing process. If you set up your ceiling grid roll forming line correctly, with the right roller material, enough forming stations, the ability to do flying cuts, and built-in quality monitoring, you can get profiles that meet ASTM C635 tolerances, protect surfaces that have already been painted, and clip together reliably on site. Matching machine specs to production volume and profile variety is the easiest way to cut down on waste, lower cost per meter, and keep up the good reputation that repeat B2B customers expect.

FAQ

Q1: Can one line produce both Main Tee and Cross Tee profiles?

Yes, when the cassette tooling is changed, but when making a lot of things, it's better to have separate tools for each profile.

Q2: What cut-length accuracy can I expect?

The Main and Cross Tees have very different punching patterns and end-clip riveting processes, so moving between them in the middle of a run takes more setup time and lowers daily output.

Q3: How does the machine protect pre-painted PPGI surfaces?

Hard chrome-plated GB-Cr12 rollers and precise inter-station speed syncing keep the rollers from sliding into each other. This protects the layer that was already painted and keeps the finished profile resistant to salt spray corrosion.

Q4: What material thickness range does the line handle?

This line works with 0.12–0.3 mm PPGI for T bar tops and 0.2–0.4 mm GI for T bar bottoms, so it can meet all commercial ceiling grid requirements.
