Shelf Beam Forming Machine for High-Capacity Warehouse Racking Systems – Automated Production Solution

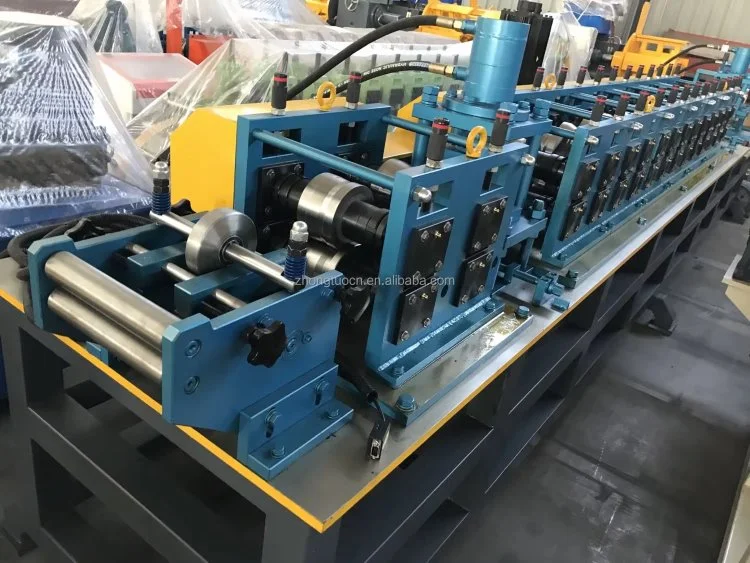

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in manufacturing industrial-grade shelf beam forming machine systems designed for high-volume warehouse racking production. Our fully automated production line integrates C-profile forming, conveying, and box beam locking into a single synchronized system, operated by just one person. With 20 forming stations equipped with 80 mm solid shafts and GCr12MoV hardened rollers, the machine processes galvanized or aluminum materials ranging from 2.0 to 3.0 mm thickness. Powered by a dual 7.5 kW motor and hydraulic system, our equipment operates at 15-20 meters per minute, delivering consistent dimensional accuracy essential for structural racking applications.

Why Choose Our Warehouse Rack Beam Production System?

Modern warehousing necessitates high-capacity storage systems that can securely hold thousands of kg over numerous floors. Traditional structural beam manufacture is inconsistent and slow. Our automated process uses continuous cold roll forming to turn metal coils into precision-formed box beams, eliminating these bottlenecks. Closed-profile beams provide better torsional rigidity than open-section beams, reducing rack collapse under large pallet loads.

High-tensile galvanized steel up to G550MPa is handled. Each component is factory-tested before shipment to enable fast implementation at your location. This lowers installation and production downtime.

Complete Production Line Components

Our product combines numerous functionalities into one production solution.

Material Handling: Automatic decoiler holds up to 5-ton coils, with manual decoiler for operational flexibility.

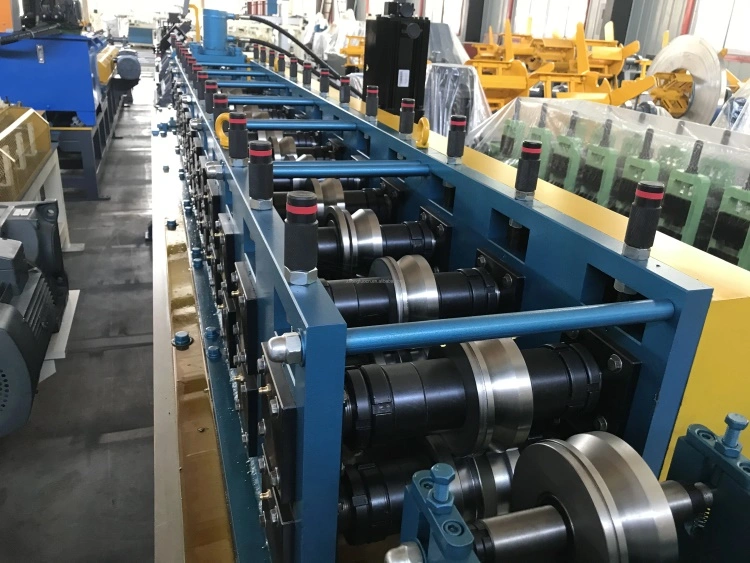

Precision Forming: Twenty 80 mm solid shaft roller stations enable steady material flow during forming. Each GCr12MoV bearing steel roller is vacuum heat treated to HRC 58-62 hardness.

The machine body is made of 500H steel, which resists vibration and frame deformation during prolonged operation.

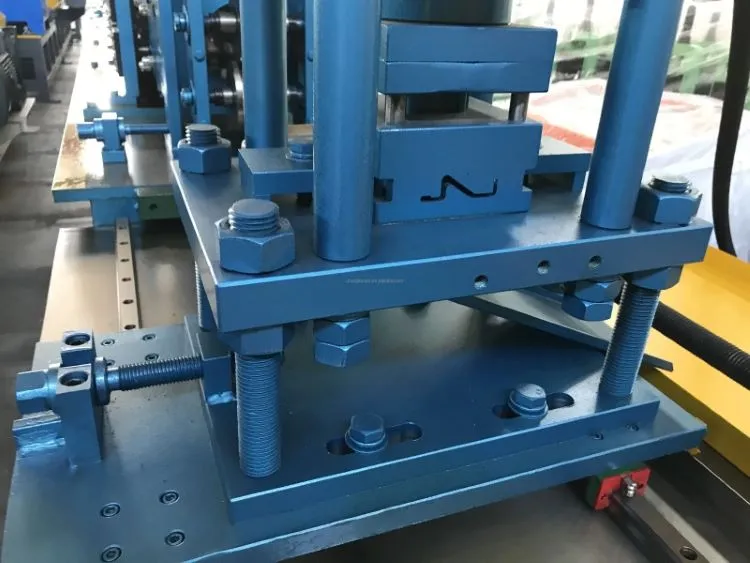

The hydraulic cutting system uses Cr12MoV tooling to produce clean edges with precise length tolerances of ±0.5mm, ensuring no scratches or material deformation.

Intelligent Control: Delta PLC with multi-language support coordinates forming, transporting, and cutting. Remote monitoring enables real-time diagnosis and resolution.

Technical Specifications

Key Manufacturing Advantages

Premium Materials: Core components utilize GCr15 bearing steel and high-strength structural steel, ensuring wear resistance suitable for extended production cycles without performance degradation.

Heavy-Duty Architecture: Reinforced frame design maintains precision alignment even under high-load continuous operation, preserving dimensional accuracy over years of service.

Advanced Transmission: German-standard gear system with surface hardening treatment delivers improved power efficiency and reduced maintenance requirements compared to conventional drive systems.

Quality Verification: Every unit completes full operational testing before shipment. This factory validation ensures your production line achieves target output immediately after installation.

Digital Service Platform: Remote operation system monitors equipment status continuously, enabling rapid troubleshooting without on-site visits. This capability significantly reduces maintenance costs for international customers.

Global Compliance: Over 30 international certifications including ISO9001, CE, CAS, UL, and SGS demonstrate adherence to stringent quality and safety standards across multiple markets.

Custom Engineering: Technical teams develop tailored solutions matching your specific profile requirements, production capacity targets, and material specifications. We support design modifications for various beam geometries and automated integration with existing production systems.

Continuous Support: Round-the-clock technical assistance provides remote debugging, software updates, and operational guidance, ensuring uninterrupted production schedules.

Applications in Modern Warehousing

The shelf beam forming machine is essential to logistics infrastructure development. Automatic storage and retrieval systems (AS/RS) in high-bay warehouses employ precisely constructed box beams for load distribution. For facilities holding large equipment parts or bulk commodities, closed-profile designs withstand buckling better than open-section ones.

E-commerce distribution hubs need flexible, fast-reconfiguring racking. Standardized beam components for variable warehouse layouts are produced by our equipment. Multi-level rack structures are assembled smoothly due to production precision.

These beams support mezzanines and material handling systems in factories. Running internal wiring via hollow beam sections simplifies installations and maintains structural performance.

Global Manufacturing Partnership

Zhongtuo Roll Forming Machinery collaborates with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This partnership brings finite element analysis (FEA) and AI-assisted design optimization into practical production applications. Our research team has developed two patented technologies currently implemented across our product lines.

Graduate researchers work directly at our manufacturing facility, applying advanced simulation techniques to roller design and forming process optimization. This integration of academic research with production reality accelerates technology development and ensures our equipment reflects cutting-edge industry practices.

Since 2014, we have exported machinery to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. Long-term partnerships with international clients demonstrate consistent product reliability and service quality. Strategic cooperation with Siemens and recognition as a national-level high-tech enterprise underscores our commitment to technological advancement.

FAQ

Q: What material grades can the equipment process?

A: The system handles galvanized iron (GI) and aluminum materials from 2.0 to 3.0 mm thickness, including high-tensile grades up to G550MPa yield strength commonly used in heavy-duty racking applications.

Q: How quickly can production begin after installation?

A: Each machine undergoes complete operational testing before shipment. With proper site preparation and power connection, production typically commences within 2-3 days of installation completion.

Q: What maintenance requirements should we anticipate?

A: Regular lubrication of roller stations and chain drive components constitutes primary maintenance. The remote monitoring system provides predictive alerts before component wear affects production quality.

Q: Can the equipment produce different beam profiles?

A: Yes, roller stations accommodate custom profile designs. Our engineering team works with your specifications to develop appropriate tooling configurations for various beam geometries.

Q: What power infrastructure does the system require?

A: Standard configuration operates on 380V 50Hz three-phase power with total consumption of 15 kW (7.5 kW main motor plus 7.5 kW hydraulic system). Alternative voltage configurations available for specific regional requirements.

Contact Us

Ready to enhance your warehouse racking production capabilities with shelf beam forming machine? contact us at zhongtuorollforming@gmail.com for customized proposals and technical specifications tailored to your production requirements.
