The reason a composite floor deck slab cracks doesn't just appear out of thin air. The failure is usually caused by one of five mistakes that could have been avoided during planning, material choice, or installation. Profiled steel decking and cast concrete work together mechanically to hold weight as a single system in a composite floor deck. If any one of those steps is missed, stress builds up until the slab gives way. There are clear explanations for each mistake in this piece, which helps engineers, deck builders, and contractors find issues before the concrete is poured.
The span length tells us how the bending stress is spread across a slab. With each extra inch of unsupported span, the midspan deflection goes up in a way that is not linear but exponential. The Steel Deck Institute (SDI) Design Manual says that a 1.5" B-deck section can be overloaded with 100 psf live loads if the effective span length is even 10 percent shorter than it should be.
Most of the time, engineers forget to take into account two things: the clear span between the beam centerlines and the deflection-to-span ratio, which is usually L/360 for floor applications under AISC 360. The mistake gets worse if you skip over load tables that have composite action factors.
First, use AISC or SDI span tables as a guide. Then, use structural design tools to make sure. How does it match up with the shape of the real deck? As an example, a 0.6" form deck and a 3.0" deep composite floor deck can hold very different amounts of weight. Both the construction-stage and service-stage loads need to be confirmed.
When the steel deck and concrete slab work together as one structure, this is called composite action. The steel web and flanges have grooves pressed into them. These grooves make a mechanical shear bond that transfers horizontal forces between the two materials. If this link isn't there, the concrete would just rest on the steel instead of working with it, which would reduce the load capacity by 30–50%.
Most of the time, lost combined action is caused by bad embossment shape. When decks are made on worn or inaccurate rollers, they leave shallow depressions that concrete can't fill. Surface adhesion is also harmed by zinc covering thicknesses that aren't constant (beyond the Z275 to Z600 range). Shear stud welding that isn't done right makes the problem worse.

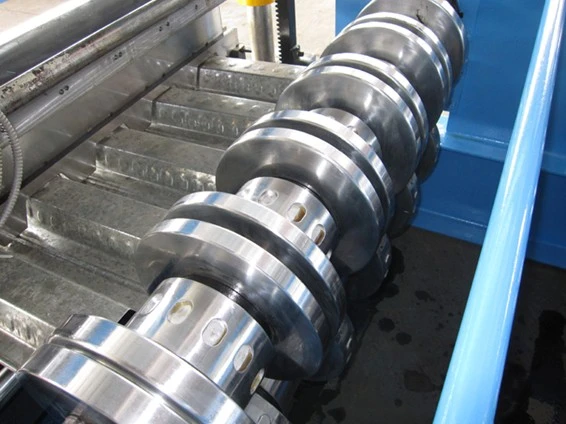

Decks are made on machines with heat-treated Cr12MoV rollers that are hardened to HRC 58–62 so that patterns stay sharp after millions of cycles of forming. Need mill certifications to show that the material has a yield strength of between G50 and G80, or 345 and 550 MPa, and to make sure that the placement of the shear studs meets the requirements of AWS D1.3 arc stud welding.
When made from 22-gauge (0.8 mm) steel, a composite floor deck panel acts very differently than when made from 16-gauge (1.5 mm) steel. The thicker panel can stand up to both point loads during the building stage and long-term bending under service loads. SDI tables show that on a 10-foot span, going from 20-gauge to 18-gauge can increase the maximum load that can be put on top of it by more than 40%.
One of the most common mistakes people make when buying things is choosing thinner-gauge decks to save money on materials. Wet concrete weight alone—usually 12.5 psf per inch of slab depth—makes undersized deck panels bend too far, which leads to ponding, uneven concrete depth, and transverse cracking after the concrete cures.
When choosing a thickness, you should think about the length of the span, the live load class, the construction-stage unshored span, and the exposure to the environment. Manufacturers can make project-specific panels with very tight tolerances because they have deck machines that can work with steel gages ranging from 0.8 mm to 1.5 mm (22g–16g). That level of uniformity is kept at high volumes by a production line with multiple forming stations, a changeable coil width, and a high-speed pre-flying cut system.
Even panels that are exactly what is needed will not work if they are installed incorrectly. Setting up temporary supports and aligning the deck should be the right order of steps. Next should be mechanical fastening to support beams, then shear stud welding, edge forming, and finally pouring the concrete. If you skip or hurry through any stage, you add stress lines that weren't there in the structure model.
These are the most common mistakes made during installation that cause span cracking:
Most of the complaints about cracks after the pour come from these three mistakes on high-rise and warehouse mezzanine projects. To fix them, the job site needs to be supervised, inspected before the pour, and teams need to be trained according to the deck manufacturer's construction guide.
For a composite floor deck, checking the spacing between the shoring, the number of lap fasteners, and the quality of the stud welds during an independent inspection before the concrete is poured costs a lot less than saw-cutting and fixing a cracked slab. Advanced digital control systems on its production tools also lower the differences in size between panels, which makes field alignment easier.
Over time, the steel deck's cross-sectional area gets smaller as water gets in through cracked topping or flashing that isn't strong enough. If rust protection isn't included in the design phase, chloride pollution from de-icing salts can cut in half the expected service life of steel deck floor systems in parking garages and factories, which are two of the harshest places for them to be used.
When storage systems are updated, or truck axle weights go up, warehouses often see more stuff on the floors. After adding racks, a slab that was made to hold 125 psf may be able to hold 200 psf. When loads are applied over and over again at levels higher than the original design value, stress cracks appear at the point where the embossment meets the concrete. This weakens the composite over time.
A maintenance plan that includes checking for surface cracks once a year, making sure the drainage is working right, and checking the coating integrity on steel edges that are exposed on a regular basis can catch early-stage damage before it becomes structural. The first line of defense against environmental attack is to choose fire-resistant concrete mixes rated to UL D900 or equivalent and give the base steel a Z350–Z600 galvanized coating.
Most cracked composite floor deck slabs in use are caused by five mistakes: wrong span estimates, ignoring composite action, using the wrong width, bad fitting, and ignoring environmental loads. Every single one of them can be avoided with careful planning, the right materials, careful installation, and regular upkeep. Preventing problems starts with making sure the steel deck shape is correct during production. If the panel is made to the wrong geometry or gauge, it can't be fixed in the field.
The main reason is wrongly calculating the span and not specifying the deck thickness. When the steel panel bends too much while the concrete is being poured, the wet concrete moves around randomly, and as it hardens, cracks appear across the panel.
Make sure that the pattern of the embossments is sharp and consistent across the surface of the panel. Also, make sure that the shear stud welds pass the 30-degree bend test according to AWS D1.3. Embossments that are too shallow or not consistent show that the forming machine's tools are wearing out.
When used in the US, 20-gauge (0.9 mm) to 16-gauge (1.5 mm) steel is most often used, based on the span and load. For better construction-stage capacity, deeper 3.0" shapes usually need 18-gauge or larger.
In places that are humid, near the coast, or environmentally harsh, you should request a galvanized finish that is at least Z350. To protect parking garages from corrosion caused by chloride, Z600 or an extra paint system is often used.

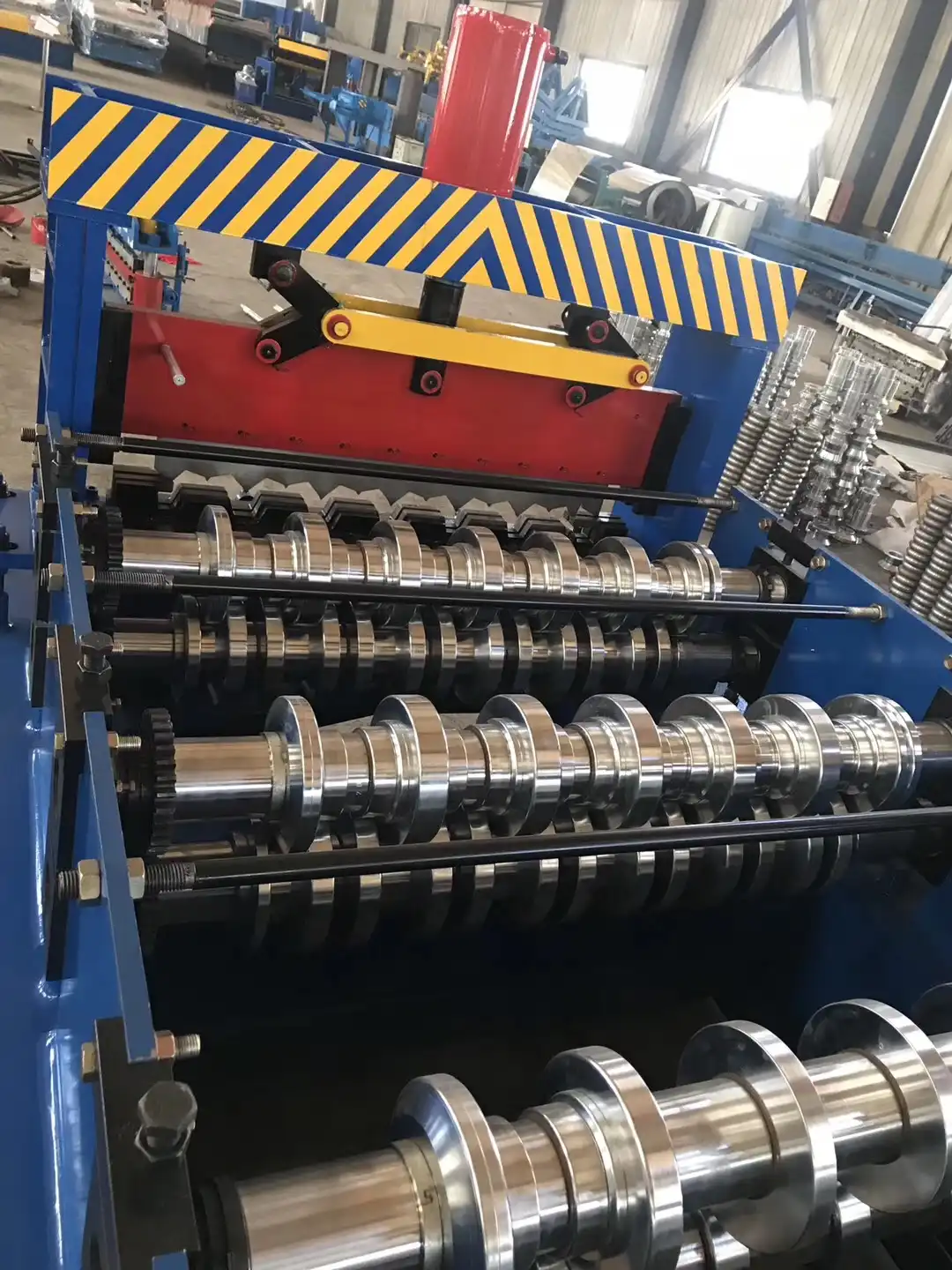

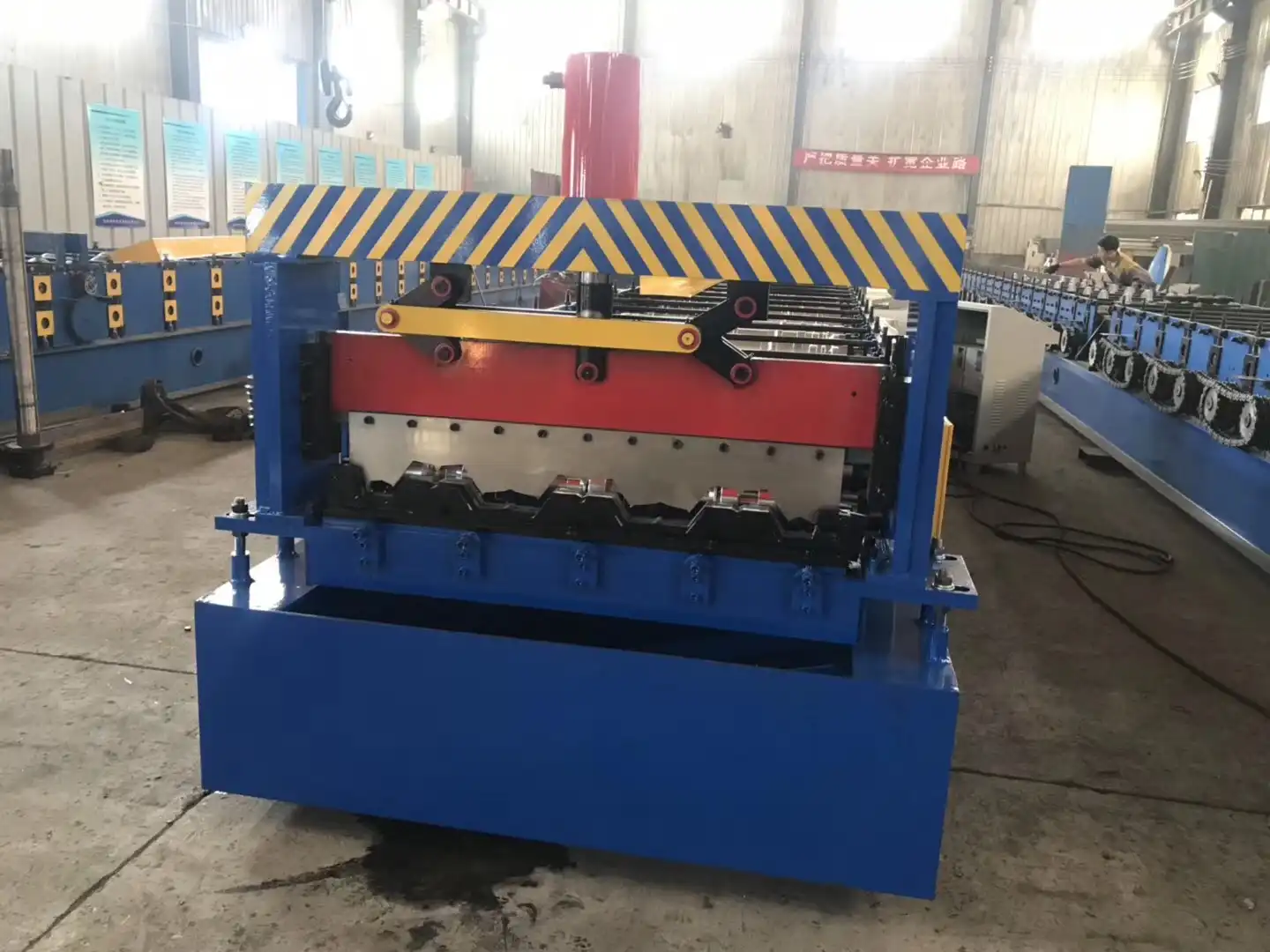

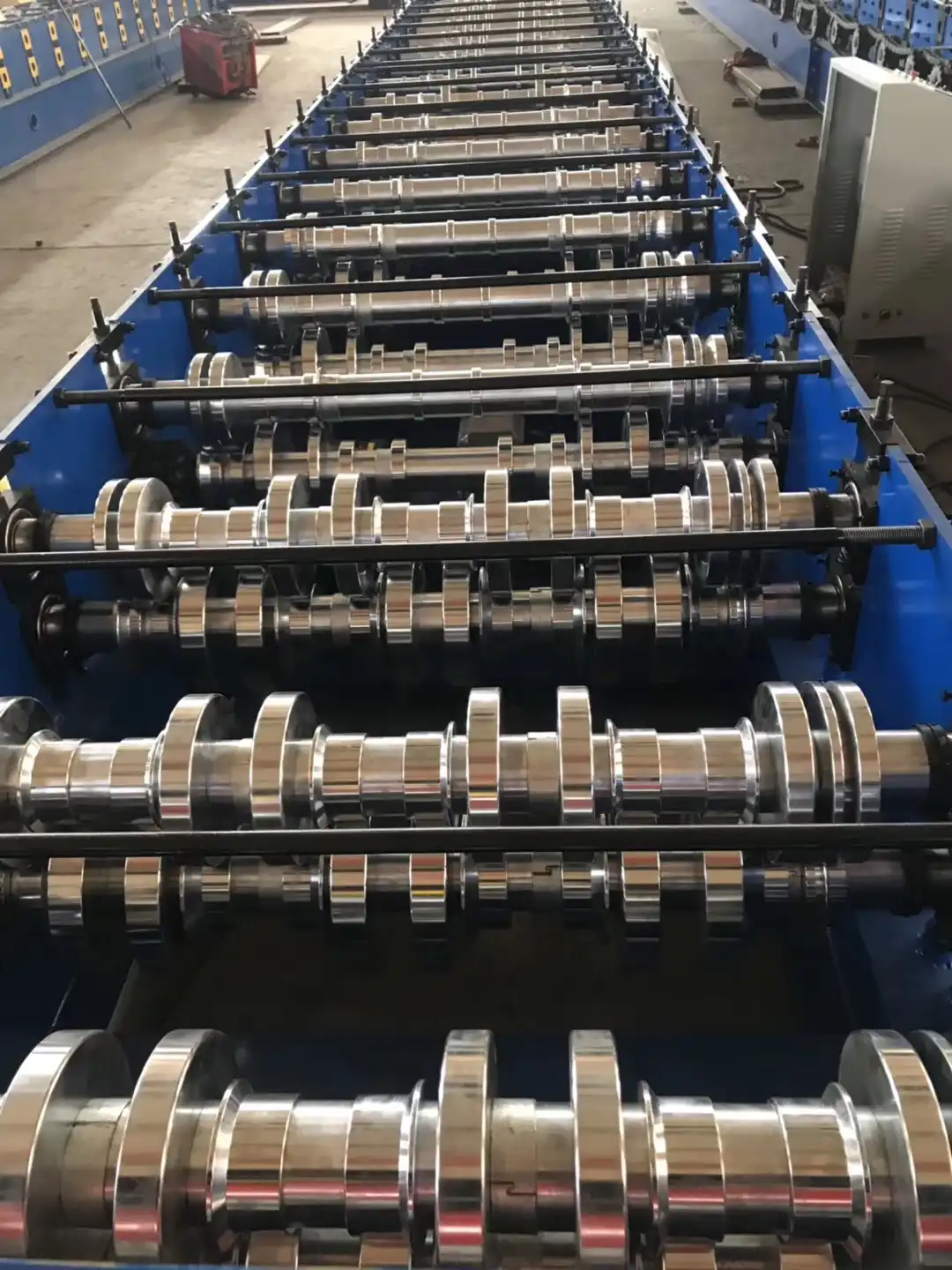

ZTRFM makes composite floor deck tools for companies that can't afford to have their designs change size or fail to etch. Our machines use a high-speed pre-flying shear system and Siemens-controlled drives to shape 16g to 22g galvanized steel (Z275–Z600) on multiple forming stations. At production speed, they can keep a length tolerance of ±2 mm. The cassette design makes it easy to switch out profiles quickly, and the small footprint fits in most production halls that are already in place. We have been making trusted composite floor decks since 2014 and have clients in more than 150 countries. We know what it takes to make sure your slab performs as planned. You can email us at zhongtuorollforming@gmail.com.
