Bamboo Tile Making Machine - Advanced Cold Roll Forming Solution

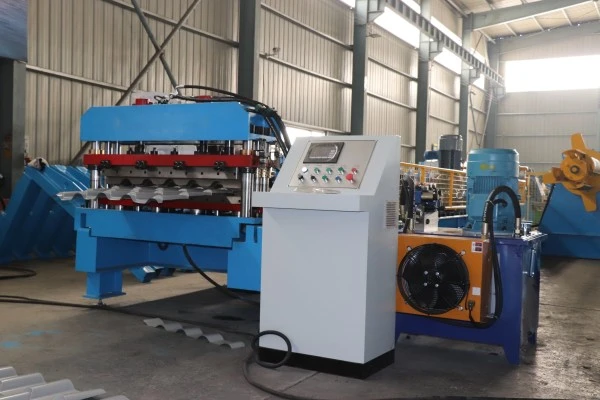

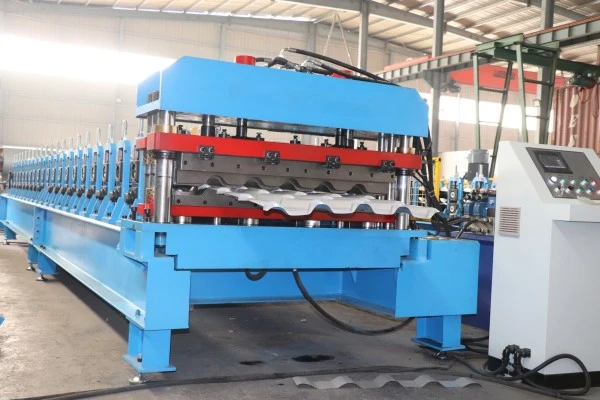

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. presents its industrial-grade Bamboo tile making machine, engineered for high-volume production of eco-friendly roofing solutions. Established in 2014 and recognized as a national-level high-tech enterprise since 2022, Zhongtuo delivers precision equipment featuring 14 roller stations with adjustable punching speeds from 0-6 m/min. Our machine processes 0.3-0.5mm thick GI & PPGI raw materials at 1250mm coil feeding width, powered by a robust 5.5KW motor. The system utilizes gear box transmission with internal bevel gears and high-grade 45# steel rollers mounted on 80mm diameter shafts, all supported by hot-rolled H-beam framework for maximum stability.

What Is a Bamboo Tile Making Machine?

This specialized cold roll forming equipment transforms bamboo composite materials into durable corrugated roofing tiles. The machine operates through progressive metal forming stations that shape coated steel coils into bamboo-textured profiles.

Unlike traditional presses, our system maintains consistent pressure distribution across the entire forming length. This eliminates common defects like delamination and dimensional variations. The equipment integrates seamlessly with automated production lines for continuous manufacturing.

Your production facility gains the capability to produce lightweight, corrosion-resistant roofing materials. These tiles combine the aesthetic appeal of natural bamboo with the structural integrity of engineered steel substrates.

Technical Specifications That Matter

Core Advantages & Industry Applications

Your investment in this Bamboo tile making machine delivers measurable operational benefits. The 14-station progressive forming system ensures uniform tile thickness within 0.05mm tolerance, critical for interlocking roof installations.

For eco-tourism and hospitality projects, the machine produces tiles that resist coastal humidity and UV radiation. The formed profiles withstand saline environments better than untreated alternatives, making them ideal for seaside resort construction.

Chemical plants and industrial facilities benefit from superior corrosion resistance. Unlike metal roofing that degrades rapidly in acidic atmospheres, these composite tiles maintain structural integrity while providing exceptional thermal insulation.

Modular housing manufacturers appreciate the standardized output. Your production line can rapidly supply disaster relief housing or rural development projects with consistent, interlocking components that reduce on-site installation time by up to 40%.

The gear box transmission system minimizes maintenance requirements while delivering reliable torque distribution across all forming stations. This design choice extends equipment lifespan beyond 15 years under normal operating conditions.

Advanced Manufacturing Process

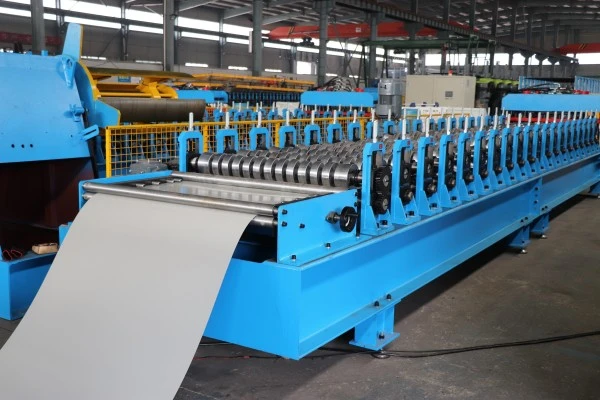

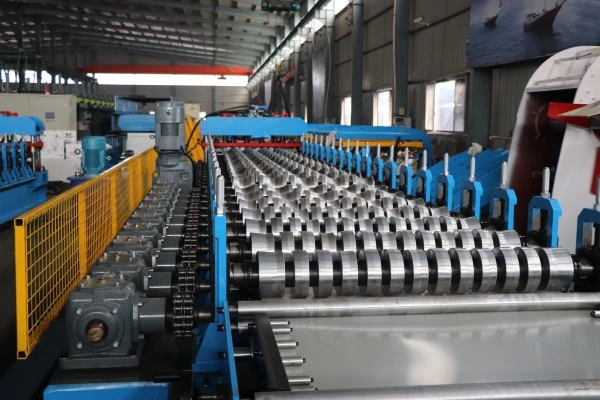

The cold roll forming sequence begins with automatic coil feeding at your specified width. Material passes through progressive forming stations where high-grade 45# steel rollers gradually shape the profile without compromising substrate integrity.

Integrated punching units operate synchronously at speeds you control from 0-6 m/min. This flexibility allows you to balance production volume against quality requirements for different order specifications.

The hot-rolled H-beam frame absorbs operational stresses while maintaining precise roller alignment. This structural stability proves essential when processing thinner 0.3mm materials that require delicate handling.

Finished tiles exit the production line with consistent embossed bamboo textures. The depth and pattern uniformity meet strict architectural standards for visual appeal across large roofing installations.

Quality Assurance & Global Standards

Our Bamboo tile making machine manufacturing adheres to ISO 9001 quality management protocols. Every unit undergoes comprehensive testing before shipment to your facility.

Roller parallelism receives calibration within 0.05mm/m to guarantee uniform tile formation. We conduct 24-hour operational tests verifying all transmission components perform within specified parameters.

The equipment holds CE certification for European markets and CAS certification for North American compliance. These credentials confirm our design meets international safety and performance benchmarks.

Temperature monitoring systems prevent material degradation during high-speed production runs. Your operators receive real-time feedback on all critical parameters through the control interface.

Research-Backed Innovation

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center drives continuous improvement. Graduate researchers conduct on-site process optimization using finite element analysis and AI-assisted simulation tools.

This collaboration resulted in two patented technologies now integrated into our production equipment. The innovations specifically address pressure distribution uniformity and automated quality control systems.

Virtual commissioning capabilities allow remote diagnostics and parameter adjustments. Your technical team can collaborate with our engineers to fine-tune performance for specific material compositions or production requirements.

FAQ

Q：What maintenance schedule does the equipment require?

A：Regular inspection of roller surfaces and gear box lubrication every 500 operating hours. Annual calibration of punching alignment ensures continued precision. The robust design minimizes unscheduled downtime.

Q：Can the machine process alternative materials beyond PPGI?

A：Yes, the system accommodates various coated steel substrates within the 0.3-0.5mm thickness range. Material hardness and coating types should be discussed during specification review to optimize roller configurations.

Q：How does production speed affect tile quality?

A：The adjustable 0-6 m/min range allows you to prioritize either volume or surface finish. Lower speeds suit thinner materials requiring gentler forming forces, while maximum speed works well with standard 0.4mm substrates.

Q：What power infrastructure does installation require?

A：The 5.5KW motor operates on standard three-phase industrial power. Total facility load including auxiliary systems typically ranges from 8-12KW depending on automation level and material handling equipment.

Q：Is operator training included with equipment purchase?

A：Comprehensive on-site training covers all operational, maintenance, and safety procedures. Our technicians remain available for remote support throughout the equipment lifecycle. Training documentation comes in multiple languages.
