7/8” Corrugated machine

7/8" Corrugated machine - Heavy-Duty Metal Roofing & Siding Solution

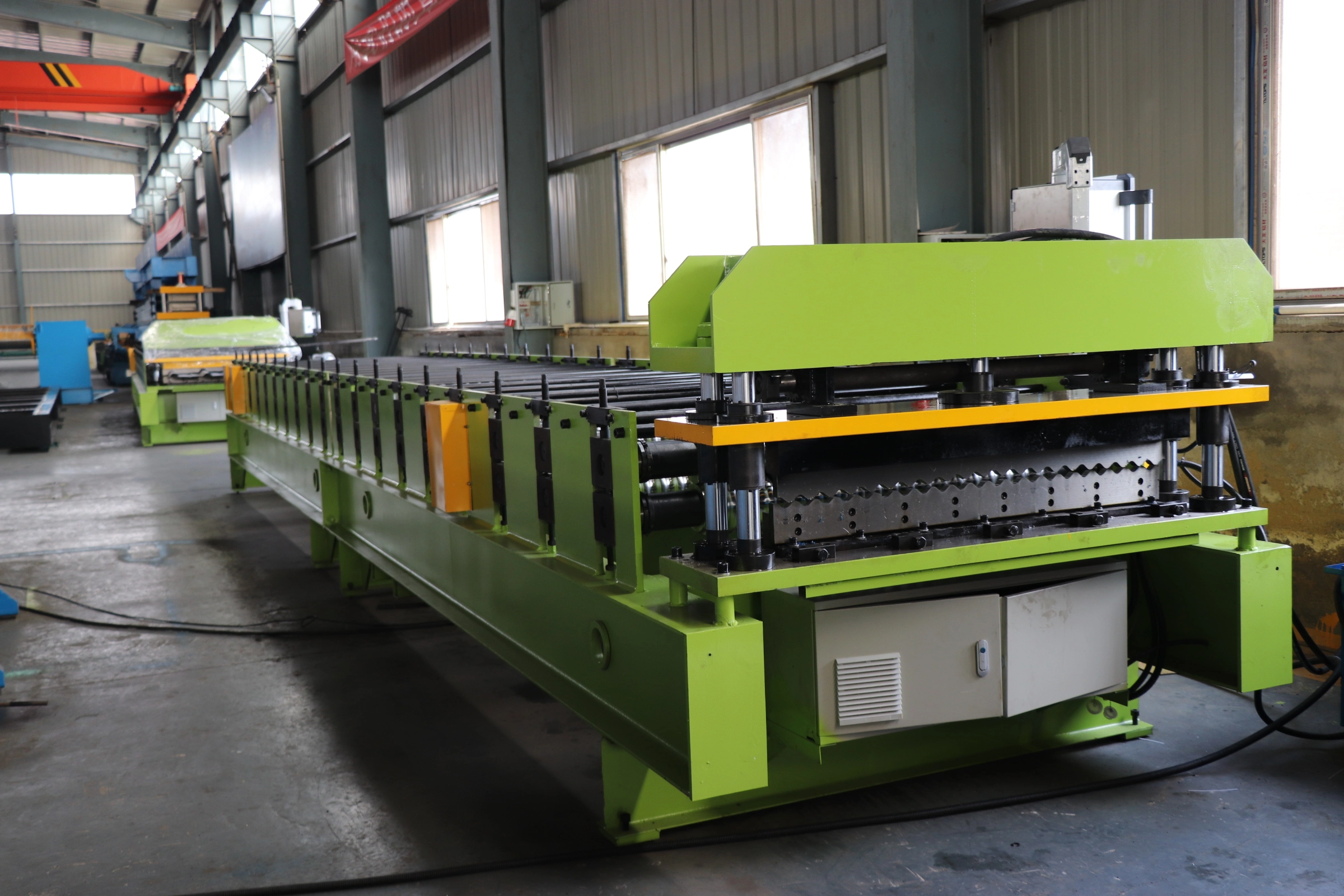

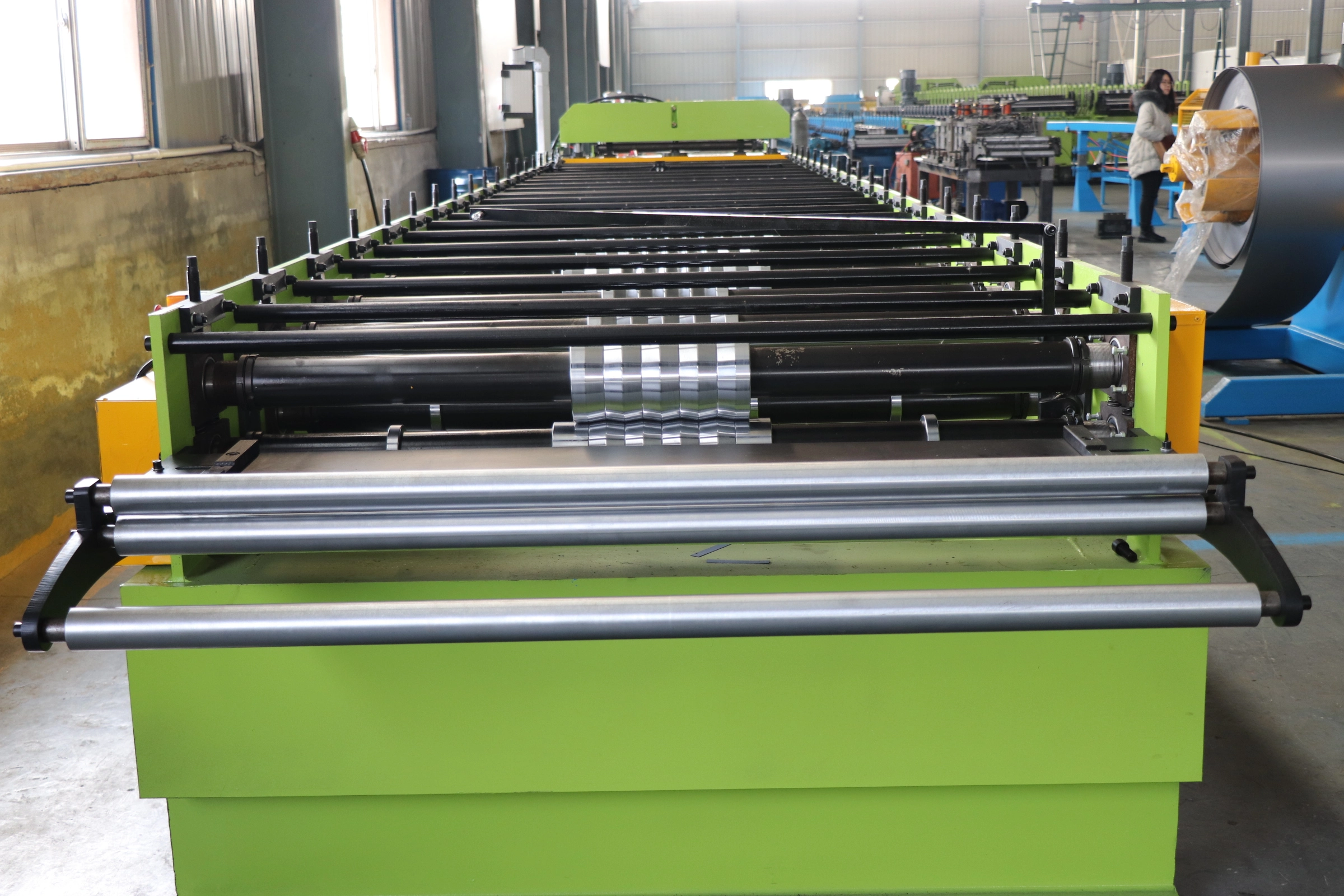

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. presents its industrial-grade 7/8" Corrugated machine, engineered to transform galvanized and pre-painted steel (0.3-0.5mm thickness) into structurally superior roofing and siding panels. This specialized cold roll forming system features 18 progressive roller stations, a robust 5T hydraulic decoiler, and precision hydraulic cutting powered by a 5.5kw motor. With an 80mm diameter shaft forged from tempered 45# steel and quenched rollers, the machine delivers consistent wave profiles at 22mm depth. Built on a 350H welded steel frame and driven by gear box transmission, it processes high-yield materials up to 550 MPa without deformation, making it ideal for commercial, industrial, and agricultural applications.

What Makes the 7/8" Corrugated machine Different?

The product produces a deeper, bolder wave pattern compared to standard 1/2" corrugation. This 22mm profile height delivers superior load-bearing capacity and architectural texture.

Unlike light-duty equipment, this system solves structural deflection challenges. It converts 24-29 gauge steel into high-moment-of-inertia panels. The deep corrugation pattern naturally eliminates oil canning—visible waviness that plagues flat metal surfaces.

The machine bridges the performance gap between heavy structural decking and cosmetic siding. You get both strength and aesthetics in a single production line.

Technical Specifications

Advanced Engineering Features

Your production demands precision under pressure. This machine delivers through intelligent design choices.

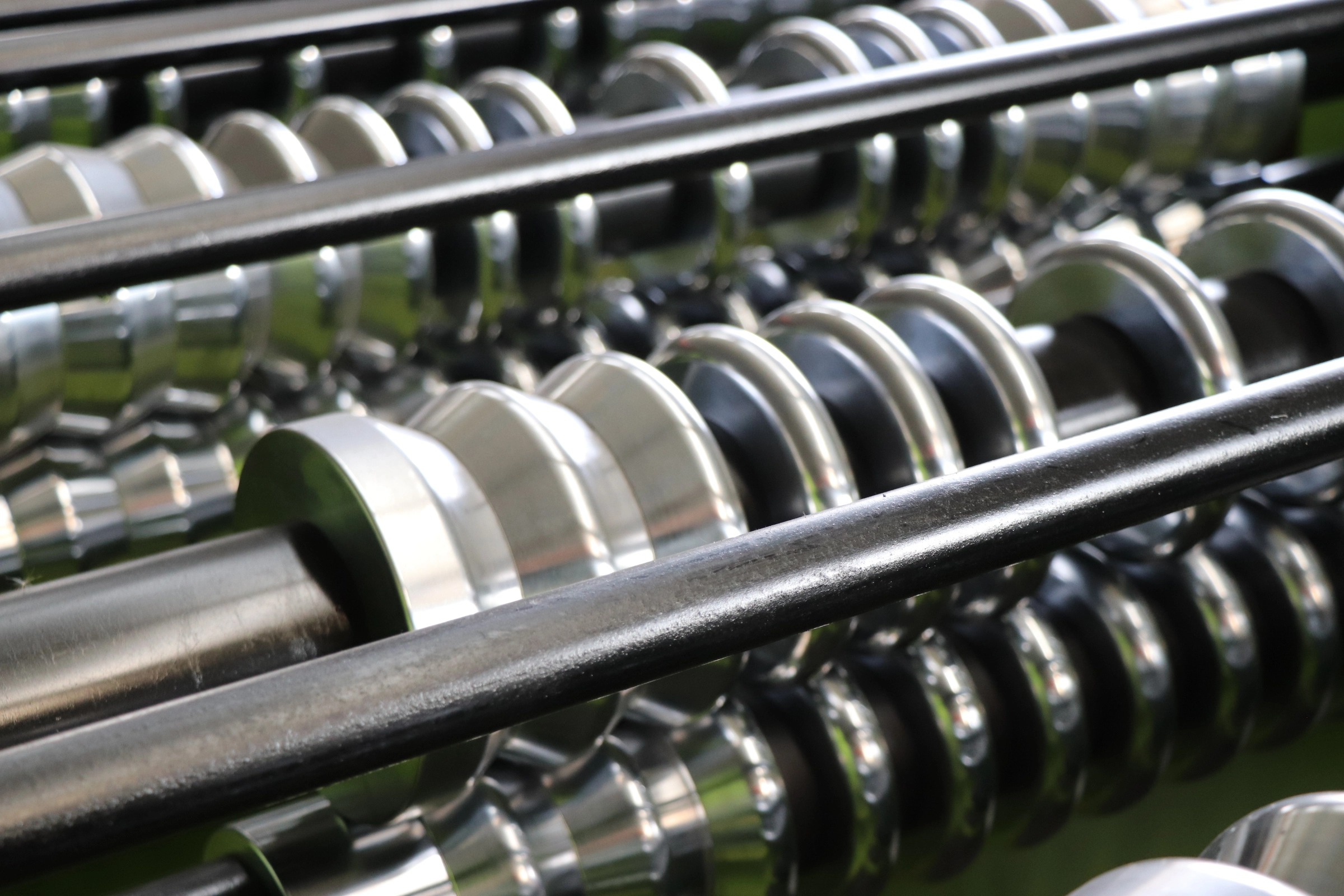

The solid 80mm steel shafts prevent deflection when processing thick-gauge materials. CNC-machined rollers from GCr15 bearing steel receive hard chrome coating (0.05mm layer) for HRC 58-62 surface hardness. This protects painted coils from scratches during high-speed forming.

The hydraulic cutting system uses forged Cr12MoV mold steel dies. These heat-treated components shear through materials up to 550 MPa tensile strength without creating burrs. The post-cut mechanism is specifically calibrated for deep profiles, ensuring clean ends without deformation.

PLC control systems (Mitsubishi/Siemens compatible) integrate with HMI touchscreens. You get automatic length setting and batch counting with ±1.0mm accuracy. This automation reduces material waste and speeds up order fulfillment.

Where Your Panels Perform Best

Industrial Heavy-Rain Roofing: Pre-engineered buildings in tropical regions benefit from the 7/8" depth. Larger water channels handle torrential downpours better than standard profiles. The machine's precision ensures tight side-laps that prevent leakage on low-slope roofs.

Agricultural Facilities: Corrosive environments like hog barns and fertilizer storage need robust solutions. The 7/8" Corrugated machine processes heavy-galvanized G90 coils into chemical-resistant panels. Deep corrugation enables rapid water shedding and debris removal while maintaining biosecure seals.

Architectural Facades: Modern commercial and barndominium designs demand distinctive aesthetics. The deep shadow lines created by this profile add texture that shallow corrugation cannot match. Process Corten steel or PVDF-coated aluminum for exposed fastener systems in retail and office complexes.

Warehouse Roofing Systems: Large-span steel structures benefit from superior span capabilities. The profile allows wider purlin spacing, reducing structural framing costs. Precision side-laps protect sensitive machinery from weather infiltration.

Why Choose Zhongtuo's Solution?

Since 2014, Cangzhou Zhongtuo has specialized in cold roll forming innovation. As a national-level high-tech enterprise, we hold ISO 9001, CE, and CAS certifications. Our equipment serves customers in over 150 countries.

We collaborate with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. This partnership brings AI-assisted finite element analysis and virtual commissioning technology into production. Graduate researchers work on-site, optimizing roll design and intelligent control systems.

Our commitment extends beyond manufacturing. You receive tailored design solutions aligned with international standards and local preferences. Cloud-based remote monitoring supports long-distance diagnostics, reducing downtime for overseas operations.

FAQ

Q: Can this machine handle different material thicknesses?

A: Yes, the product can handle materials from 0.3mm up to 0.5mm. The roller design and hydraulic mechanism are such that different gauges in this range may be used without adjustment downtime.

Q: How fast is it normally produced?

A: Production speed is a function of the material thickness and length parameters and normally ranges from 10 to 20 m/min. The PLC system ensures that the cutting is accurate and as fast as possible.

Q: Do you offer customization for specific profiles?

A: Yes. Our technical staff will create unique roller sets to fit your architectural or structural needs. We supply CAD designs and virtual simulations prior to manufacture.

Q: How do overseas purchasers watch from a distance?

A: We use cloud-based solutions for real-time equipment diagnostics. Your team can see performance statistics, get notifications for maintenance and even chat with our professionals over video assistance.

Q: What about your after-sales service?

A: We provide full training, replacement parts supply and technical support 24 hours a day, 7 days a week. We have continual technology updates and troubleshooting support and research universities as partners.

Contact Us

Our 7/8" Corrugated machine delivers the precision and durability your projects demand. Contact our technical team at zhongtuorollforming@gmail.com  for detailed specifications, pricing, and customization options.
