Professional Shelf Forming Machine for Industrial Storage Systems – Heavy-Duty Production Line with Advanced Automation

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in manufacturing industrial-grade shelf forming machine solutions since 2014. Our automated production lines feature a robust 350H steel frame construction and accommodate material thickness from 1.5 to 2.0 mm. With 16 forming stations equipped with Cr12/GCr12 hardened steel rollers and an 80 mm solid shaft, our systems achieve forming speeds up to 15 m/min. Each unit undergoes full inspection before shipment and is certified under ISO9001, CE, CAS, UL, and SGS standards. We've successfully delivered equipment to over 150 countries, providing comprehensive ODM and OEM services for supermarket shelving, warehouse racking, and industrial storage applications.

Understanding Warehouse Shelf Production Technology

Modern storage facilities demand precision-engineered components that meet strict load-bearing requirements. Roll forming technology transforms flat metal coils into structural profiles through continuous cold-bending processes. This method eliminates cumulative errors common in traditional fabrication while maintaining dimensional accuracy critical for component interlocking.

Our systems handle high-tensile steel up to G550MPa grade, ensuring structural integrity for heavy-duty applications. The automated approach synchronizes de-coiling, punching, forming, and cutting operations under PLC control for consistent output quality.

Complete Production Line Configuration

Our shelf forming machine integrates multiple processing stages into one continuous workflow:

Feeding System: Hydraulic automatic decoiler handles PPGI, GI, or aluminum coils. Manual decoiler included as standard equipment for operational flexibility.

Leveling Unit: Seven-roller configuration (3 upper, 4 lower) removes coil set and ensures flat material entry.

Punching Station: Pneumatic 80-ton press with servo feeder creates precise mounting holes and slots. Positioning accuracy reaches ±0.5 mm for perfect beam-to-upright alignment.

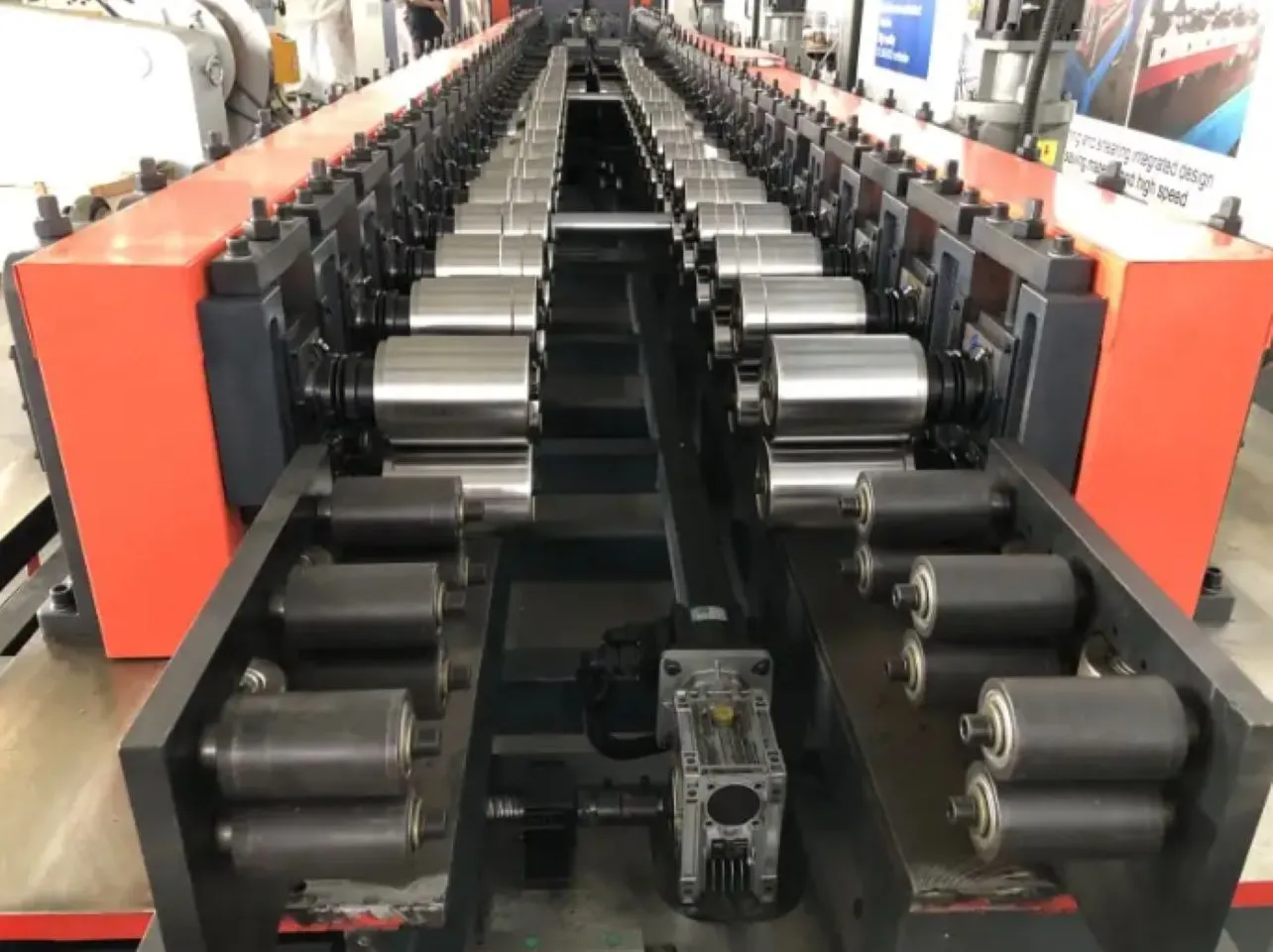

Forming Section: Sixteen rows of hardened rollers progressively shape the profile. Gear or chain transmission options available based on production requirements.

Cutting System: Hydraulic shearing with zero material waste. Length tolerance maintained within ±0.5 mm across production runs.

Control Interface: Delta or Siemens PLC systems support batch setting, length programming, and quantity tracking. Multi-language interface available for international operations.

Technical Specifications

Engineering Advantages for Long-Term Operation

Superior Material Selection: GCr15 bearing steel and high-strength structural components provide exceptional wear resistance during continuous production cycles. This foundation supports years of reliable operation without precision degradation.

Structural Stability: Heavy-duty frame design withstands high-intensity production environments. The rigid construction resists deformation under load, maintaining forming accuracy throughout the equipment's service life.

German-Standard Transmission: Hardened gear systems deliver efficient power transfer with minimal maintenance requirements. Surface treatment extends component lifespan significantly.

Pre-Delivery Validation: Every machine completes full production testing before shipment. This quality gate ensures immediate productivity after installation at your facility.

Remote Diagnostics: Cloud-based monitoring tracks operating parameters in real-time. Our technical team can diagnose issues and provide solutions remotely, reducing downtime and maintenance costs.

Certified Quality Systems: Over 30 international certifications including ISO9001, CE, CAS, UL, and SGS validate our manufacturing standards and product safety.

Customized Engineering Solutions

Our technical team designs production lines tailored to your specific requirements. We support various profile configurations for light-duty retail shelving (38×38 mm columns, 100-150 kg capacity) through heavy-duty warehouse systems (custom column specifications, 200+ kg per level).

Design consultation includes profile geometry, material selection, production capacity planning, and automation level determination. We accommodate container shipping requirements for 20GP and 40HQ configurations.

Advanced product configurations integrate with Industry 4.0 platforms. Optional upgrades include AI-powered FEA optimization, virtual commissioning systems, and predictive maintenance modules developed through our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center.

Application Versatility Across Industries

Retail Environments: Supermarket gondola shelving with adjustable shelf spacing. Quick-change tooling supports seasonal display modifications.

Warehouse Storage: Pallet racking uprights and beams for high-bay facilities. Profiles engineered for specific load ratings and seismic requirements.

Industrial Applications: Heavy-duty storage for manufacturing facilities. Custom profiles accommodate specialized inventory configurations.

Comprehensive Support Infrastructure

24/7 Technical Assistance: Round-the-clock online support ensures continuous production. Remote diagnosis capabilities resolve most issues without on-site visits.

Installation Services: Our technicians provide complete equipment commissioning. Operator training included with every system delivery.

Spare Parts Availability: Critical components maintained in stock for rapid fulfillment. We supply rollers, cutting dies, control modules, and hydraulic components.

Process Optimization: Ongoing consultation helps maximize output efficiency. We analyze production data to recommend parameter adjustments and workflow improvements.

FAQ

Q: What profile types can this equipment produce?

A: Our product handles L-shaped light-duty columns, C-shaped medium-capacity uprights, and specialized heavy-duty profiles. Custom tooling accommodates unique designs based on your specifications.

Q: How quickly can production begin after installation?

A: Standard commissioning takes 3-5 days including equipment setup, parameter programming, and operator training. Pre-shipment testing accelerates deployment.

Q: What material grades work with this system?

A: The equipment processes galvanized steel, pre-painted steel, cold-rolled steel, and aluminum coils. Material yield strength up to G550MPa supported for heavy-duty applications.

Q: Can the system integrate with existing production lines?

A: Yes, our control systems support standard industrial protocols. We provide interface solutions for upstream coil handling and downstream packaging equipment.

Q: What maintenance schedule does this equipment require?

A: Daily lubrication checks and weekly tension inspections maintain optimal performance. Major maintenance intervals occur every 6-12 months depending on production volume. Remote monitoring alerts to potential issues before failures occur.

Q: Do you provide training for our operators?

A: Comprehensive training covers machine operation, parameter adjustment, routine maintenance, and basic troubleshooting. Materials provided in your preferred language.

Contact Us

Ready to enhance your shelf production capabilities with shelf forming machine? contact us at zhongtuorollforming@gmail.com for technical consultation and quotation.
