Professional Shelf Roll Forming Machine for Supermarket and Warehouse Storage Systems | High-Precision Manufacturing Solution

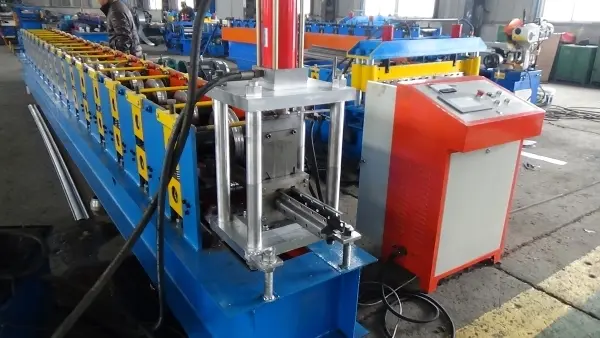

Since 2014, Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. has provided industrial shelf roll forming machines. Our automated production system makes consistent shelf panels from metal coils. With 16 forming stations and Cr12 hardened steel rollers, this machine produces 1.5-2.0mm PPGI, GI, or aluminum at 15m/min. After extensive factory testing, each device is sent with a ±0.5mm tolerance for dimensional correctness. With over 30 international certifications, including ISO9001, CE, and CAS, our equipment serves 150+ European, North American, and Southeast Asian nations.

What Makes Our Shelf Roll Forming Machine Stand Out?

Modern warehouses need accurate, robust shelving. Heavy-duty racking requires high-tensile steel, which manual manufacture cannot consistently handle.

Synchronized PLC-controlled operations alleviate these issues in our product. The system streamlines hydraulic decoiling, servo-driven punching, continuous shaping, and automated shearing.

Materials from 0.4mm to 2.5mm thick may be processed with 550MPa yield strength. This guarantees shelving profiles remain structurally sound in harsh storage circumstances.

Excellent wear resistance is achieved using GCr15 bearing steel. Your manufacturing runs remain precise after years of operation.

Technical Specifications

Advanced Manufacturing Capabilities

Your production efficiency depends on equipment reliability. We've engineered every component for maximum uptime.

The heavy-duty H-beam frame design resists deformation under high-intensity loads. This structural stability maintains profile tolerances over extended production runs.

German standard gear transmission incorporates hardened surface treatment. The result is superior wear resistance and transmission efficiency compared to conventional systems.

Our roller stations utilize vacuum heat-treated die steel reaching HRC 58-62 hardness. This advanced metallurgy withstands abrasive forces from heavy-gauge coils.

Variable frequency drives synchronize forming speed with punching operations. You achieve consistent profile quality regardless of material thickness variations.

The cassette-type roller design enables rapid profile changeovers. Switch between different shelf designs without extensive downtime.

Comprehensive Production Solution

Complete shelving system production requires more than forming capability. Our integrated approach addresses your entire manufacturing workflow.

The hydraulic decoiler handles 5-ton coils with automatic tension control. Material feeds smoothly into the 7-roller leveling system that eliminates coil set.

Servo-driven punching delivers precise hole placement for shelf assembly. The 80-ton pneumatic system operates in perfect synchronization with material advancement.

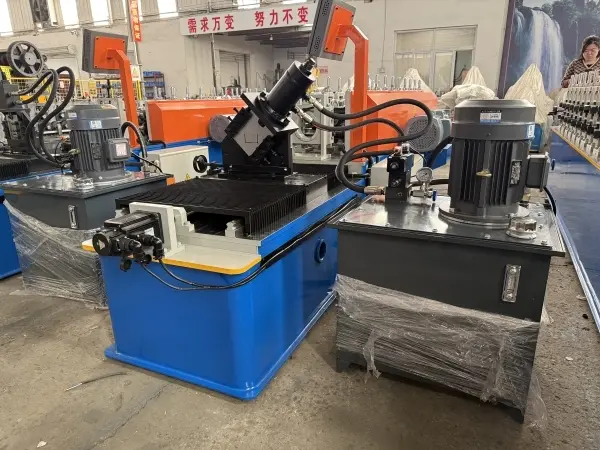

Hydraulic cutting produces clean edges without material waste. Your finished profiles meet exact length requirements for efficient installation.

PLC controls manage batch production with programmable length and quantity settings. Set your parameters once and let automation handle repetitive tasks.

Versatile Application Range

Manufacturing flexibility determines market competitiveness. This shelf roll forming machine adapts to diverse storage requirements.

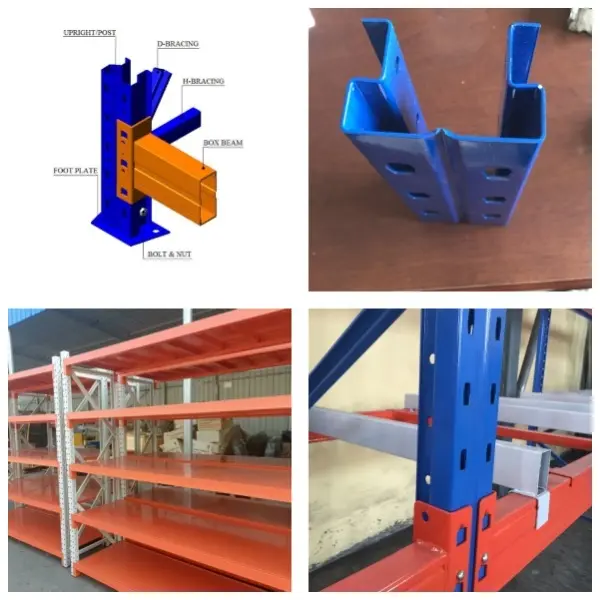

Retail Environments: Produce lightweight supermarket shelving with 38×38mm profiles carrying 100-150kg per level. The precision hole patterns ensure easy assembly and adjustment.

Medium-Duty Storage: Form 80×40mm profiles for commercial applications requiring 200-250kg capacity per shelf level. Your customers gain reliable storage for growing inventory needs.

Industrial Warehousing: Create custom heavy-duty uprights and beams for high-bay racking systems. The machine handles reinforced profiles that support multi-ton pallet loads.

Specialized Applications: Manufacture grain silo panels, billboard supports, and architectural profiles using the same production line. Change profiles quickly to serve multiple market segments.

Quality Assurance and Global Standards

International markets demand verified performance credentials. Our certification portfolio demonstrates compliance across regions.

ISO9001 quality management ensures consistent manufacturing processes. Every machine follows documented procedures from component selection through final testing.

CE certification confirms European safety and environmental standards. Your equipment meets stringent operational requirements for workforce protection.

North American CAS approval validates technical performance against advanced industry benchmarks. This credential opens doors to demanding markets.

Additional certifications including UL and SGS reinforce our commitment to excellence. You gain confidence knowing equipment meets multiple regulatory frameworks.

Research-Driven Innovation

Technology partnerships drive continuous improvement. Our collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings cutting-edge developments to production.

Finite element analysis optimizes roller profiles before manufacturing. This simulation reduces trial costs while ensuring precise section formation.

AI-assisted design tools accelerate custom profile development. Your specific requirements translate into production-ready equipment faster than traditional methods.

Virtual commissioning validates control systems before physical installation. Remote debugging capabilities minimize on-site setup time for international shipments.

Cloud-based monitoring platforms enable predictive maintenance. Address potential issues before they impact production schedules.

Complete Support Infrastructure

Equipment investment success extends beyond purchase. Our service framework ensures your operations run smoothly.

Pre-Installation Planning: Our technical team reviews your facility layout and production requirements. We recommend optimal configurations for workflow efficiency.

Remote Commissioning: Cloud connectivity allows our engineers to validate system performance from our facility. This approach reduces travel costs and accelerates startup.

Operator Training: Comprehensive instruction covers operation, routine maintenance, and troubleshooting procedures. Your team gains confidence managing daily production.

24/7 Technical Support: Round-the-clock online assistance addresses questions immediately. Real-time diagnostics resolve issues faster than traditional service calls.

Spare Parts Availability: We maintain inventory of critical components. Fast shipping minimizes downtime when replacement becomes necessary.

Export-Ready Packaging Standards

International shipping requires specialized protection. Our packaging methodology ensures equipment arrives ready for installation.

Steel frame construction provides rigid structural support during transport. Anti-rust oil coating protects precision surfaces from moisture exposure.

Wooden cases meet international phytosanitary standards for customs clearance. Your shipment moves through borders without regulatory delays.

Container optimization maximizes space utilization. Standard 20GP or 40HQ configurations reduce shipping costs per unit.

Complete inspection before sealing verifies all components are secure. You receive equipment in the same condition it left our facility.

FAQ

Q: What materials can this machine process?

A: The machine handles PPGI, galvanized steel, and aluminum coils from 1.5-2.0mm thickness. Higher gauge materials require consultation for roller configuration adjustments.

Q: How quickly can production begin after installation?

A: Most customers start production within 3-5 days. This includes mechanical setup, electrical connections, and operator familiarization. Remote commissioning support accelerates the process.

Q: Can the machine produce different shelf profiles?

A: Yes, roller stations accommodate various profile designs. Provide your technical drawings during ordering for custom roller fabrication. Changeover between pre-configured profiles takes approximately 2-4 hours.

Q: What maintenance does the equipment require?

A: Daily lubrication of drive components and weekly inspection of roller surfaces maintain optimal performance. Comprehensive maintenance guidelines accompany each machine.

Q: Do you provide installation services?

A: We offer remote guidance as standard. On-site installation services are available upon request for additional fees. Most customers successfully install with our video support.

Q: What is the typical machine lifespan?

A: With proper maintenance, expect 15-20 years of productive service. High-quality component selection ensures long-term reliability even under continuous operation.

Contact Us

Ready to enhance your shelving production capabilities with shelf roll forming machine? Contact our technical team at zhongtuorollforming@gmail.com for customized solutions tailored to your specific requirements.
