High-Precision Supermarket Racks Making Machine for Industrial Storage Solutions

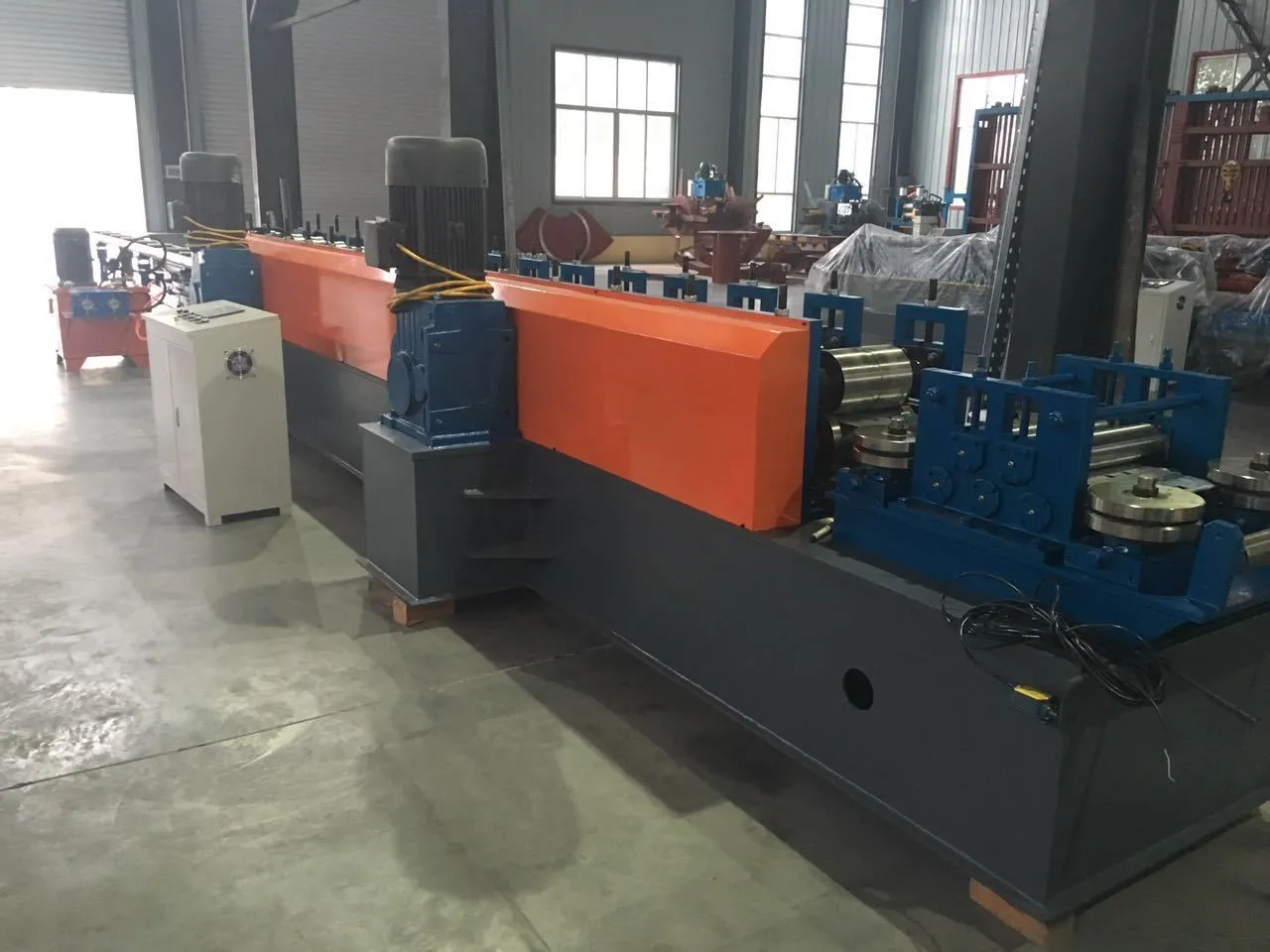

Cangzhou Zhongtuo Roll Forming Machinery delivers industrial-grade supermarket racks making machine technology engineered for high-volume production environments. Since 2014, our manufacturing systems have processed over 150 million linear meters of storage components across 150+ countries. This automated roll forming line integrates hydraulic decoiling, 16-station progressive forming, and CNC shearing to produce upright posts, step beams, and box beams from 1.5–2.0mm PPGI/GI/aluminum coils. Our equipment features GCr15 bearing steel rollers with 350H steel frame construction, achieving forming speeds up to 15m/min while maintaining ±0.2mm dimensional accuracy. Factory pre-testing and remote diagnostics ensure rapid deployment for warehouse rack manufacturers and retail fixture producers.

Complete Production Line Configuration

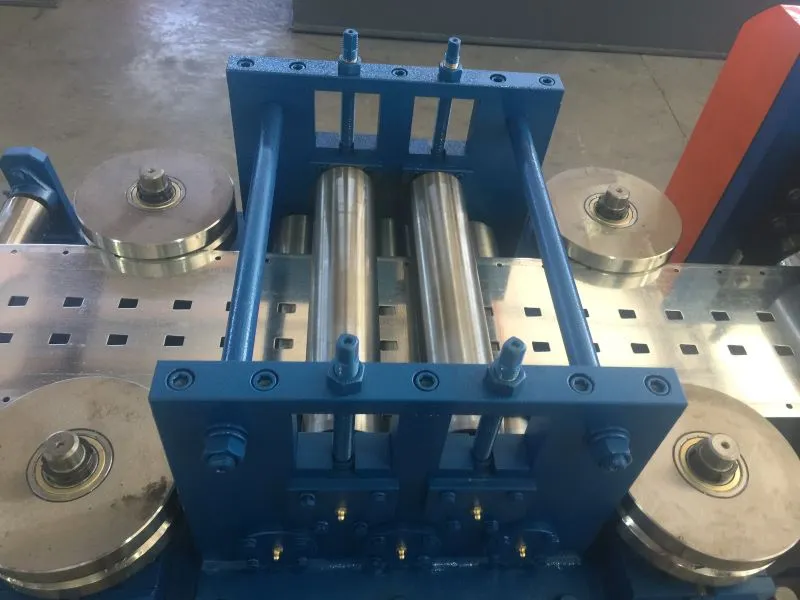

Your product system arrives as a fully integrated manufacturing solution. The production line includes a hydraulic automatic decoiler for coil weights up to 5 tons, paired with a complimentary manual decoiler for setup flexibility. Material feeds through a high-precision punch feeder into the roll forming section featuring 16 progressively designed stations. Each station uses Cr12 tool steel rollers with quenched treatment and hard chrome plating for scratch-free surface finishing.

The 80mm solid shaft transmission system connects to German-standard gear drives with hardened surface treatment. This configuration reduces slippage by 98% compared to chain-only systems. Your CNC shearing unit employs Cr12MoV cutting blades that maintain sharp edges through 500,000+ cuts without deformation. The receiving rack automatically stacks finished profiles, enabling single-operator production runs.

Our PLC control system supports batch programming in multiple languages. You can preset product length, quantity, and production sequences. The touchscreen interface displays real-time parameters including forming speed, cut count, and motor load percentages.

Technical Specifications

Engineering Advantages for Industrial Operations

Heavy-duty frame construction uses 350H structural steel with reinforced welding at stress points. This design prevents frame twist during continuous 24-hour production cycles. Our vibration testing shows deflection rates below 0.05mm even at maximum forming speeds.

The German-standard gear transmission system undergoes surface carburizing treatment, increasing tooth surface hardness to HRC58-62. This process extends gearbox lifespan to 80,000+ operating hours. Sealed lubrication chambers protect internal components from metal dust contamination common in roll forming environments.

GCr15 bearing steel components in roller assemblies provide Rockwell hardness ratings of HRC60-65. These materials resist deformation when processing high-tensile aluminum alloys. Independent load testing confirms roller dimensional stability after forming 10 million linear meters of material.

Factory testing protocols include 8-hour continuous production runs using customer-provided material samples. Quality engineers measure 50 data points per profile including hole spacing accuracy, surface flatness, and edge burr height. Test reports accompany each machine shipment with actual performance metrics.

Remote operation systems connect via 4G/5G cellular networks or Ethernet. Your maintenance team can access live camera feeds, download production logs, and adjust PLC parameters from any location. The diagnostic module alerts you 72 hours before predicted component failures based on vibration analysis and motor current signatures.

Global Quality Certification Portfolio

Zhongtuo maintains ISO9001:2015 certification with annual audits conducted by BSI Group. Our supermarket racks making machine production facility holds CE marking for European Economic Area compliance, covering machinery safety directives 2006/42/EC. North American customers benefit from CAS certification demonstrating CSA standard conformity.

Additional certifications include UL recognition for electrical components, SGS material testing verification, and region-specific approvals for Middle Eastern and Southeast Asian markets. Our quality management system tracks 127 control points from raw material inspection through final assembly. This documentation supports your company's compliance requirements when exporting finished rack systems.

Customized Profile Design Support

Our technical team collaborates with your engineering department to optimize roller tooling designs. Using finite element analysis software developed through our partnership with Yanshan University's National Cold Rolled Strip Equipment Research Center, we simulate material flow through each forming station. This process identifies potential stress concentration points before manufacturing tooling.

You receive 3D CAD models of proposed roller profiles with predicted springback calculations. Adjustments account for material yield strength variations, coil width tolerances, and your desired production speeds. Prototype tooling undergoes dimensional verification using CMM equipment accurate to 0.005mm.

For complex profiles requiring multiple punching operations, we integrate servo-driven punch presses with the forming line. Hole patterns, slots, and embossments are added inline without secondary operations. This integration reduces handling labor costs by 60% compared to standalone punch press workflows.

Application Scenarios

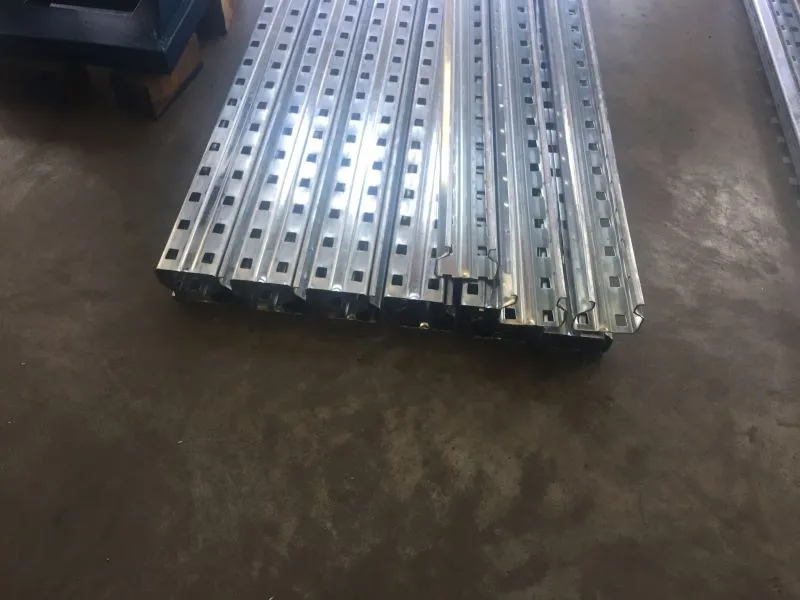

Warehouse Storage Systems: Produce heavy-duty upright posts with teardrop or diamond hole patterns. The machine handles 2.0mm galvanized steel for load-bearing columns rated to 4,000kg per pair. Box beam profiles form the horizontal support structure with interlocking tabs.

Retail Fixture Manufacturing: Form lightweight gondola uprights and shelf supports from 1.5mm pre-painted steel. The chrome-plated rollers prevent coating damage, maintaining the decorative finish. Step beams with integrated price channel profiles require no secondary bending operations.

Industrial Racking Components: Create pallet rack beams with safety locks and connector tabs. The CNC shearing system cuts beams to length with ±1mm accuracy, ensuring proper fit during assembly. Thickness capacity supports 2.0mm high-tensile steel for 2,500kg load ratings.

FAQ

Q1: How do you prevent roller marking on pre-painted materials?

A: Our Cr12 rollers receive hard chrome plating to 0.03mm thickness with mirror polishing to Ra 0.2 surface finish. This treatment eliminates micro-scratches on PPGI coatings. Adjustable roller pressure systems reduce contact force by 40% compared to fixed-gap designs while maintaining forming accuracy.

Q2: What causes dimensional variation in punched holes across long production runs?

A: Punch wear and die misalignment are primary factors. Our Cr12MoV tooling maintains sharpness for 500,000 strokes. The punch press includes automatic die clearance compensation, adjusting ram position in 0.01mm increments based on force monitoring. This system keeps hole positional accuracy within ±0.3mm throughout tool life.

Q3: Can the machine switch between different shelf profile types quickly?

A: Yes. Cassette-style roller holders allow complete station changes in under 45 minutes. Each cassette contains pre-aligned upper and lower rollers for a specific profile. You store multiple cassettes offline, enabling same-day changeovers between product lines without specialist technicians.

Q4: How do you address material coil variations affecting final dimensions?

A: The PLC system includes adaptive forming algorithms. Thickness sensors at the entry measure actual material gauge and automatically adjust roller gaps across all 16 stations. Width variations up to ±3mm are compensated through servo-controlled side guides that maintain centerline alignment.

Q5: What causes oil staining on finished profiles, and how is it prevented?

A: Excess lubrication from gear drives can migrate to rollers. Our enclosed transmission compartments use positive air pressure to prevent oil vapor escape. Roller bearings employ sealed cartridge designs with internal grease reservoirs, eliminating external lubrication points near the material path.
