High-Performance Shelf Forming Machine Production Line for Industrial Storage Systems

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in manufacturing advanced shelf forming machine production line systems engineered for warehouse and retail racking applications. Established in 2014, we have successfully delivered equipment to over 150 countries worldwide. Our production lines feature Φ80mm solid 45# steel shafts capable of forming speeds up to 15 m/min, with heavy-duty 350H steel frame construction ensuring long-term stability. Each product undergoes complete factory testing before shipment and includes intelligent PLC control supporting multi-language interfaces. Our manufacturing capability spans material thicknesses from 1.5-2mm, processing PPGI, GI, and aluminum coils into precision storage components with cutting-edge Cr12MoV hydraulic cutting systems delivering clean, deformation-free edges.

Why Choose Our Warehouse Racking Equipment?

Modern logistics operations demand reliable equipment that balances productivity with precision. Our systems address critical manufacturing challenges faced by storage solution providers.

Material handling efficiency directly impacts your bottom line. Traditional fabrication methods create bottlenecks and dimensional inconsistencies that compromise structural integrity. Our automated forming technology eliminates manual errors while maintaining tight tolerances essential for safe high-bay installations.

You need equipment that processes high-tensile steel without compromising profile geometry. Our roll forming stations handle materials up to G550MPa strength grade, ensuring your finished products meet rigorous safety standards for heavy-duty applications.

Labor costs continue rising across manufacturing sectors. A single operator can manage our complete production line, significantly reducing workforce requirements while increasing output consistency.

Complete Production Line Configuration

Our integrated system combines multiple processing stages into one synchronized workflow:

Hydraulic Decoiling System supports 5-ton capacity with automatic tension control. Manual decoilers are included complimentary for startup operations or light-duty applications.

Precision Leveling utilizes seven-roller configuration (3 upper, 4 lower) eliminating coil memory before forming begins.

Servo-Driven Punching integrates 80-ton capacity with programmable positioning for hole patterns, slots, and teardrops required for beam mounting systems.

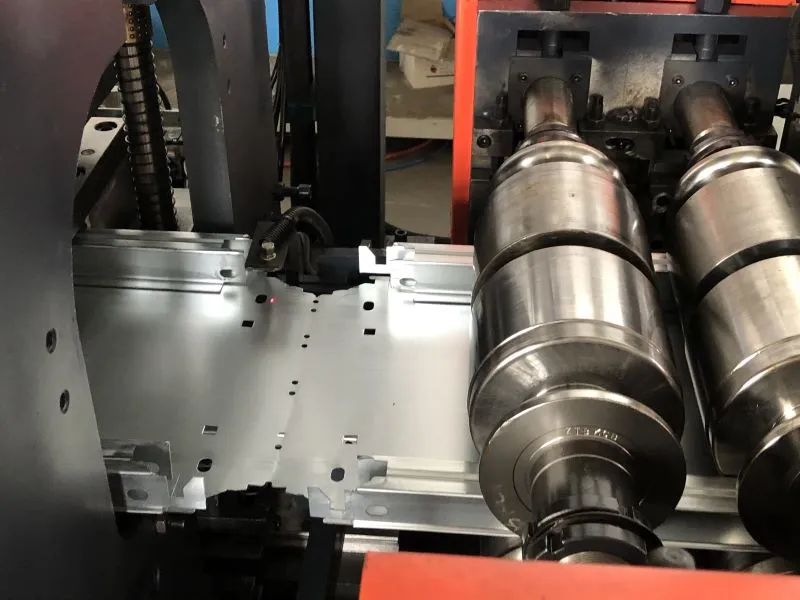

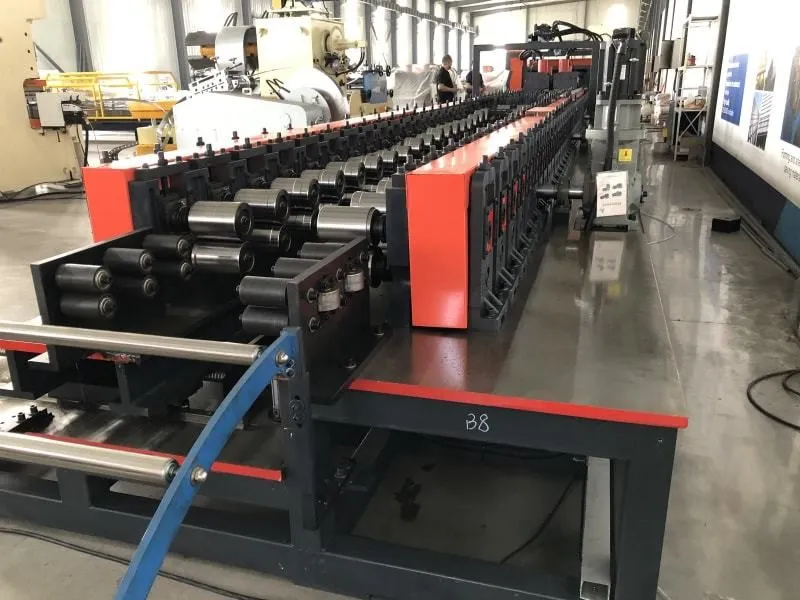

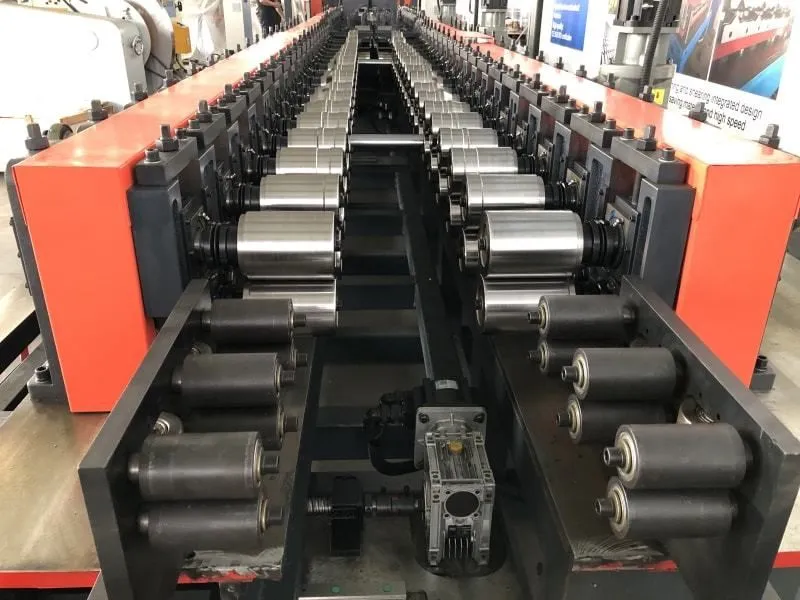

Roll Forming Stations feature 16 rows of Cr12 die steel rollers with quenched treatment and hard chrome plating. Each roller undergoes vacuum heat treatment reaching HRC 58-62 hardness for exceptional wear resistance.

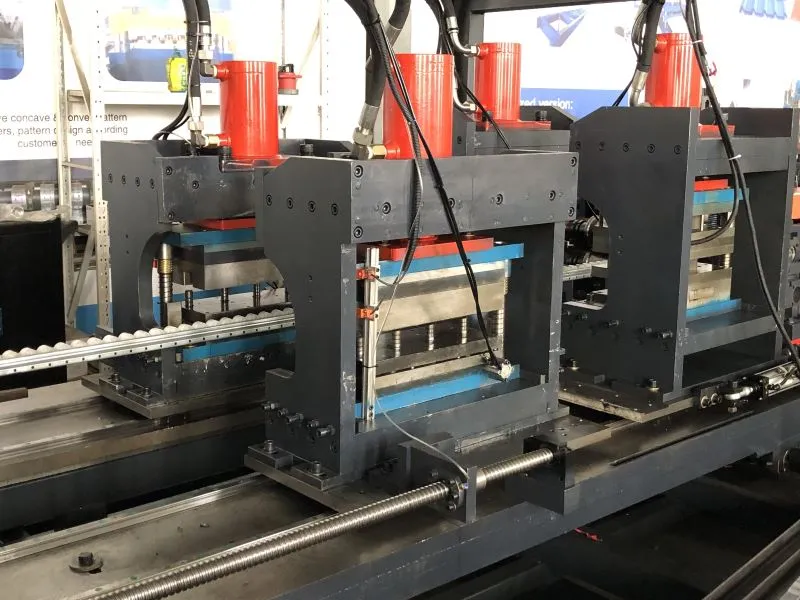

Hydraulic Cutting System employs Cr12MoV blade material delivering ±0.5mm length accuracy with zero material waste between cuts.

Intelligent Control Panel enables batch production settings including length parameters, quantity counts, and speed adjustment from 0-15 meters per minute depending on profile complexity and material thickness.

Technical Specifications Overview

Engineering Advantages That Drive Value

Premium Component Selection distinguishes our equipment from standard offerings. Core components manufactured from GCr15 bearing steel provide superior wear resistance during continuous operation. This material choice extends service intervals and reduces replacement costs throughout the equipment lifecycle.

Structural Rigidity comes from heavy-duty frame design resisting deformation under high-load conditions. Your production maintains dimensional accuracy even after years of intensive use, protecting your reputation for quality products.

German-Standard Transmission incorporates gear systems with hardened surface treatment. This engineering approach improves power transfer efficiency while reducing noise levels and maintenance requirements compared to chain-only systems.

Factory Validation Protocol ensures every machine completes full production testing before shipment. You receive equipment ready for immediate deployment, minimizing installation downtime and accelerating return on investment.

Remote Diagnostics Capability monitors operating parameters in real-time through cloud-based systems. Our technical team identifies potential issues before they cause production interruptions, reducing emergency service costs.

Comprehensive Certification Portfolio includes ISO9001, CE, CAS, UL, and SGS validations across 30+ international standards. These credentials facilitate customs clearance and satisfy insurance requirements in your target markets.

Customization Expertise allows profile adaptation for different shelf types including light-duty (38×38mm columns), medium-duty (80×40mm specifications), and heavy-duty configurations designed to your load requirements. Our engineering team collaborates on punch patterns, forming sequences, and automation integration matching your production capacity goals.

Continuous Support Infrastructure provides 24/7 technical assistance through multiple communication channels. Our service team delivers remote debugging, software upgrades, and troubleshooting guidance ensuring your operations continue smoothly across time zones.

Research & Development Foundation

Zhongtuo maintains strategic cooperation with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This partnership brings advanced research capabilities directly into production applications.

Our collaborative projects focus on roll design optimization using finite element analysis, cold forming process simulation reducing trial costs, and intelligent automation systems enabling predictive maintenance protocols.

Graduate researchers work on-site at our manufacturing facility, applying theoretical advances to practical challenges. This integration accelerates innovation in equipment virtual debugging, remote operation platforms, and AI-powered optimization systems that enhance forming accuracy.

Two patented technologies developed through this collaboration are integrated into our current production lines, including innovative pattern roller designs and automatic slitting mechanisms exported to global markets.

Application Versatility Across Storage Solutions

Your shelf forming machine production line adapts to multiple product categories within the storage industry. Upright columns require precise hole patterns for beam mounting—our servo punching maintains positioning accuracy across extended production runs.

Box beams demand consistent profile dimensions for proper load distribution. Our roll forming stations deliver tight geometric tolerances ensuring structural compatibility with various racking systems.

Step beams incorporate complex geometries requiring coordinated forming sequences. Programmable control systems synchronize each processing stage maintaining dimensional relationships critical to assembly fit.

Thick angle profiles used in heavy-duty applications process smoothly through our reinforced roller stations designed for high-tensile materials up to 2.5mm thickness.

FAQ

Q: What profiles can your equipment produce?

A: Our systems manufacture upright columns from 38×38mm light-duty to custom heavy-duty specifications, box beams, step beams, and angle profiles. We provide complete design support adapting roller configurations to your specific product requirements.

Q: How does forming speed vary by application?

A: Production rates from 0-15 meters per minute depend on material thickness, profile complexity, and punching requirements. Thicker materials and intricate patterns reduce optimal speeds, while simple profiles in thinner gauges achieve maximum throughput.

Q: What customization options are available?

A: We modify roller station quantities, punching patterns, material handling systems, and automation levels matching your production volume and product mix. Our engineering team develops tailored solutions based on your facility layout and workflow requirements.

Q: How quickly can equipment be commissioned?

A: Factory testing ensures rapid deployment after installation. Most customers achieve full production within one week including equipment positioning, utility connections, operator training, and initial production runs with technical support.

Q: What ongoing support do you provide?

A: Remote monitoring systems enable real-time diagnostics and troubleshooting. Our technical team provides software updates, process optimization guidance, and emergency response across all time zones with multilingual support capabilities.

Q: Which certifications apply to international shipments?

A: Our ISO9001, CE, CAS, UL, and SGS certifications facilitate customs clearance worldwide. We provide complete documentation packages supporting import requirements in over 150 countries where our equipment currently operates.

Contact Us

Do you have more questions about shelf forming machine production line? Contact at zhongtuorollforming@gmail.com to discuss your specific production requirements and receive customized equipment proposals tailored to your operational goals.
