Professional Supermarket Shelf Making Machine for Automated Rack Production | High-Precision Roll Forming Solution

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. makes high-efficiency supermarket shelf making machine systems for retail shelving manufacture. As a national high-tech company founded in 2014, we provide automated roll forming lines that precisely produce upright posts, step beams, box beams, and shelf panels. Our system has 16-station setups, durable GCr15 bearing steel components, and clever PLC control with multi-language interfaces. Our machines smoothly create PPGI, GI, and aluminum at 0-15m/min and 1.5-2mm thickness. We service over 150 countries with reliable solutions that are factory-tested and ISO 9001, CE, and CAS certified.​​​​​​​

Complete Production Line Configuration

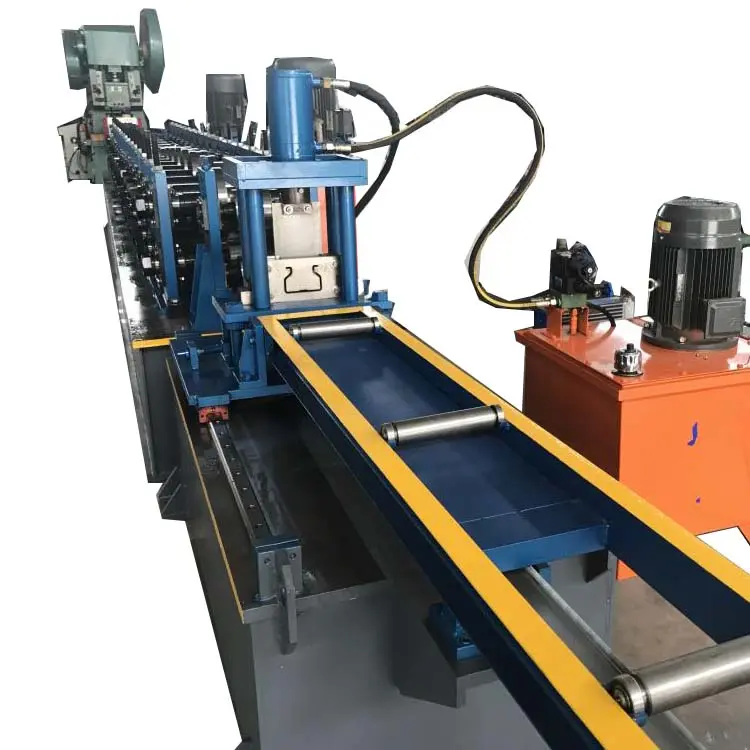

Your system is completely integrated and designed for smooth operation. Automatic hydraulic decoilers feed materials smoothly into high-precision punch feeders in the production line.

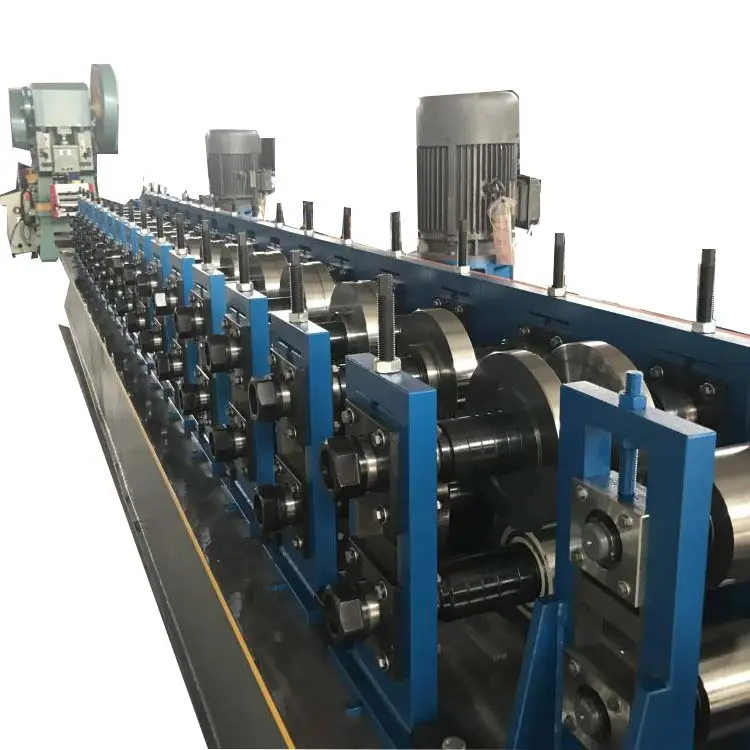

Servo-controlled feeding systems place material accurately. For surface protection during shaping, the primary roll forming section has 16 rows of chrome-plated hardened Cr12 rollers.

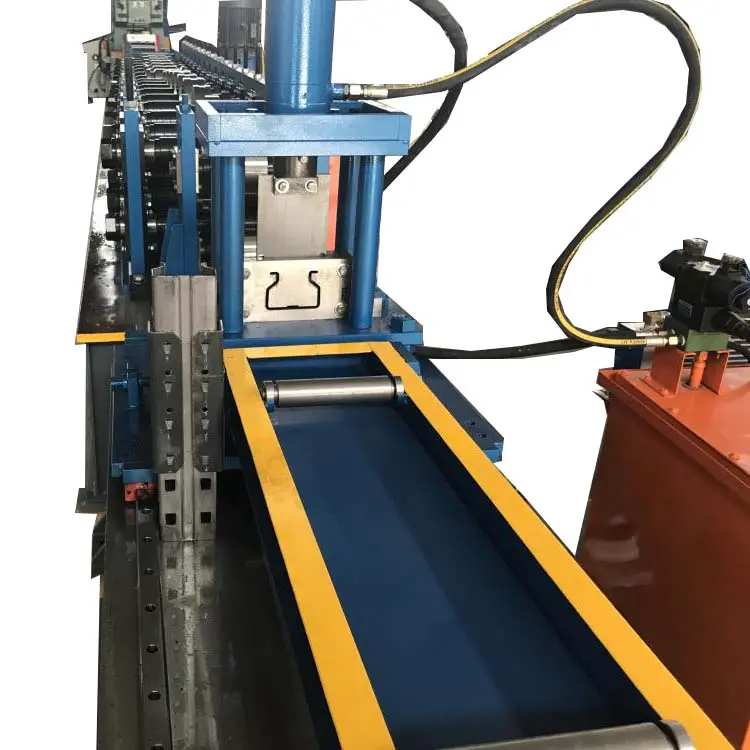

Cr12MoV blades in hydraulic or automated cutting systems produce clean, deform-free edges. Intelligent PLC control lets you select batch amounts, product lengths, and forming speeds through an easy interface for the whole line.

One operator controls the entire system, saving labor. This efficient process turns coils into shelf components for installation.

Technical Specifications

Versatile Profile Production Capability

Our equipment produces diverse shelf system components matching various retail storage requirements. You can manufacture upright posts in L-shape configurations for light-capacity applications or C-shape designs for medium-duty installations.

Heavy-duty special C-type profiles suit warehouse environments demanding maximum load capacity. The product creates step beams with precision hole punching in tear-drop patterns, enabling easy beam mounting.

Box beam production maintains consistent cross-sectional dimensions throughout the forming process. Shelf panel widths adjust from 300mm to 600mm, accommodating different aisle configurations.

Each profile maintains tight tolerances essential for proper assembly. Your production flexibility increases dramatically when handling custom client specifications.

Advanced Engineering for Reliable Performance

German standard gear transmission systems form the mechanical foundation of your equipment. Hardened surface treatment on transmission components extends operational lifespan substantially.

GCr15 bearing steel construction in core components provides exceptional wear resistance during continuous production runs. Heavy-duty frame design using 350 H steel prevents deflection under high-intensity operation.

The solid 80mm shaft diameter maintains rigidity when processing thicker materials. Chrome-treated rollers eliminate surface scratching on finished products, ensuring premium appearance.

Chain drive systems utilize 1-inch industrial-grade components for smooth power transmission. This engineering approach guarantees consistent performance throughout extended production cycles.

Intelligent Control and Customization Options

Multi-language PLC interfaces make your supermarket shelf making machine accessible to operators worldwide. The control system allows precise programming of production parameters including batch sizes, product lengths, and piece counts.

Variable speed control optimizes production efficiency based on material properties and profile complexity. Remote operation and maintenance capabilities enable real-time equipment monitoring and rapid troubleshooting.

Customization services extend to profile designs, punching patterns, and automation levels matching your specific production goals. Our technical team collaborates with you to configure equipment aligned with market demands.

OEM and ODM services accommodate unique branding and specification requirements. This flexibility ensures your investment delivers exactly what your business needs.

Quality Assurance and Global Standards Compliance

Every unit undergoes comprehensive factory testing before shipment, verifying all functions perform to specification. This pre-delivery validation ensures rapid deployment at your facility with minimal commissioning time.

ISO 9001 certification confirms our quality management systems maintain consistent manufacturing standards. CE marking demonstrates compliance with European safety and environmental regulations.

CAS certification validates adherence to North American technical requirements. Additional regional certifications support equipment installation across diverse markets.

Export-standard packaging includes steel frame protection, anti-rust oil application, and wooden case enclosure. Container compatibility (20GP/40HQ) facilitates cost-effective international shipping with full inspection documentation.

Comprehensive Support and Service

Our 24/7 technical support team provides continuous assistance throughout your equipment's operational life. Remote diagnostic capabilities reduce downtime by enabling quick problem identification and resolution.

Cloud-based monitoring platforms track equipment performance metrics, supporting predictive maintenance strategies. This proactive approach minimizes unexpected production interruptions.

Professional technicians offer remote debugging services, system upgrades, and operational training. Our collaboration with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center brings cutting-edge innovations to your production floor.

Long-term partnerships with clients across 150+ countries demonstrate our commitment to customer success. We provide tailored technical solutions addressing regional requirements and industry-specific challenges.

FAQ

Q: What material thicknesses can this machine process?

A: The equipment handles materials ranging from 1.5mm to 2mm thickness, suitable for standard retail shelving applications. Adjustments accommodate variations within this range without tooling changes.

Q: How many operators are required?

A: One trained operator manages the entire production line due to automated controls and integrated systems. This significantly reduces labor costs compared to manual processes.

Q: Can the machine produce different shelf widths?

A: Yes, the system features adjustable width capabilities, typically ranging from 300mm to 600mm depending on configuration. Manual or motorized adjustment options are available.

Q: What kind of training is provided?

A: We offer comprehensive operational training including remote video sessions and on-site instruction when required. Detailed manuals in multiple languages accompany each system.

Q: How long does installation take?

A: Standard installation and commissioning complete within 5-7 working days, depending on facility preparation and configuration complexity. Remote guidance expedites the process.

Q: What maintenance is required?

A: Regular lubrication of moving parts and periodic inspection of wearing components maintain optimal performance. Our remote monitoring system alerts you to maintenance needs before issues arise.
