High-Performance Shelf Pillar Machine for Automated Warehouse Racking Production

Cangzhou Zhongtuo Roll Forming Machinery delivers industrial-grade shelf pillar machine technology engineered for precision upright manufacturing. Since 2014, our national-level high-tech enterprise has specialized in cold roll forming solutions backed by ISO 9001, CE, and CAS certifications. Our product features a robust 33 kW dual-motor drive system with PLC automation, processing 1.5–2.0 mm galvanized or low-carbon steel at speeds up to 15 m/min. The heavy-duty reinforced frame paired with German-standard gear transmission ensures dimensional accuracy within ±0.5 mm across continuous production runs. With Cr12MoV cutting blades and 19-station Cr12 forming rollers, this equipment delivers the structural integrity required for heavy-duty pallet racking systems supporting 10+ ton vertical loads per frame.

Why Warehouse Racking Manufacturers Choose Our Equipment?

Modern intralogistics infrastructure demands equipment that eliminates dimensional drift during high-volume production. Traditional brake press methods introduce cumulative errors in hole pitch accuracy, compromising beam adjustability in selective pallet racking systems.

Our shelf pillar machine addresses these challenges through continuous cold forming technology. The synchronized roller stations gradually shape profiles without material stress concentration, preventing springback issues common in high-tensile steels. This process maintains straightness tolerances critical for automated storage and retrieval systems (AS/RS), where even 0.5 mm deviations cause shuttle failures in 20-meter-high installations.

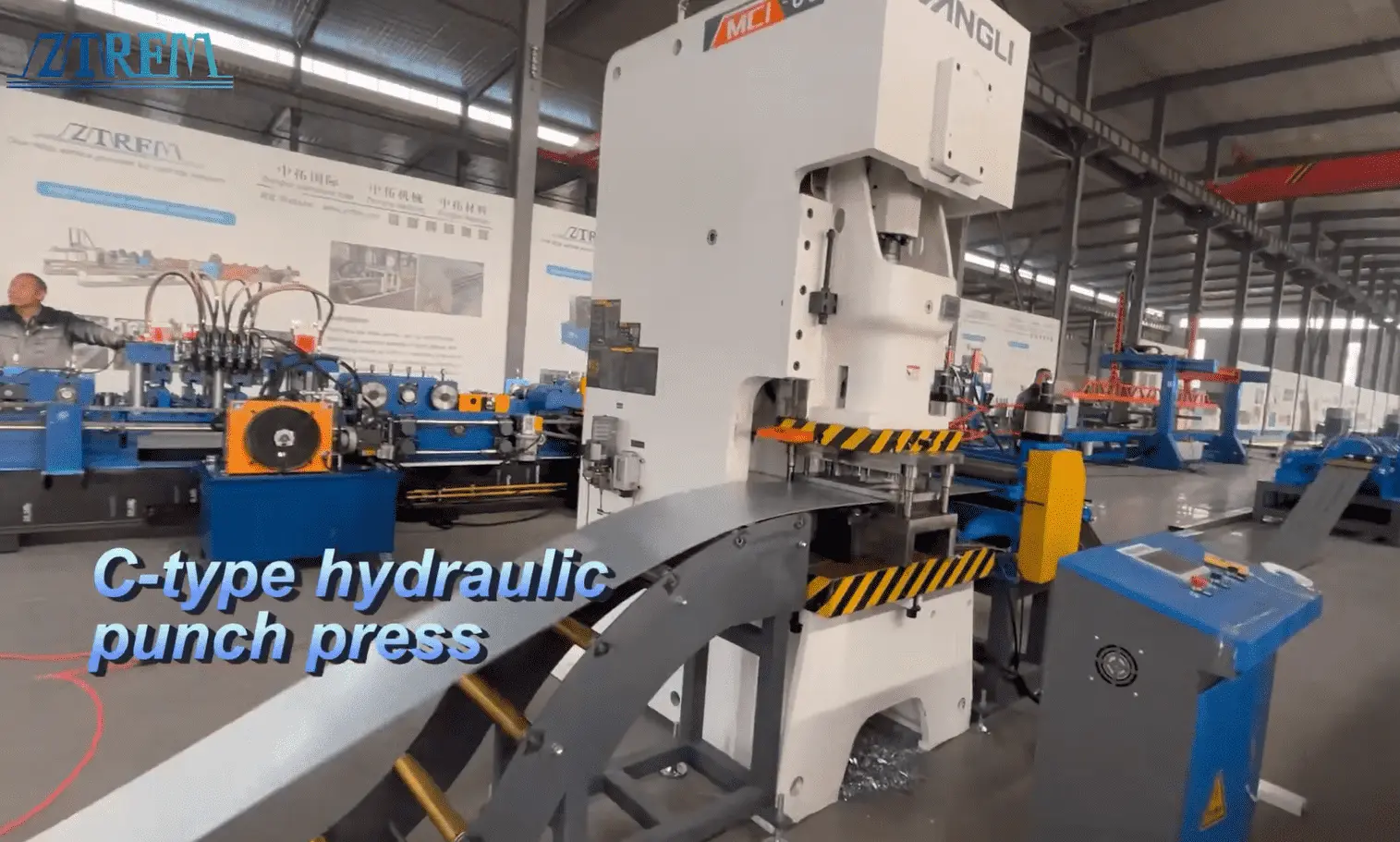

The integrated hydraulic punching station creates butterfly, diamond, or teardrop hole patterns with servo-controlled precision. You gain consistent hole spacing essential for beam height adjustability while maintaining column load-bearing capacity. This unified workflow reduces material handling, minimizes waste, and accelerates production cycles compared to segmented fabrication processes.

Complete Technical Specifications

Core Manufacturing Advantages

Premium Material Engineering: GCr15 bearing steel components undergo heat treatment to HRC 58-62 hardness, delivering wear resistance for continuous 24-hour operation cycles. The 70 mm diameter shafts withstand torsional stress during heavy-gauge steel processing.

Structural Rigidity: The H-beam welded frame construction with reinforced gussets dampens vibration during high-speed operation. This design maintains profile geometry consistency across 10-meter upright lengths, critical for AS/RS vertical alignment requirements.

German-Standard Transmission: Hardened gear systems reduce backlash and power loss compared to standard chain drives. Surface-treated components extend maintenance intervals while sustaining torque delivery during thick-material forming.

Pre-Shipment Validation: Every production line undergoes full-cycle testing with actual material specifications. You receive equipment calibrated for immediate deployment, reducing installation downtime from weeks to days.

Remote Diagnostics Platform: Cloud-connected monitoring tracks roller wear patterns, hydraulic pressure fluctuations, and motor load profiles. Predictive maintenance alerts prevent unexpected downtime, particularly valuable for overseas installations where on-site service involves logistics delays.

Multi-Regional Certification Portfolio: Beyond standard ISO and CE compliance, our equipment holds UL and SGS certifications. This documentation simplifies customs clearance and insurance underwriting across 150+ export markets.

Application-Specific Production Capabilities

Heavy-Duty Pallet Racking: Process Omega-profile uprights with closely spaced holes while maintaining wall thickness uniformity. The controlled forming sequence prevents hole edge distortion that weakens beam connection points under load.

High-Bay Warehouse Systems: Achieve straightness tolerances under 1.5 mm per 10 meters for automated crane navigation. The cassette roller design enables rapid changeovers between profile depths required for varying storage heights.

Cantilever Racking Solutions: Tool the machine for thicker gauges (up to 2.5 mm) with specialized punching patterns. Extended roller stations accommodate wider profiles needed for lumber or pipe storage applications where load distribution differs from box-beam systems.

Research-Driven Innovation Framework

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center accelerates technology deployment. Graduate researchers conduct finite element analysis (FEA) on roller die designs, optimizing material flow paths to reduce forming force requirements by 18% while improving profile consistency.

The collaboration yielded two patents in pattern roller geometry and automated slitting systems. These innovations enable processing of color-coated steels and composite materials without surface damage—expanding your product portfolio beyond traditional galvanized offerings.

Virtual commissioning tools built with Siemens Simicas software allow remote PLC debugging before shipment. You can validate production parameters and adjust hole patterns through cloud interfaces, eliminating costly on-site programming revisions during installation.

Customized Engineering Support

Our technical team designs roller tooling matched to your specific upright profiles, whether standard C-channels or proprietary multi-fold geometries. CAD integration ensures hole patterns align with your beam connector specifications, preventing field compatibility issues.

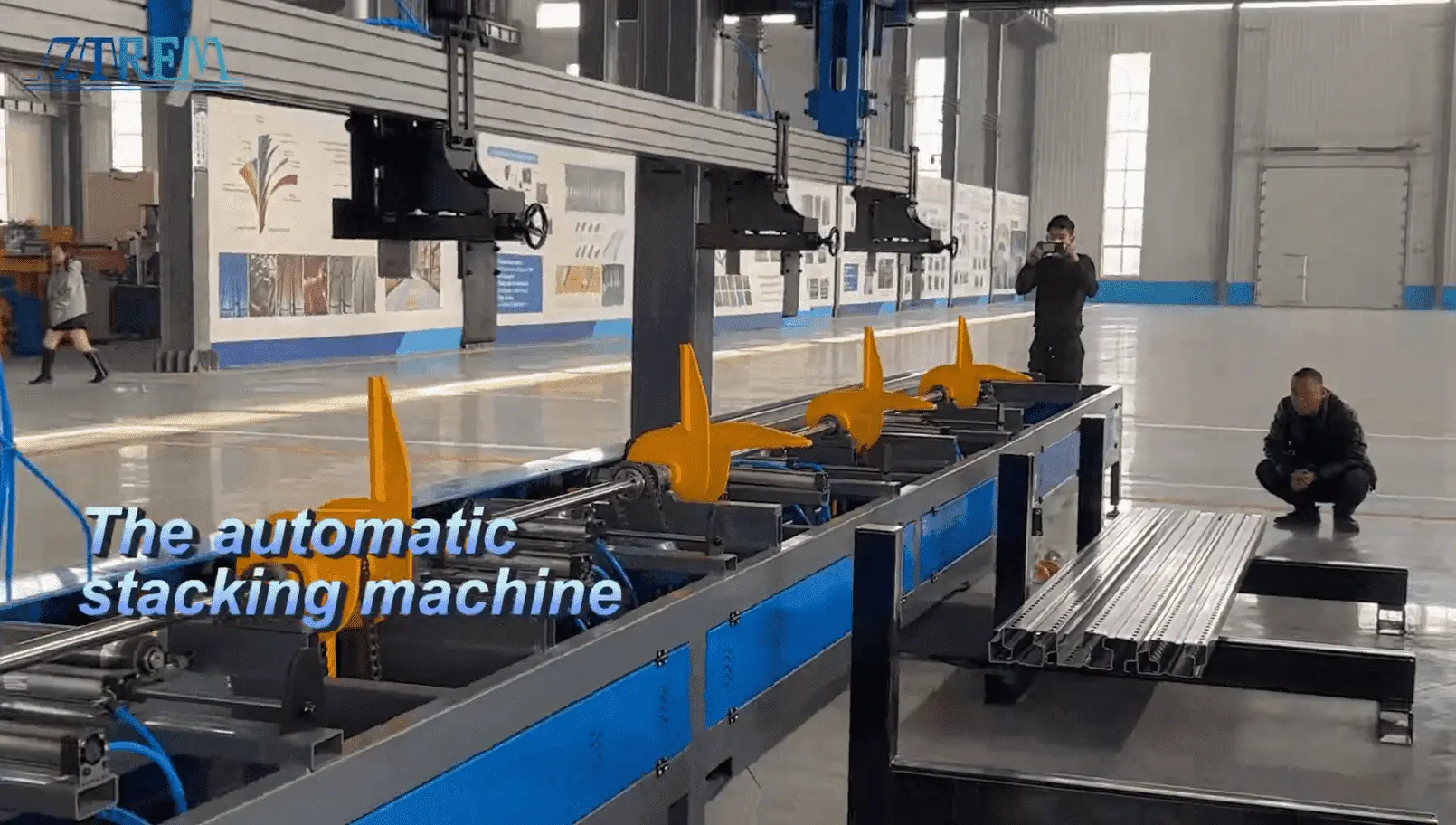

Production capacity analysis determines optimal line speed and coil handling configurations. For high-volume operations, we integrate automatic stacking systems and laser measuring stations that verify dimensional accuracy in real-time, triggering adjustments before tolerance drift occurs.

Material recommendations balance cost and performance—our metallurgy expertise helps specify steel grades that meet load requirements without over-engineering. This consultation reduces raw material expenses while maintaining structural safety margins.

FAQ

Q: What profile types can this equipment produce?

A: The machine handles Omega, C-channel, and custom multi-fold profiles up to 120 mm width. Roller stations accommodate asymmetric designs required for specialized racking systems.

Q: How quickly can hole patterns be changed?

A: Servo-controlled punching stations accept digital pattern files. Standard changeovers complete in under 20 minutes without mechanical die swaps.

Q: What maintenance intervals apply?

A: Lubrication cycles occur every 500 operating hours. Roller inspection recommended at 2,000 hours. Most components exceed 5-year service life under normal conditions.

Q: Can the line process pre-painted materials?

A: Yes, with nylon or polyurethane roller coatings that prevent surface marring. Feed speed reductions to 10 m/min maintain finish quality.

Q: What installation requirements exist?

A: The equipment needs a 15-meter x 4-meter floor space with 380V three-phase power. Foundation bolting optional depending on floor slab condition.

Q: How does remote support function?

A: Ethernet or 4G connectivity transmits real-time operational data to our monitoring center. Technicians diagnose issues through video calls and can adjust PLC parameters remotely when authorized.
