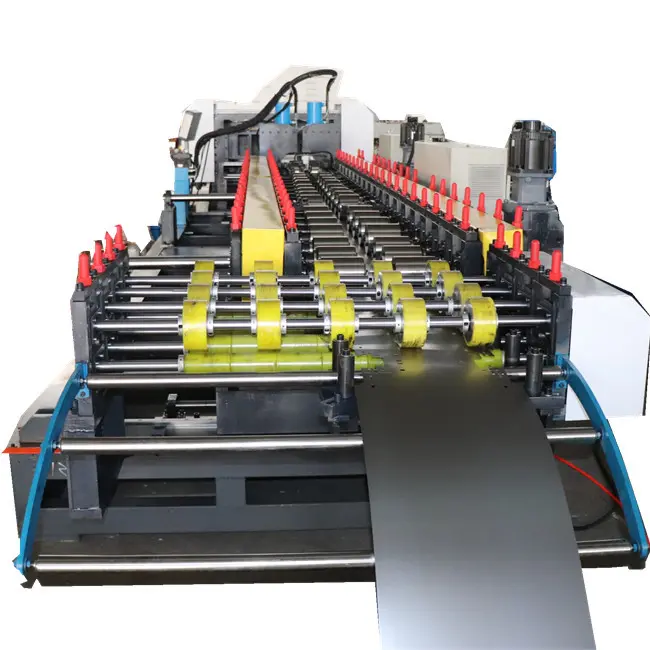

Professional Shelf Profile Machine for High-Efficiency Storage System Manufacturing

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers industrial-grade shelf profile machine solutions engineered for supermarket and warehouse racking production. Since 2014, our company has specialized in cold roll forming technology with proven export success across 150+ countries. This automated production line processes PPGI, GI, or aluminum coils ranging from 1.5mm to 2.0mm thickness through 16 precision forming stations equipped with Cr12/GCr12 hardened steel rollers. With a solid 80mm diameter 45# steel shaft and forming speeds reaching 15m/min, your facility achieves consistent output while maintaining profile tolerances within ±1mm. Backed by ISO9001, CE, CAS, and 30+ international certifications, every unit undergoes full factory testing before delivery.

Why Industrial Storage Manufacturers Choose Our Equipment?

Modern warehousing demands fast production without compromising structural integrity. Traditional brake press methods create dimensional inconsistencies that compromise rack safety standards. Our system eliminates these pain points through continuous automated forming.

The machine handles high-tensile steel up to G550MPa for heavy-duty applications. You get precise hole punching synchronized with profile forming, ensuring perfect alignment for beam mounting. This matters when your clients need racks supporting loads exceeding 23,000 lbs per upright.

Heavy-duty frame construction using 350 H steel prevents deformation during extended production runs. Your equipment maintains accuracy even after years of high-intensity operation. The German-standard gear transmission system receives hardened surface treatment, dramatically improving wear resistance compared to standard drive systems.

Technical Specifications

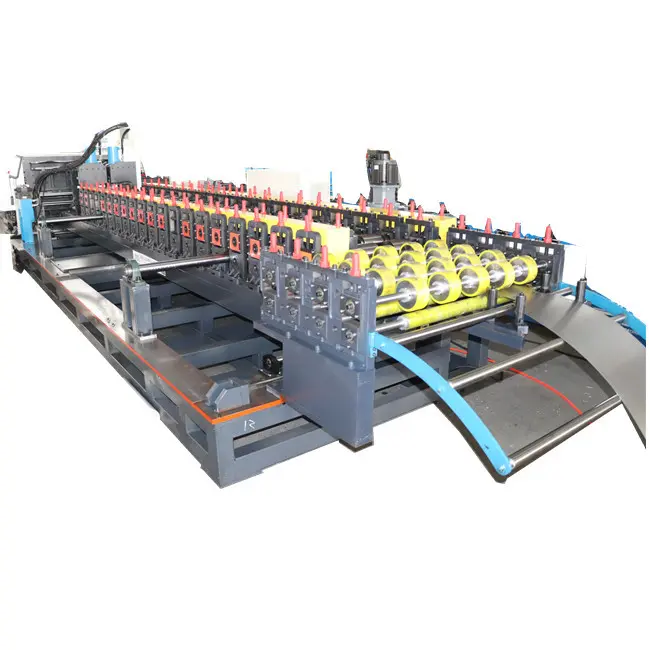

Advanced Manufacturing Components

Core components utilize GCr15 bearing steel engineered for continuous production environments. Surface hardness reaches HRC 58-62 through vacuum heat treatment, delivering exceptional wear resistance against abrasive coil materials.

The roller stations feature cassette-type design for rapid profile changeovers. When you need to switch between C-channel, L-shape, or special heavy-capacity designs, your downtime drops significantly. Each roller receives hard chrome plating that extends service life beyond standard tooling.

Variable frequency drives synchronize punch timing with material feed. This prevents misalignment issues common in mechanical systems. You achieve hole placement accuracy within ±0.5mm across entire production runs.

Customization for Diverse Applications

Your product specifications drive our engineering approach. Whether producing light-duty 38×38mm uprights for retail displays or heavy-duty columns with 2.5mm wall thickness for industrial storage, we adapt the production line accordingly.

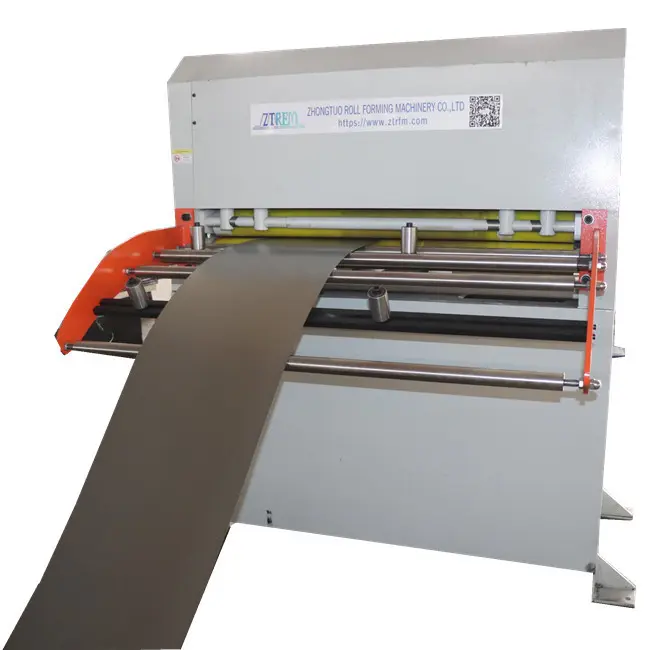

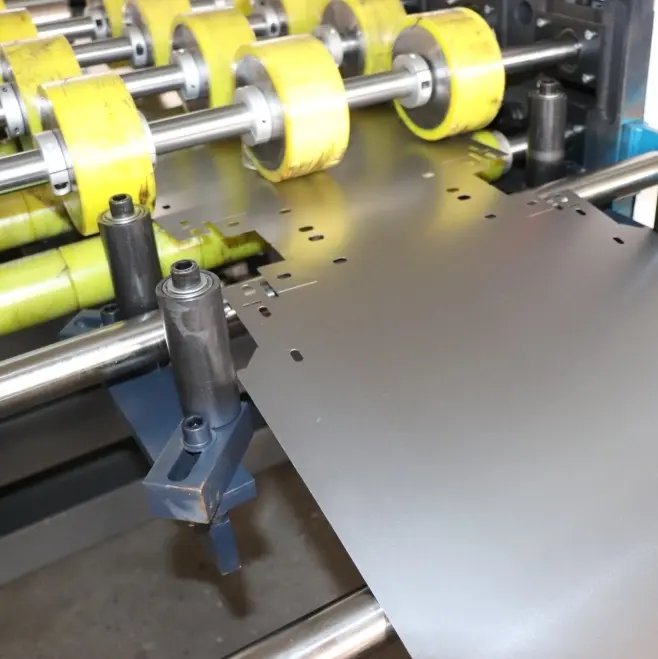

Feeding width adjusts to match your profile dimensions. The leveling system with 7 rollers (3 upper, 4 lower) removes coil set before forming begins. This preparation step prevents edge waviness that would compromise final product quality.

Punching capacity reaches 80 tons using Yangli pneumatic systems with servo feeders. Tear-drop hole patterns or custom slot designs integrate seamlessly into the forming process. You eliminate secondary operations that increase labor costs.

Smart Remote Monitoring System

Equipment ships with cloud-based diagnostic capabilities developed through our partnership with Siemens. Real-time operational data streams to your maintenance team, enabling predictive service scheduling.

When parameters drift from optimal ranges, the system sends alerts before quality issues emerge. Our technical staff accesses machine status remotely, diagnosing problems without site visits. This reduces downtime especially valuable for overseas installations.

The PLC interface supports multiple languages with intuitive touchscreen controls. Operators set production parameters including batch quantities, profile lengths, and speed adjustments through simple menus. Training time decreases while production flexibility increases.

Quality Assurance Through University Collaboration

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings academic rigor to manufacturing processes. PhD researchers stationed at our facility apply finite element analysis to roller design optimization.

This collaboration yielded two patented technologies currently integrated into production lines. AI-powered simulation tools predict forming behavior before physical prototyping, reducing development costs. Virtual commissioning ensures control systems function correctly before installation.

You benefit from equipment that incorporates cutting-edge research rather than relying on outdated industry practices. Each shelf profile machine represents years of accumulated knowledge applied to practical manufacturing challenges.

Export-Ready Packaging and Logistics

Understanding international shipping requirements comes from exporting to over 150 countries. Every unit receives anti-rust oil coating and steel frame protection. Critical components ship in wooden cases meeting ISPM-15 standards.

Container loading configurations fit standard 20GP or 40HQ dimensions, optimizing freight costs. Complete inspection documentation accompanies each shipment, streamlining customs clearance. You receive equipment ready for immediate installation upon arrival.

Our export experience means we anticipate regional electrical requirements, environmental regulations, and installation space constraints. This foresight prevents costly modifications after delivery.

Comprehensive Technical Support

Production doesn't stop when equipment arrives. Our 24/7 support team provides remote debugging, software updates, and troubleshooting assistance. Installation guidance via video conference helps your crew complete setup efficiently.

Training programs cover operational procedures, routine maintenance, and basic troubleshooting. Your staff gains confidence running the system at full capacity. We provide ongoing consultation as production volumes scale or profile requirements evolve.

Spare parts availability through regional distribution centers minimizes downtime. Critical wear components ship quickly, keeping your product operational during peak production periods.
