storage rack roll forming machine

High-Performance Storage Rack Roll Forming Machine for Supermarket and Warehouse Shelving Systems

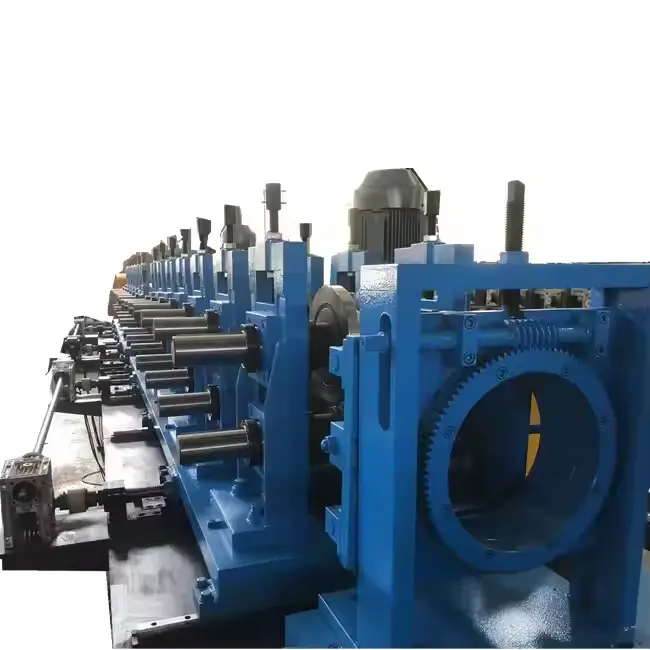

Industrial storage rack roll forming machines for high-volume supermarket and warehouse shelving manufacture are made by Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. After 10 years of manufacture since 2014, our machines have 16 precision forming stations, robust 80mm diameter 45# steel shafts, and clever PLC control systems that can operate at 15 m/min. Each product is factory-tested and meets ISO9001, CE, CAS, and 30+ foreign certifications. Our machine processes 1.5–2.0 mm PPGI, GI, or aluminum coils for rack upright and beam manufacture worldwide with constant profile precision.

Why Choose Our Storage Rack Roll Forming Technology?

Modern retail and logistics require fast, affordable shelf manufacture without compromising structural integrity. We solve these problems using German-standard gear transmission systems and Cr12/GCr12 hardened steel rollers that preserve dimensional precision over millions of linear meters.

Heavy-duty 350H steel frame structure prevents deformation when used 24/7. When making weight-bearing components for industrial racking systems that sustain loads above 2,000 kg per shelf, stability is crucial.

Our intuitive control interface lets operators select batch numbers, profile lengths, and production rates in numerous languages. Automation cuts labor expenses by 40% over manual adjustment techniques. Cloud-based real-time monitoring allows remote diagnostics, reducing abroad installation maintenance response times.

Core Technical Specifications

Advanced Manufacturing Capabilities

Our production lines integrate research from the National Cold Rolled Strip Equipment Engineering Research Center at Yanshan University. This collaboration brings finite element analysis (FEA) and AI-assisted simulation tools directly into roller design optimization.

The roller pattern undergoes virtual debugging before physical manufacturing. This process eliminates trial-and-error costs while ensuring that your specific rack profile—whether for light-duty retail displays or heavy-duty pallet racking—achieves exact dimensional tolerances.

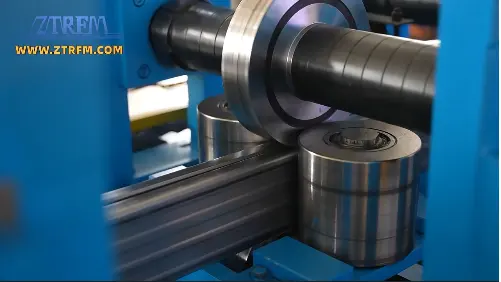

Surface treatment matters when producing painted or powder-coated rack components. Our chrome-plated rollers prevent zinc coating damage and surface scratches that would compromise the aesthetic quality of finished products. This attention to surface integrity reduces your post-forming finishing costs.

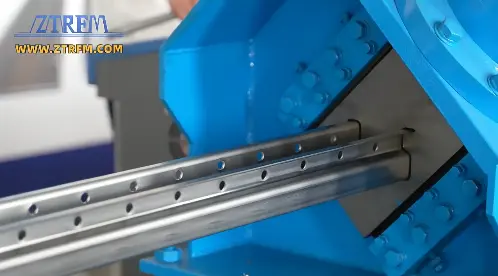

The Cr12MoV cutting blades deliver clean, burr-free edges on upright posts and crossbeams. Hydraulic cutting systems maintain blade gap precision across 100,000+ cuts before requiring maintenance, ensuring consistent quality throughout production runs.

Material Versatility and Profile Customization

You can process various coil widths to match your rack design requirements. Our engineering team customizes feeding width configurations based on your upright height, beam span, or bracing dimensions.

The machine handles aluminum coils for lightweight commercial shelving or heavy-gauge galvanized steel for cold storage and warehouse applications. Material changeover requires minimal downtime thanks to quick-adjustment roller gap controls.

For clients producing multiple rack styles, we offer modular roller cassette systems. Swapping cassettes allows profile changes within 90 minutes, supporting diverse product portfolios from a single production line.

Intelligent Automation and Quality Control

The integrated PLC system eliminates human error in length measurement. Rotary encoders track every millimeter of material travel, delivering cutting accuracy within ±1.0mm across profiles exceeding 6 meters in length.

Batch production modes optimize material utilization. Set your required quantity and the system automatically manages coil feed rates, cutting sequences, and stacking operations. This automation proves critical when fulfilling large orders for retail chain expansions or logistics center construction projects.

Remote monitoring capabilities allow your technical staff to oversee multiple machines simultaneously. Cloud-based dashboards display real-time data on production speed, material consumption, and maintenance alerts. For international clients, this feature enables our engineers to provide immediate support regardless of time zone differences.

Global Compliance and Quality Assurance

Our storage rack roll forming machine meets stringent safety standards across 150+ export markets. CE certification ensures compliance with European machinery directives, while CAS approval addresses North American technical requirements.

ISO9001 certification demonstrates our commitment to consistent quality management throughout the manufacturing process. Each machine component—from bearing assemblies to electrical controls—undergoes documented inspection procedures before final assembly.

Factory testing replicates real-world production conditions. We run your specific material thickness and profile design through complete forming cycles, verifying cutting accuracy, forming speed, and surface quality. This verification process reduces installation risks and accelerates your production startup timeline.

Comprehensive Technical Support

Our technical team provides customized solutions based on your production capacity goals and market demands. Whether you're establishing a new rack manufacturing operation or upgrading existing equipment, we analyze your requirements and recommend optimal configurations.

Installation support includes on-site commissioning by experienced engineers. They train your operators on maintenance procedures, troubleshooting techniques, and performance optimization strategies. This knowledge transfer ensures your team maximizes equipment lifespan and production efficiency.

24/7 online technical assistance resolves operational questions rapidly. Our support staff accesses your machine's control system remotely to diagnose issues and adjust parameters without requiring costly service visits. This responsive service model minimizes downtime and protects your production schedules.

Partner with a Trusted Manufacturing Leader

Cangzhou Zhongtuo's collaboration with leading research institutions and strategic partnerships with Siemens and major universities demonstrates our commitment to technological advancement. Our graduate research team continuously improves forming processes, control algorithms, and equipment reliability.

With successful installations across Europe, North America, the Middle East, Southeast Asia, and South America, we understand regional standards and operational preferences. This global experience translates into machinery that integrates seamlessly into your existing production workflows.

FAQ

Q1: Can the machine produce different rack profiles without changing rollers?

A: The machine requires roller adjustment or cassette changes for different profiles. However, minor dimensional variations (such as punching hole patterns) can be achieved through programmable die settings without complete roller replacement.

Q2: How does the machine handle high-tensile G550 steel commonly used in heavy-duty racks?

: AStandard configurations process G300-G450 grades effectively. For G550 material, we recommend upgrading to a 7.5kW motor and reinforced shafting to counter spring-back forces inherent in high-yield steel. Adjustable side rolls at exit stations further correct material memory effects.

Q3: What maintenance schedule do the cutting blades require?

A: Cr12MoV blades typically maintain sharp edges for 80,000–100,000 cuts when processing 1.5–2.0mm steel. Maintenance involves periodic gap checks and blade rotation. Regrinding services restore cutting performance without replacing the entire blade assembly.

Q4: Does the machine require special foundation preparation?

A: Yes. The 7.5-meter length and dynamic forces during high-speed operation necessitate a reinforced concrete foundation with leveling bolts. Proper foundation work maintains roller alignment accuracy and extends component lifespan.

Q5: How do you protect the zinc coating during the forming process?

A: Chrome-plated rollers with polished surfaces minimize friction. Synchronized drive systems ensure all stations operate at identical linear speeds, preventing material dragging that damages protective coatings. This precision preserves the corrosion resistance of galvanized components.
