Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in advanced rack roll forming technology, delivering fully automated production lines for warehouse storage systems since 2014. As a national-level high-tech enterprise with ISO 9001, CE, and CAS certifications, our equipment has been exported to over 150 countries. Our intelligent product machines feature GCr15 bearing steel components and Cr12MoV cutting systems, achieving forming speeds up to 15m/min while processing materials from 1.5-2mm thickness. With strategic cooperation from Siemens and Yanshan University's research center, we combine AI-powered FEA optimization with PLC automation to deliver production lines that reduce labor costs by 75% through single-operator efficiency.

Understanding Rack Roll Forming Technology

Our product represents a sophisticated cold-forming process that transforms flat metal coils into complex shelving profiles. This automated technology solves critical manufacturing challenges in the logistics industry.

The process works through progressive metal deformation. Your material passes through 16 precisely engineered roller stations. Each station incrementally shapes the steel without compromising structural integrity.

Unlike traditional fabrication methods, this system maintains consistent dimensional accuracy. You get profiles that interlock seamlessly with uprights and beams every single time.

Complete Production Line Components

Your rack roll forming system integrates multiple synchronized units for continuous operation.

Hydraulic decoiler System

The decoiler handles coils weighing up to 5 tons. Hydraulic expansion ensures smooth unwinding without material stress. Manual decoilers come included as a complimentary backup option.

Servo Feeding Device

Precision servo motors control material advancement with ±0.5mm accuracy. Stainless steel pressure rollers prevent surface damage during feeding.

Intelligent Punching Station

The 80T hydraulic punch creates teardrop slots and mounting holes during forming. This eliminates secondary operations and maintains production flow.

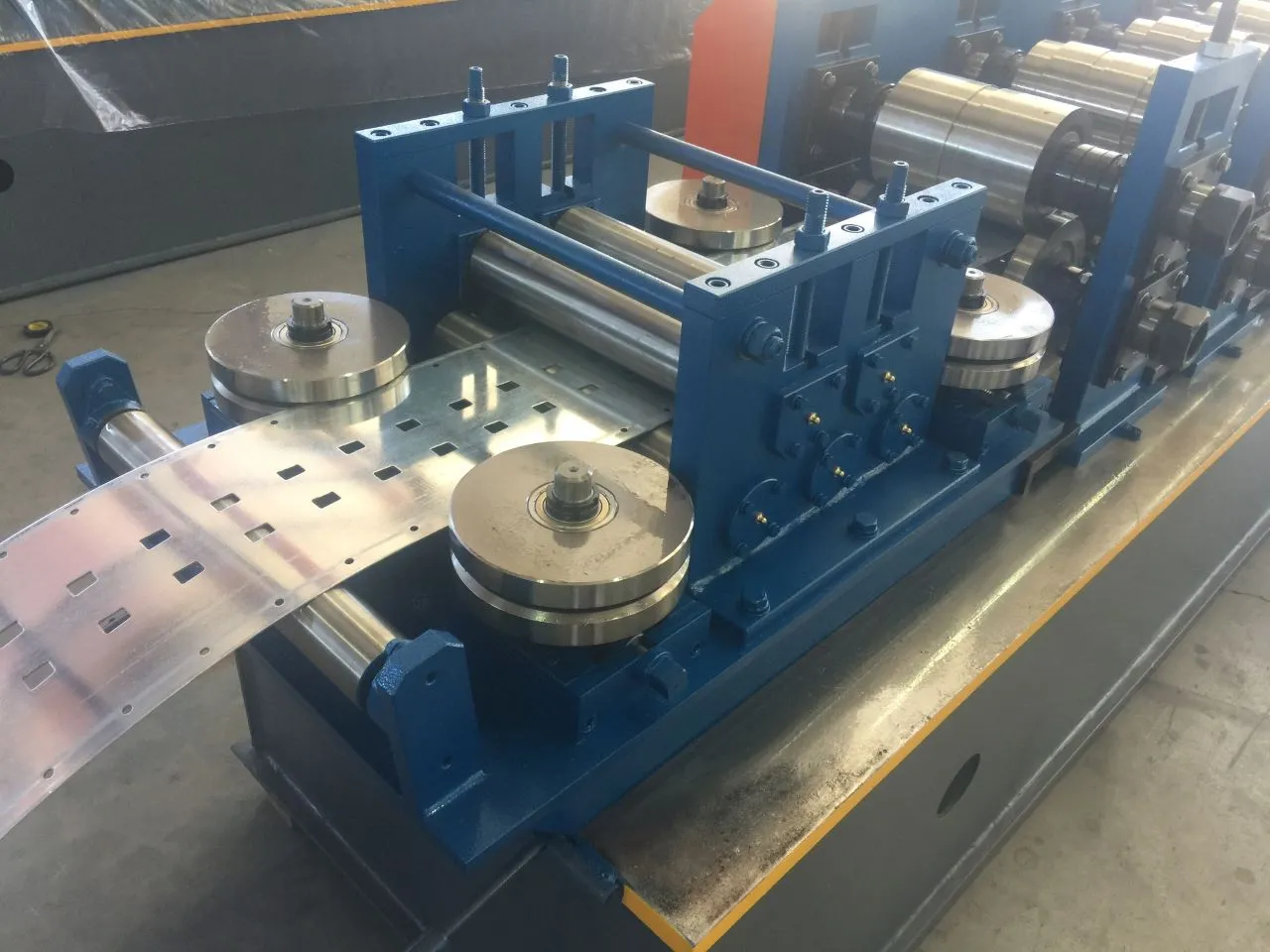

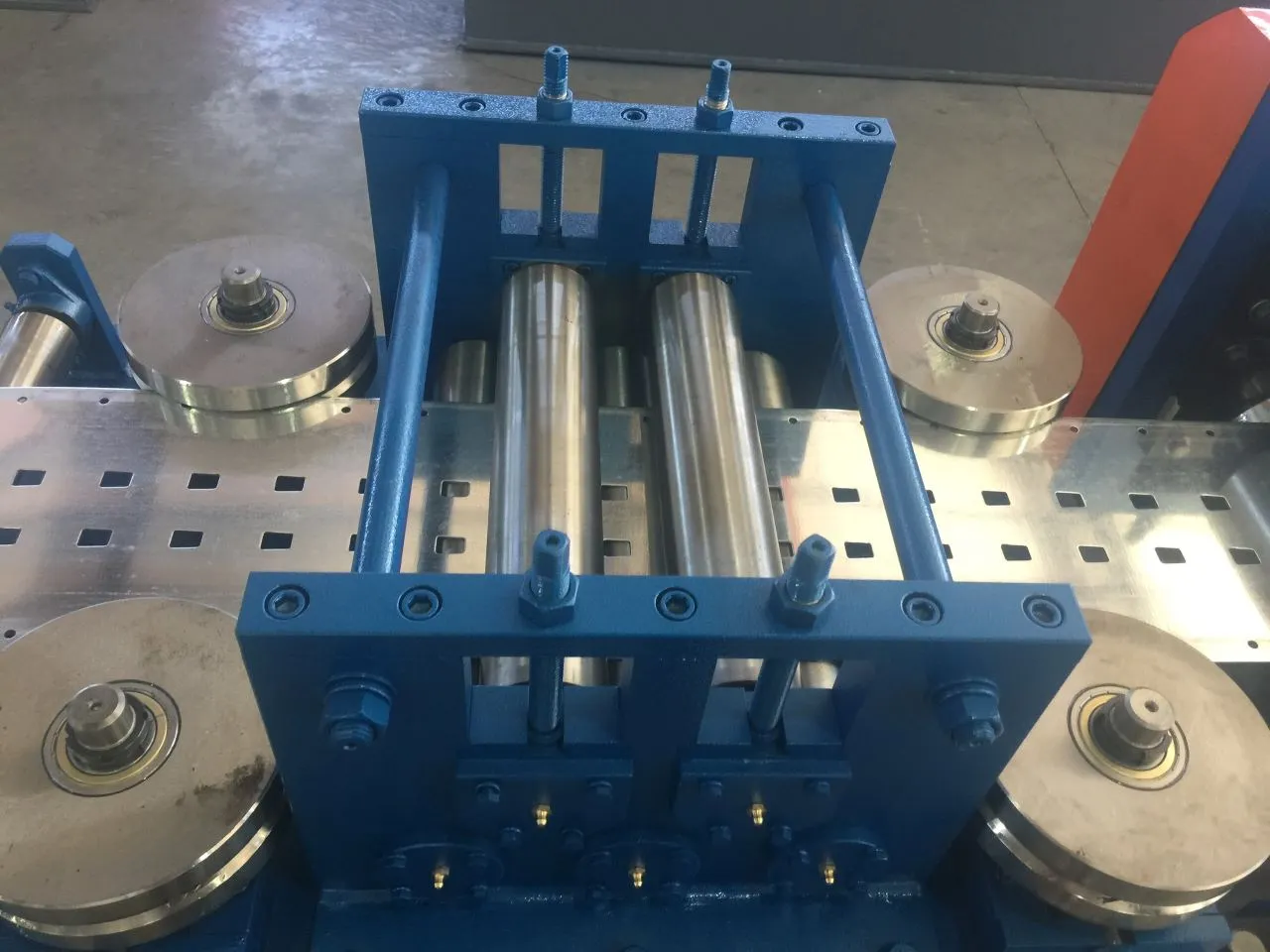

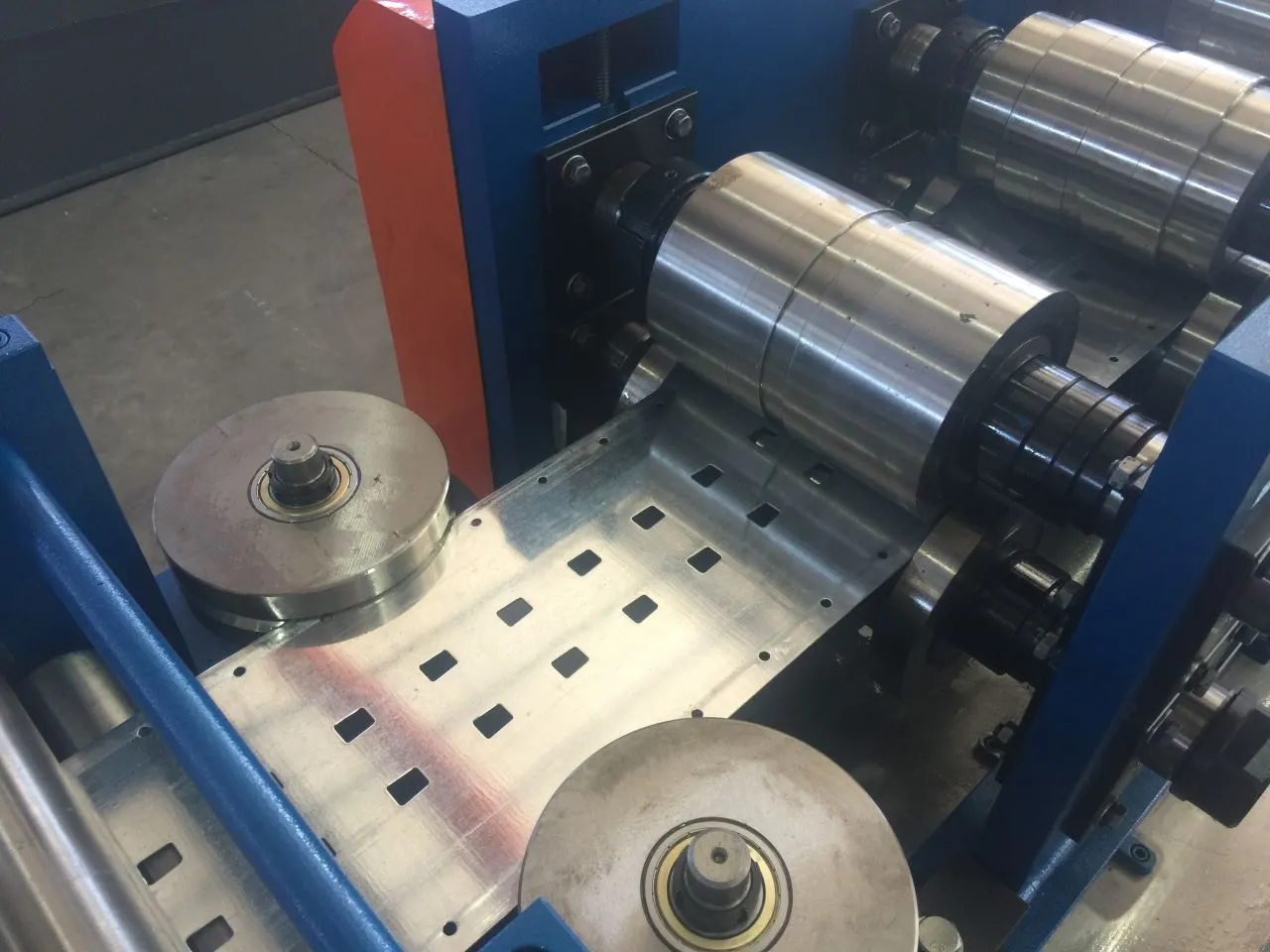

Main Forming Mill

German-standard gear transmission drives 16 roller stations constructed from hardened Cr12 steel. Chrome-plated surfaces extend operational life beyond 10 years of continuous use.

Automatic Cutting System

Cr12MoV blades deliver clean cuts without deformation or burrs. Hydraulic shearing operates in sync with your PLC-programmed lengths.

Technical Specifications Overview

Why Choose Our Rack Manufacturing Solutions?

Precision Engineering

Our equipment maintains profile tolerances within ±0.3mm across entire production runs. This precision ensures your finished racks meet international safety standards for load-bearing capacity.

Intelligent Control Systems

The multi-language PLC interface allows you to program batch quantities, panel lengths, and production speeds. Remote monitoring capabilities enable real-time diagnostics from anywhere globally.

Durable Construction

Heavy-duty 350H steel frames resist deformation under continuous high-load operations. GCr15 bearing steel components provide wear resistance for years of stable performance.

Customization Flexibility

We accommodate your specific profile requirements. Whether you need L-shaped light-duty racks or heavy-capacity C-profiles up to 2.5mm thickness, our engineering team designs roller configurations matching your drawings.

Reduced Operating Costs

Single-operator functionality cuts labor expenses significantly. Factory testing before shipment minimizes installation delays and ensures immediate productivity.

Application Versatility Across Industries

Your equipment produces profiles for multiple racking systems.

Selective pallet racking for warehouse distribution centers requires precise upright columns with standardized hole patterns. Our machines deliver consistent geometry for smooth beam installation.

Cantilever racking systems for lumber yards need heavier gauge profiles. The system processes materials up to 2mm while maintaining structural integrity.

Push-back and drive-in racking demand exact dimensional control. Automated length settings guarantee uniformity across thousands of panels.

Retail shelving applications benefit from quick changeover capabilities. You can switch between light and medium-duty profiles within hours.

Quality Assurance and Global Standards

Every machine undergoes comprehensive factory testing before shipment. We run complete production cycles using your specified materials and profiles.

Our quality management system holds ISO 9001 certification. European CE marking confirms compliance with EU safety directives. North American CAS certification validates technical performance standards.

Export packaging meets international shipping requirements. Steel frame protection, anti-rust oil treatment, and reinforced wooden cases ensure damage-free delivery whether shipping via 20GP or 40HQ containers.

Research-Backed Innovation

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center drives continuous improvement. PhD researchers working on-site contribute to forming mechanism optimization and intelligent control system development.

AI-assisted finite element analysis refines roller designs before manufacturing. Virtual commissioning reduces equipment debugging time. Cloud-based monitoring systems support predictive maintenance protocols.

These technological advances translate directly into reliability for your operations. Equipment downtime decreases while production consistency improves.

Comprehensive Support Services

Technical assistance operates 24/7 through multiple channels. Our remote service platform allows engineers to diagnose issues and adjust parameters without site visits.

Installation guidance includes detailed documentation in your preferred language. Video conferencing connects your team with our specialists during setup and training.

Spare parts availability ensures minimal production interruptions. We maintain inventory for critical components with expedited shipping options worldwide.

Software updates enhance functionality throughout your equipment's service life. PLC programming adjustments accommodate new profile requirements as your product line evolves.

FAQ

Q: What materials can the product machine process?

A: The machine handles pre-painted galvanized steel (PPGI), galvanized iron (GI), and aluminum coils ranging from 1.5-2mm thickness. Material selection depends on your load capacity requirements and environmental conditions.

Q: How long does installation and commissioning take?

A: Typical installation completes within 3-5 days with factory-trained technicians. Remote commissioning support reduces on-site time requirements. Your operators receive comprehensive training during startup.

Q: Can you customize profiles for proprietary rack designs?

A: Absolutely. Our engineering team develops roller configurations based on your CAD drawings. We accommodate special hole patterns, profile depths, and unique geometries while maintaining structural performance.

Q: What production capacity should I expect?

A: At optimal speed settings, the system produces 10-15 meters per minute depending on material thickness and profile complexity. This translates to approximately 800-1200 upright columns per 8-hour shift.

Q: How do you ensure consistent quality across production runs?

A: PLC-controlled servo feeding maintains precise material advancement. Hardened rollers resist wear that causes dimensional drift. Regular calibration protocols keep tolerances within specification throughout equipment life.

Q: What maintenance requirements does the equipment have?

A: Daily lubrication of drive chains and monthly gear oil inspection form the primary maintenance schedule. Annual roller inspection ensures surface condition. Our remote monitoring system alerts you to any parameter deviations before they affect production.
