Snap lock wall cladding panel machine

Snap Lock Wall Cladding Panel Machine

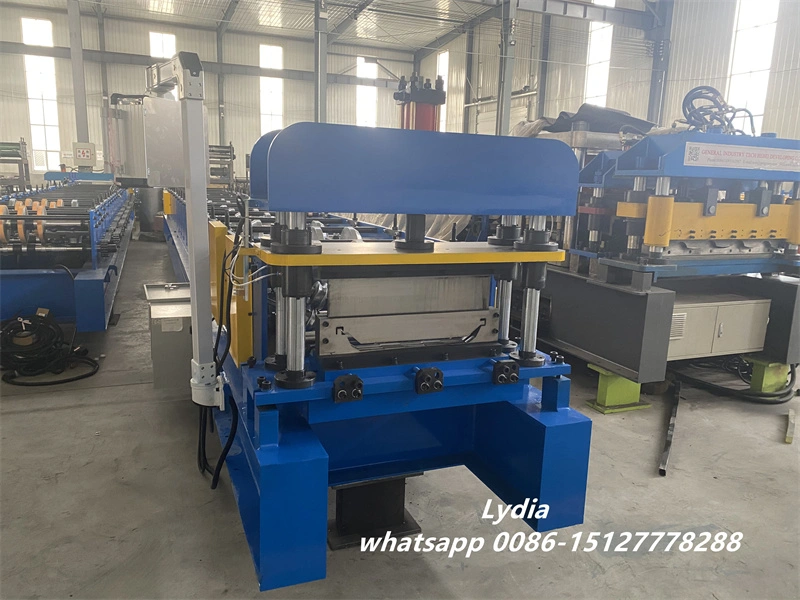

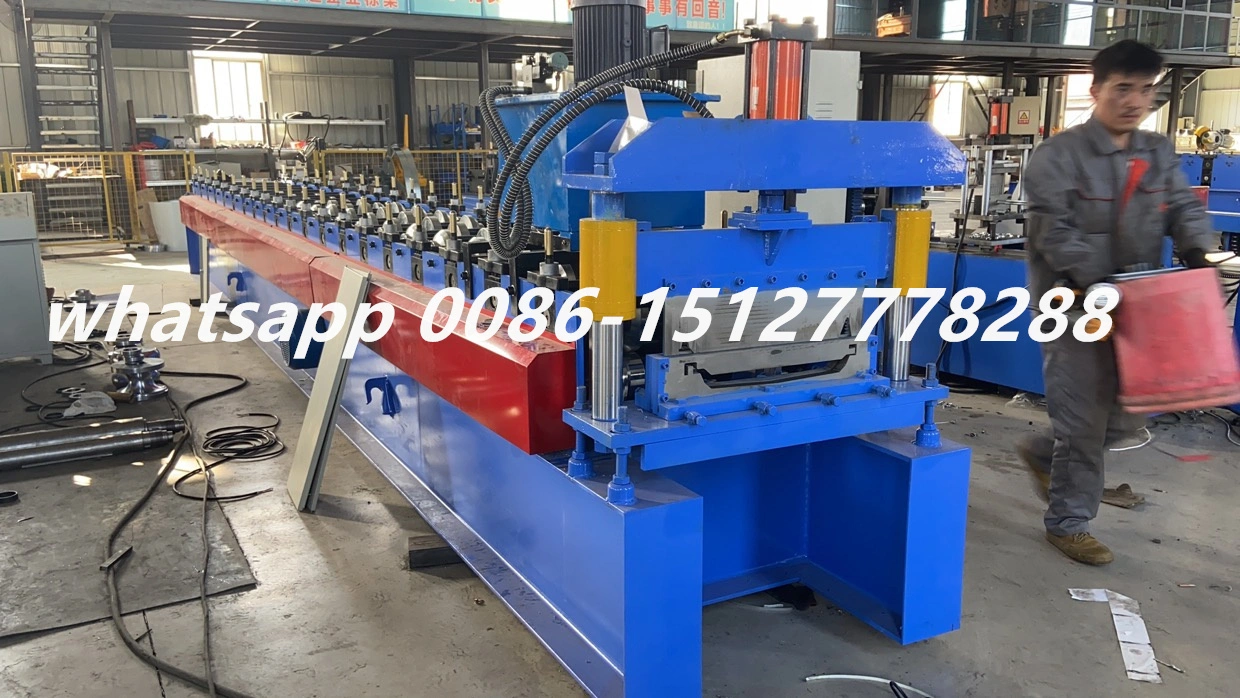

Cangzhou Zhongtuo delivers industrial-grade Snap lock wall cladding panel machine engineered for architectural precision and operational efficiency. Since 2014, our national high-tech enterprise has specialized in cold roll forming technology, serving over 150 countries with ISO 9001 and CE certified equipment. This machine processes 0.3-0.6mm PPGI and GI materials through 20 roller stations, achieving forming speeds of 20-40 meters per minute. The solid 70mm diameter shaft system and Cr12 steel hydraulic cutting mechanism ensure tolerance accuracy within ±1.0mm over extended panel lengths. Your production benefits from our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center, integrating FEA-optimized roller design and PLC-based automation for consistent profile quality.

Why Choose This Wall Cladding System

Concealed Fastening Technology

Your panels achieve superior weather resistance through the snap-lock profile. This design eliminates exposed screws that cause corrosion streaks and water infiltration. The male-female latching mechanism creates continuous weather barriers for high-rise facades and coastal installations.

Thermal Movement Accommodation

The machine produces profiles allowing panels to float on clip systems. This feature prevents oil canning during temperature fluctuations. Your building envelope maintains flat appearance across seasons without stress fractures at connection points.

Production Efficiency

Hydraulic automatic cutting synchronized with PLC controls reduces material waste. The 20-station progressive forming process ensures uniform rib geometry. You achieve consistent snap engagement force across all panels, streamlining on-site installation workflows.

Technical Specifications

Key Applications of Snap lock wall cladding panel machine

Commercial Architecture: The Snap lock wall cladding panel machine excels in curtain wall fabrication for office towers and retail centers. It processes 0.6-0.8mm gauge steel for wind-load resistance in urban environments. The vertical panel orientation creates clean shadow lines demanded by modern architectural standards.

Residential Projects: Luxury coastal homes and barndominium designs benefit from aluminum panel production. Salt-spray corrosion resistance improves through concealed clip systems. The machine handles thermal expansion requirements critical for extreme climate zones.

Industrial Retrofitting: Warehouse renovations utilize on-site portable forming capabilities. Custom-length panels speed up installation over large surface areas. You upgrade thermal performance while achieving contemporary aesthetic standards without structural modifications.

Advanced Manufacturing Features

Precision Roller Engineering

Our Cr12MoV steel rollers undergo vacuum heat treatment to HRC 58-62 hardness. The 0.05mm hard chrome plating prevents surface scratches on pre-painted coils. This material selection extends roller lifespan beyond 500,000 linear meters of production.

Intelligent Control Integration

Siemens PLC systems provide real-time production monitoring. The touchscreen HMI interface simplifies length input and batch management. Remote diagnostics through cloud platforms reduce maintenance downtime for international installations.

Automated Width Adjustment

Motor-driven framing systems adjust panel widths from 300mm to 600mm via digital controls. This feature eliminates manual realignment during profile changes. Your production switches between project specifications within 15 minutes.

Quality Assurance Standards

Zhongtuo maintains ISO 9001 quality management protocols across all Snap lock wall cladding panel machine production. Our equipment meets European CE safety directives and North American CAS technical requirements. Each machine undergoes 72-hour continuous operation testing before shipment.

The partnership with Yanshan University's research center brings AI-assisted FEA optimization to roller design. Finite element feedback loops continuously refine forming accuracy. Virtual commissioning reduces on-site debugging time by 40% compared to conventional installation methods.

Output profiles comply with ASTM and EN standards for metal cladding systems. Snap engagement force testing ensures panels withstand wind uplift ratings while maintaining installation ease. Your architectural specifications receive full technical documentation supporting building code approvals.

FAQ

Q：What materials can this machine process?

A：The system handles pre-painted galvanized steel, bare galvanized sheets, aluminum alloys, and copper within the 0.3-0.6mm thickness range. Material selection depends on your project's corrosion resistance and aesthetic requirements.

Q：How does snap-lock differ from mechanical seam systems?

A：Snap-lock profiles require no on-site seaming tools. Panels simply click into concealed clips, reducing installation labor by 50-60%. Mechanical seams need specialized equipment and trained operators for each joint.

Q：Can I produce custom panel lengths?

A：Yes. The PLC control system accepts length inputs from 1 meter to 12 meters with ±1.0mm accuracy. Longer panels reduce joint frequency for improved weather tightness and visual continuity.

Q：What maintenance does the machine require?

A：Daily lubrication of chain drives and monthly inspection of hydraulic fluid levels maintain optimal performance. Roller surfaces should be cleaned after processing 100,000 linear meters to remove metal residue.

Q：Do you provide installation training?

A：Our technical team offers on-site commissioning and 3-day operational training. Video tutorials and remote support through cloud platforms ensure your staff achieves production standards within the first week.

Contact Us

Our engineering team designs Snap lock wall cladding panel machine configurations matching your specific material and output requirements. Contact us at zhongtuorollforming@gmail.com  for technical consultations and quotations.
