1.75” Snap-Lock Profile Machine

Premium Standing Seam Panel Forming Solution with the 1.75" Snap-Lock Profile Machine

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. manufactures the 1.75" Snap-Lock Profile Machine as an enterprise-grade cold roll forming system designed for high-precision architectural metal roofing production. This specialized equipment features a robust 350mm H-beam main frame structure, 16 forming stations utilizing high-grade 45# steel rollers with hard chrome coating, and a Φ75mm solid shaft diameter guaranteed for maximum stability. Operating at speeds of 0-20m/min with 5.5kW motor power, the machine processes metal panels with ±1.0mm tolerance over extended lengths. The system eliminates secondary seaming requirements, reducing installation labor time by up to 30% compared to mechanical lock alternatives while maintaining superior weather-tightness performance.

How This Machine Solves Your Production Challenges

Traditional metal roofing production demands multiple steps and specialized tools. Our snap-lock profile system changes that equation dramatically.

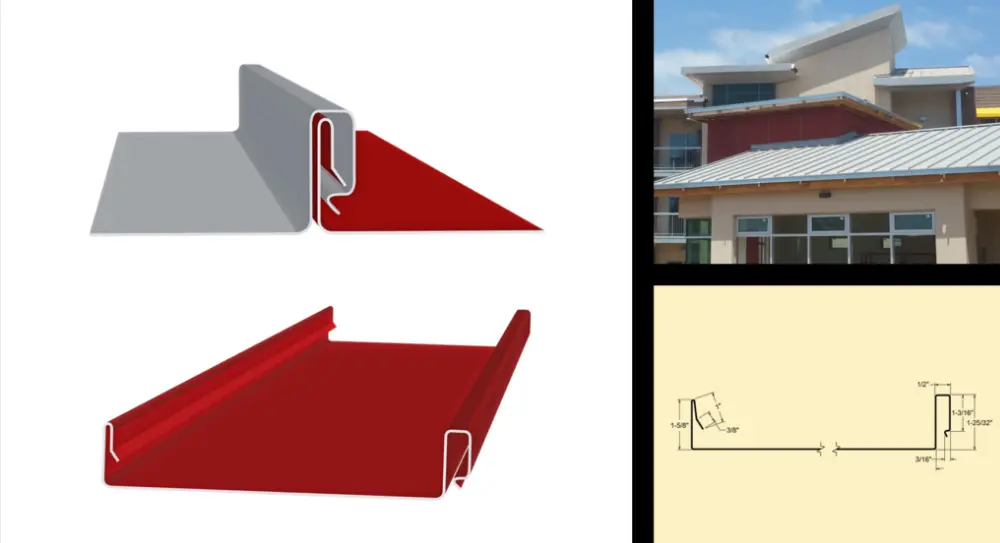

The integral male/female latching mechanism eliminates handheld seaming equipment entirely. Your installation teams can complete projects faster with fewer tools. Panels snap securely over concealed clips, creating clean architectural lines without exposed fasteners.

Thermal expansion poses constant challenges in metal roofing applications. This standing seam system allows panels to float naturally on clip systems. The 1.75-inch seam height accommodates thermal movement without buckling or oil canning effects. Your finished roofs maintain their appearance season after season.

Weather protection reaches new standards with this profile design. The elevated seam creates superior hydrostatic head advantage, preventing water infiltration even on low-slope applications down to 2:12 pitch. Heavy snow loads and driving rain meet their match with this proven geometry.

Technical Specifications of the 1.75" Snap-Lock Profile Machine

Precision Engineering for Consistent Quality

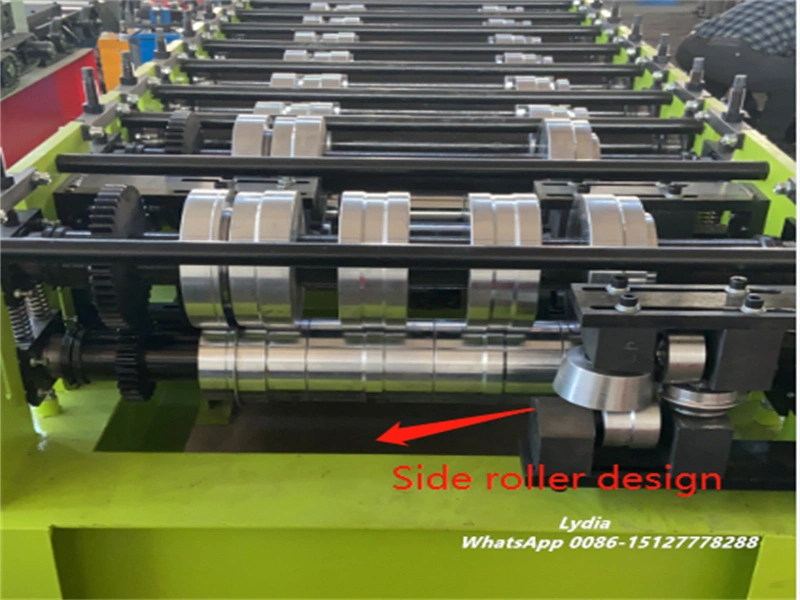

Manufacturing excellence starts with superior components. We build every 1.75" Snap-Lock Profile Machine using high-grade 45# steel rollers processed through CNC machining centers.

Hard chrome coating protects roller surfaces while preventing scratches on pre-painted metal coils. This surface treatment extends roller life significantly compared to uncoated alternatives. Your production maintains consistent quality across thousands of panels.

The Φ75mm solid steel shaft system provides exceptional rigidity under continuous operation. Heat treatment enhances material properties, ensuring dimensional stability during high-volume production runs. Double chain transmission distributes power evenly across all forming stations.

Electric cutting systems equipped with Cr12Mov quenched blades deliver clean, deformation-free panel ends. This precision matters when panels must fit together seamlessly during installation. Your customers receive panels meeting strict architectural tolerances.

Versatile Applications Across Market Segments

High-end residential construction demands both performance and aesthetics. The distinctive shadow line created by the 1.75-inch seam delivers the architectural appeal designers specify. Homeowners investing in premium roofing appreciate the clean, modern appearance.

Commercial facilities benefit from long-span continuous panel capability. Retail buildings, warehouses, and light industrial structures require efficient coverage of large roof areas. Variable speed control allows you to optimize production for different project requirements.

Coastal environments present unique challenges for metal roofing systems. When configured for aluminum or specialized coatings, this machine produces panels that withstand salt air and extreme thermal cycling. The floating panel design prevents fastener fatigue common in harsh climates.

Automation and Control Systems

Modern production demands smart controls. The 5.5kW motor system provides reliable power with variable frequency control options for speed adjustment.

Electrical components operate on standard 380V three-phase power, compatible with most industrial facilities. The cutting system responds instantly to programmed length requirements, minimizing material waste.

Consistent forming speed between 0-20m/min gives you flexibility for different material gauges and production schedules. Slower speeds accommodate thicker materials or training situations, while maximum speed delivers volume production efficiency.

Why Manufacturing Partners Choose Zhongtuo

Since 2014, we have specialized in cold roll forming machinery design and manufacturing. Our national-level high-tech enterprise status reflects commitment to innovation and quality standards.

Strategic cooperation with Siemens and research partnerships with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center bring cutting-edge technology to your production floor. Graduate researchers work directly at our facility, ensuring practical application of advanced forming theories.

ISO 9001 certification, European CE compliance, and North American CAS standards demonstrate our commitment to international quality benchmarks. Over 150 countries receive our equipment, building a global network of successful manufacturing partners.

We provide complete ODM and OEM services tailored to your specific requirements. Raw materials, machinery components, and technical support come from a single reliable source. Your production challenges receive solutions backed by a decade of export experience.

FAQ

Q：What materials can this machine process effectively?

A：The system handles 22-26 gauge steel (0.45mm-0.60mm) including Galvalume and galvanized finishes. Aluminum in 0.032"-0.040" thickness also forms successfully. Pre-painted and bare metal coils both work well with the hard chrome roller surface.

Q：How does snap-lock compare to mechanical seam systems?

A：Snap-lock profiles eliminate the need for portable seaming machines during installation. This reduces equipment investment, speeds installation, and minimizes potential for seaming errors. The trade-off involves slightly different aesthetic appearance and specific clip system requirements.

Q：What maintenance does the machine require?

A：Regular lubrication of chain drive systems and periodic inspection of roller surfaces maintain optimal performance. The hard chrome coating significantly extends roller life compared to standard tooling. Blade sharpness affects cut quality and should be monitored based on production volume.

Q：Can panel width be adjusted for different projects?

A：This product produces panels at a fixed coverage width determined by the roller design. Custom roller sets can be manufactured for different panel widths if your market demands multiple size options.

Q：What installation support do you provide?

A：We offer comprehensive installation guidance, operational training, and technical documentation with every machine. Remote video support and on-site commissioning services are available depending on your location and project requirements.

Contact Us

Ready to upgrade your metal roofing production capabilities with the 1.75" Snap-Lock Profile Machine? Contact us at zhongtuorollforming@gmail.com  for detailed specifications and quotations.
