Standing Seam Forming Machine - Professional Metal Roofing Solution

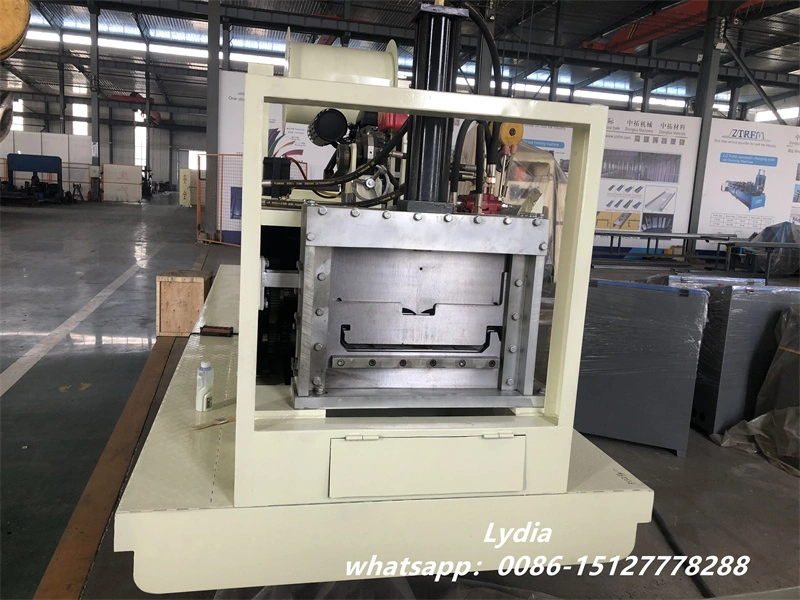

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd., established in 2014 as a national-level high-tech enterprise, specializes in manufacturing precision standing seam forming machine systems for concealed fastener metal roofing applications. Our advanced equipment processes 0.3-0.5mm galvanized and pre-painted steel through 18 precision roller stations, delivering forming accuracy within ±1mm tolerance. Powered by a robust 5.5kw motor and featuring hydraulic cutting with Cr12MoV blades, our machines produce panels meeting ASTM E-1592 structural standards. With ISO 9001, CE, and CAS certifications, Zhongtuo has exported equipment to over 150 countries, combining decade-long expertise with university-backed R&D innovation.

What Is Standing Seam Forming Technology?

The product transforms metal coils into concealed fastener roofing panels through cold roll forming processes. The system shapes vertical ribs that elevate above the drainage plane while creating interlocking side laps.

This eliminates water penetration risks associated with exposed fasteners. The floating clip design accommodates thermal expansion up to 100mm, preventing roof buckling in temperature fluctuations.

Your building projects benefit from continuous panel production exceeding 100 meters. This minimizes horizontal joints that compromise waterproofing integrity on low-slope applications.

Technical Specifications of standing seam forming machine

Core Advantages You'll Appreciate

Precision Engineering

Our rollers undergo heat treatment to HRC 58-62 hardness levels. Chrome plating at 0.05mm thickness protects pre-painted coil surfaces from marring during forming.

The 80mm solid steel shafts resist deflection under continuous operation. You get consistent profile dimensions across production runs spanning thousands of meters.

Intelligent Control Integration

PLC systems with touchscreen interfaces let you adjust panel lengths digitally. Rotary encoders measure dimensions to ±1mm precision automatically.

This eliminates manual measurement errors. Your operators can set batch quantities and production speeds through intuitive controls.

Versatile Material Processing

The equipment handles galvanized steel, Galvalume, aluminum, and copper coils. Adjustable roll gaps accommodate different material thicknesses and springback characteristics.

You can switch between standard PPGI and composite materials without extensive reconfiguration. This flexibility maximizes equipment utilization across project types.

Industry Applications

Pre-Engineered Metal Buildings

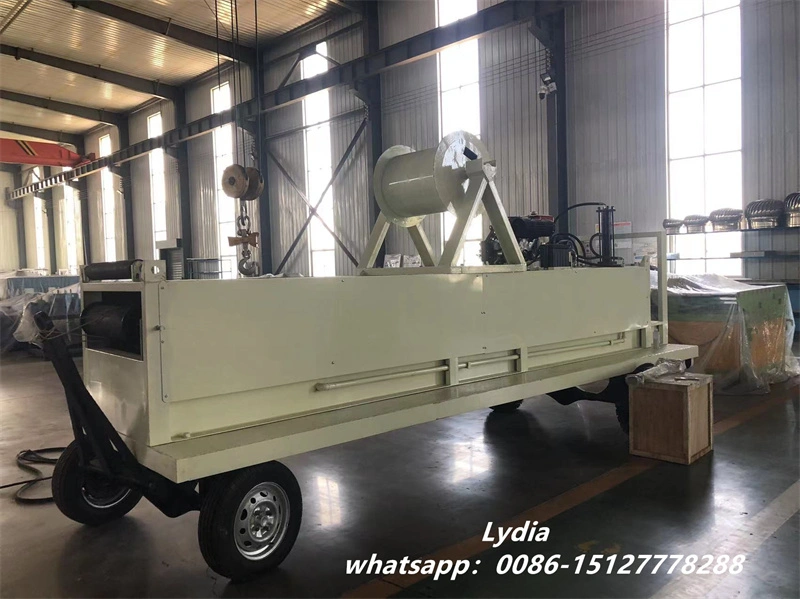

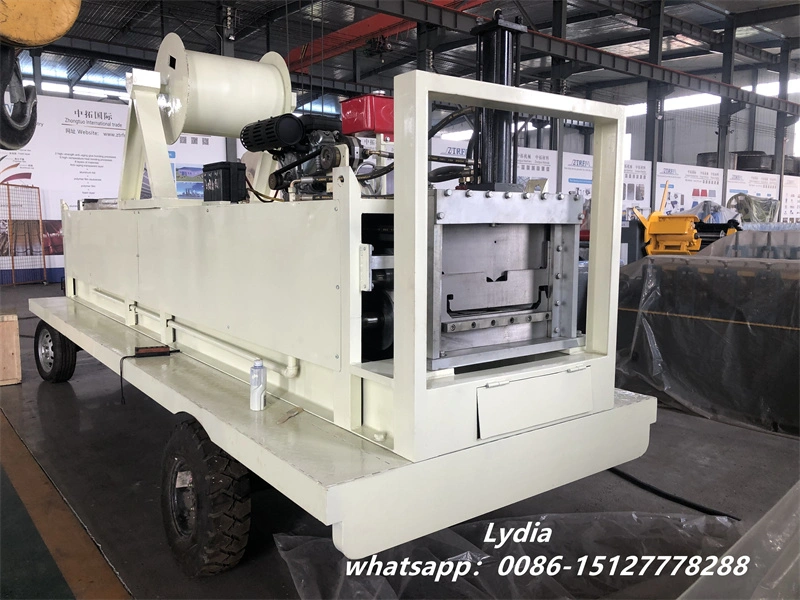

For airport terminals, convention centers, and industrial facilities, portable versions enable on-site roll forming. You produce continuous sheets exceeding 100 meters directly at roof level.

This eliminates horizontal lap joints critical for low-slope waterproofing requirements. Transportation limitations no longer dictate panel lengths.

Architectural Projects

High-end residential and commercial developments use our machines for copper, zinc, and PVDF-coated aluminum. The narrow seam profiles create clean aesthetic lines.

You achieve complex geometries like curved or tapered roofs. The concealed fastener system preserves coating integrity throughout installation.

Retrofit Solutions

Metal-over-metal re-roofing systems utilize standing seam panels formed by our equipment. High clips accommodate additional insulation layers over existing roofs.

Your clients avoid operational disruptions during thermal upgrades with the standing seam forming machine. The system installs directly over deteriorating substrates.

Research-Backed Innovation

Zhongtuo collaborates with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. Our partnership integrates finite element analysis and AI simulation into equipment development.

PhD researchers stationed at our production facility optimize roll designs using predictive modeling. This reduces trial costs while improving forming accuracy.

Virtual commissioning platforms enable remote equipment debugging before shipment. You benefit from cloud-based diagnostics that minimize downtime across international installations.

We've secured two patented technologies in pattern roller design and automated slitting systems. These innovations enhance production stability for global markets.

Packaging & Delivery

Standard export packaging includes rust-proof wrapping and wooden crate reinforcement. We secure equipment to prevent transit damage during international shipping.

Technical documentation, operation manuals, and video guides accompany each machine. Our team provides remote installation support and operator training.

FAQ

Q：Can the machine produce both straight and tapered panels?

A：Standard models produce straight panels. Tapered designs require specialized servo-motorized rollers that adjust width dynamically. We offer custom configurations for conical roof applications.

Q：What adjustments are needed for aluminum versus steel coils?

A：Aluminum exhibits greater springback than steel. You'll need to widen roll gaps during setup to prevent material cracking. Our technical team provides material-specific calibration protocols.

Q：How long do cutting blades last?

A：Cr12MoV blades withstand approximately 500,000 cuts before requiring regrinding. Proper hydraulic pressure maintenance extends blade lifespan significantly.

Q：Does thermal expansion affect finished panels?

A：The floating clip profile allows panels to slide during thermal cycling. This design prevents roof buckling from temperature-induced expansion and contraction.

Q：Is seaming equipment included?

A：The product produces panels with prepared seam profiles. Electric seaming tools for field crimping are separate handheld devices used during installation.
