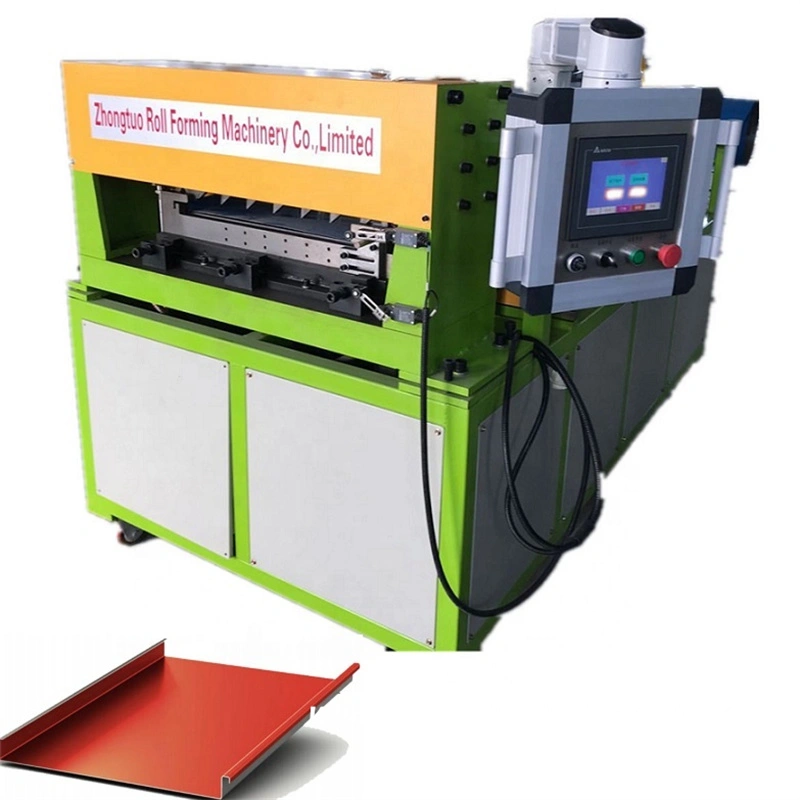

Kr24 Portable Standing Seam Metal Roof Machine

Advanced On-Site Roofing Solution from Cangzhou Zhongtuo of Kr24 Portable Standing Seam Metal Roof Machine

The Kr24 Portable Standing Seam Metal Roof Machine represents Cangzhou Zhongtuo's engineering excellence in mobile cold roll forming technology. This specialized equipment produces continuous-length roofing panels directly at construction sites, eliminating traditional transport limitations of 12-14 meter maximum panel lengths. Our machine processes PPGI, GI, and aluminum materials from 0.3-0.6mm thickness through 7 precision roller stations, utilizing a 60mm solid shaft and gear transmission system. With hard chrome-plated 45# steel rollers and hydraulic automatic decoiling, it delivers consistent forming speeds of 10-15 meters per minute. This product enables contractors to create seamless roofing spans exceeding 60 meters, drastically reducing leak-prone horizontal joints while ensuring ±1mm length precision through PLC control.

Why Choose This Portable Forming Solution

Your roofing projects demand flexibility without compromising quality. Traditional pre-formed panels create multiple challenges that increase costs and risks.

Eliminate Transport Restrictions

Standard shipping limits panel lengths to 14 meters maximum. Our portable machine operates directly on-site, producing continuous panels matching your exact roof dimensions. You avoid freight damage risks and unnecessary joints that compromise structural integrity.

Superior Water Tightness

Horizontal end-laps account for 90% of roof leaks. By creating single-span panels, you eliminate these vulnerable connection points entirely. The Kr24 profile geometry features a structural standing seam with double-lock capability, providing exceptional weather resistance even at low roof pitches down to 2%.

Real-Time Production Flexibility

Material waste drops significantly when you can adjust panel quantities and lengths on-demand. No more ordering errors, no excess inventory, no scrap from measurement miscalculations. You produce exactly what your project requires.

Technical Specifications of Kr24 Portable Standing Seam Metal Roof Machine

Industrial Applications Across Critical Sectors

Large-Scale Warehousing and Logistics Facilities

Distribution centers with 30+ meter roof spans benefit tremendously from continuous panel production. The floating clip system accommodates thermal expansion in steel structures, essential for maintaining seal integrity across temperature fluctuations. Your facility gains long-term protection without maintenance-intensive seam repairs.

Airport Terminals and Transportation Hubs

Complex architectural geometries and extreme durability requirements make the Kr24 Portable Standing Seam Metal Roof Machine ideal for aviation infrastructure. High-rib profiles ensure excellent water runoff at slopes as low as 2%, while resisting substantial wind loads common in open airfield environments.

Coastal Residential and Commercial Developments

Salt-spray zones demand superior corrosion resistance. Our machine processes aluminum and PVDF-coated steel to create concealed fastener systems. You eliminate exposed screw corrosion points, extending roof service life beyond 50 years in marine environments.

Retrofit and Re-Roofing Projects

When building operations cannot stop for roof replacement, this portable solution excels. Install panels over existing worn roofing using sub-purlins without building penetration. You restore building envelope integrity while avoiding costly demolition and operational downtime.

Quality Assurance Through Precision Engineering

Cangzhou Zhongtuo maintains rigorous quality standards backed by ISO 9001, CE, and CAS certifications. Our roller stations undergo strict alignment verification to prevent panel camber or sweep.

Hardness testing ensures rollers maintain HRC 58-62 ratings, preventing deformation that would compromise profile geometry over time. We utilize Go/No-Go gauges to verify male and female rib precision, ensuring motorized seamers engage smoothly without jamming.

Coating integrity receives special attention. Test runs confirm forming pressure doesn't micro-crack paint or strip Galvalume coatings. Our hydraulic shear systems produce burr-free, perfectly square cuts that facilitate proper ridge cap installation.

The GCr15 hardened steel rollers feature 0.05mm uniform hard chrome coating, preventing scratches on pre-painted or Galvalume coils. This attention to detail protects your material investment and ensures finished panel aesthetics.

Advanced Technology Through University Collaboration

Our deep partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center drives continuous innovation. Graduate researchers work directly in our production facilities, applying finite element analysis and AI-assisted simulation to optimize roll design.

This collaboration enables virtual commissioning and cloud-based remote monitoring capabilities. You benefit from predictive maintenance systems and data-driven production tuning that maximize equipment uptime and panel consistency.

Our patented technologies, including innovative pattern roller designs, deliver superior forming accuracy while minimizing material stress through progressive 14-18 pass forming sequences.

FAQ

Q：What makes this machine truly portable?

A：The equipment mounts on a chassis or trailer, allowing transport to your job site. Once positioned, it operates independently with hydraulic power systems. You can even hoist units to roof level for direct installation workflows.

Q：Can it handle different material types?

A：Yes. The product processes structural steel gauges from 24ga to 22ga (0.45-0.8mm) and aluminum up to 0.9mm. It accommodates standard PPGI, Galvalume, and specialty PVDF-coated materials.

Q：How does it ensure consistent panel quality?

A：PLC-based logic controls maintain precise forming parameters throughout production. Combined with our hardened, chrome-plated rollers and calibrated hydraulic systems, you achieve consistent panel geometry regardless of production volume.

Q：What seaming methods work with produced panels?

A：The Kr24 profile is specifically designed for motorized seaming equipment. You can create 90-degree single-lock or 180-degree double-lock mechanical seams, depending on your wind uplift and water-tightness requirements.

Q：Does it meet building code requirements?

A：Panels formed to ASTM E1592 standards for wind uplift resistance when properly seamed. The system supports compliance with Miami-Dade hurricane codes and other stringent regional requirements when specified materials and installation methods are followed.

Q：What training and support do you provide?

A：We deliver comprehensive operator training covering machine setup, material handling, quality checks, and basic maintenance. Our cloud-based monitoring system enables remote diagnostics and technical support regardless of your project location.

Contact Us

Experience the efficiency and quality of on-site metal roofing production with the Kr24 Portable Standing Seam Metal Roof Machine. Contact us today at zhongtuorollforming@gmail.com  to discuss your roofing needs and receive detailed technical specifications.
