High-Performance Supermarket Shelf Box Beam Roll Forming Machinery for Industrial Racking Solutions

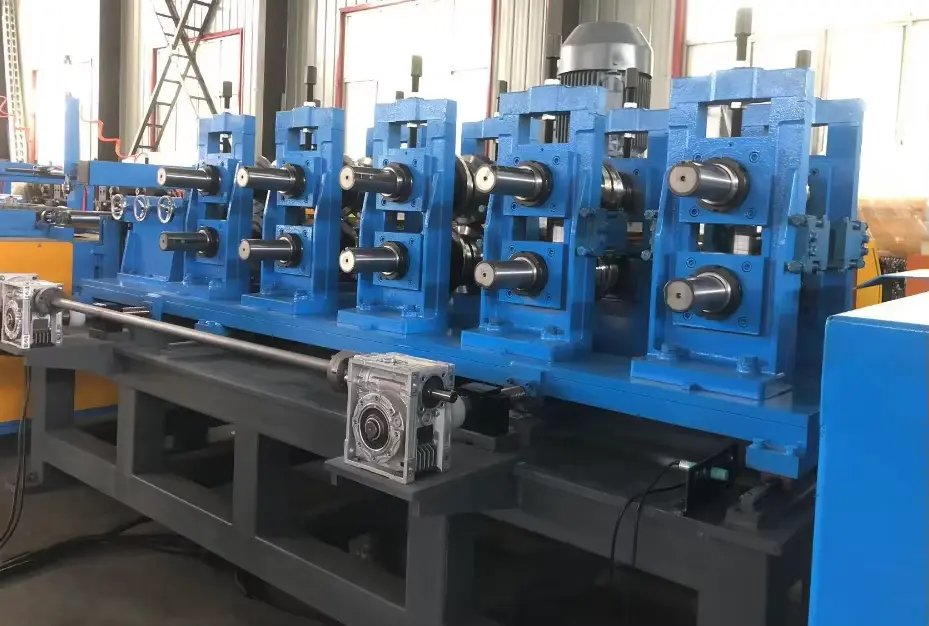

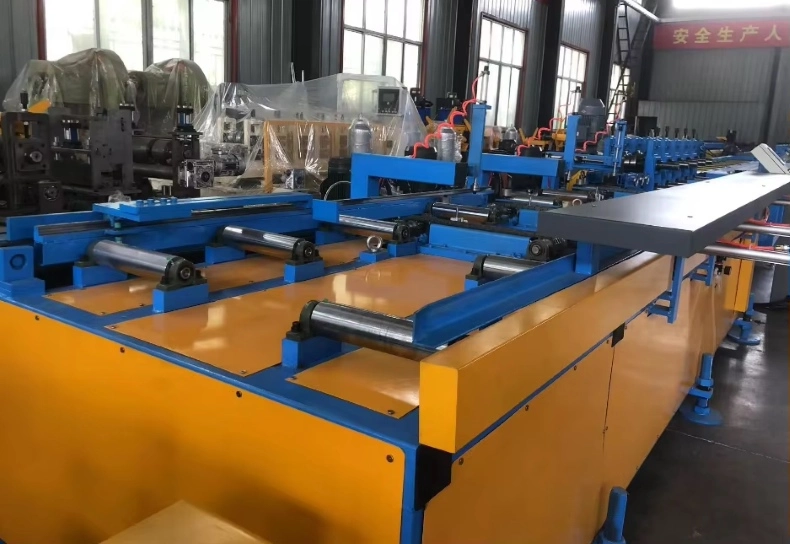

Automated warehouse racking manufacturing technology advanced using Cangzhou Zhongtuo's supermarket shelf box beam roll forming machinery. One operator controls this fully automatic manufacturing line, which synchronizes C-profile forming, conveying, and box beam locking to form at 15-20 m/min. A 500H heavy-duty steel frame and 20 forming stations with 80 mm solid shafts allow this machinery to precisely handle 2.0-3.0 mm GI or aluminum materials. The 6-ton equipment uses GCr12MoV rollers for wear resistance, guaranteeing long-term stability in high-intensity production conditions.

Advanced Engineering for Heavy-Duty Racking Production

Precision engineering for material and dimensional correctness is needed to make structurally sound box beams. This machinery uses a Delta PLC control platform and a chain transmission system for multi-language compatibility and easy operation. The Cr12MoV cutting technology cuts cleanly without deforming, preserving load-bearing structural integrity.

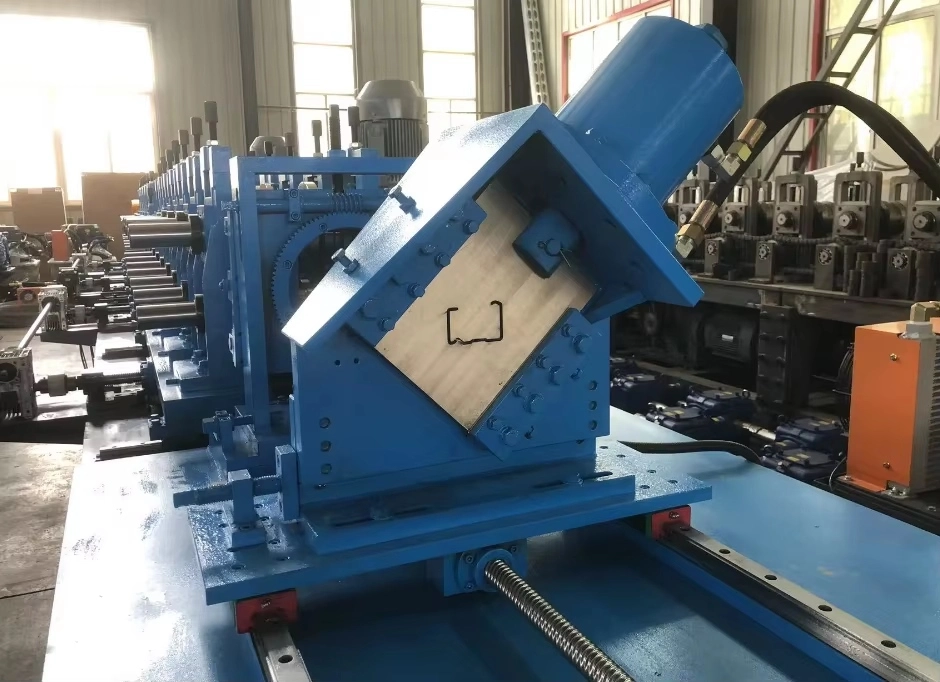

This equipment's automated size-changing distinguishes it. Moving forming molds lets you change beam parameters without downtime. When fulfilling differing market needs or custom requests for different racking heights and load capacities, this flexibility is important.

The 7.5KW motor and associated hydraulic system provide constant performance throughout long production runs. The machinery processes galvanized steel or aluminum profiles with steady output on 380V/50Hz/3Phase electricity.

Industry-Leading Quality Control and Manufacturing Standards

Cangzhou Zhongtuo operates as a national-level high-tech enterprise with comprehensive international certifications including ISO 9001, CE, and CAS. Each products unit undergoes complete production operation testing before shipment, guaranteeing rapid deployment after installation.

Our partnership with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center applies cutting-edge research to manufacturing. This alliance improves equipment precision and dependability via finite element analysis optimization, AI-assisted simulation, and virtual commissioning.

GCr15 bearing steel and high-strength structural steel are used to make wear-resistant core components. Surface-hardened German standard gear transmission systems boost efficiency and component life.

Intelligent Systems for Modern Production Environments

This machinery's remote operation and maintenance differentiate it in today's linked industrial world. Cloud-based monitoring solutions provide real-time equipment status monitoring and problem resolution without on-site visits. This benefits worldwide consumers by reducing maintenance expenses and production disruptions.

User-friendly interface makes Delta control system operation easy. Automated manufacturing sequences simplify operator training and maintain quality. Operating safety interlocks and emergency stop features safeguard persons and equipment.

Virtual debugging and remote commissioning aid remote equipment setup and support. This technology speeds up installation and optimizes performance for your production needs.

Customization Capabilities for Diverse Application Needs

Every production facility faces unique challenges based on product specifications, capacity requirements, and market positioning. Our technical team provides tailored solutions that address your specific needs, whether you're producing standard warehouse racking components or specialized retail shelving systems.

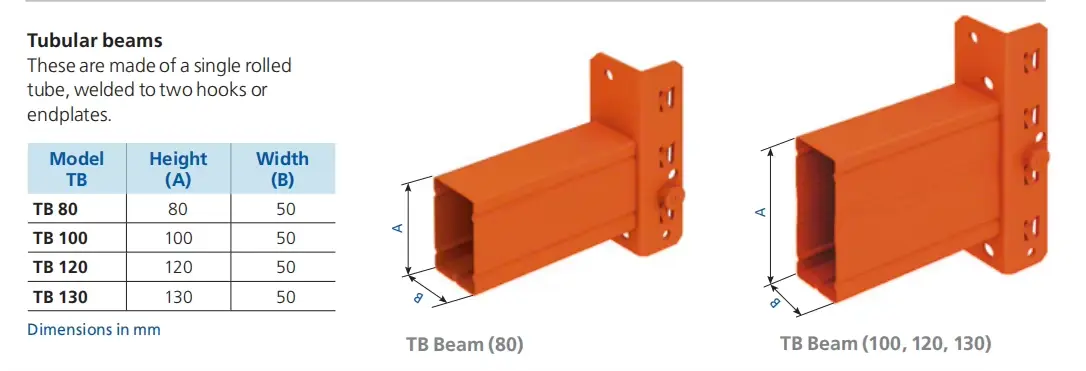

Design flexibility extends to profile configurations, material handling options, and automation integration levels. The machinery accommodates various beam heights through cassette tooling or spacer adjustment systems, enabling you to serve multiple market segments with a single production line.

Pre-punching hydraulic stations can be integrated to create connector holes with ±0.5mm positional accuracy. This ensures perfect alignment during racking assembly, reducing installation time and improving structural integrity. The supermarket shelf box beam roll forming machinery adapts to your production workflow rather than forcing process compromises.

Global Service Network and Comprehensive Support

With over a decade of export experience spanning 150+ countries, Zhongtuo understands the diverse requirements of international markets. Our equipment serves clients across Europe, North America, the Middle East, Southeast Asia, and South America, building long-term partnerships based on product quality and service reliability.

Twenty-four-seven online technical support ensures your production continues smoothly regardless of time zones. Professional technicians provide remote debugging, system upgrades, and technical consultation. This commitment to customer success extends beyond equipment delivery to ongoing production optimization.

Factory-based graduate researchers from Yanshan University contribute continuous improvement insights, strengthening standardization and accelerating digital transformation. Their work ensures you benefit from the latest cold forming innovations and control system enhancements.

FAQ

Q: What materials can this machinery process effectively?

A: The equipment handles galvanized steel and aluminum within the 2.0-3.0 mm thickness range. The GCr12MoV rollers and robust frame design accommodate high-tensile materials commonly specified for heavy-duty warehouse racking applications.

Q: How quickly can operators change between different beam sizes?

A: The automatic size-changing system enables transitions by moving forming molds. Depending on the specific size variation, changeovers typically complete within 20-30 minutes for experienced operators, minimizing production downtime.

Q: What maintenance schedule does the cutting system require?

A: The Cr12MoV cutting blades demonstrate excellent durability. Under normal production volumes, blade sharpening is recommended approximately every 100,000 cuts. Regular hydraulic oil maintenance and monthly blade clearance checks optimize cutting performance and extend component life.

Q: Can the machinery integrate with existing production lines?

A: Yes, the modular design facilitates integration with upstream material handling systems and downstream packaging equipment. The Delta PLC control system supports standard industrial communication protocols for seamless automation coordination.

Q: What training is required for operators?

A: The intuitive control interface and automated production sequences reduce training requirements significantly. Most operators achieve basic proficiency within 2-3 days of hands-on instruction, with advanced troubleshooting skills developing through ongoing operation.

Contact Us

Ready to enhance your warehouse racking production capabilities with supermarket shelf box beam roll forming machinery?

Email: zhongtuorollforming@gmail.com
