High-Precision Slitting Machine for Metal Coil Processing

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers industrial-grade slitting machine solutions engineered for metal processing facilities requiring micron-level accuracy. Established in 2014 as a national high-tech enterprise, our slitter rewinder systems process coil widths from 500-2000mm with material thickness ranging 0.5-4.0mm across PPGI, GI, aluminum, and copper substrates. Featuring advanced servo-driven knife positioning and differential tension control, our equipment achieves forming speeds of 100-200m/min while maintaining edge quality tolerances within ±0.05mm. With ISO 9001 and CE certifications, our technology supports up to 10 simultaneous strips with minimum stripe width of 60mm.

Advanced Cutting Technology for Metal Coil Conversion

Modern metal fabrication demands precision longitudinal cutting that eliminates material waste while ensuring edge integrity. Our systems employ servo-controlled shear blade mechanisms designed specifically for conductive and non-ferrous materials.

The slitter head configuration utilizes Cr12 tool steel blades dynamically balanced to G2.5 standards. This prevents harmonic vibration during high-speed operation, which is critical when processing thin-gauge materials prone to edge burring.

Automatic knife positioning reduces setup time from manual hours to servo-assisted minutes. You gain production flexibility when switching between different strip configurations without sacrificing cut quality.

Technical Specifications That Deliver Results

Intelligent Tension Control System with the Slitting machine

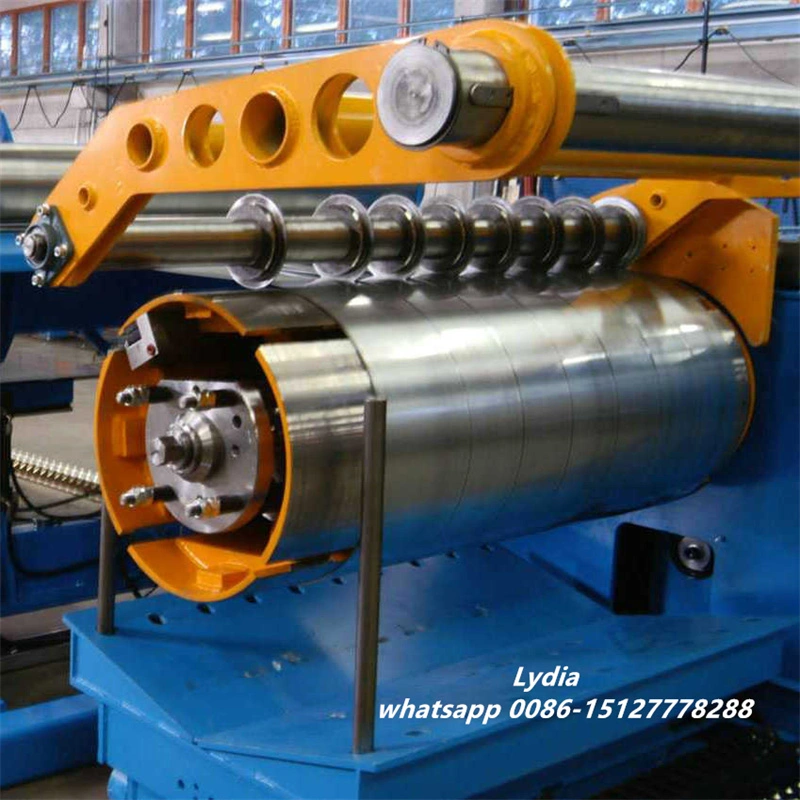

Maintaining consistent web tension across multiple slitting stations prevents telescoping and edge deformation. Our Slitting machine incorporates differential friction shaft technology allowing independent tension adjustment for each output roll.

This compensates for natural gauge variation across master coil width—a common challenge in rolled metal substrates. Tension monitoring sensors provide real-time feedback to PLC systems, automatically adjusting torque parameters during acceleration and deceleration cycles.

The result is elimination of material stretch or loop formation. Your finished coils maintain uniform density distribution essential for downstream automated feeding systems in stamping or roll-forming applications.

Multi-Industry Application Capabilities

Metal Service Centers: Process heavy stainless steel, aluminum, and silicon steel coils while managing material camber. The rigid cast-iron frame absorbs cutting forces, ensuring flat strip geometry required for precision stamping operations.

Roofing and Cladding Manufacturers: Slit pre-painted galvanized steel into custom widths for panel production lines. Edge protection systems prevent coating damage during material handling.

Electrical Component Production: Handle thin copper and aluminum foils for transformer laminations and busbar manufacturing. Burr-free edge quality prevents short circuits in assembled components.

HVAC Duct Fabrication: Convert wide galvanized coils into standardized strip widths. Consistent dimensional accuracy ensures proper seam alignment during automated duct assembly.

Quality Assurance and Precision Engineering

Our manufacturing process adheres to ISO 9001 quality management protocols verified through systematic inspection stages. Web alignment verification confirms roller parallelism with runout tolerance below 0.02mm.

Edge geometry undergoes microscopic analysis to detect burr formation or material fibrillation. This inspection level meets requirements for electronic-grade substrates where edge contamination causes downstream assembly failures.

Dynamic balancing of all guide rollers eliminates resonance frequencies that emerge at operational speeds. You avoid the costly production stoppages caused by vibration-induced cut quality deterioration.

Collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings finite element analysis into roller design optimization. This academic partnership ensures your equipment incorporates latest forming simulation technology.

Intelligent Operation Features

The control system integrates Siemens PLC architecture with touchscreen HMI interface. Operators access preset cutting programs stored in memory, reducing manual input errors during product changeovers.

Remote monitoring capability through cloud-based platforms enables diagnostic support from our technical team. This proves especially valuable for international installations where on-site service response requires extended travel time.

Automatic length measurement systems utilize servo feedback for precise cut-to-length operation when combined with transverse cutting functions. You achieve finished part dimensional consistency within millimeter tolerances across production runs.

Safety interlocks comply with CE certification standards on the Slitting machine, protecting operators during blade adjustment procedures and emergency stop situations.

Installation Support and Global Service Network

With successful deployments across 150+ countries, our technical team understands regional power specifications and environmental operating conditions. We provide voltage customization beyond standard 380V three-phase configuration.

Pre-shipment testing includes full load operation verification and calibration documentation. Foundation drawings and utility requirement specifications accompany each system for seamless facility integration.

Training programs cover operational procedures, routine maintenance protocols, and troubleshooting methodologies. Your maintenance staff gains competency in blade replacement, tension calibration, and preventive inspection routines.

Spare parts inventory recommendations prevent extended downtime. Critical wear components ship with initial equipment order based on projected production volume analysis.

FAQ

Q：What material thickness range can this product process effectively?

A：Our standard configuration handles 0.5-4.0mm thickness across various metal substrates. For specialized applications requiring thinner foils or heavier plate, consult our engineering team for custom roller configurations.

Q：How is minimum stripe width determined?

A：The 60mm minimum relates to recoiler mandrel diameter and material handling stability. Narrower strips risk edge curling and winding tension irregularities during collection.

Q：Can the system process pre-painted or coated materials?

A：Yes. Rubber-coated pinch rollers and adjustable web tension prevent coating damage. Edge trim collection systems capture metallic particles that could mar finished surfaces.

Q：What factors affect maximum processing speed?

A：Material yield strength, thickness, and required edge quality determine safe operating velocity. Softer materials like aluminum permit higher speeds than work-hardened stainless steel.

Q：How often do cutting blades require replacement?

A：Blade life depends on material abrasiveness and production volume. Typical Cr12 steel blades process 50-100 tons before requiring resharpening or replacement under normal conditions.

Q：Is line integration with existing coil handling equipment possible?

A：Our systems accommodate upstream decoilers and downstream stacking equipment through standardized mounting interfaces. We provide integration support during installation commissioning.

Contact Us

Transform your coil processing capabilities with precision-engineered slitting technology on the Slitting machine. Reach our technical sales team at zhongtuorollforming@gmail.com  to discuss your specific material requirements and production objectives.
