Storage Shelf Roll Forming Machine for Industrial Warehouse Racking Systems | High-Precision Automated Production Solution

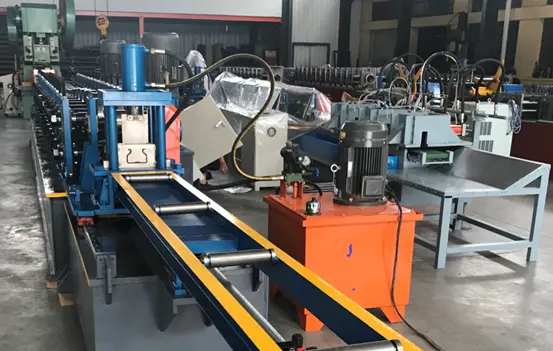

Cangzhou Zhongtuo Roll Forming Machinery delivers enterprise-grade storage shelf roll forming machine systems engineered for supermarket and warehouse racking production. Our automatic roll forming line handles PPGI, GI, or aluminum coils from 1.5–2.0 mm thickness, featuring 16 forming stations equipped with 20 Cr12/GCr12 hardened steel rollers. With a Φ80 mm solid 45# steel shaft and forming speeds reaching 15 m/min, this equipment ensures dimensional accuracy within ±0.5 mm tolerance. Built on a 350H heavy-duty steel frame with gear or chain transmission, the system integrates Cr12MoV hydraulic cutting technology and intelligent PLC control. Backed by ISO9001, CE, CAS, and 30+ international certifications, Zhongtuo has served over 150 countries since 2014.

Advanced Roll Forming Technology for Shelf Manufacturing

Your production demands precision. Our equipment transforms metal coils into structural shelf components through synchronized cold roll forming processes. Unlike traditional brake press methods, this automated system eliminates cumulative errors common in manual fabrication.

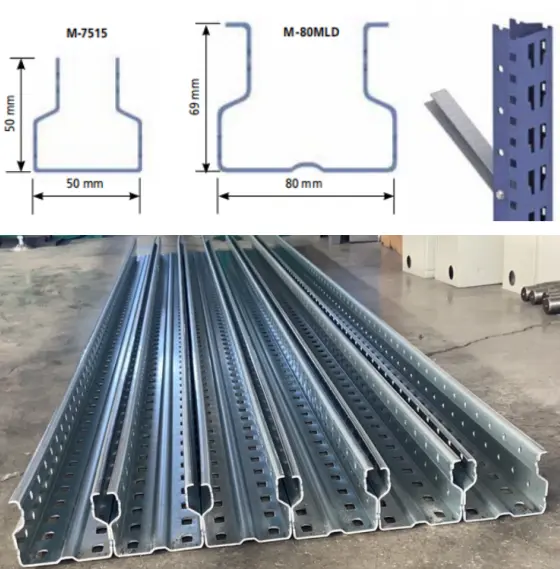

The machine handles high-tensile steel up to G550Mpa yield strength. It maintains profile geometry critical for seamless interlocking with uprights and beams. Each forming station progressively shapes the material without compromising structural integrity.

Heavy-duty applications require robust engineering. The 350H steel frame provides superior resistance to deformation during continuous operation. This stability ensures your equipment maintains precision even after years of high-intensity production cycles.

Technical Specifications

Core Manufacturing Advantages

Quality begins with material selection. Core components use GCr15 bearing steel and high-strength structural alloys. This provides exceptional wear resistance during extended production runs.

The German-standard gear transmission system features hardened surface treatment. It delivers improved transmission efficiency while reducing maintenance frequency. Factory testing guarantees every unit undergoes complete operational verification before shipment.

Your investment deserves longevity. The heavy-duty frame design withstands high-load continuous production environments. This construction method ensures dimensional stability across thousands of operating hours.

Intelligent remote diagnostics monitor equipment status in real time. You gain rapid problem-solving capabilities that reduce downtime. Our 24/7 online support team provides immediate technical assistance when needed.

Customized Production Solutions

Different markets require different specifications. Our engineering team designs solutions based on your product profiles and capacity targets. We accommodate various sheet types and automated line configurations.

Profile changeovers happen quickly with cassette-type roller stations. This flexibility lets you serve multiple product lines without purchasing separate equipment. Adjustable width capability supports light-duty to heavy-duty shelf systems.

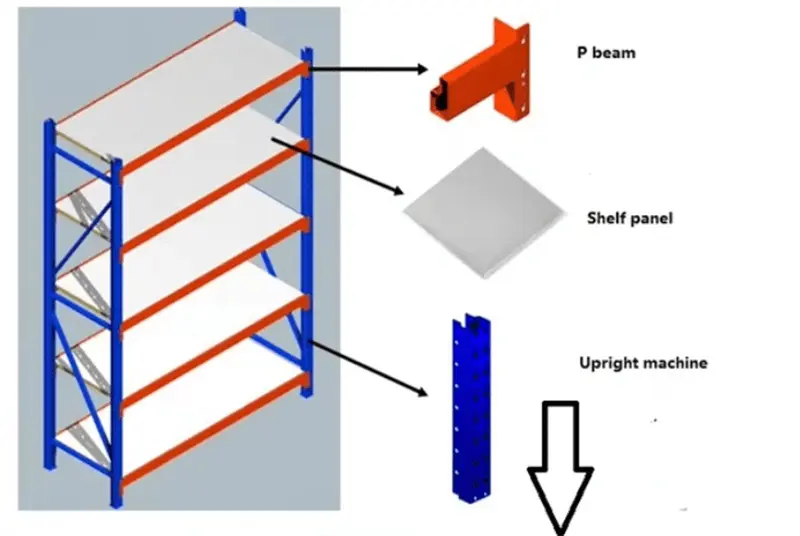

The storage shelf roll forming machine adapts to both supermarket display units and industrial pallet racking. Material handling ranges from 0.4 mm lightweight panels to 2.5 mm heavy-duty uprights. Your production versatility increases without capital expenditure multiplication.

Integrated Process Control

Precision starts with synchronized feeding systems. The hydraulic automatic decoiler manages coil tension consistently. Seven-roller leveling systems eliminate material curl before forming begins.

Servo-driven punching integration happens before roll forming stations. This arrangement ensures hole placement accuracy essential for assembly compatibility. The PLC system coordinates cutting length with production speed automatically.

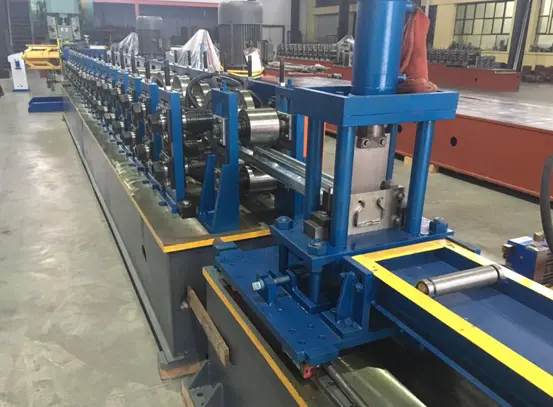

Hydraulic cutting produces clean edges without material waste. Blade life extends through Cr12MoV steel construction. You reduce both scrap rates and blade replacement costs simultaneously.

Quality Assurance and Certifications

Zhongtuo maintains national-level high-tech enterprise status. Our quality management encompasses ISO9001 standards with strict process controls. European CE certification confirms safety and environmental compliance.

North American CAS certification demonstrates adherence to advanced technical requirements. Additional UL and SGS certifications reinforce manufacturing credibility. These credentials represent recognition from global regulatory bodies.

Every certification translates to production confidence. You gain equipment that meets international standards without modification. Compliance documentation simplifies your own quality audits and customer requirements.

Global Service Network

Our product systems operate across 150 countries and regions. Export experience spanning Europe, North America, Middle East, Southeast Asia, and South America informs design improvements.

Installation support includes on-site training for your operators. Remote commissioning capabilities accelerate deployment timelines. Cloud-based monitoring platforms enable preventive maintenance scheduling.

Long-term partnerships depend on consistent performance. Our technical team provides upgrades and modifications as your production needs evolve. Spare parts availability ensures minimal operational interruptions.

Research and Development Collaboration

Zhongtuo partners with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. This collaboration advances forming process optimization through finite element analysis and AI-assisted simulation.

Virtual debugging reduces trial costs before physical production. Equipment simulation tools validate design changes digitally. Remote operation systems extend our support capabilities to your facility.

Graduate researchers contribute innovations in automation and intelligent control. Their work strengthens standardization while accelerating digital transformation. You benefit from cutting-edge developments integrated into production equipment.

FAQ

Q: What materials can this machine process?

A: The system handles PPGI, galvanized steel, and aluminum coils. Thickness ranges from 1.5 mm to 2.0 mm standard, with customization available for heavier gauges up to 2.5 mm for industrial applications.

Q: How quickly can production speed adjust?

A: Variable frequency drives enable speed adjustment from 0 to 15 meters per minute. The PLC system coordinates all components automatically when you change production parameters through the control interface.

Q: What maintenance schedule does this equipment require?

A: Routine maintenance involves lubrication every 500 operating hours and inspection of drive components quarterly. Chrome-plated rollers extend service intervals significantly compared to untreated steel.

Q: Can the machine produce different shelf profiles?

A: Yes, cassette-type roller stations allow profile changeovers. Our engineering team designs roller sets matching your specific product dimensions. Most changeovers complete within four hours.

Q: What training do operators need?

A: Basic operation requires two days of on-site training. Advanced troubleshooting and maintenance training extends to one additional week. We provide comprehensive manuals in your preferred language.

Q: How does remote support function?

A: Cloud-based monitoring transmits operational data to our technical center. Diagnostics identify issues before failures occur. Video consultation and remote PLC access resolve most problems without site visits.

Contact Us

Ready to enhance your shelf manufacturing capabilities? Contact Zhongtuo Roll Forming Machinery at zhongtuorollforming@gmail.com to discuss customized storage shelf roll forming machine configurations.
