Ridge Cap Roll Forming Machine: Professional Metal Roofing Solution

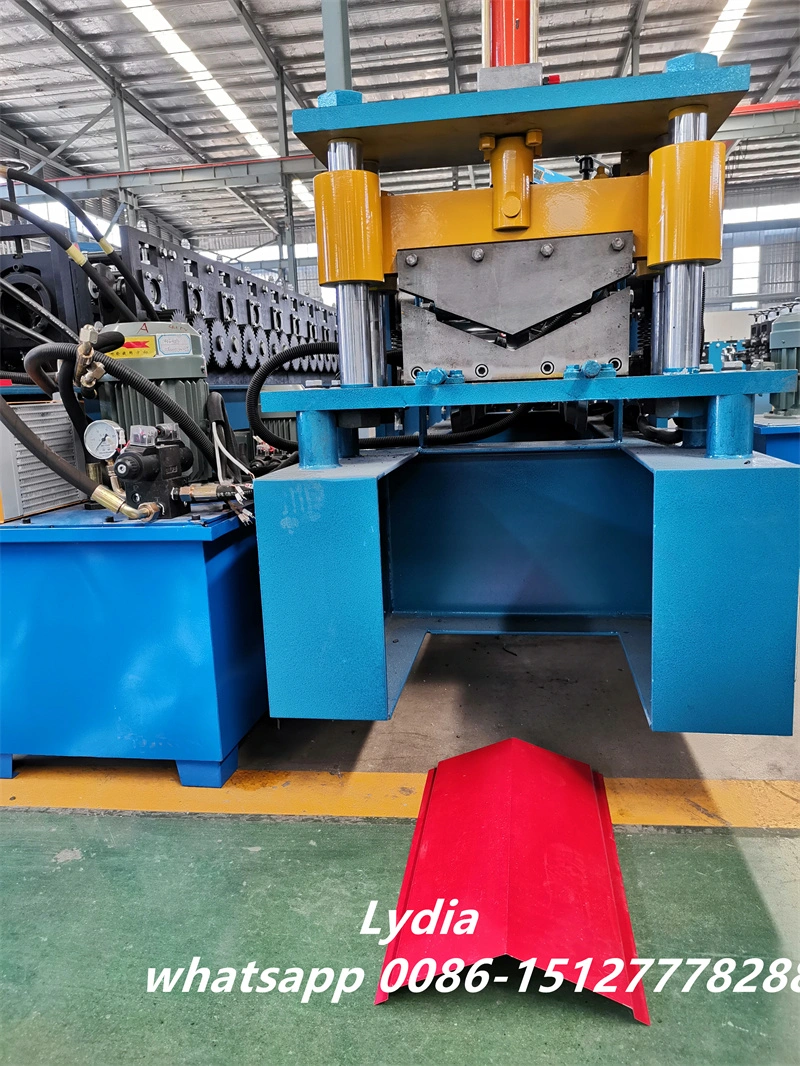

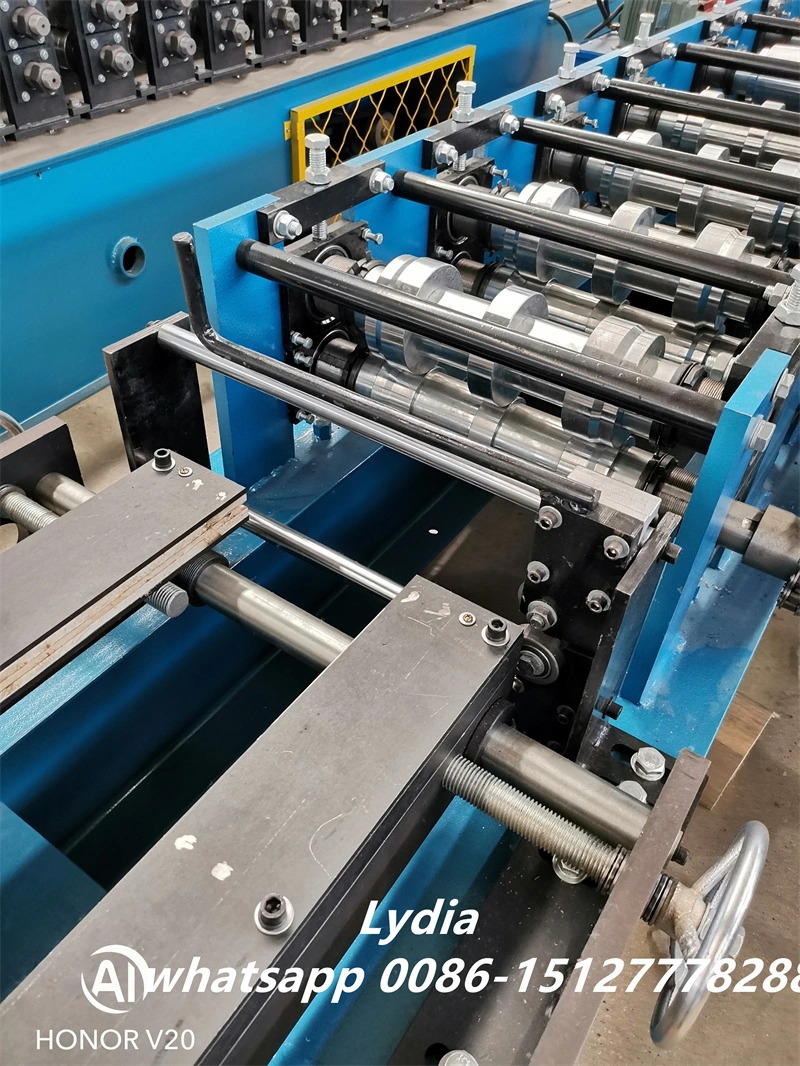

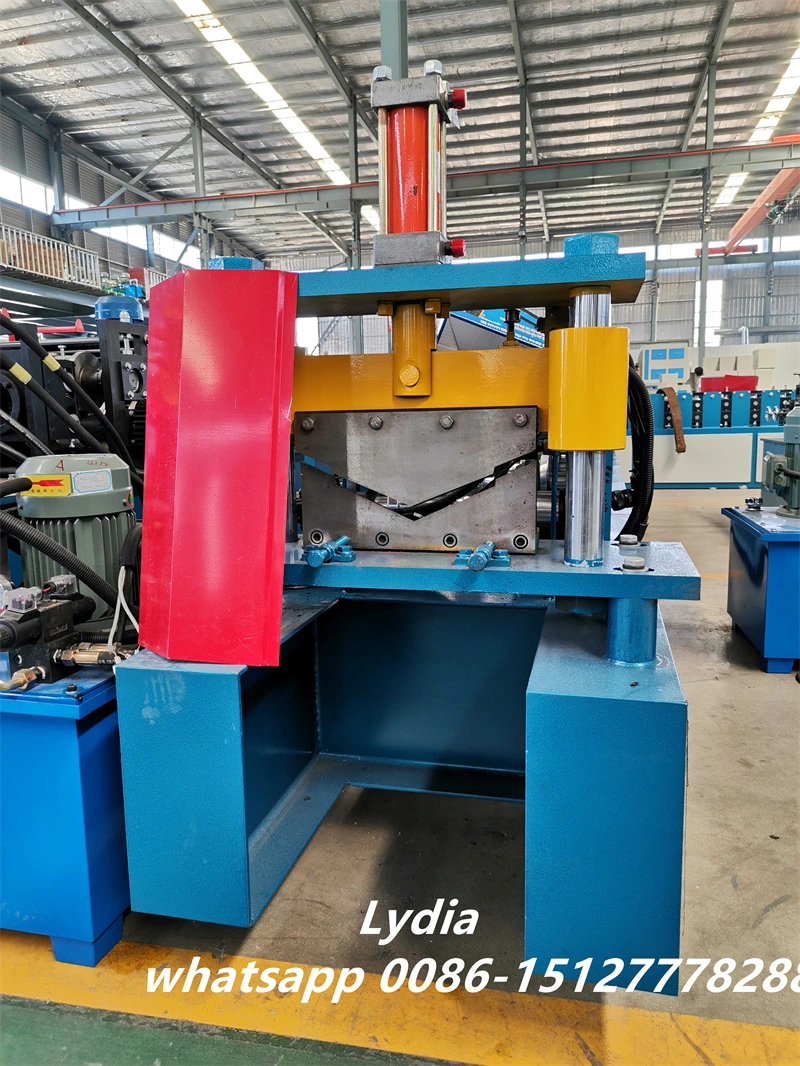

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in manufacturing high-performance ridge cap roll forming machines since 2014. Our equipment features 22 progressive roller stations engineered with 45# steel heat-treated rollers, processing galvanized steel from 0.3-0.8mm thickness at variable speeds up to 15m/min. Built on a robust 350# H-steel welded frame with a 70mm solid shaft diameter, our machines deliver precise hydraulic fly cutting controlled by Delta/Siemens/Mitsubishi PLC systems. With a 5.5kw main motor and double-chain transmission, this machine ensures consistent profile accuracy within ±1.0mm tolerance for roofing manufacturers worldwide.

What Makes Our Ridge Cap Machine Stand Out

This specialized cold-roll forming equipment transforms metal coil strips into precision ridge caps that seal roof peaks where two slopes meet. Unlike manual bending methods, our automated system eliminates inconsistent angles that cause water leakage.

The machine addresses critical construction challenges through multiple forming passes that reduce material stress. This prevents the spring-back issue common in high-tensile G550 steel, ensuring your finished products maintain perfect angles.

Your production benefits from reduced labor costs and consistent quality. The progressive roller design creates distinct profile edges without scratching pre-painted surfaces, making it ideal for both industrial and residential applications.

Key Technical Specifications of ridge cap roll forming machine

Industry Applications You Can Serve

Your ridge cap roll forming machine performs reliably across diverse construction sectors. In pre-engineered buildings and industrial warehouses, it processes high-tensile Galvalume steel for large-span factories, creating weather-tight seals against wind-driven rain.

For residential villa construction, the machine produces stepped or bamboo-joint ridge caps with aesthetic profiles. These designs mimic traditional clay tiles while offering superior durability, specifically engineered to withstand UV exposure and prevent moss accumulation.

In agricultural and coastal environments, you can process Aluminum-Magnesium-Manganese alloy coils. The adjustable forming stations handle softer materials without deformation, ensuring your ridge caps maintain structural integrity against salt spray and corrosive atmospheres without micro-cracking.

Advanced Manufacturing Technology

Zhongtuo partners with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center for continuous innovation. Our AI-integrated forming process uses finite element analysis to optimize roller design and forming paths.

This collaboration brings you virtual debugging capabilities and remote operation features. Cloud-based monitoring supports long-distance diagnostics, reducing your downtime significantly.

Our equipment incorporates patented roller design technology applied across production lines exported to over 150 countries. The intelligent control system enables predictive maintenance and data-driven production tuning for maximum efficiency.

Quality Assurance Process

Every machine undergoes rigorous inspection before shipment. Profile overlay tests verify angles match engineering drawings precisely using Go/No-Go gauges. Roller hardness reaches HRC 58-62 to resist wear over millions of production meters.

Our hydraulic systems complete 72-hour cycle tests checking for oil leaks and overheating. Main shaft run-out stays below 0.05mm, eliminating vibration that causes ripple defects on ridge cap surfaces.

As a national-level high-tech enterprise, we maintain ISO 9001 certification, European CE safety certification, and North American CAS compliance. These credentials demonstrate our commitment to international quality standards.

Complete Production Solution

Your investment includes comprehensive support beyond the machine itself. We offer one-stop service covering raw materials, accessories, and technical training through our established supply chain.

The hydraulic pressing module synchronizes with rolling speed to create stepped features matching your main roofing tile pitch perfectly. This ensures seamless integration with trapezoidal or glazed tile roofing systems.

Our export experience spanning over 150 countries means we understand your regional requirements. Whether processing PPGI metal or new composite materials, the machine adapts to your specific production needs.

FAQ

Q：What is the expected service life of this machine?

A：With proper maintenance, your equipment operates reliably for 15-20 years. Regular lubrication and roller inspection extend component longevity significantly.

Q：Can the machine handle different ridge cap profiles?

A：Yes, roller sets are customizable. We provide tailored designs for angular, stepped, or bamboo-joint profiles based on your market requirements.

Q：How quickly can you deliver after order confirmation?

A：Standard production takes 30 days after deposit. Custom configurations may require 40-45 days depending on specifications.

Q：What training do you provide for operators?

A：We include comprehensive English manuals, video tutorials, and remote technical support. On-site installation assistance is available upon request.

Q：Does the machine work with composite materials?

A：Absolutely. The forming stations adjust for aluminum-zinc alloy, aluminum-magnesium-manganese, and color-coated composite materials without surface damage.

Q：What maintenance schedule do you recommend?

A：Daily checks on chain tension and lubrication, weekly hydraulic oil levels, monthly roller alignment, and quarterly comprehensive inspection ensure optimal performance.
