TR4 and TR5 double layer roll forming machine

Advanced Dual-Profile Production Solution with the TR4 and TR5 double layer roll forming machine

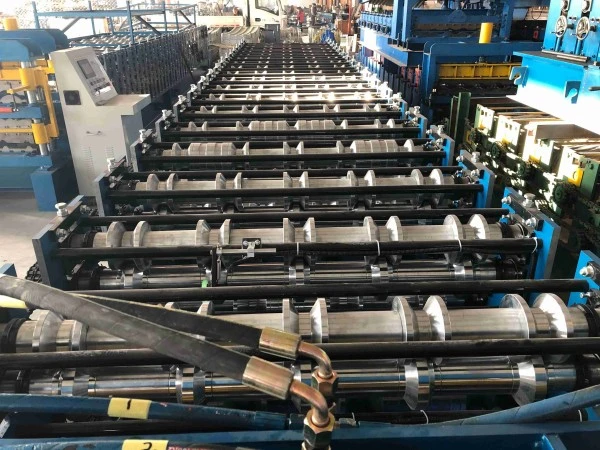

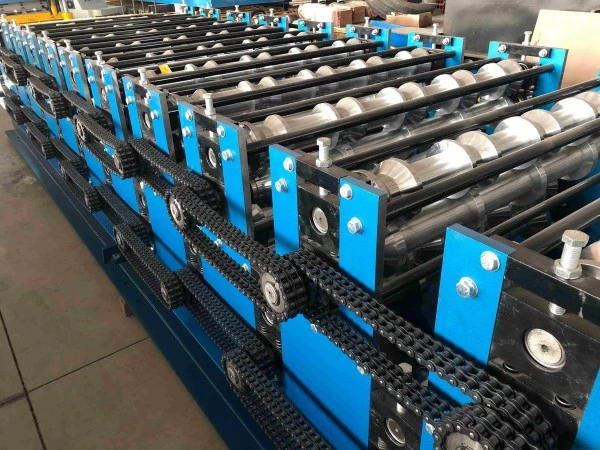

Cangzhou Zhongtuo's TR4 and TR5 double layer roll forming machine represents precision engineering tailored for steel structure manufacturers facing space and budget constraints. This vertically-stacked system produces both 4-rib and 5-rib trapezoidal profiles within a single 8-meter footprint, reducing floor space requirements by 50% compared to separate lines. The machine features 16+18 roller stations powered by 80mm solid shafts, processing 0.3-0.8mm PPGI, GI, and aluminum coils at speeds reaching 15-25m/min. With 350 H-steel frame construction and PLC-controlled hydraulic cutting delivering ±1.0mm tolerance, you gain two complete production capabilities while investing in one integrated system.

Core Advantages You'll Experience

Space Efficiency Meets Production Flexibility

Your factory gains two profile options without doubling equipment costs. The vertical dual-layer design occupies the same floor area as a single machine, perfect when expansion space is limited.

Rapid Profile Switching

Toggle between TR4 wall cladding and TR5 roofing production in under 5 minutes through the touchscreen interface. The clutch system activates only the required layer, conserving energy while maintaining full power delivery.

Durability Through Material Science

Hard chrome-plated rollers resist wear when processing abrasive galvanized coils. The 80mm solid shafts prevent deflection even with high-tensile G550 steel, maintaining consistent profile depth across 12-hour production runs.

Precision Cutting Without Deformation

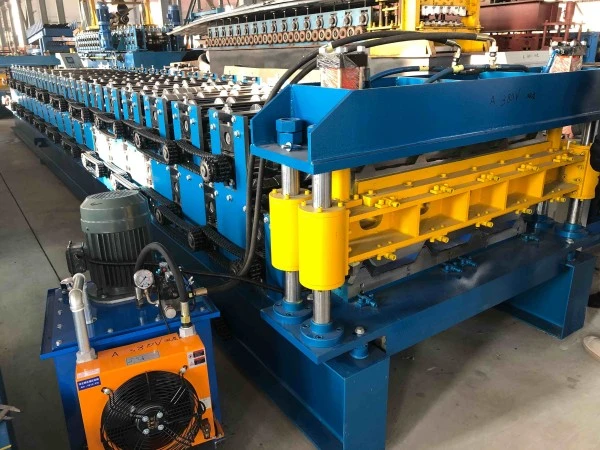

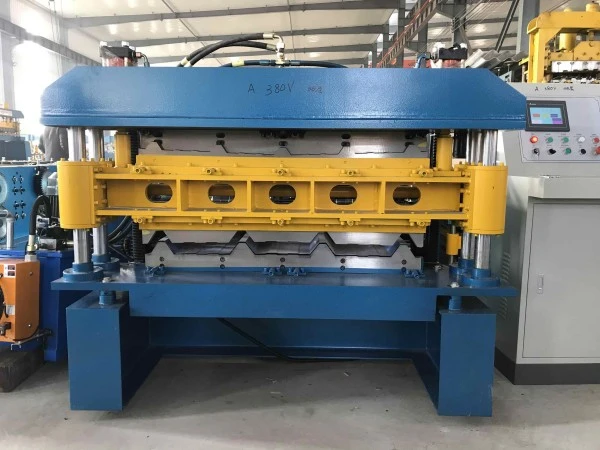

Hydraulic Cr12MoV blades shear cleanly through ribbed profiles without crushing the geometry. This eliminates the installation delays caused by distorted sheet ends that won't interlock properly.

Technical Specifications That Matter

Primary Application Scenarios with the TR4 and TR5 double layer roll forming machine

Pre-Engineered Building Factories

You can produce roofing (TR5) and wall panels (TR4) for warehouse projects without retooling. This matches the variable order ratios typical in steel building contracts where roof-to-wall demand fluctuates per project.

Coastal Construction Markets

When working with corrosion-resistant materials in tropical or marine climates, the machine handles Alu-zinc and heavy-duty PPGI coils. Deep rib forming ensures effective water channeling in high-rainfall regions across Southeast Asia and Africa.

Mobile Production Units

The compact dual-layer configuration adapts to containerized systems for on-site manufacturing. You eliminate transportation length restrictions when producing 12-meter sheets directly at large infrastructure sites, reducing installation seams and leak points.

Multi-Project Manufacturers

If your order book mixes residential roofing and commercial cladding, switching profiles between batches prevents the 4-hour downtime required to physically change roller sets on single-layer machines.

Quality Assurance Standards

Profile Interlock Testing

Our quality protocol involves overlapping sheets produced 100 meters apart. Perfect interlocking confirms roller synchronization and guarantees weather-tight installation for your customers.

Surface Integrity Inspection

Each machine undergoes roller speed calibration to prevent coating drag. You receive equipment that won't strip protective layers from pre-painted steel, avoiding costly material waste.

Geometric Precision Verification

We measure camber over 6-meter lengths, maintaining <2mm deviation. This straightness ensures your panels install flush without gaps, meeting architectural finish standards.

Thermal Stress Testing

Continuous 8-hour operation tests confirm hydraulic systems maintain <60°C oil temperature. Stable thermal performance prevents pressure fluctuations that cause inconsistent cutting force.

Research-Backed Innovation

Cangzhou Zhongtuo collaborates with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center, applying finite element analysis to roller design. This partnership delivers measurable improvements you'll notice in production.

AI-Optimized Forming Paths

Virtual simulations reduce spring-back in high-tensile steel by 30% compared to conventional roller spacing. Your TR4 and TR5 double layer roll forming machine holds tighter tolerances when processing G550 material without requiring manual adjustments.

Predictive Maintenance Integration

Cloud-based monitoring systems track bearing vibration and motor load in real time. You receive maintenance alerts before component failure interrupts your production schedule, particularly valuable when operating across multiple shifts.

Virtual Commissioning Capability

Our Siemens partnership enables remote debugging before shipment. This eliminates the 2-3 day on-site startup period typical with imported equipment, getting your line operational faster.

Packaging and Global Delivery

We secure your product in reinforced export-grade wooden crates with moisture barriers. Main frames receive anti-corrosion treatment suitable for ocean freight. Complete installation manuals and video guides accompany each shipment to 150+ countries we serve.

FAQ

Q：Can both profiles run simultaneously?

A：No. The clutch system engages only one layer at a time for power efficiency and safety. This design reduces your electrical consumption by 40% compared to running two separate machines.

Q：What happens if I exceed the 0.8mm thickness limit?

A：Material beyond specified thickness risks bending the 80mm shafts and cracking cutting blades. Always verify your coil specifications match the machine's calibrated range to avoid structural damage requiring expensive repairs.

Q：How does the system handle high-strength steel?

A：G550 steel requires upgraded roller spacing to counteract spring-back. When ordering, specify your material grade so we configure appropriate station intervals and shaft hardness for your production needs.

Q：How long do hydraulic blades last?

A：Cr12MoV blades typically endure 2-3 years under single-shift operation with clean coils. Processing rusty or contaminated material accelerates wear, so implementing coil inspection protocols extends blade life significantly.

Q：Is profile changeover complicated for operators?

A：The touchscreen guides your team through the 5-minute process: select the target profile, adjust the clutch position, and confirm. No technical expertise required beyond basic machine operation training.

Contact Us

Ready to optimize your production floor with the TR4 and TR5 double layer roll forming machine? Reach us at zhongtuorollforming@gmail.com  for technical specifications and quotations.
