Industrial Shelves Making Machine for Supermarket Racks and Warehouse Storage Systems | High-Precision Roll Forming Solutions

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. specializes in industrial-grade shelves making machine systems designed for supermarket shelving, warehouse racking, and industrial storage applications. Established in 2014 as a national-level high-tech enterprise, we deliver automated roll forming lines capable of processing 1.5-2mm thickness PPGI, GI, and aluminum materials. Our equipment features 16-row roller stations with Cr12 hardened rollers, achieving forming speeds of 0-15m/min. Each machine undergoes complete factory testing before shipment and includes 24/7 remote diagnostic support, ensuring rapid deployment and long-term operational stability for your production needs.

What Makes Our Shelves Making Machine Industry-Leading?

Your production needs accuracy, speed, and dependability. German-standard gear transmission systems and GCr15 bearing steel components ensure constant performance in high-volume manufacturing situations in our shelves building machine.

Heavy-duty 350 H steel frame resists deformation with prolonged use. The 80mm solid shaft design preserves forming precision throughout long manufacturing runs.

Through a bilingual interface, advanced PLC automation lets you select batch numbers, profile lengths, and production sequences. Remote operation allows real-time monitoring and speedy troubleshooting without on-site inspections.

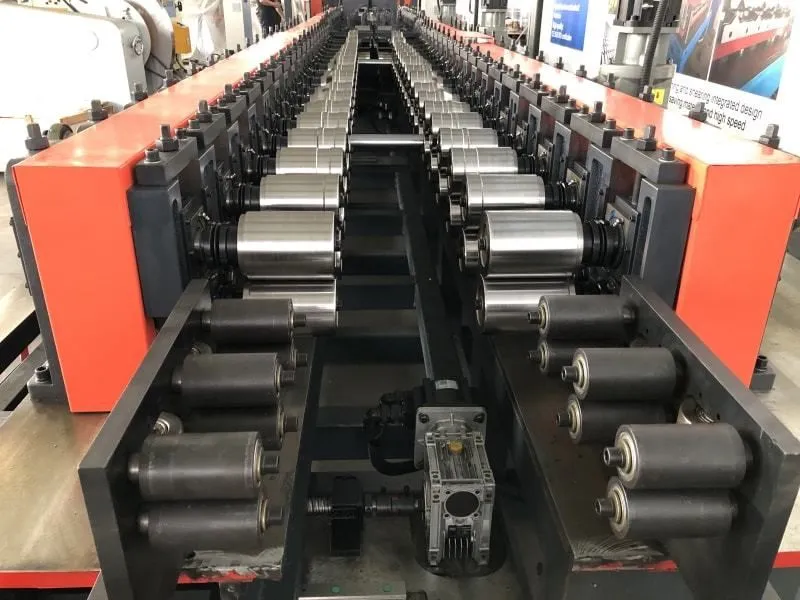

Smooth, surface-hardened Cr12MoV cutting blades avoid scratches and distortion. The chrome-plated roller system smooths material flow and prolongs equipment life.

Technical Specifications

Core Advantages That Increase Your Production Value

Durability: GCr15 bearing steel components stand up to 24/7 use. After years of severe usage, high-strength structural steel has precise alignment.

Precision engineering: German-standard gear gearbox with hardened surface treatment distributes torque better and requires less maintenance than chain-only systems.

QA: All units undergo extensive operational testing before shipment. We are ISO9001, CE, CAS, UL, SGS, and certified to over 30 international standards.

Intelligent support: Real-time remote monitoring systems track functioning parameters. Immediate maintenance warnings save downtime and service expenses for your team.

Flexible customization: Our technical staff creates profiles, punching patterns, and automation sequences for your shelf designs and production capacity goals.

Online technical support for remote debugging, software updates, and troubleshooting in several languages is available 24/7.

Application Scenarios for B2B Manufacturing

Supermarket Retail Systems: Make adjustable shelf components with exact hole spacing for modular displays. High-speed production fulfills retail chain expansion delivery deadlines.

Warehouse Logistics: Make international load-bearing pallet rack uprights and beams. Simple construction and safe stacking depend on consistent profile dimensions.

Industrial Storage Solutions: Make bespoke shelves for pharmaceutical, automotive, and electronics sectors that need corrosion-resistant materials.

Export Manufacturing: Optimize 20GP/40HQ shipment containers. Your investment is protected throughout international shipping by export-standard steel frames, anti-rust oil, and hardwood boxes.

University-Industry R&D Collaboration

Zhongtuo's shelves making machine draws on strategic cooperation with Yanshan University's National Cold Rolled Strip Equipment and Process Engineering Research Center. This partnership drives innovation in roll forming technology.

Our research team uses finite element analysis and AI-assisted simulation to optimize roller design. Virtual debugging systems reduce commissioning time while improving first-run accuracy.

Graduate researchers stationed at our production facility conduct real-world testing of automated control algorithms and remote monitoring protocols. These advancements translate directly into equipment performance improvements you can measure in uptime and output quality.

Export-Ready Packaging and Logistics

Your equipment arrives ready for installation. We apply anti-rust oil protection and secure machines in reinforced wooden cases mounted on steel frames.

Each shipment undergoes full inspection before loading into 20GP or 40HQ containers. Documentation packages include operation manuals, maintenance schedules, and quality certificates required for customs clearance.

Our logistics team coordinates with freight forwarders to optimize shipping routes and ensure on-time delivery to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America.

FAQ

Q1: How do you ensure consistent profile dimensions across long production runs?

A: Our 80mm solid shaft system minimizes deflection under load. Chrome-plated Cr12 rollers maintain their geometry through surface hardening. PLC feedback loops monitor forming pressure and automatically adjust roller positioning to compensate for material thickness variations.

Q2: What causes edge waviness in thin-gauge material, and how does your machine prevent it?

A: Edge waves result from uneven stress distribution during forming. Our machine uses progressive roll station spacing calculated through finite element simulation. The 16-row configuration distributes deformation gradually, keeping material below its elastic limit.

Q3: Can one machine produce different shelf profile types?

A: Yes. Roller cassettes can be exchanged to switch between upright channels, beam profiles, and back panels. Our technical team provides CAD-based roll design services for custom profiles based on your product specifications.

Q4: How quickly can operators change production settings between batches?

A: The PLC interface allows preset storage for up to 50 different production recipes. Operators select the desired profile, and the system automatically adjusts cutting length, batch quantity, and forming speed. Changeover takes under 5 minutes for length adjustments without tooling modifications.

Q5: What remote diagnostic capabilities does the system include?

A: Ethernet and 4G connectivity enable real-time data transmission to our service center. Technicians access machine parameters, view error logs, and adjust control settings remotely. Video support allows visual inspection of mechanical components during troubleshooting sessions.
