Professional Shelf Panels Machine for Warehouse Storage System Manufacturing - High-Precision Automated Production Solution

Cangzhou Zhongtuo Roll Forming Machinery delivers industrial-grade shelf panels machine engineered for modern warehouse logistics operations. Established in 2014 as a national high-tech enterprise, we specialize in fully automated cold roll forming equipment. Our product processes 0.7–1 mm cold rolled coil through 36 forming stations with Cr12MoV rollers hardened to HRC55-58, achieving consistent production at 3-6 m/min. Equipped with ISO9001, CE, CAS, UL, and SGS certifications among 30+ international standards, this production line ensures dimensional accuracy within ±0.5 mm for shelf panels, rack decking, and box profiles used in heavy-duty storage applications.

Why Your Warehouse Manufacturing Needs Advanced Roll Forming Technology?

Modern storage facilities demand shelf panels that withstand substantial load capacities while maintaining precise interlocking tolerances. Traditional brake press methods create inconsistencies that compromise structural integrity.

Your production challenges require equipment that handles high-tensile steel consistently. Cold rolled materials between 0.7-1 mm thickness need specialized forming processes to prevent springback and maintain flatness.

Our product addresses these requirements through continuous roll forming technology. The synchronized system eliminates manual handling errors while processing materials from 300-640 mm width range. This ensures your shelf components meet safety standards for high-bay warehouse installations.

Technical Specifications

Advanced Engineering Features That Maximize Production Value

Precision Roller Technology

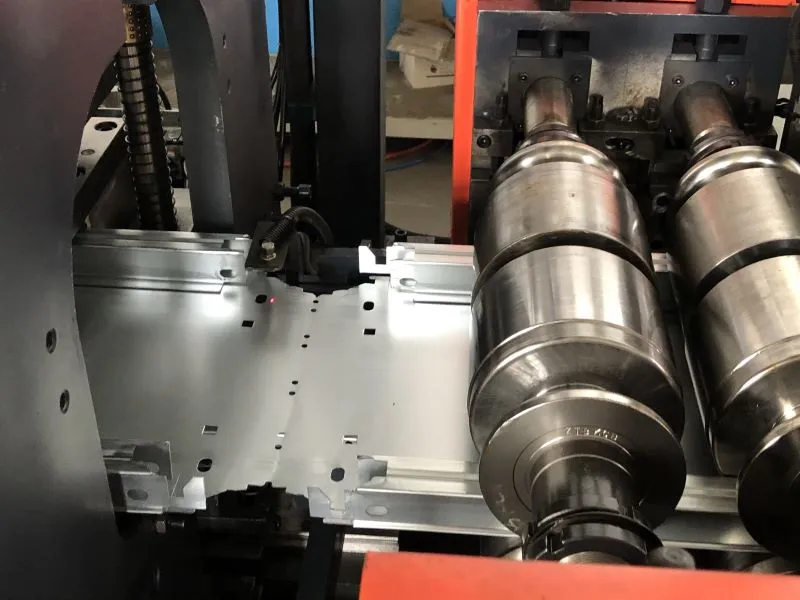

Every roller station utilizes GCr15 bearing steel and Cr12MoV die steel construction. Vacuum heat treatment achieves surface hardness of HRC55-58, providing exceptional wear resistance during extended production runs. This roller composition maintains profile accuracy even after millions of forming cycles.

Heavy-Duty Structural Framework

The welded H-beam base design delivers vibration dampening essential for maintaining tolerances. High-strength structural steel construction prevents frame deformation under continuous high-load operation. Your equipment maintains calibration integrity year after year.

German Standard Transmission System

Hardened gear transmission components ensure efficient power transfer with minimal energy loss. Surface treatment technology extends component lifespan while reducing maintenance frequency. This drivetrain configuration supports stable operation at variable speeds.

Intelligent Automation Integration

PLC control systems from premium manufacturers enable batch production management. You can preset panel lengths, quantities, and production sequences. Automatic material tracking reduces operator intervention while maintaining consistent output quality.

Complete Production Line Configuration

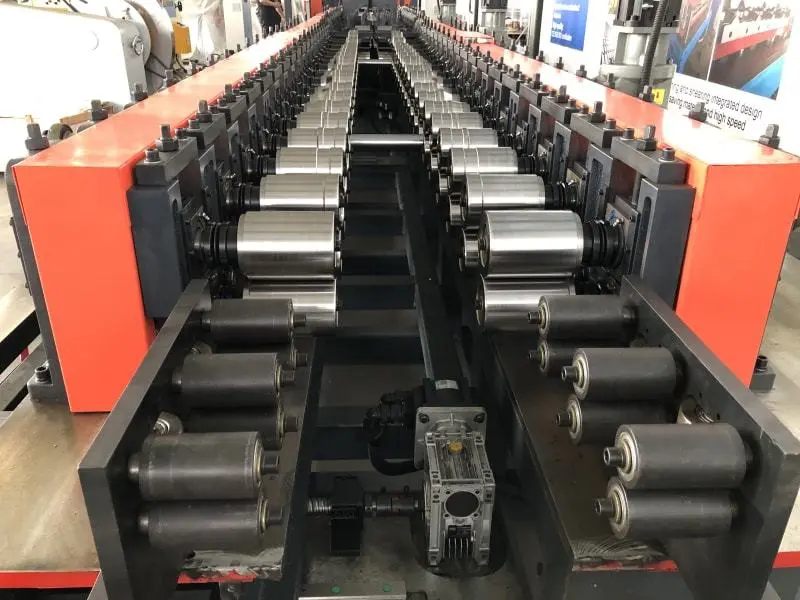

Your shelf panels machine arrives as an integrated manufacturing solution. The hydraulic decoiler handles 5-ton coils with inner diameters from 450-550 mm. Material feeds through the precision leveling system before entering the 36-station forming sequence.

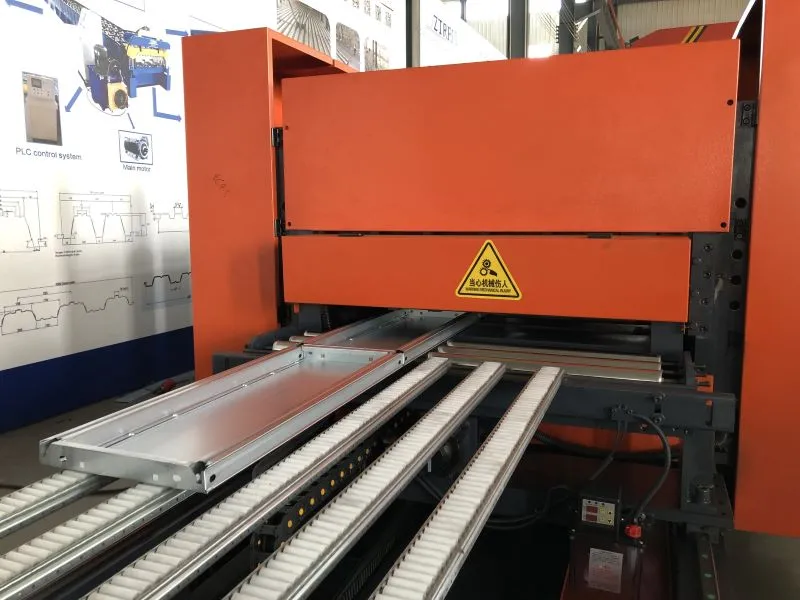

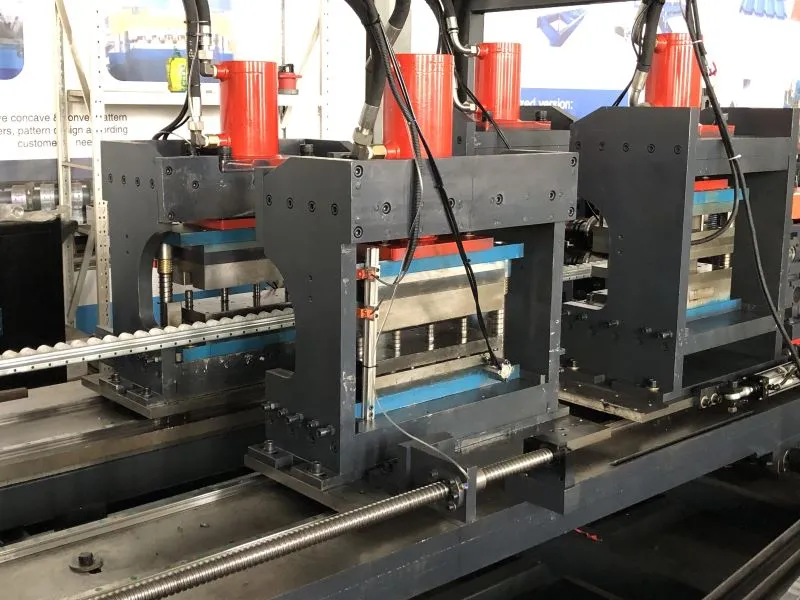

The synchronized punching system creates mounting holes without interrupting material flow. Cr12MoV cutting blades shear finished panels to programmed lengths with zero edge deformation. Each component operates through centralized PLC coordination.

This configuration processes raw coil material into finished shelf panels in one continuous operation. You eliminate intermediate handling steps that risk material damage or dimensional variance.

Applications Across Warehouse Storage Systems

Your equipment produces multiple component types for storage infrastructure. Shelf panels form the load-bearing surfaces in pallet racking systems. Rack decking panels provide stability for heavy-duty storage configurations.

Box profile components create structural reinforcement for uprights and beams. The 300-640 mm width range accommodates various shelf depths required by different warehouse layouts. Material thickness options support both light-duty retail shelving and heavy industrial applications.

Quality Assurance Through Comprehensive Testing

Each product completes full operational testing before shipment. We run production trials using customer-specified material parameters. This pre-delivery validation ensures your equipment achieves rated performance immediately after installation.

Our quality management system maintains over 30 international certifications. ISO9001 protocols govern every manufacturing stage. CE certification confirms compliance with European safety directives. CAS and UL approvals verify North American market standards.

Factory testing includes dimensional verification, speed calibration, and control system validation. You receive installation drawings, electrical diagrams, and operational manuals in English. Video documentation provides setup guidance and maintenance procedures.

Global Service Infrastructure

Zhongtuo equipment operates in 150+ countries across Europe, North America, Middle East, Southeast Asia, and South America. Our remote monitoring system provides real-time equipment diagnostics through cloud connectivity.

Technical support teams offer 24/7 assistance for troubleshooting and optimization. Remote debugging capabilities resolve most issues without on-site visits. This reduces your downtime and maintenance expenses.

We partner with Siemens for control system integration and maintain collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center. These partnerships ensure your equipment incorporates latest forming technology and automation advances.

Customization Capabilities for Specialized Requirements

Your production specifications may require modified configurations. Our engineering team designs custom roller profiles for unique panel geometries. We adjust forming station quantities based on complexity requirements.

Speed customization accommodates different production volume targets. Voltage configurations adapt to regional power standards. Multi-language control interfaces support international operations.

Material handling systems scale according to your coil weight and diameter needs. Automated stacking and packaging integration streamlines your workflow from raw material to finished product.

FAQ

Q: What profile types can this equipment produce?

A: The machine forms shelf panels, rack decking panels, and box profiles for warehouse storage systems. Custom roller tooling enables production of specialized geometries based on your design requirements.

Q: How does roller hardness affect production longevity?

A: Cr12MoV material with HRC55-58 hardness provides superior wear resistance compared to standard steel rollers. This extends roller lifespan significantly and maintains dimensional accuracy over millions of forming cycles.

Q: What training do operators need?

A: Basic metal forming knowledge is sufficient. We provide operational manuals, video tutorials, and remote training sessions. The PLC interface simplifies batch programming and production monitoring.

Q: Can the machine process materials outside the specified thickness range?

A: Standard configuration handles 0.7-1 mm thickness. Custom roller designs and drive system modifications enable processing of thinner or thicker materials based on your requirements.

Q: What determines optimal forming speed?

A: Material thickness, steel grade, and profile complexity influence speed settings. Our technical team provides speed recommendations based on your specific production parameters during equipment configuration.

Q: How quickly can production begin after installation?

A: Pre-shipment testing and comprehensive documentation enable rapid deployment. Most customers achieve full production within 2-3 days of installation completion with our remote commissioning support.

Contact Us

Ready to Upgrade Your Shelf Panel Production with shelf panels machine? Email us at zhongtuorollforming@gmail.com for technical consultation and quotation requests.
