Roof Deck Machine: Heavy-Duty Metal Decking Production Solutions

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers enterprise-grade roof deck machine systems engineered for structural metal decking production since 2014. Our machines process galvanized and galvalume coils ranging from 0.8mm to 1.2mm thickness with 235Mpa yield strength, featuring 95mm diameter forming roller shafts and specialized 120mm embossing shafts.

Operating at 10-20m/min with triple 11kw main motors for balanced power distribution, our systems utilize No.45 steel rollers with chrome coating and CR12 mould steel cutters with quenched treatment. The PLC-controlled machines deliver precision forming for composite floor systems and large-span roofing applications, backed by ISO 9001, CE, and CAS certifications.

Advanced Research-Backed Technology

Zhongtuo partners with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center to optimize every product through scientific innovation. Our AI-integrated finite element analysis ensures precise roll design while virtual debugging reduces commissioning time by 40%.

PhD and Master-level researchers work directly in our production facility, applying advanced simulation to forming path optimization. This collaboration resulted in two patented technologies including innovative pattern roller design and intelligent slitting systems.

Cloud-based remote monitoring enables real-time diagnostics for overseas clients. Predictive maintenance algorithms minimize downtime while our Siemens-integrated control systems ensure consistent profile accuracy within ±1.5mm tolerances across production runs.

Technical Specifications of roof deck machine

High-Precision Forming Process

The forming system employs 24 to 36 progressive stations to shape high-tensile steel without surface micro-cracking. GCr15 roller material hardened to HRC 58-62 withstands abrasive oxide layers on coated steel, extending service life beyond 5 million meters.

Triple motor configuration distributes torque evenly across the drive train, preventing roller slippage during heavy-gauge material processing. The synchronized system maintains consistent rib geometry essential for composite slab applications where structural integrity depends on precise profile dimensions.

Specialized 3-axis straightening head (Turk's head) at discharge corrects bow, camber, and twist before cutting. This mechanical correction ensures your finished panels meet strict flatness standards required for high-rise construction where panel stacking and installation tolerances are critical.

Embossing Capability for Composite Action

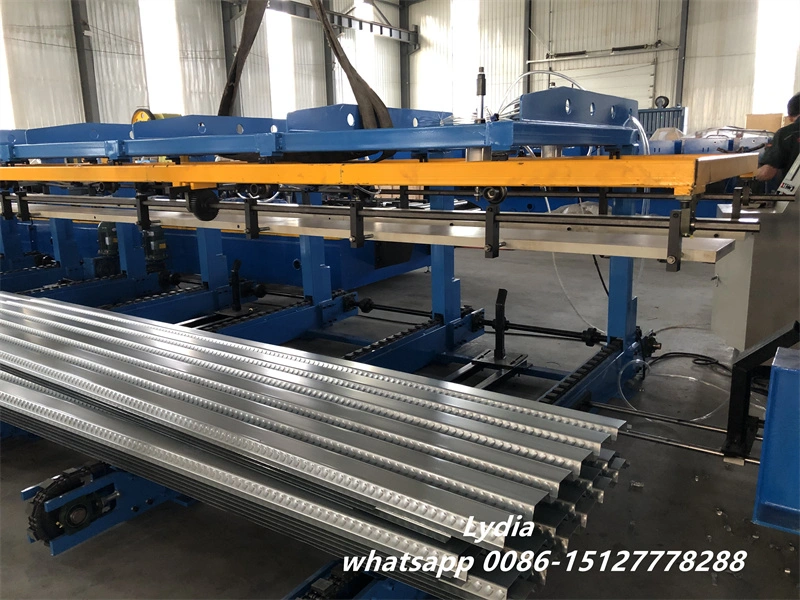

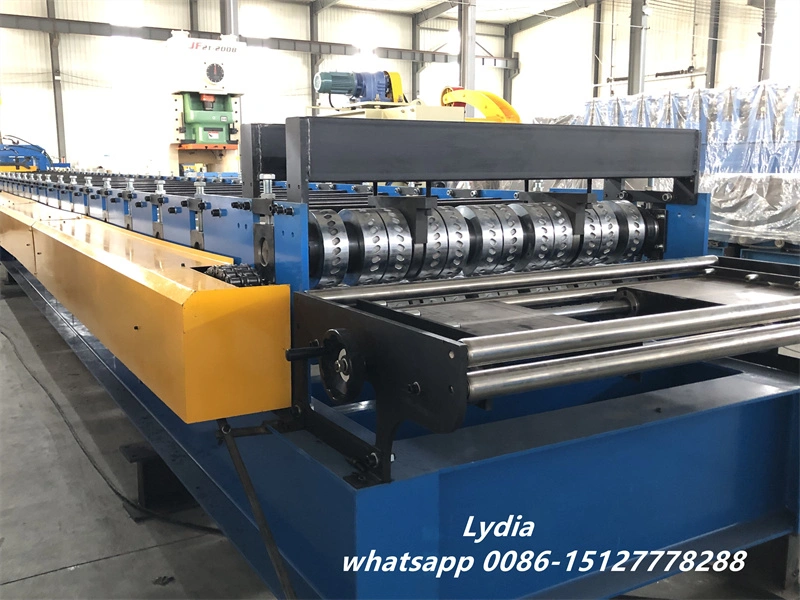

The 120mm diameter embossing shaft creates mechanical indentations that establish concrete-steel bond in composite floor systems. This friction pattern eliminates reliance on chemical adhesion, providing reliable structural performance in seismic zones and high-load applications.

Pattern depth consistency across the sheet width prevents uneven concrete distribution during pouring. Embossing engagement reduces stable production speed to 12-15m/min, balancing throughput with pattern uniformity while protecting gearbox components from excessive load.

Your roof deck machine can be configured for various embossing patterns matching regional structural codes. We optimize roller pressure distribution through FEA simulation, ensuring pattern clarity without material thinning that compromises load ratings.

Hydraulic Cutting System

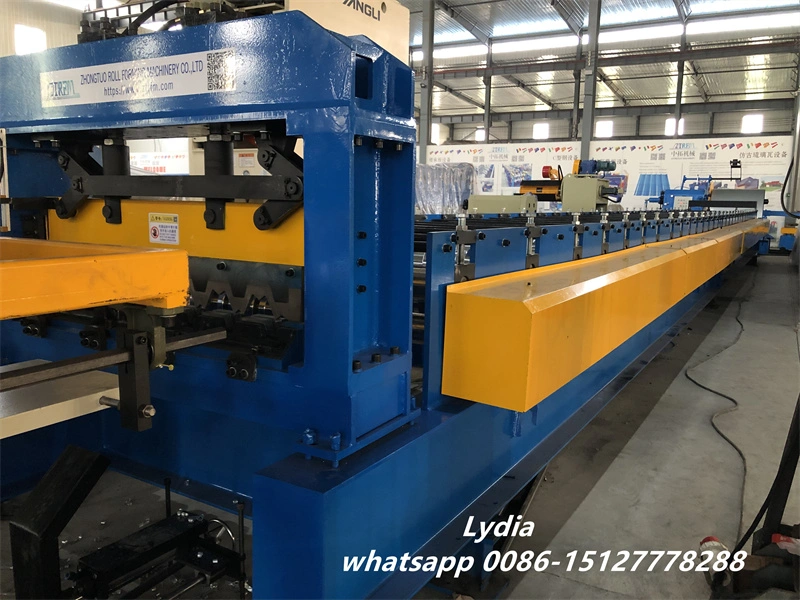

CR12MoV hydraulic shear blades deliver 500,000 to 1,000,000 cuts when processing 1.2mm galvanized steel. Precision-ground blade geometry with 0.05-0.1mm gap clearance produces burr-free ends that eliminate injury risks during installation and ensure clean joint butting.

Post-cutting servo systems provide flying cuts without stopping material flow, maximizing production efficiency. The 5.5kw hydraulic unit maintains consistent cutting pressure across blade life, preventing the deformation common in pneumatic systems.

Blade material selection and heat treatment directly impact your operational costs. We supply spare blade sets and provide monthly maintenance protocols to verify clearance tolerances, preventing the burrs that require costly secondary grinding operations.

Global Applications and Proven Performance

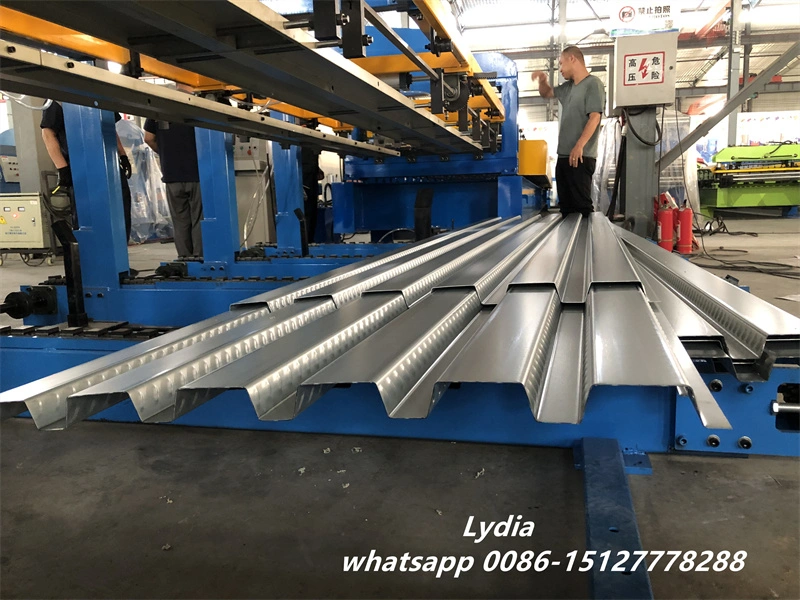

Our machines serve high-rise commercial construction producing composite floor decking that acts as permanent formwork and tensile reinforcement. Industrial warehousing facilities use our systems to manufacture open-web joist decking for heavy-duty mezzanines spanning larger support distances.

Infrastructure projects including airports and stadiums require long-span product output integrating with acoustic insulation layers. Profile accuracy ensures proper nesting during shipping and field installation where coverage width tolerances within +3/8″ to -1/8″ prevent panel fanning.

With exports to over 150 countries across Europe, North America, Middle East, Southeast Asia, and South America, Zhongtuo equipment meets diverse regional standards. Strategic partnerships with Siemens and recognition as Verified Pro Supplier on Alibaba.com demonstrate our commitment to manufacturing excellence.

FAQ

Q：Can one machine produce multiple deck profiles?

A：Standard machines require specific roller sets for each profile. However, cassette-type or double-layer configurations enable profile switching to save floor space, though initial investment increases accordingly.

Q：How do you prevent sheet curvature during production?

A：Uneven roller pressure causes twist and camber. Our specialized 3-axis Turk's head straightening system at discharge mechanically corrects deformation before cutting, ensuring dimensional compliance.

Q：What foundation requirements exist?

A：Machines weighing 10-15 tons require reinforced concrete foundations minimum 200mm depth. Level installation prevents frame distortion that causes profile inaccuracies and premature wear on bearing assemblies.

Q：How does material thickness affect blade life?

A：Processing 1.2mm steel with properly heat-treated CR12MoV blades achieves 500,000-1,000,000 cuts. Maintaining correct gap clearance and using quality blade steel directly impacts replacement intervals and per-piece production costs.

Q：Why does embossing reduce production speed?

A：Embossing adds significant friction load. Non-embossed decking runs at 25m/min, while embossing engagement reduces stable speed to 12-15m/min to ensure uniform pattern depth and protect drive components.
