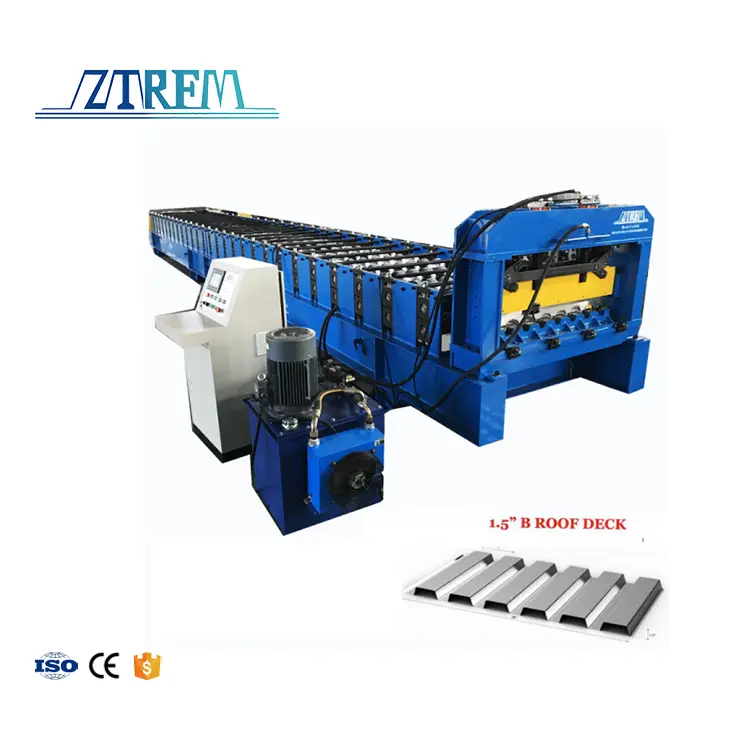

1.5″ B Wide Rib Roof Deck Machine

Enterprise-Grade Structural Deck Forming Solution with the 1.5″ B Wide Rib Roof Deck Machine

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. delivers the 1.5″ B Wide Rib Roof Deck Machine, a precision-engineered production line designed for fabricating SDI-compliant Type B structural metal decking. This heavy-duty system features 24-32 progressive forming stations with 95mm diameter roller shafts (120mm embossing shaft) and operates at 10-20m/min speed. Our machine processes 0.8-1.2mm galvanized or Galvalume coils with 235MPa yield strength, producing profiles with strict 1.5″ ±0.03″ rib depth tolerance and 6-inch center spacing. Powered by triple 11kw main motors for balanced forming pressure and integrated with PLC-controlled hydraulic cutting systems, it ensures burr-free panel ends and zero deformation during high-volume commercial roofing projects.

Core Performance Advantages

The product solves critical production challenges in structural decking manufacturing. Our CR12 mould steel hydraulic shear system delivers clean cuts without edge burrs, eliminating secondary finishing operations.

Chrome-treated No.45 steel rollers maintain zinc coating integrity throughout the forming process. The triple-motor power distribution prevents uneven stress that causes panel warping in competitor machines.

Your production gains dimensional consistency critical for nested shipping and field installation. The 120mm embossing shaft creates precise rib geometry that maintains structural load ratings across long spans.

Our PLC control system monitors forming pressure in real-time. This prevents the micro-cracking issues common when processing high-tensile steel through poorly calibrated equipment.

Technical Specifications of the 1.5″ B Wide Rib Roof Deck Machine

Primary Application Scenarios

Commercial Roofing Infrastructure: You can produce panels for distribution centers and warehouse projects where 20+ foot clear spans require maximum strength-to-weight ratios. The wide rib design supports built-up roofing systems and rigid insulation boards.

High-Rise Construction Projects: Your panels serve as structural substrates in multi-story steel frame buildings. The precision side-lap profiles our machine creates ensure proper diaphragm shear strength for seismic load transfer.

Retrofit and Renovation Work: When you need custom-length panels for canopy structures or deck replacement in constrained urban sites, our adjustable cutting system eliminates material waste from standard-length orders.

The machine adapts to both composite and non-composite floor applications. Your team can switch between roof deck and mezzanine panel production without tooling changes.

Quality Assurance Standards

Zhongtuo maintains ISO 9001, CE, and CAS certifications through rigorous inspection protocols. Every 1.5″ B Wide Rib Roof Deck Machine undergoes profile geometry verification before shipment.

We test rib depth accuracy within ±0.03″ tolerances using coordinate measuring equipment. Coverage width stays within +3/8″ to -1/8″ limits to prevent panel fanning during large-scale installations.

Side-lap fit testing ensures your panels interlock without excessive force. Our camber analysis limits deviation to 1/4″ per 20 feet, meeting ASTM straightness requirements.

Fly shear cut quality receives final inspection for burr-free ends. This protects installers and guarantees clean joint alignment in the field.

Advanced Manufacturing Intelligence

Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings AI-powered optimization to your production floor. Finite element analysis tools fine-tune roller profiles for minimal spring-back in high-tensile materials.

Virtual commissioning systems allow remote debugging before machine delivery. You benefit from cloud-based monitoring that provides predictive maintenance alerts and reduces downtime.

The research team developed pattern roller designs now patented and integrated into our equipment. These innovations enable processing of both traditional PPGI and new composite materials without profile quality loss.

Operational Support and Global Reach

Since 2014, Zhongtuo has exported roll forming solutions to over 150 countries across Europe, North America, the Middle East, Southeast Asia, and South America. Your investment includes technical training and comprehensive installation guidance.

Our expert team provides tailored design adjustments for regional building codes and material availability. Remote diagnostics support ensures quick resolution of operational questions regardless of your location.

We offer complete raw material sourcing including pre-painted coils and galvanized substrates. This one-stop service simplifies your supply chain management and guarantees material compatibility with machine specifications.

FAQ

Q：What steel grades can this machine process?

A：The system handles galvanized and Galvalume coils from 0.8-1.2mm thickness with 235MPa minimum yield strength. Higher-grade materials up to Grade 50 can be processed with roller adjustment.

Q：How does the triple-motor system improve production?

A：Three 11kw motors distribute forming pressure evenly across the roller stations. This eliminates the uneven stress concentration that causes edge waviness and center buckling in single-motor designs.

Q：Can you produce custom panel lengths?

A：Yes. The PLC-controlled hydraulic shear cuts panels to your specified dimensions during continuous operation. This just-in-time capability reduces storage needs and material waste on job sites.

Q：What makes the roller coating critical?

A：Chrome treatment on No.45 steel rollers prevents zinc coating damage during forming. Uncoated rollers scratch galvanized surfaces, compromising corrosion resistance and causing customer rejections.

Q：Do you provide installation and training?

A：We include on-site commissioning, operator training, and virtual debugging support. Our cloud monitoring system enables remote troubleshooting and performance optimization throughout the machine's service life.

Contact Us

Ready to enhance your structural deck production capacity with the 1.5″ B Wide Rib Roof Deck Machine? Reach out to our technical team at zhongtuorollforming@gmail.com  for customized solutions and detailed quotations tailored to your project requirements.
