HR-36 roof panel Machine

HR-36 Roof Panel Machine: Industrial-Grade Metal Roofing Production Line

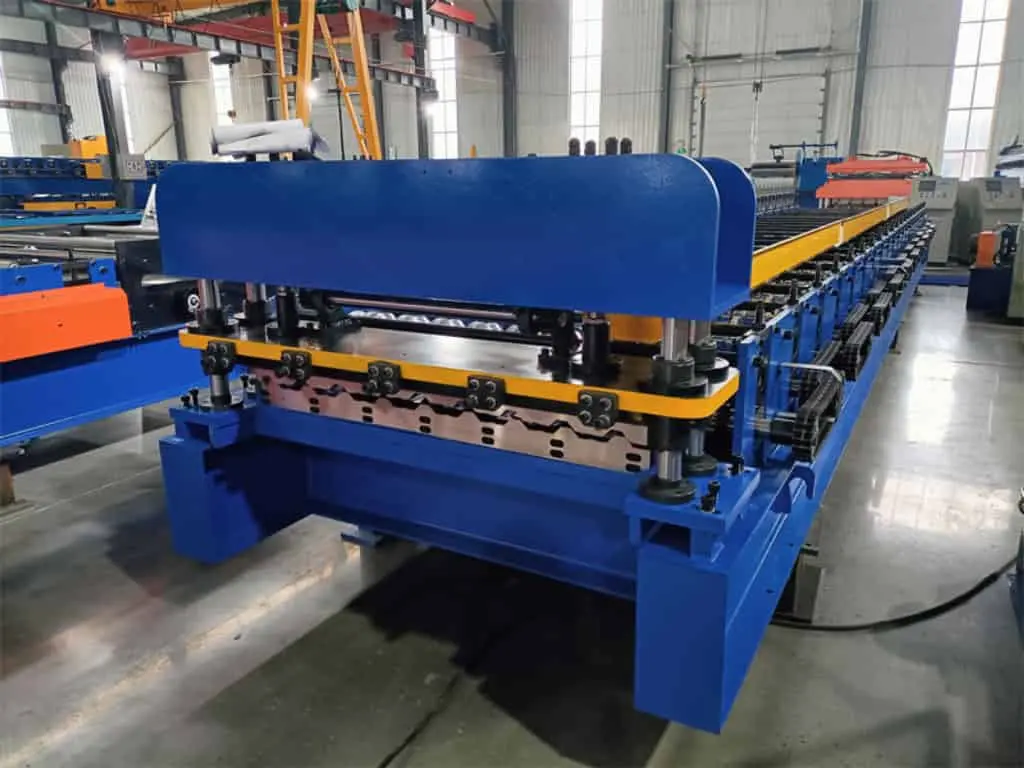

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. manufactures the HR-36 roof panel Machine, an enterprise-level cold roll forming production line engineered for high-rib metal roofing and siding fabrication. This industrial system transforms high-tensile steel coils into structural panels with 36-inch net coverage, featuring 1.5-inch trapezoidal ribs at 7.2-inch pitch. Our production line operates at speeds up to 30-40m/min with flying shear systems, processing materials from 24-gauge to 22-gauge steel and .032" aluminum. The equipment incorporates 20+ precision roller stations crafted from Cr12MoV hardened steel, ensuring consistent anti-capillary groove formation that eliminates water siphoning in overlapping joints—a critical requirement for Pre-Engineered Building envelopes spanning up to 6 feet between purlins.

Advanced Forming Technology with the HR-36 roof panel Machine

The machine employs gradual deformation technology across multiple stations to prevent springback and coating damage. Your production benefits from our university-backed research integration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center.

Each roller station undergoes finite element analysis optimization before manufacturing. This ensures consistent rib alignment and eliminates oil canning defects common in manual fabrication methods.

The hydraulic cutting system features adjustable blade gap clearance, maintaining clean edges throughout extended production runs. Cr12MoV cutting blades require regrinding only after 100,000 cuts, minimizing downtime and operational costs.

Anti-capillary groove formation occurs automatically during the rolling process. This specialized bead creates an air gap in side laps, breaking water tension to prevent moisture infiltration in overlapping joints.

Technical Specifications That Matter to Your Operation

Industrial Application Scenarios

Pre-Engineered Metal Buildings: Your warehouse and distribution center projects benefit from long-span structural panels. The deep rib profile allows wider purlin spacing up to 5-6 feet, reducing total structural steel costs by 15-20% compared to shallow profiles.

Commercial Roofing Systems: Retail centers and supermarkets require weather-tight sealing against heavy precipitation. The precise overlapping rib design ensures architectural uniformity while providing superior water runoff performance on large-footprint roofing applications.

Agricultural Facilities: Livestock housing and pole barns in corrosive environments demand durable cladding solutions. The equipment processes aluminum-zinc coated steel with controlled forming stress, preventing micro-cracking of protective coatings when exposed to ammonia and moisture.

Retrofit Industrial Cladding: Aging facilities utilize continuous, joint-free panel lengths for both vertical siding and roofing. Eliminating end-laps proves essential for leak prevention in regions experiencing high precipitation or extreme thermal expansion cycles.

Quality Assurance Standards

Cangzhou Zhongtuo operates under ISO 9001 Quality Management System Certification, ensuring rigorous quality control throughout manufacturing. Our production facilities hold European CE Safety Certification and North American CAS Certification, meeting stringent international safety standards.

As a national-level high-tech enterprise established in 2014, we maintain strategic cooperation with Siemens for intelligent control systems. Our equipment incorporates cloud-based remote monitoring capabilities, supporting long-distance diagnostics and after-sales service across 150+ countries.

Each machine undergoes virtual commissioning and AI-powered simulation testing before shipment with the HR-36 roof panel Machine. This reduces on-site installation time and ensures your production line achieves specified output rates immediately upon startup.

Production Efficiency Advantages

Your operational costs decrease through automated coil-to-panel conversion. The system eliminates manual bending labor while producing cut-to-length panels that minimize field cutting waste by up to 40%.

Flying shear systems achieve 35-40 m/min production speeds by cutting during continuous coil movement. This configuration suits high-volume orders requiring rapid turnaround for large construction projects.

Stop-to-cut systems provide economical entry points for medium-volume operations, delivering 15-20 m/min speeds with simplified maintenance requirements. Both configurations maintain consistent panel quality throughout extended production shifts.

Adjustable entry guides accommodate mill tolerance variations in coil width, ensuring proper material tracking without manual realignment. This feature proves critical when processing materials from multiple steel suppliers.

FAQ

Q：Can the machine process full hard Grade 80 steel?

A：Yes, when equipped with appropriate forming gaps and gradual station progression. The 20+ station configuration minimizes springback in high-tensile materials, maintaining dimensional accuracy throughout the hardening range.

Q：What maintenance schedule ensures optimal performance?

A：Monthly hydraulic oil level checks and blade gap clearance inspections prevent cutting defects. The Cr12MoV blades typically operate for 100,000 cuts before requiring professional regrinding services.

Q：Does the system accommodate variable coil widths?

A：The machine operates as a fixed-width profile system requiring 48-inch (1220mm) coil input for 36-inch coverage output. Entry guides adjust for minor mill tolerances, but significant width changes require roller spacer modifications.

Q：How does production speed affect panel quality?

A：Speed selection depends on your order volume requirements. Flying shear systems maintain quality at higher speeds through synchronized cutting, while stop-to-cut configurations ensure precision for complex length sequences.

Q：What determines the maximum panel length?

A：Output lengths from 3 feet to 20 feet 10 inches depend on your runout table configuration and handling equipment. Extended lengths require additional support rollers to prevent sagging during transport.

Contact Us

Ready to enhance your metal roofing production capacity with the HR-36 roof panel Machine? Contact us at zhongtuorollforming@gmail.com  for technical specifications and quotations.
