trapezoidal roofing sheet making machine

High-Performance Industrial Roll Forming Solution with the trapezoidal roofing sheet making machine

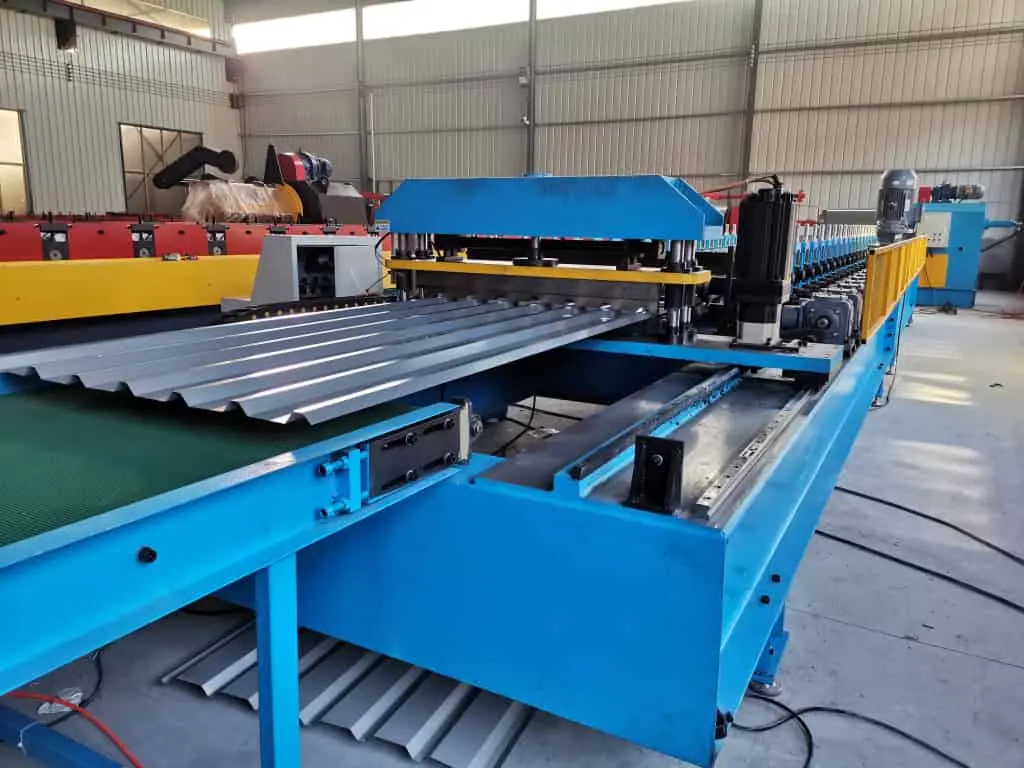

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. manufactures precision-engineered trapezoidal roofing sheet making machines designed for industrial-scale metal forming applications. Established in 2014 as a national-level high-tech enterprise, our equipment transforms flat metal coils into structural trapezoidal profiles with dimensional tolerances within ±1mm for width and ±0.5mm for height.

Our machines feature 18-24 progressive roller stations with chrome-plated GCr15 bearing steel rollers, achieving production speeds of 15-25m/min while processing materials from 0.3mm to 0.8mm thickness. Equipped with industrial-grade PLC control systems and hydraulic cutting mechanisms using Cr12MoV blade material (HRC 58-62), these systems deliver consistent profile accuracy essential for leak-proof roofing installations across 150+ countries.

Core Technology Advantages of trapezoidal roofing sheet making machine

Your manufacturing success depends on equipment that delivers both precision and durability. Our machines incorporate advanced design features developed through collaboration with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center.

The chrome-plated roller system prevents surface damage to pre-painted materials during high-pressure forming. This protects your investment in premium PPGI coatings and eliminates costly product rejections. Synchronized linear speed across all stations ensures uniform material flow without friction-induced abrasion.

Our finite element analysis-optimized roller geometry minimizes spring-back effects when processing high-tensile steel grades up to G550. The solid steel shaft construction (70-90mm diameter) withstands extreme torque without deflection, maintaining profile consistency throughout extended production runs.

AI-powered virtual commissioning reduces installation time and allows remote diagnostics. Cloud-based monitoring systems enable real-time performance tracking, giving you operational visibility regardless of facility location.

Industrial Applications

Warehousing and factory facilities benefit from trapezoidal profiles' exceptional strength-to-weight ratio. The deep trough geometry handles high-volume water runoff in tropical climates while maintaining structural integrity under snow loads.

Commercial roofing contractors value the precise side-lap fit that prevents water ingress during wind-driven rain. Custom panel lengths from 3 feet to over 20 feet reduce joinery points and installation time.

Agricultural buildings, composite sandwich panel production, and perimeter fencing applications rely on these machines' ability to form rigid vertical cladding. Processing materials up to 500MPa yield strength without cracking or excessive spring-back ensures dimensional stability in demanding environments.

Technical Specifications

Quality Assurance Process

Every machine undergoes multi-stage verification before shipment. Profile dimensional accuracy testing confirms effective cover width and rib height meet specified tolerances. Roller surface finish inspections use both visual and tactile methods to detect any imperfections that could damage your raw materials.

Hydraulic system pressure tests run under full load conditions to verify pump performance and identify potential leak points. Run-out trials with 1-2 tons of coil material check for end flare deformation and profile twisting.

Electrical safety audits verify proper grounding, emergency stop responsiveness, and PLC logic reliability under voltage fluctuation scenarios with the trapezoidal roofing sheet making machine. These comprehensive checks protect your operators and ensure consistent output quality.

Customization Capabilities

Standard configurations handle G250-G350 steel grades efficiently. For higher-tensile materials like G550, we upgrade motor power, increase shaft diameter, and adjust forming station gaps to compensate for spring-back characteristics.

Double-layer roller configurations enable production of two different profiles on a single machine frame. Cassette-type systems with changeable roller bases provide maximum flexibility for businesses serving diverse customer requirements.

Mobile forming units bring production directly to construction sites, eliminating transport limitations for long-span projects. Adjustable entry guides accommodate varying coil widths without tooling changes.

Maintenance and Support

The Cr12MoV steel cutter blade typically requires sharpening or replacement after 1-2 years of standard operation. Regular lubrication of sliding components and gap clearance checks between upper and lower blades prevent burr formation.

Our technical team provides comprehensive training on roller clearance adjustment, ensuring optimal material thickness accommodation. Preventive maintenance schedules extend equipment lifespan and minimize unplanned downtime.

Remote monitoring capabilities enable our engineers to diagnose issues and provide solutions without site visits. This reduces your operational interruptions and maintains production continuity.

Research and Development Foundation

Our partnership with Yanshan University's engineering center drives continuous innovation. PhD and master's-level researchers work directly in our production facilities, applying advanced simulation tools to optimize forming processes.

Finite element feedback loops continuously refine forming accuracy based on real-world performance data. Virtual debugging combined with real-time control systems reduces commissioning time for new installations.

This academic-industrial collaboration has produced two patented technologies currently implemented across our product line. These innovations enhance precision, stability, and cost-effectiveness for customers worldwide.

FAQ

Q：Can your equipment process aluminum materials?

​​​​​​​A：Yes, our machines handle .032″ aluminum along with steel materials. Roller pressure adjustments and speed modifications ensure proper forming without work-hardening or surface damage.

Q：What determines production speed capabilities?

A：Stop-to-cut hydraulic systems typically operate at 15-20m/min. Upgrading to fly-saw or non-stop cutting systems enables speeds up to 40-60m/min, requiring servo motor controls for precision synchronization.

Q：How do you ensure paint protection on coated materials?

A：Highly polished chrome-plated rollers combined with synchronized station speeds prevent friction damage. Precise roller clearance matching material thickness eliminates compression-induced coating cracks.

Q：Is multi-profile production possible?

A：Standard machines produce one specific profile due to fixed roller geometry. We offer double-layer configurations or cassette-type systems with interchangeable roller sets for businesses requiring profile versatility.

Q：What warranty coverage do you provide?

A：We offer comprehensive warranty terms covering manufacturing defects and component failures. Extended support packages include annual inspections, consumable parts supply, and priority technical assistance.

Contact Us

Ready to enhance your metal forming capabilities with the trapezoidal roofing sheet making machine? Contact our engineering team at zhongtuorollforming@gmail.com  for detailed specifications, customization options, and project consultation.
