R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market


Stable Transmission: Double chain and gear drive,keynote rollers design.

Easy Operation:Only need to set orders on the PLC control station,very easy operation .
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market

Profile drawing for reference:

Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand,R101 roofing sheet is most popular in Mexico market.
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving
table
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market
R101 Roofing Sheet Roll Forming Machine Hot Sale To Mexico

Raw Material
PPGI,PPGL
Material Thickness:24/26 Gauge (0.4-0.6 Mm)
Machine Frame
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Roller Material
45# steel, chromed on the surface
Forming Stations
Roller Stations :21 Rows
Diameter Of Shafts
Φ80mm Solid
Material Of Shafts
High Grade 45#,With Heat Treatment
Forming Speed
15 M/Min
Voltage
380v/50hz/3p (As Requested)
Transmission Way
By 1 Inch Chain (Double Chains)
Main Motor
5.5 KW
Cutting Blade Material
Gcr12 quenched treatment
Cutting Type
hydraulic post cutting
Driving Method
By pillar type Cylinder
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market
5T Manual Decolier For Free
Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market

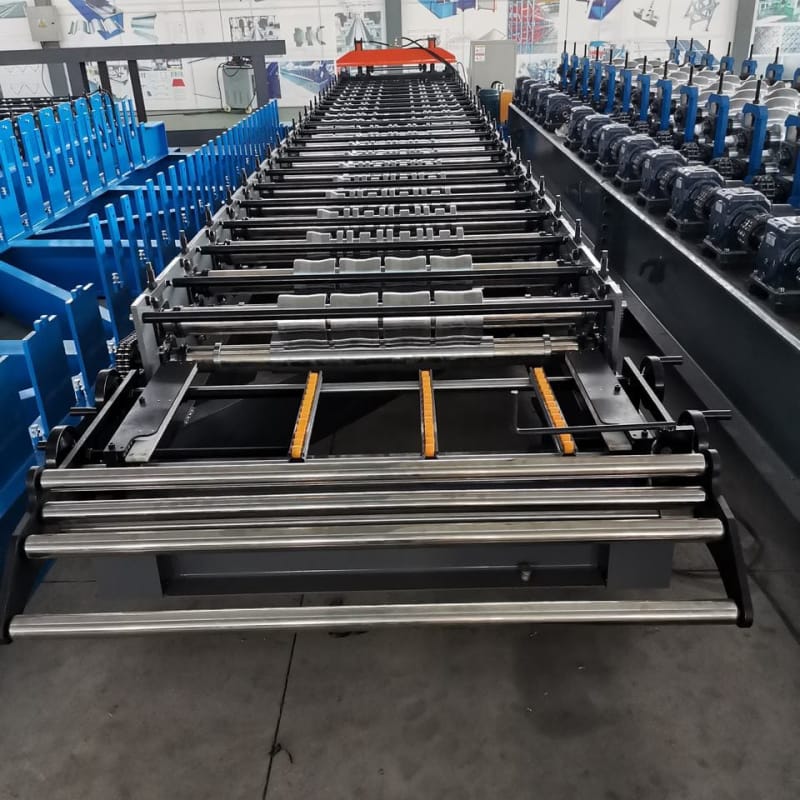

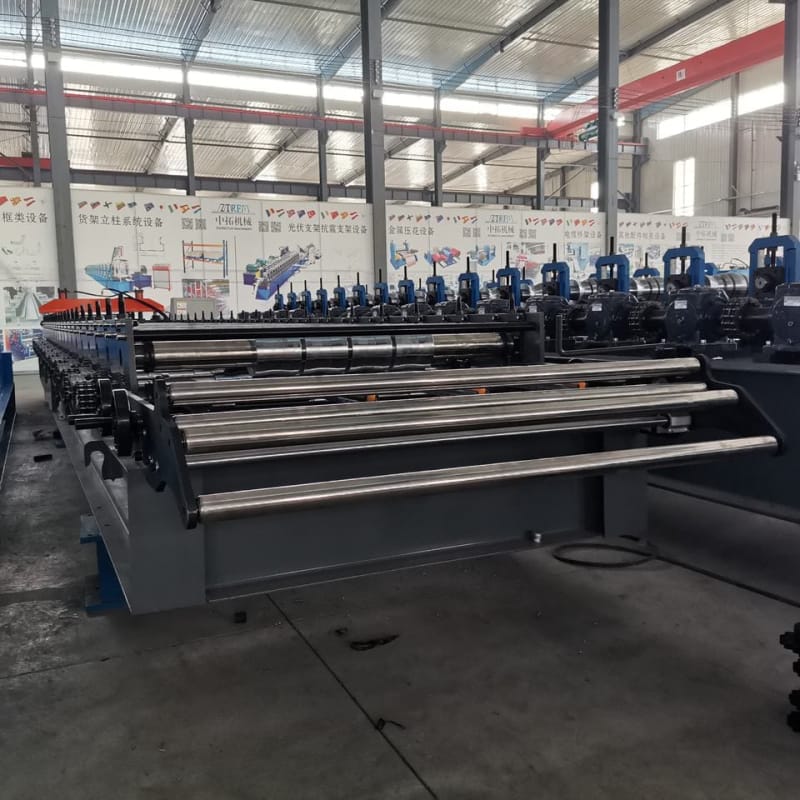

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market
Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market

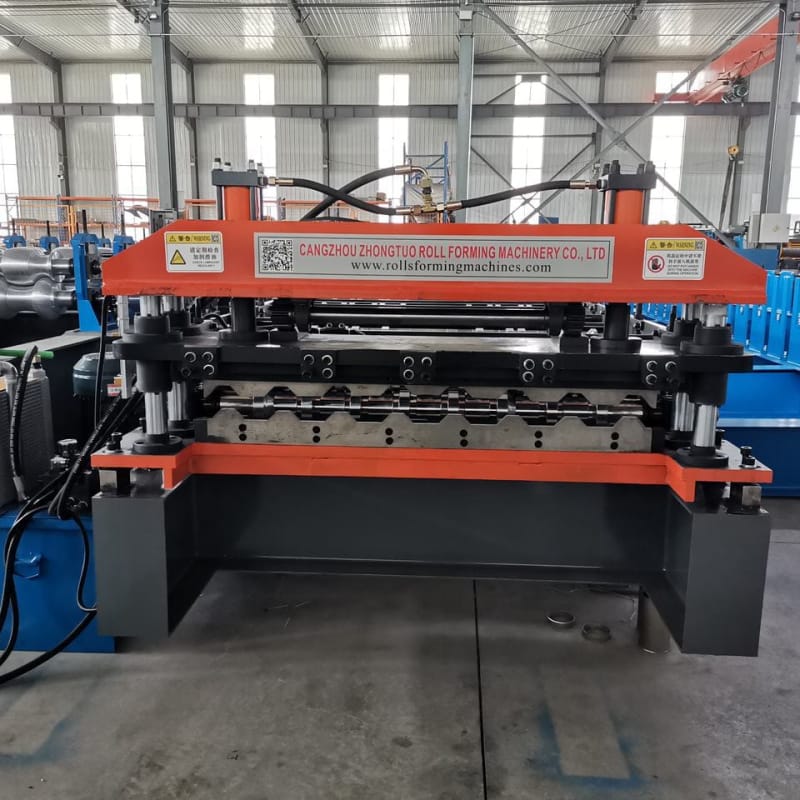

Hydraulic Cutting Device
We use four pillars cutting system structure, it can make sure the cutting stable
PLC control system
R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

R101 trapezoidal roof tile making machine ibr roof sheet machine popular in Mexico market
Hydraulic station
● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
