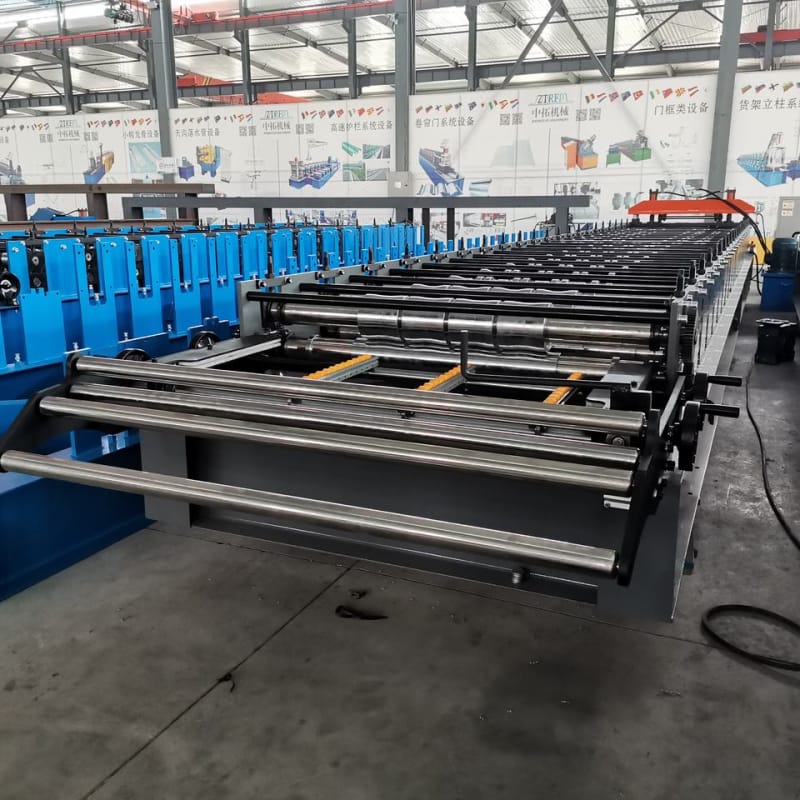

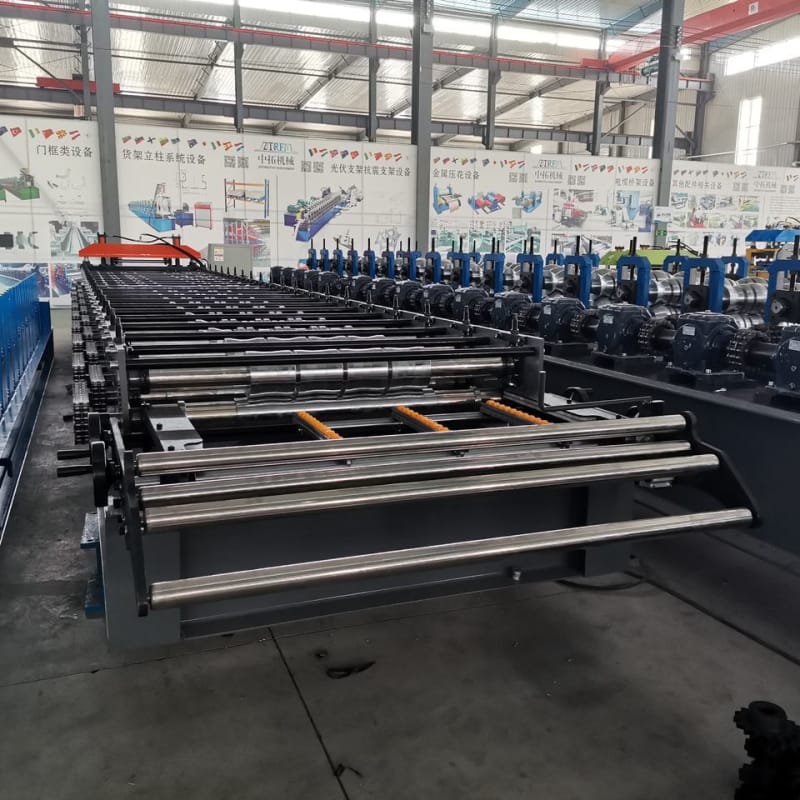

Trapezoidal Roof Sheet Roll Forming Machine
Stable Transmission: Double chain and gear drive,keynote rollers design.
Easy Operation:Only need to set orders on the PLC control station,very easy operation.
Profile drawing for reference:
Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.
Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table
R Panel Roll Forming Machine Hot Sale To America
Material Thickness:24/26 Gauge （0.4-0.6 Mm)
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers
High grade 45# forged steel,Chromed treatment
Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Roller Stations :18 Rows
Diameter Of Shafts
Material Of Shafts
High Grade 45#,With Heat Treatment
380v/50hz/3p (As Requested)
By 1 Inch Chain (Double Chains)
Cutting Blade Material
Gcr12 quenched treatment

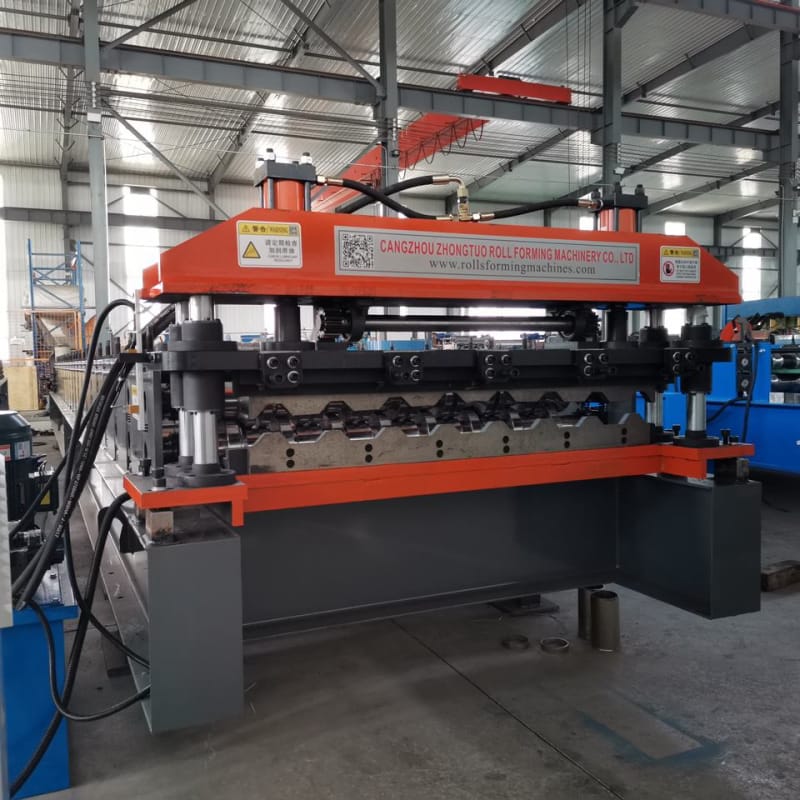

hydraulic post cutting
By pillar type Cylinder
