Dovetail roof decking roll forming machine

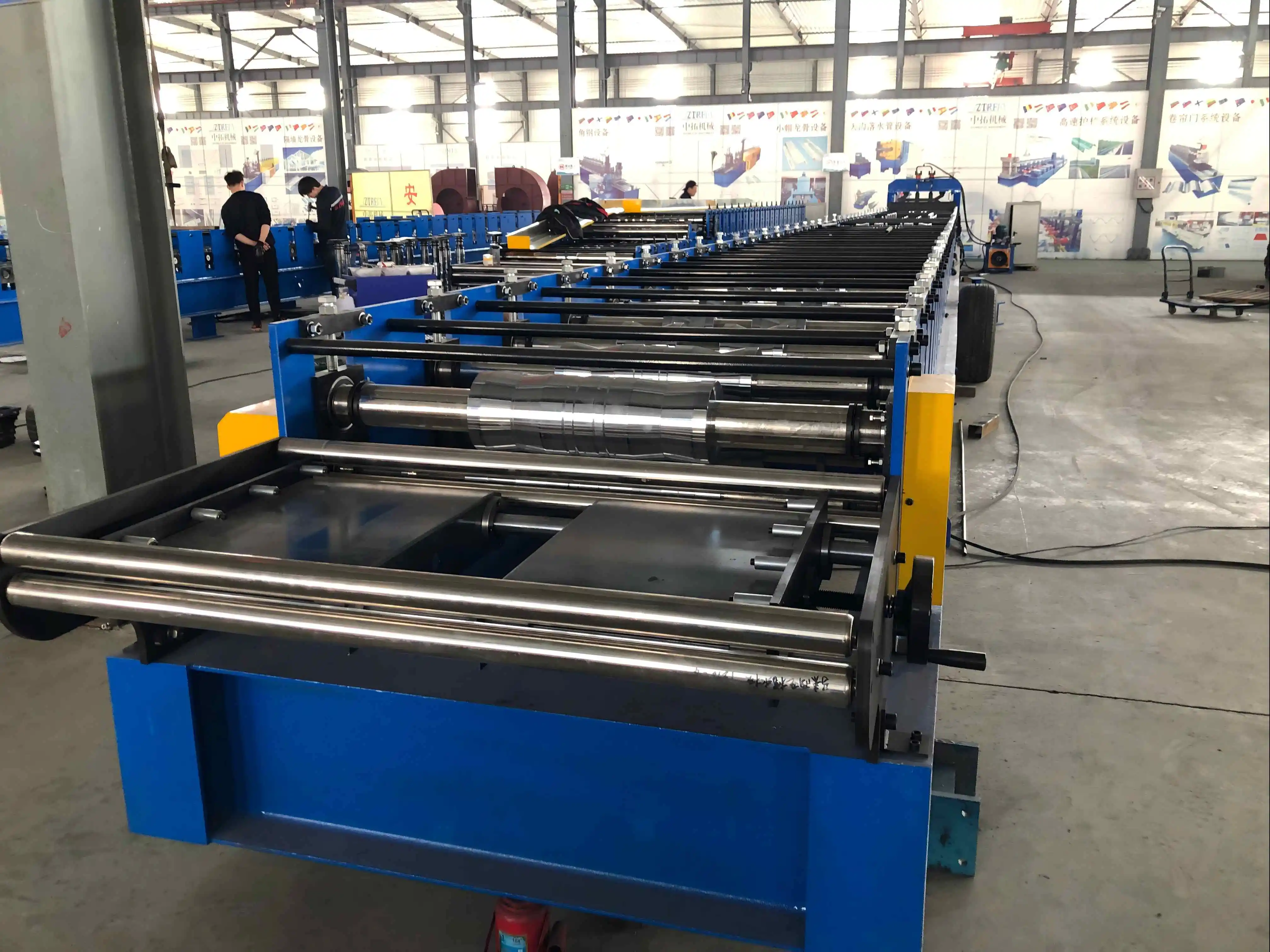

Professional Manufacturing Solution for Composite Floor Systems of Dovetail roof decking roll forming machine

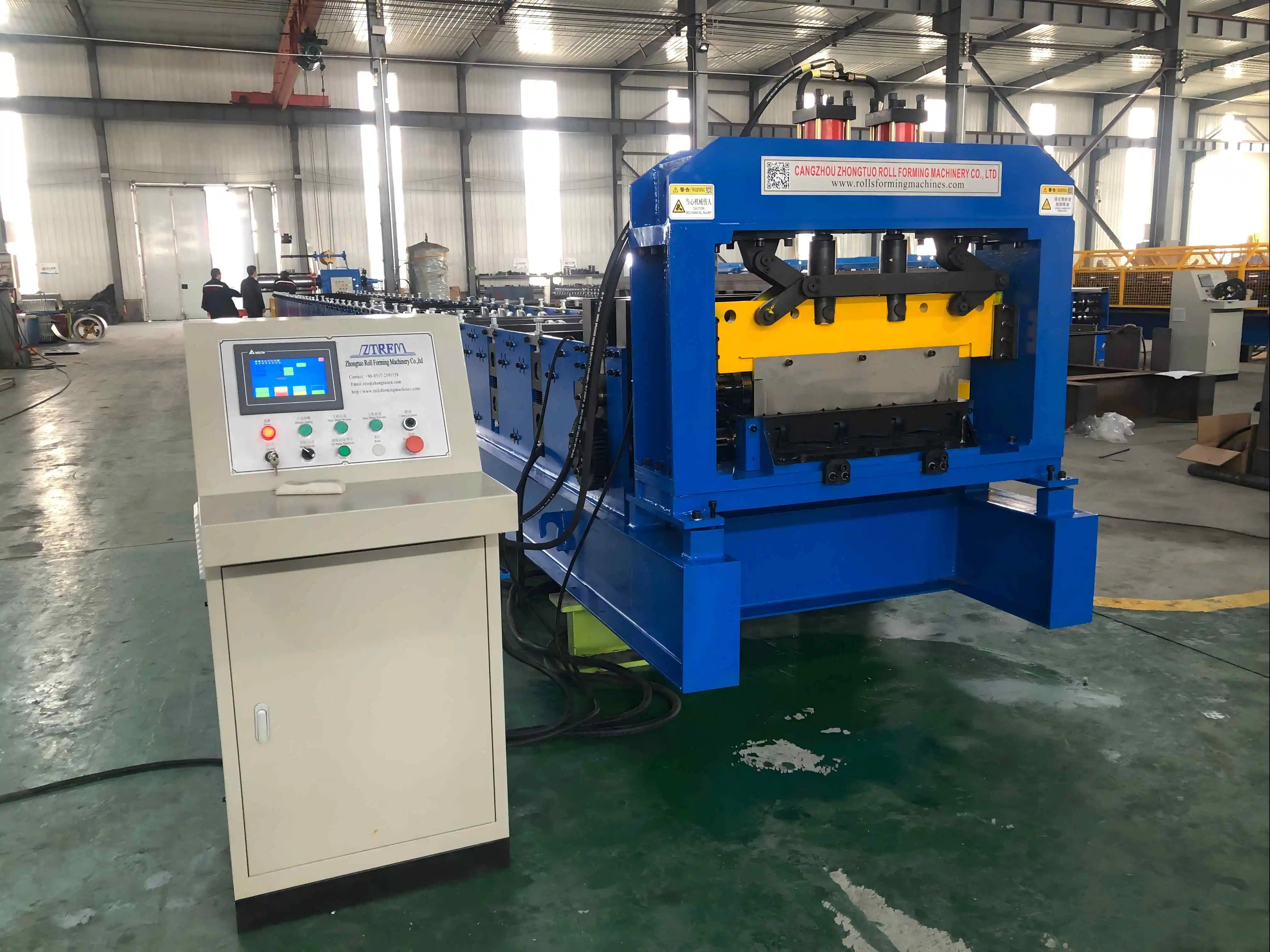

Cangzhou Zhongtuo delivers the Dovetail roof decking roll forming machine as a precision-engineered solution for manufacturing re-entrant steel deck profiles. Our equipment handles material thickness from 0.8mm to 1.5mm with forming speeds of 15-20 meters per minute. Featuring 28 roller stations, a 90mm diameter shaft, and an 11+11 kW dual-motor system, this machine ensures accurate profile geometry and minimal stress concentration. With 15-ton decoiler capacity and automatic operation, it addresses critical industry demands for composite floor structures in high-rise buildings and complex architectural projects.

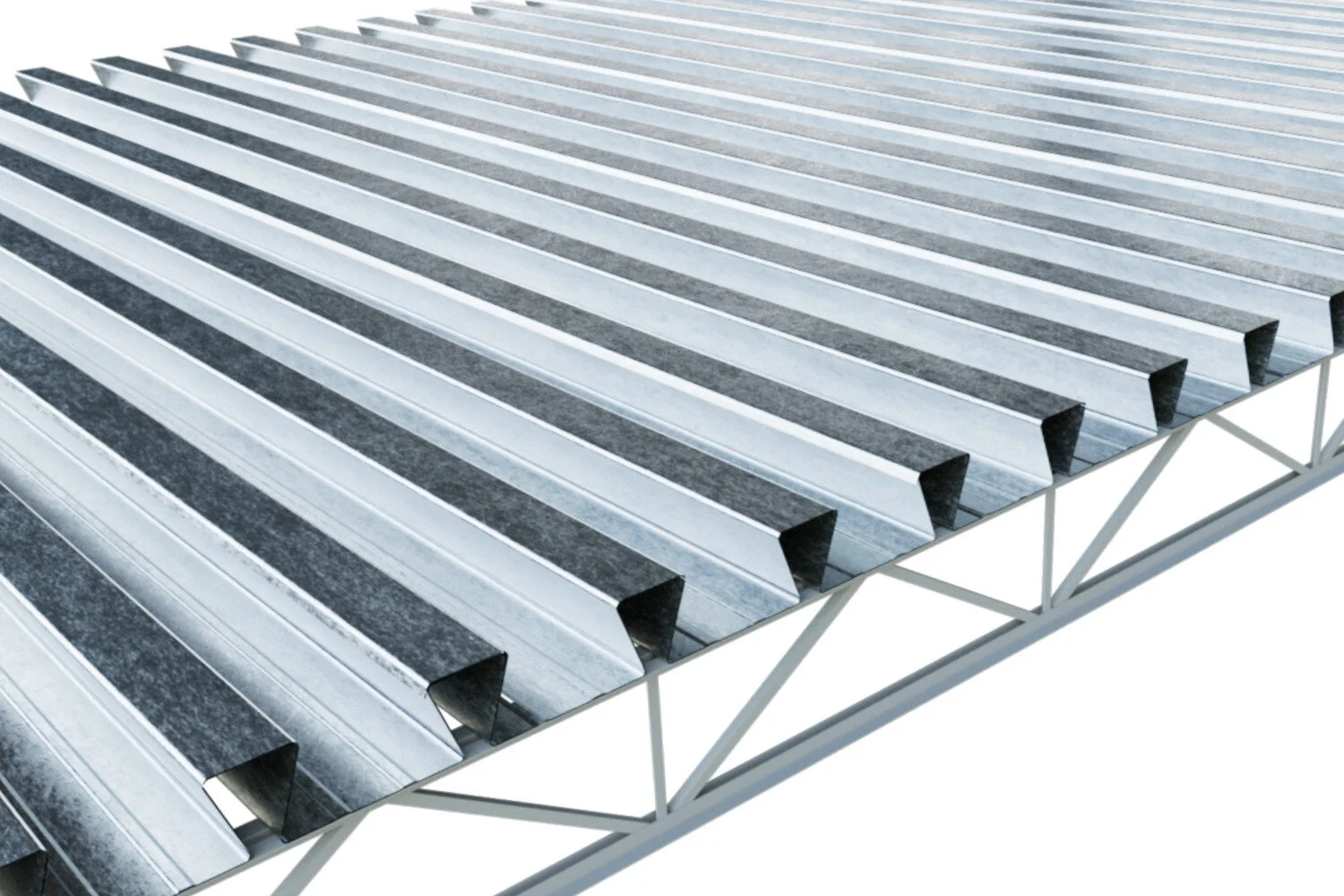

What Makes Dovetail Decking Unique?

The dovetail profile features a distinctive wedge-shaped cavity that differs fundamentally from standard trapezoidal decking. This re-entrant design creates superior mechanical interlocking between steel and concrete in composite floor systems.

The unique geometry prevents vertical separation of concrete, which is essential in seismic zones. Traditional deck profiles rely mainly on shear studs, but dovetail patterns provide additional structural bonding.

This profile type also solves a common construction challenge. You can install MEP utilities directly using wedge anchors within the grooves, eliminating the need to drill into cured concrete later.

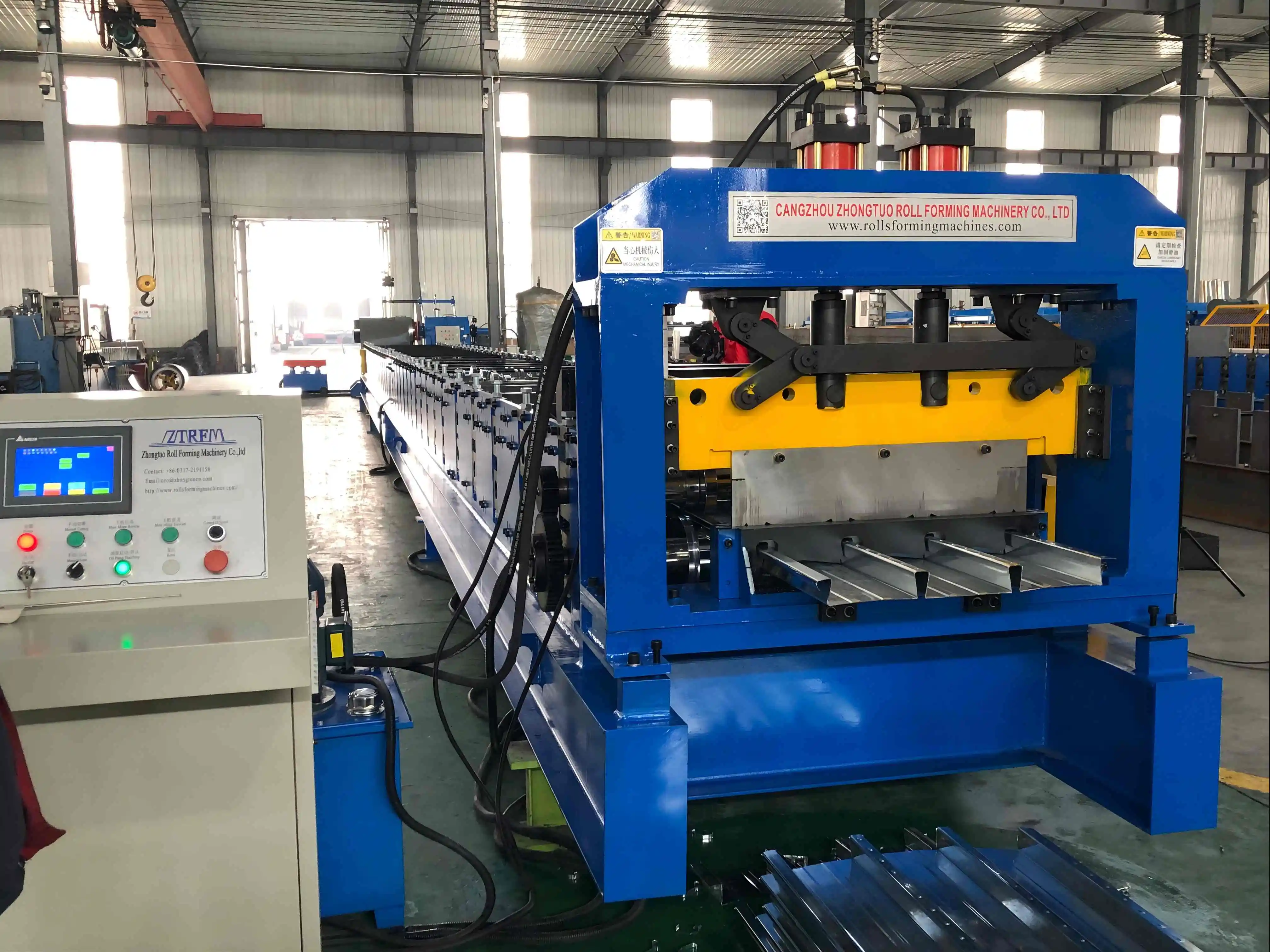

Technical Specifications of Dovetail roof decking roll forming machine

Key Applications in Modern Construction

High-Rise Composite Floor Systems: In skyscrapers where reduced slab thickness matters, the dovetail profile provides superior tensile reinforcement. The mechanical interlock prevents concrete separation, which is critical for seismic performance.

Complex MEP Installations: Hospitals, laboratories, and data centers require extensive overhead utility systems. The dovetail groove allows flexible installation of HVAC ducts and piping using wedge anchors while maintaining fire rating integrity.

Acoustic Architectural Ceilings: Stadiums, airports, and concert halls benefit from exposed ceiling designs. When equipped with pre-punching units, the machine produces perforated decks that accommodate sound-absorbing insulation within the ribs, creating functional acoustic solutions with clean aesthetics.

Quality Control and Precision

Profile geometry verification uses custom gauges to check re-entrant angles and rib depth. Even slight deviations can prevent utility hangers from locking correctly during installation.

Cover width and camber measurements ensure proper nesting and flat installation over long spans. Our hydraulic cutting system produces clean edges without collapsing the dovetail shape.

Surface coating protection is maintained through highly polished rollers on the Dovetail roof decking roll forming machine. This prevents scratching the galvanized layer, ensuring long-term corrosion resistance that meets ASTM A653 standards.

Manufacturing Excellence Since 2014

Zhongtuo has evolved from a specialized equipment manufacturer into a national-level high-tech enterprise. Our partnership with Yanshan University's National Cold Rolled Strip Equipment Engineering Research Center brings advanced FEA simulation and AI-assisted design into production.

We hold ISO 9001, CE, and CAS certifications, demonstrating commitment to international quality standards. Our equipment has reached over 150 countries, serving diverse construction markets across Europe, North America, the Middle East, and Southeast Asia.

Graduate researchers work directly at our factory, implementing virtual debugging systems and remote monitoring capabilities. This integration of academic research with practical manufacturing accelerates innovation and enhances equipment reliability.

FAQ

Q：Can the machine handle high-tensile G90 galvanized steel without coating damage?

A：Yes, our gradual forming process with 28 stations minimizes stress concentrations. This prevents micro-cracking in the zinc coating, even when processing high-tensile materials up to 550 MPa yield strength.

Q：How do you prevent material twisting during deep profile formation?

A：We incorporate straightening mechanisms throughout the forming line. These systems correct twist, bow, and camber before the profile reaches the cutting station, ensuring dimensional accuracy.

Q：What maintenance does the cutting system require?

A：The Cr12MoV cutting blades should be inspected every 500 operating hours. Regular maintenance prevents burrs and profile deformation at cut ends, maintaining product quality over extended production runs.

Q：Can this equipment produce perforated acoustic decks?

A：Yes, with an auxiliary rotary punching unit installed before the main forming stations. The roll design accounts for reduced structural rigidity when transporting perforated material through the dies.

Q：What safety features are included?

A：The product includes photocell barriers, multiple emergency stop buttons, and protective covers over all moving parts. These safety systems comply with CE machinery directive requirements.

Contact Us

Ready to enhance your steel decking production capabilities with the Dovetail roof decking roll forming machine? Contact our technical team at zhongtuorollforming@gmail.com  for customized specifications and expert consultation.
