Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

Automatic multi-size C-Channels & Box Channels rolling forming machine is designed to make the many sizes C profiles by one machine.

Automatic multi-size C-Channels & Box Channels rolling forming machine

Automatic multi-size C-Channels & Box Channels rolling forming machine is designed to make the many sizes C profiles by one machine. C Channel & Box Channel thicknesses vary from .003″ thick up to .150″ thick. On 1/4 & 1/2 hard aluminum, Aluminum C Channel & Aluminum Box Channel thicknesses can reach up to .250″ thick. Many different decorative pre-coated metals are generally not recommended when more than .030″ thickness is required unless larger than normal corner radii can be used. Some coatings can be used, however, up to .125″ thick such as a pre-finished Hot Dip Galvanized coating. Box Channel & C-Channel Lengths may be from 3″ thru 40 feet long with close tolerances. Many different lengths can be put on one purchase order. Here are some sizes for your reference:

Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

C Channels & Box Channels have many popular uses.

C Channels, Box Channels, Open Seam: Square and Rectangular Tubing are used in almost all industries for any possible application such as in this brief summary of other known terms:By this they can use two C channel instead of on metal tube.

Automatic multi-size C-Channels & Box Channels rolling forming machine

Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

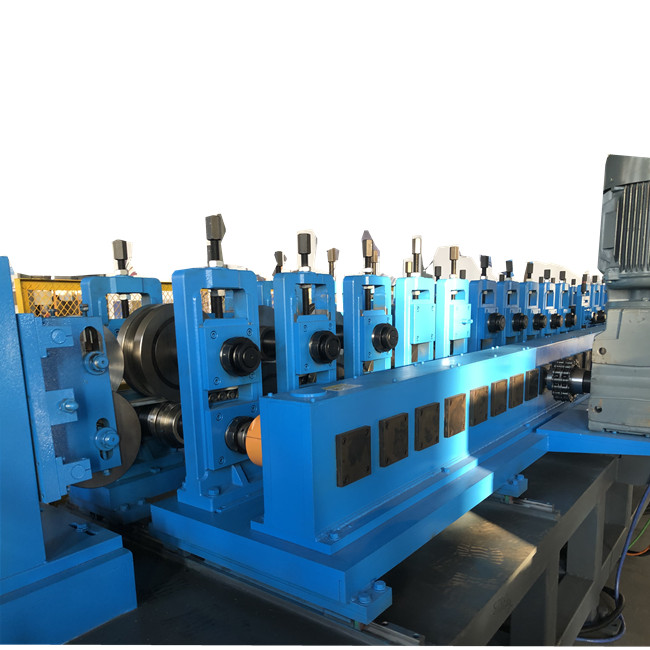

Main roll forming machine
Note: We use split rollers to realize one machine to produce C profile products with different bottom widths.
Voltage380V ,50Hz, 3Phase (as customer request)
Frame typeMemorial arch frame of thickness 30mm
Drive modeHeavy duty gearbox as transmission
Material of rollersGCr12mov
Material of shafts45# steel with tempering
Diameter of shaftsΦ70mm
Number of rollers15 rollers With more rib roller one more station and 4 sets rib adjustable rollers
Main power7.5 kw and with one more motors 11kw
Raw MaterialsGalvanized steel plate
Material thickness0.5-1.5 mm
Forming speed50 m per minute without punching hole



Machine working flow for your reference:

Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

More details of the Automatic multi-size C-Channels & Box Channels rolling forming machine:

Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

Shearing Mechanism Automatic multi-size C-Channels & Box Channels rolling forming machine:

Automatic Multi-size C-channels & Box Channels Rolling Forming Machine

Advantages of Automatic multi-size C-Channels & Box Channels rolling forming machine:

  1. Pressure roller material: Stainless steel and then it will not damage the coil and never go rusting.
  2. Split rollers to realize one machine to produce C drywall products with different bottom widths.
  3. Fully automatic PLC control.
  4. It supports both manual adjustment and PLC adjusting for different sizes.
  5. High speed to 50 meter per minute.
  6. It supports online punching
  7. Logo adding and others.

Automatic multi-size C-Channels & Box Channels rolling forming machine working videos for your reference:
