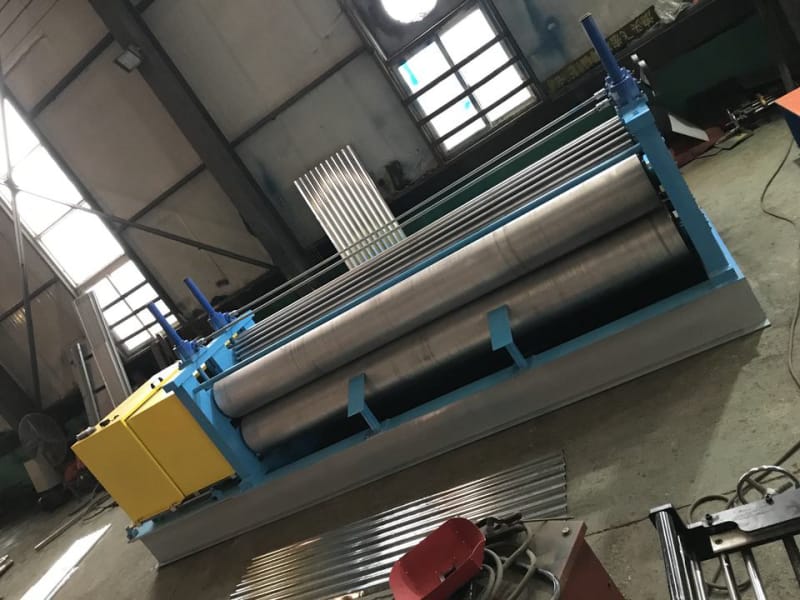

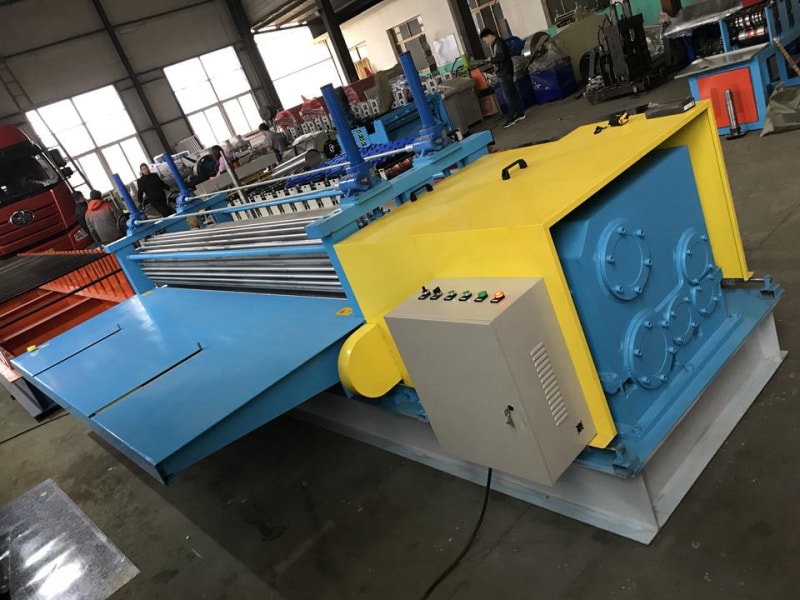

Barrel Corrugated Roof Sheet Making Machine
Design Idea：
Fast Speed:the machine speed is about 20-60 pieces/min,if material very thin,can make 3 pieces at the same time.
Fast Speed:the machine speed is about 20-60 pieces/min,if material very thin,can make 3 pieces at the same time.
Forming Thin Material:Thin material such like 0.12-0.3mm thicknessis very popular in Africa market, so this machine is very popular in that market.
Profile drawing for reference:
USually this machine only produce corrugated sheet ,this is the drawing as followed:
Barrel Corrugated Roof Sheet Making Machine | |
Raw Material | PPGI,PPGL |
Material thickness:（0.12-0.3 mm) | |
Material Of Rollers | High grade 45# forged steel |
Forming stations | 2 sets (4 pieces) |
Roller diameter | 450mm |
Forming speed | 2-3 seconds per piece |
Voltage | 380V/50HZ/3P (as requested) |
Main motor | 7.5 KW |
Common Problem
Because the raw material is relatively thin, the two ends of the product are prone to rebound, but our machine gear shaft has more processing procedures than others, so this problem can be effectively avoided
