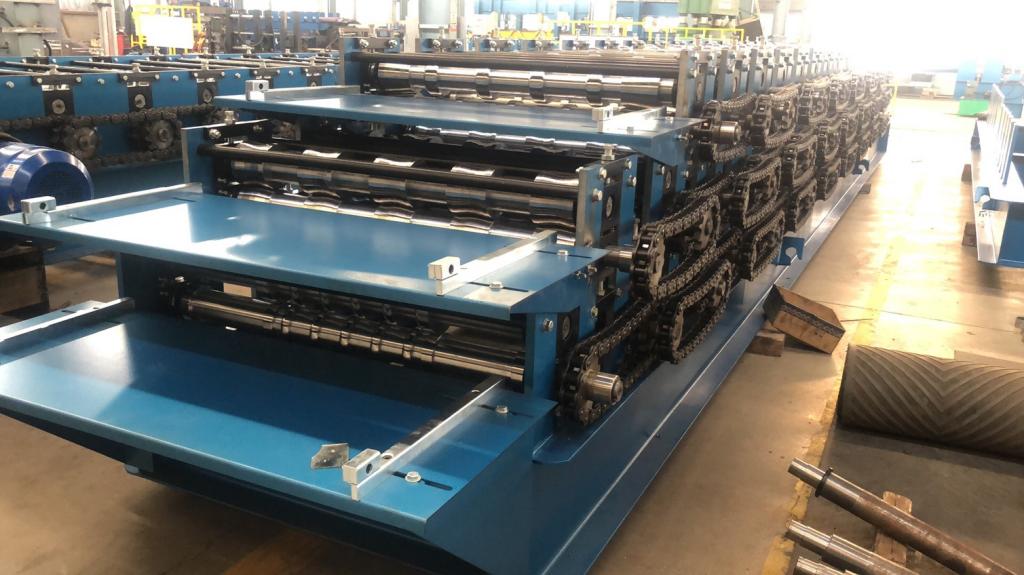

Triple layer roll forming machine is the roll forming machine which can produce 3 products of the roofing sheet:Roof tile,IBR sheet and corrugated sheet.The finished product can be customized as customer’s request.

Triple Layer Roofing Sheet Roll Forming Machine is used to produce the Metal sheet Roofing sheet for roof and wall,this one machine can produce 3 types of roofing sheet:Step tile,IBR sheet and corrugated sheet.

The pictures of the sheet:











We also support customization as customer’s request,such as the shape,the size and the thickness of the finished product.

The application of the Metal roofing sheet:











The working process of the Triple layer roll forming machine:

Decoiling–Feeding–Forming–Cutting–Product receive table

The technical specification of the Triple layer roll forming machine:

Part 1: Decoiler
1.Capacity5 tons
2.Suitable coil widthMax 1250mm
3.Suitable coil inner diameter450-550mm
4.Working typeManual or hydraulic as optional
Part 2:Main roll former
1.Main frame350# H steel welded
2.Shaft material45# steel,solid guaranteed
3.Shaft diameter80mm
4.Roller material45# steel,surface with chromed treatment to improve the hardness of the roller
5.Motor power7.5kw
6.TransmissionBy chain
Part 3:Hydraulic cutting system
1.Cutting typeHydraulic cutting
2.Hydraulic station power5.5 kw
3.Cooling systemFan cooling
Part 4:Control system
1.Control systemPLC
2.BrandSiemens,Delta or Mitsubishi
3.Encoder brandOmron
4.LanguageChinese/English/Spanish/French/Arabic

Part 5:Product receive table
1.Length3 meters
2.Working typeManual or automatic as optional



The triple layer roofing sheet roll forming mahine working video:
