Description of The Popular Drip Edge Roll Former in the US:
This Popular Drip Edge Roll Former can produce drip edge profiles with different sizes and specifications in mass production. Normally the production speed of this drip edge roll former is 45 m/min. And certified with different patents in accordance with CE Certified, EUROPEAN quality standards, our drip edge roll forming machine is well known for its stable performance. Prompt delivery for ready machines in stock is also available for this series.
Parameter of The Popular Drip Edge Roll Former in the US
| Machine parameters | ||
| Main roll forming machine | Voltage | 220V 50Hz 3Phase (as customer request) |
| Frame type | One side molding frame and one side steel wall plate | |
| Drive mode | Chain drive | |
| Material of rollers | GCr12 MOV | |
| Material of shafts | 45# steel with tempering | |
| Forming speed | 45 m per minute | |
| Shearing Mechanism | Material of blades | GCr12 quenched |
| Cutting power | 7.5kw | |
| Receiving table | Table quantity | 1 set |
| Table length | 3 m per set | |
| Hydraulic station | Hydraulic motor Power | 7.5kw |
| Hydraulic oil | 46# hydraulic oil | |
| Cooling system | With cooling fan | |
| PLC control system | Language | Chinese and English or as customized |
| Voltage | 220V 50Hz 3 Phase (as customer request) | |
| Length measurement | Automatically controlled by PLC | |
| Quantity measurement | Automatically controlled by PLC | |
| Length Tolerance | 3m±1.5mm | |
| Operating panel | Touching screen and button together | |
| Brand of PLC | Delta (Taiwan) | |
| Low voltage electrical apparatus | Schneider | |
| Counter | OMRON | |
Different Types of The Popular Drip Edge Roll Former in the US
There are four main types of the popular drip edge roll former: FHA Profile roll forming machine, F5 profile roll forming machine, 90° DRIP EDGE and flashing roll forming machine, and Step Flashing Roll Forming Machine. You can choose the appropriate style according to your actual needs.
1. FHA Profile Roll Forming Machine
| Main technical parameters | ||
| Brief introduction | Material type | Galvalume |
| Material thickness | 0.46mm | |
| Material Yield Strength | N/mm2 = 380 | |
| Material Width | 152.4mm | |
| Weight of Coil | 2500kg | |
| Double head hydraulic decoiler 1.5T (total 3 tons) | Loading capacity | 1.5T+1.5T |
| Double head hydraulic decoiler 1.5T (total 3 tons) | Uncoiling width | 300mm |
| Inner diameter | 450-550mm | |
| Power | Hydraulic power tensioning and looseningand Electric power for turning | |
| Details of the decoiler | Large frame: 150*150*6 square tube, 25mm thick iron plate welding Spindle : 146*45mm seamless steel pipe 45# Tension cylinder diameter : 125*80mm Tension stroke: 470-525mm Rotation mode: electric rotation, motor 0.75kw Host feeding: passive feeding, wireless remote control of the control system Host load-bearing :single head 1.5T, double head 3T Main hydraulic pump station power : 3kw | |
| Feeding Part | Pressure roller material | Stainless steel |
| Feeding width adjustment | Manual | |
| Embossing roller | Material | 40Cr |
| Pattern | Orange peel | |
| Profie |  | |
2. F5 Profile Roll Forming Machine
Our F5 profile Roofing edge trim roll forming machine for different models based on different designs or customer’s samples. It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
| Brief introduction | Material type | Galvalume |
| Material thickness | 0.46mm | |
| Material Yield Strength | N/mm2 = 380 | |
| Material Width | 150mm | |
| Weight of Coil | 2500kg | |
| Double head hydraulic decoiler 1.5T (total 3 tons) | Loading capacity | 1.5T+1.5T |
| Uncoiling width | 300mm | |
| Inner diameter | 450-550mm | |
| Power | Hydraulic power tensioning and looseningand Electric power for turning | |
| Details of the decoiler | Large frame: 150*150*6 square tube, 25mm thick iron plate welding Spindle : 146*45mm seamless steel pipe 45# Tension cylinder diameter : 125*80mm Tension stroke: 470-525mm Rotation mode: electric rotation, motor 0.75kw Host feeding: passive feeding, wireless remote control of the control system Host load-bearing :single head 1.5T, double head 3T Main hydraulic pump station power : 3kw | |
| Feeding Part | Pressure roller material | Stainless steel |
| Feeding width adjustment | Manual | |
| Profile |  | |
3. 90° DRIP EDGE and Flashing Roll Forming Machine
| Brief introduction | Material type | Galvalume |
| Material thickness | 0.46mm | |
| Material Yield Strength | N/mm2 = 380 | |
| Material Width | 150mm | |
| Weight of Coil | 2500kg | |
| Double head hydraulic decoiler 1.5T (total 3 tons) | Loading capacity | 1.5T+1.5T |
| Uncoiling width | 300mm | |
| Inner diameter | 450-550mm | |
| Power | Hydraulic power tensioning and looseningand Electric power for turning | |
| Details of the decoiler | Large frame: 150*150*6 square tube, 25mm thick iron plate welding Spindle : 146*45mm seamless steel pipe 45# Tension cylinder diameter : 125*80mm Tension stroke: 470-525mm Rotation mode: electric rotation, motor 0.75kw Host feeding: passive feeding, wireless remote control of the control system Host load-bearing :single head 1.5T, double head 3T Main hydraulic pump station power : 3kw | |
| Feeding Part | Pressure roller material | Stainless steel |
| Feeding width adjustment | Manual | |

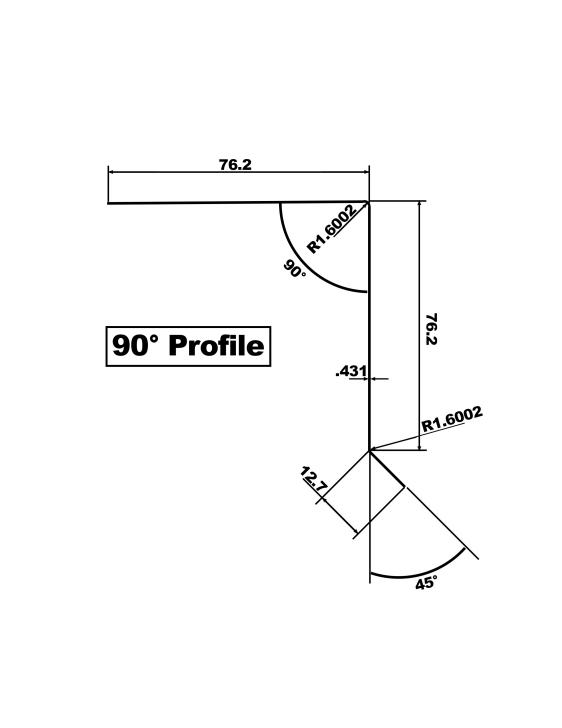

| Profile |  | |
4. Step Flashing Roll Forming Machine
| Brief introduction | Material type | Galvalume |
| Material thickness | 0.46mm | |
| Material Yield Strength | N/mm2 = 334 | |
| Material Width | 254mm | |
| Weight of Coil | 4500kg | |
| 2.5T double head decoiler | Loading capacity | 2.5T+2.5 |
| Uncoiling width | 450mm | |
| Inner diameter | 450-550mm | |
| Power | Hydraulic power tensioning and looseningand Electric power for turning | |
| Feeding Part | Pressure roller material | Stainless steel |
| Feeding width adjustment | Manual | |
| Profile |  | |
