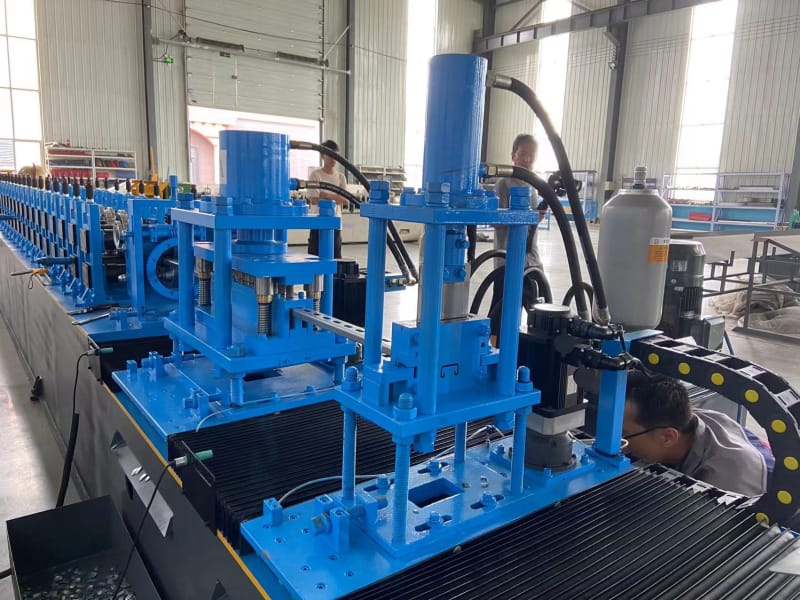

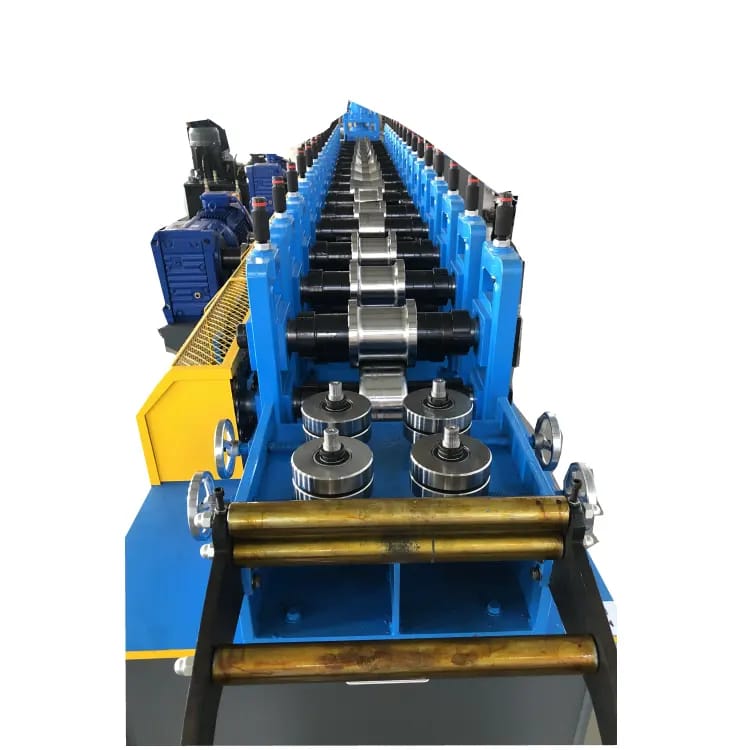

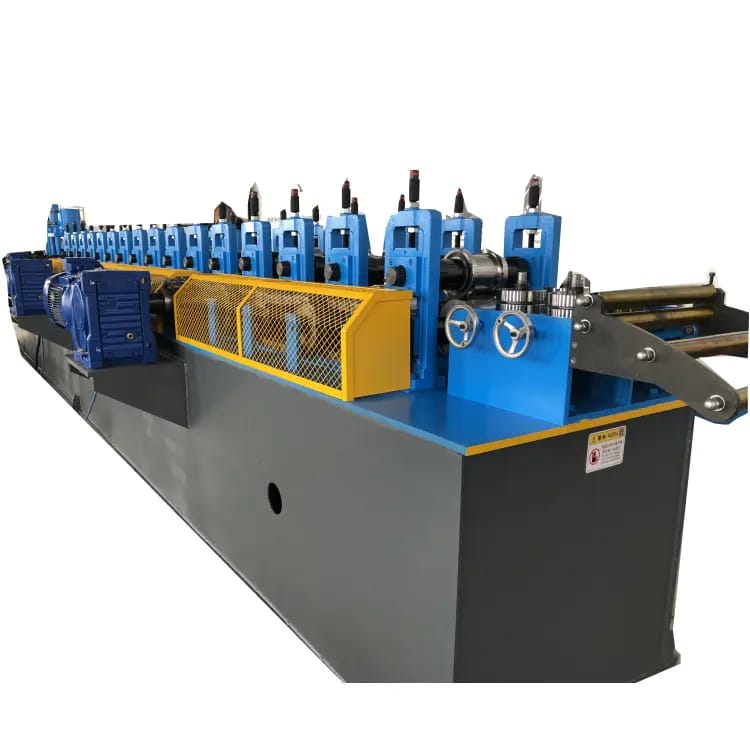

Solar Mounting Structure Strut Channel Rolling Forming Machine
Solar panel mounting bracket profile rolling forming machine is designed to make solar panel mounting bracket profile in batch fully automatically. The solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system. The general materials are aluminum alloy, carbon steel and stainless steel.
The pictures for the finished product:
![the picture of solar panel bracket](https://www.ztrfm.com/wp-content/uploads/2023/08/20230829158.jpg)
Drawing Profile:
![Drawing Profile of the Solar Panel Bracket](https://www.ztrfm.com/wp-content/uploads/2023/08/2023082964.jpg)
Working flow as below:
![working flow of the solar panel bracket machine](https://www.ztrfm.com/wp-content/uploads/2023/08/20230829116.jpg)
Some Parameters of the Machine:
Solar Mounting Structure Strut Channel Rolling Forming Machine | |
Forming steps | 16 steps |
Outer diameter | 60mm |
Machine frame (type) | pillar frame |
Thickness of memorial arch frame | 30mm |
Roller Raw material | GCr12MoV |
Quenched degree | 56-58°C |
Shaft material | 45# steel with heat treats and hard chrome plated on the surface |
Main motor power | 18.5kw |
Voltage | 380V 50HZ 3P or customized |
Working material | galvanized steel |
Material Thickness | 1.5 to 2.5mm |
