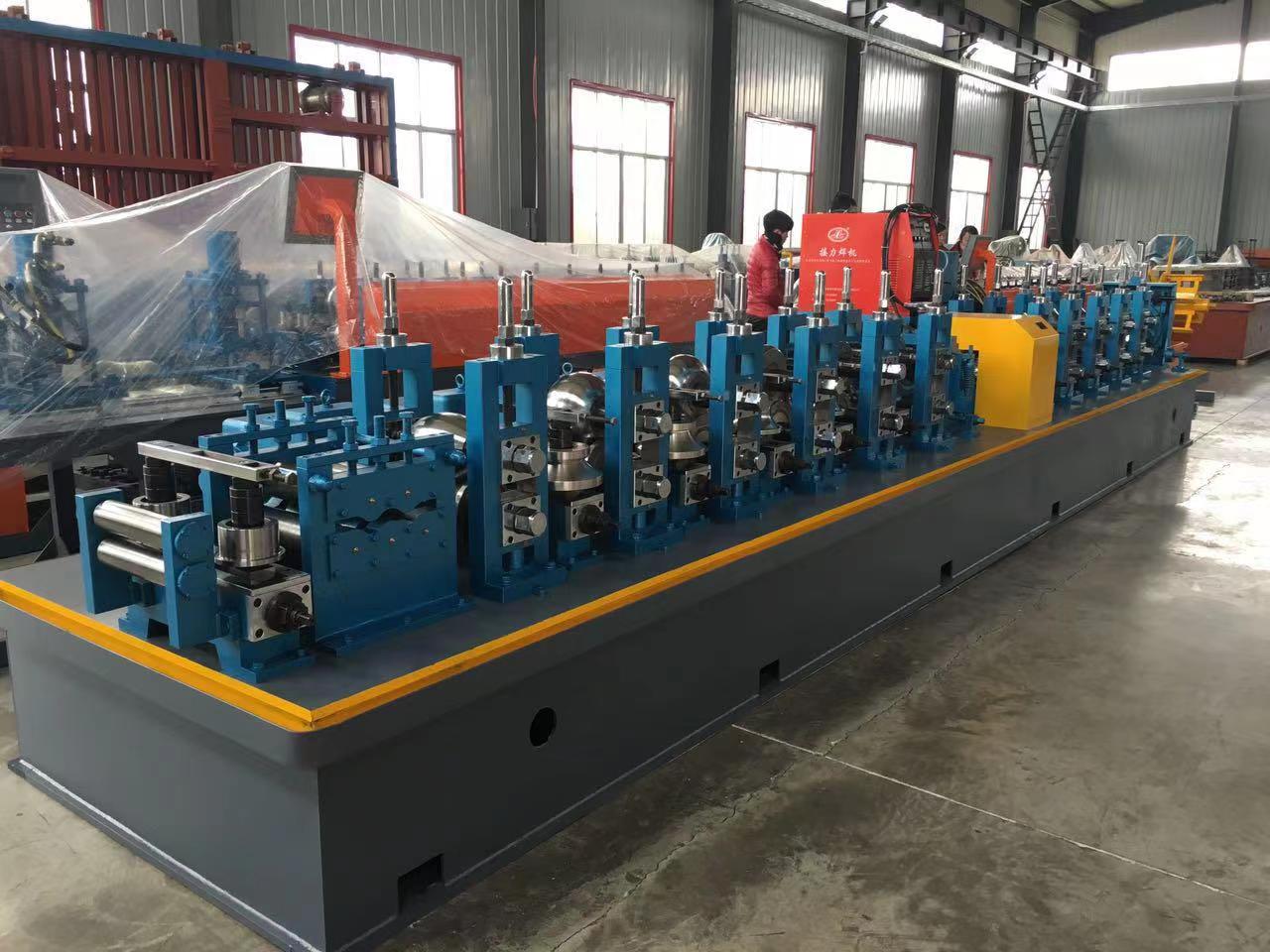

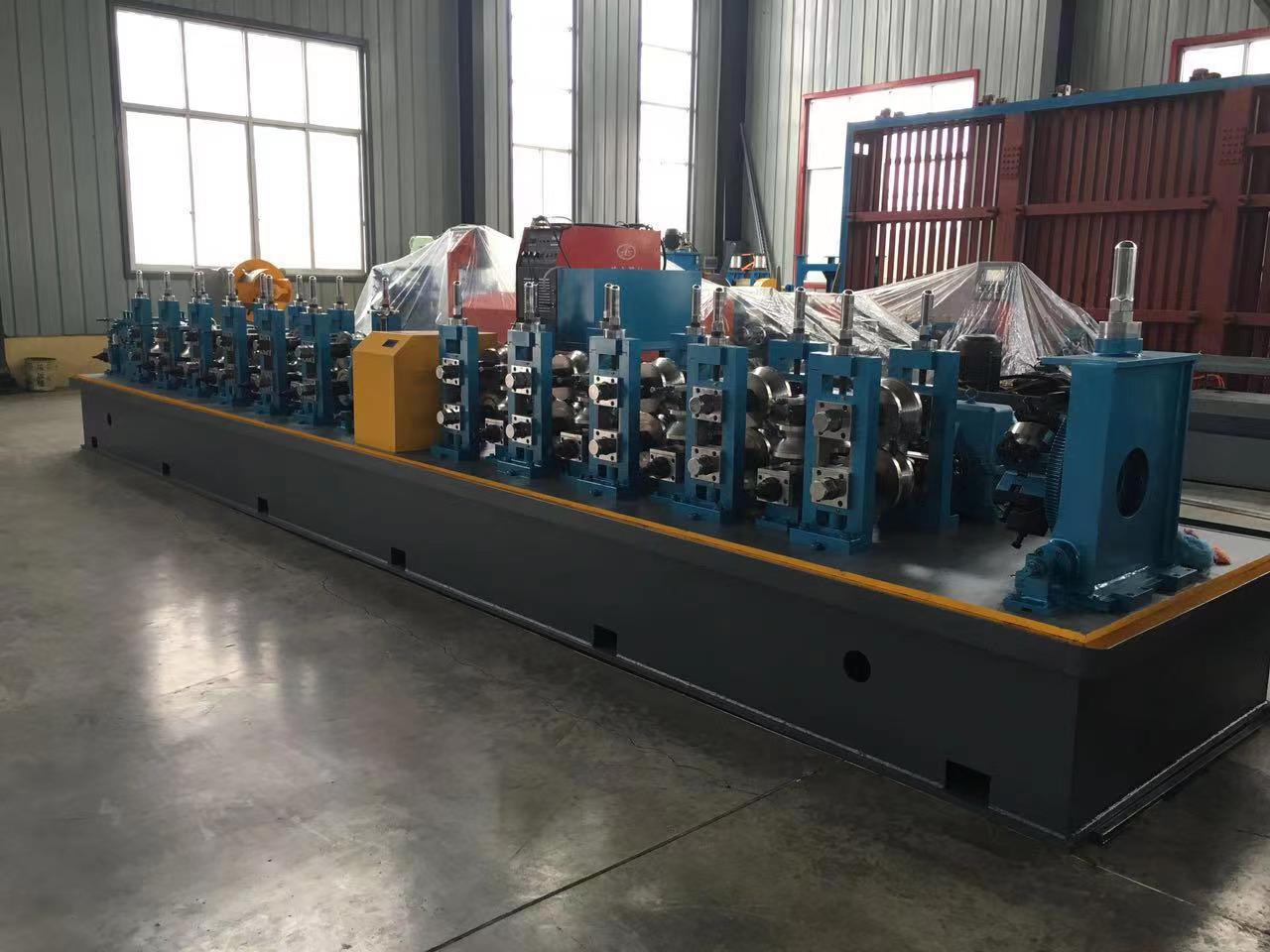

Slow speed laser welding tube making machine is a machine to produce the tube in low speed,this machine is to meet the demand of customer who want low production and have low budget for the machines.

Suitable material:

1. Stainless steel
2. Galvanized steel
3. Low carbon steel

Finished tube shape:

1. Round tube
2. Square tube
3. Rectangular tube

The composition of the Slow speed laser welding tube making machine：

1. Decoiler
2. Roll former
3. Laser welder
4. Grinding equipment
5. Cooling system
6. Sizing and straightening device
7. Cutting to length device
8. Receive table

The introduction for each part:

1.Double head decoiler

• Steel Strip can load: each side loading 1tons.
• Manual expansion mandrel.
• Max coil OD: 1,500 mm
• Coil ID: 450 ~ 550 mm

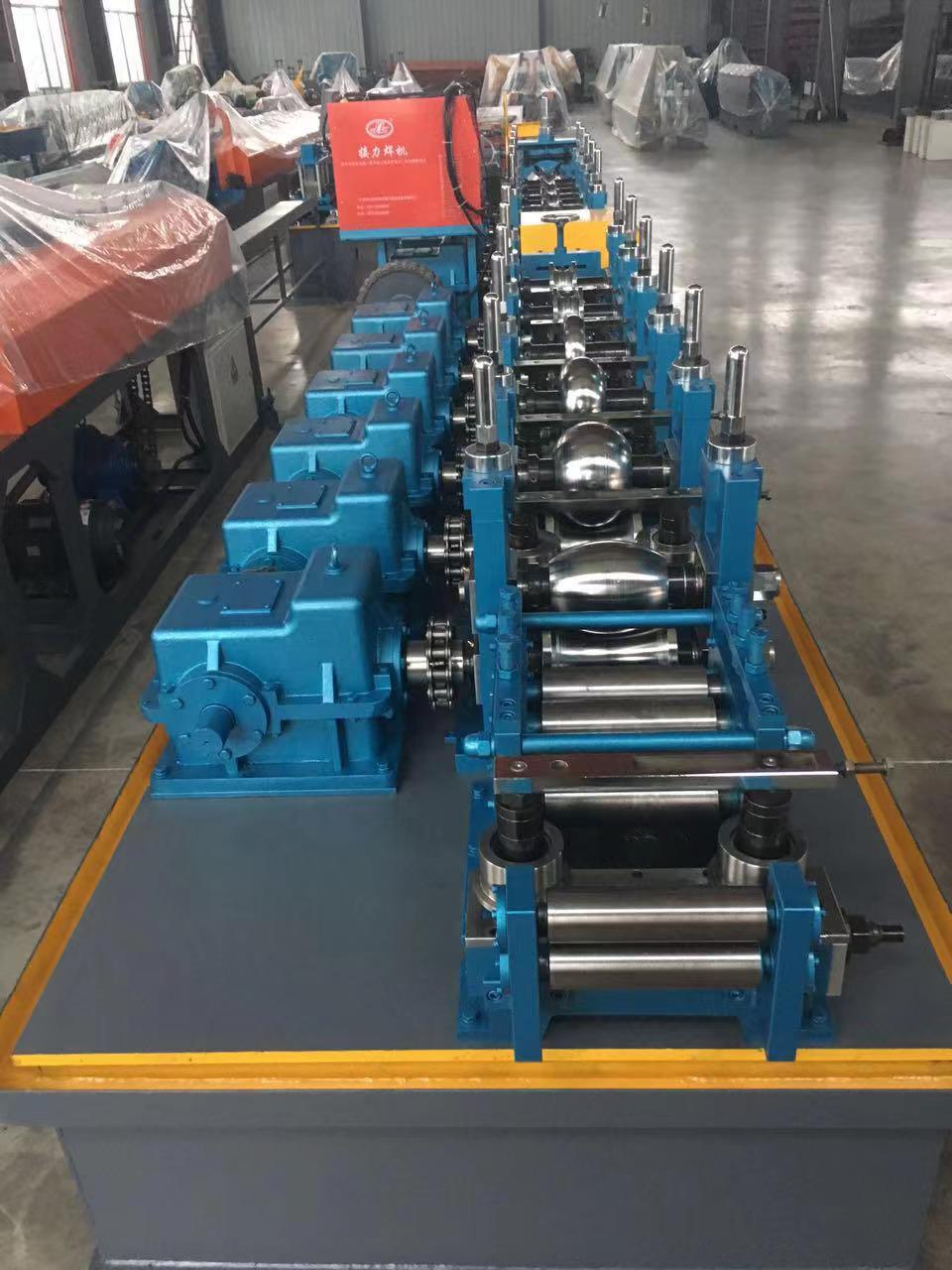

2.Forming unit

• Guidance holder 2 sets: combined with feeding and Three roller welded bead control equipment
• Horizontal stand, 7 sets. The main axle uses the 40Cr, and with tempering, high frequency quench, accurate grinding, rust prevention. The raw materials of stand is HT200 material.

A.ZP40S tube making machine Horizontal shaft O.D is Ф40, Vertical shaft O.D isФ25, Turkey head shaft O.D is Ф25 .

• Vertical stand, 8 The main axle uses the 40Cr, and with tempering, high frequency quench, accurate grinding, rust prevention. The raw materials of stand is HT200 material.
• Spiral gear box drive system, 1 set.
• Machine bed, 1 set:
• Universal drive shaft connecting system, 1 sets

3.Welding system

• TIG welder and welding shelf , 1 set .
• Machine bed 1 set
• Welding device: the welder is DC-500

4.Grinding equipment

• Grinding heads, 3 sets.
• Vertical stand, 2 sets
• Machine bed, 1 set.

5.Cooling system:Water cycle pipe, 1 set.

6.Sizing and straightening device

• Vertical stand, 4 sets.
• Horizontal stand, 4 sets.
• Turkey head, 2 sets.
• Spiral gear box drive system, 1 set.
• Singe Drive motor

7.Automatic cutting to length device:Flying saw cutting

8.Run-out table:1 set
