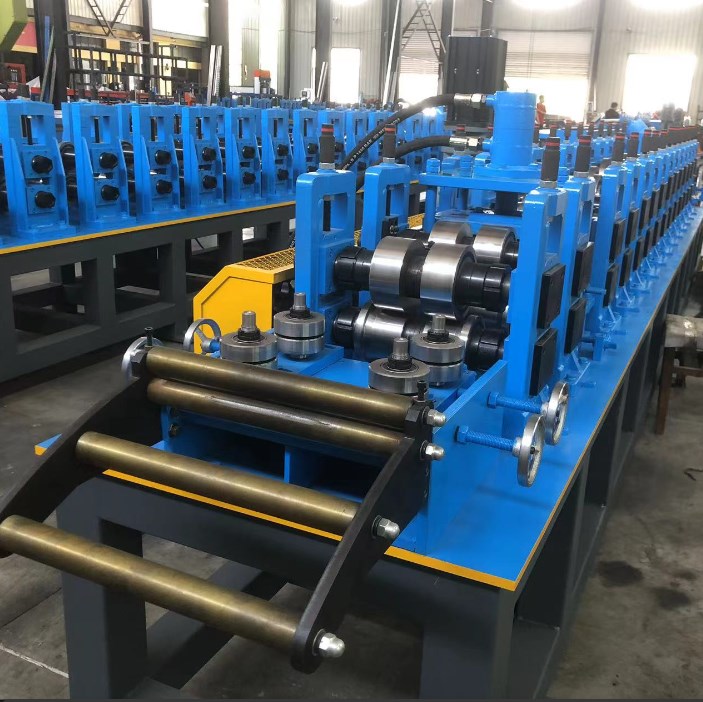

Picking beams or Z beam rolling forming machine
Picking beams or Z beam rolling forming machine is designed to make the Z beams or picking beams in batch fully automatically. Shelves can be fitted into these picking beams, and then used to store loose goods or pick items from them. ZS-60P Z beam this profile, made of a Z-profile welded to a four-hook connector
at each end, is folded to create a raised edge into which shelves can be placed. This beam is used to create picking levels in pallet rack installations. Z-Beam Boltless Shelving Roll Forming Machine
Picking beams or Z beam Rivet Shelving rolling forming machine
Work Flow of Picking beams or Z beam Rivet Shelving rolling forming machine

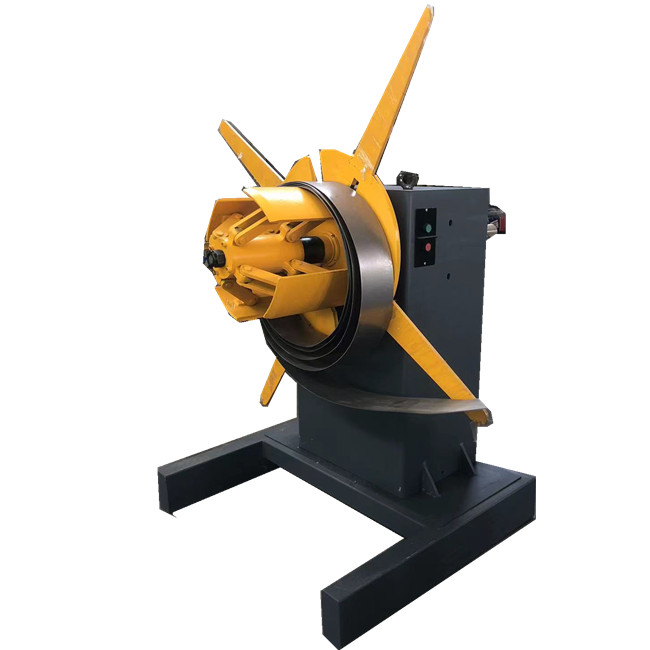

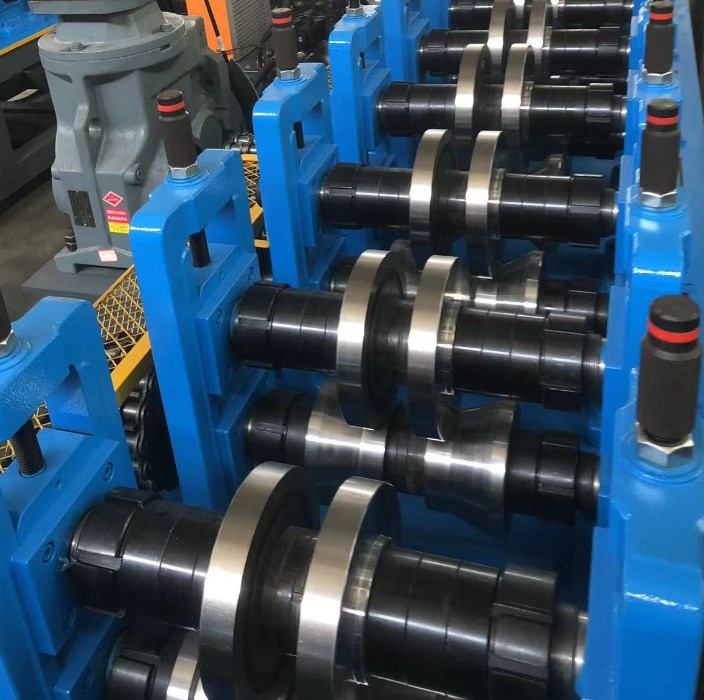

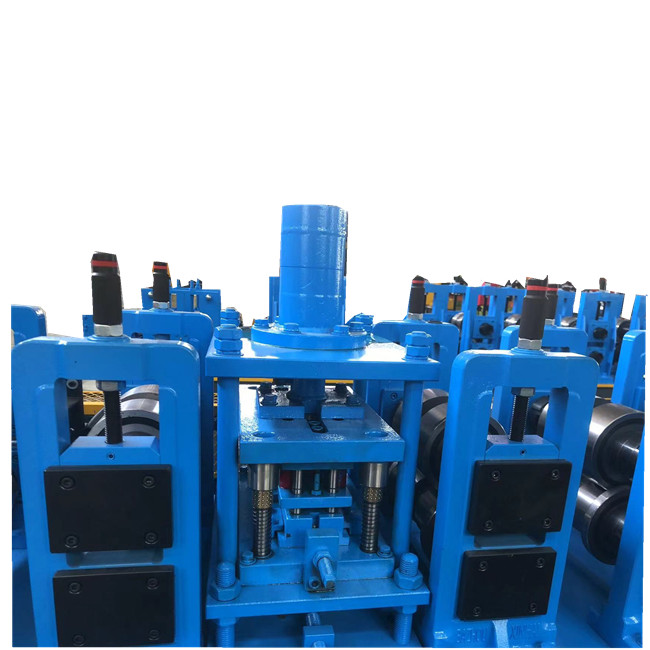

Decoiler→Feeding Guide Device→Leveling Device→Punching Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack
Advantages of Z beam Rivet Shelving rolling forming machine
- Top accuracy, the accuracy could be controlled within 0.5mm.
- Before punching, higher in speed and lower cost.
- Use molding frame, when higher speed, it can also work steady.
- Big hydraulic station with cooling fan for powerful shearing.
- Servo motor shearing to enhance the working speed.
- With the protection cover for safety.

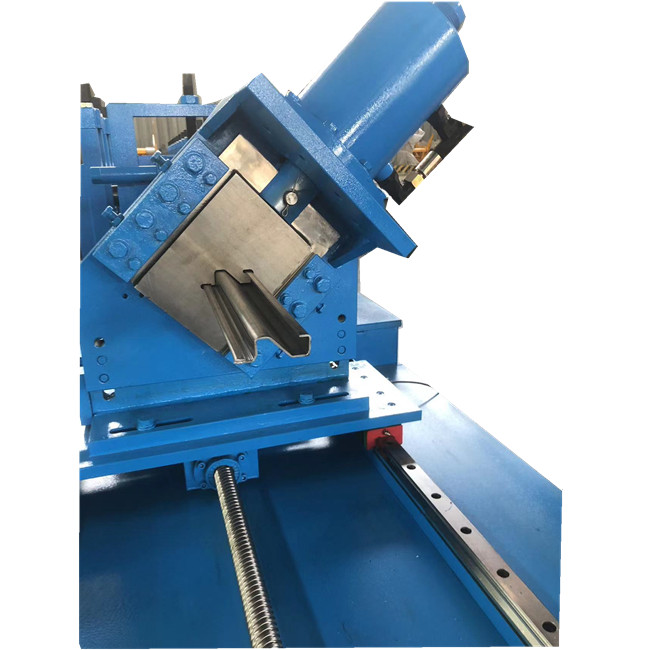

- Hydraulic shearing for cutter the corner.
Picking beams or Z beam Rivet Shelving usage and application.
