Fully automatic U channel for drywall U stabilizer rolling machine

Fully automatic U channel for drywall U stabilizer rolling machine is designed to make the U channel in the sped of 70 to 120 meter per minute in a fully automatic way.

Fully automatic U channel for drywall U stabilizer rolling machine

Fully automatic U channel for drywall U stabilizer rolling machine is designed to make the U channel in the sped of 70 to 120 meter per minute in a fully automatic way. It is composed by the following elements: 1.5 T double head hydraulic automatic decoiler, Coil feeding & Leveling system, roll forming system set 1 Gear box transmission, servo fly cutting system, PLC control station, Hydraulic system set 1 YUKEN STANDARD, Packing system Full automatically and Tools & Spare parts.  Here we take one drawing profile for your reference:

Fully Automatic U Channel For Drywall U Stabilizer Rolling Machine

Fully automatic U channel for drywall U stabilizer rolling machine pictures for your reference:

Fully automatic U channel for drywall U stabilizer rolling machine

Work flow for automatic U stabilizer line:

Fully automatic U channel for drywall U stabilizer rolling machine

More details of the elements Fully automatic U channel for drywall U stabilizer rolling machine

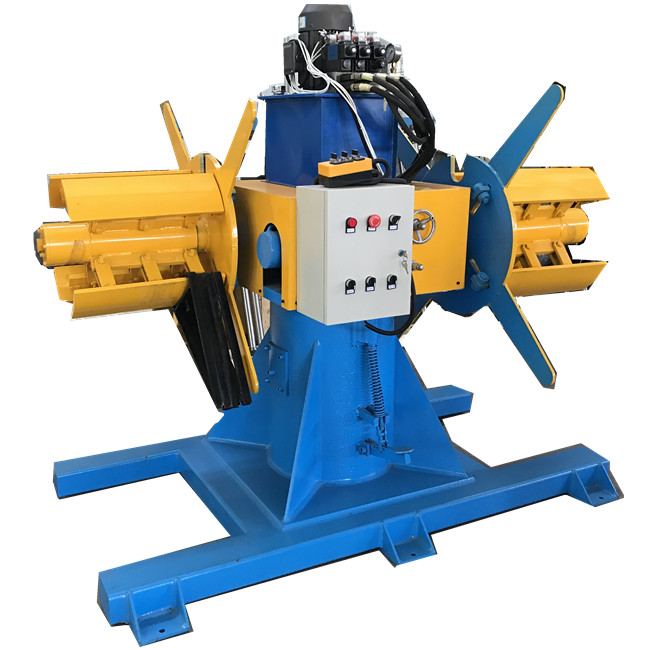

If you have more sizes of U, we do suggest to use the double head decoiler, as the machine working speed is very fast and you need to change the coil frequently.

Fully automatic U channel for drywall U stabilizer rolling machine

As to the main rolling forming machine, if you want to reach the higher speed like to 70 meter per minute, the transmission only use the gearbox type and molding frame for working steady.

Fully automatic U channel for drywall U stabilizer rolling machine

As to the shearing part, we use the servo tracking flying shearing system to make sure the working speed can reach 70 to 80 meter per minute.

Fully automatic U channel for drywall U stabilizer rolling machine

As to the package system:

All the package system will be made fully automatically. By this way, the machine working is fully automatically, normally one worker for package and load the coil then okay. And then working speed is higher.

Fully automatic U channel for drywall U stabilizer rolling machine Fully automatic U channel for drywall U stabilizer rolling machine

Here is the machine working videos for your reference:
